Groen HY-6SM HyPlus Steamers (Countertop & Floor)
Description

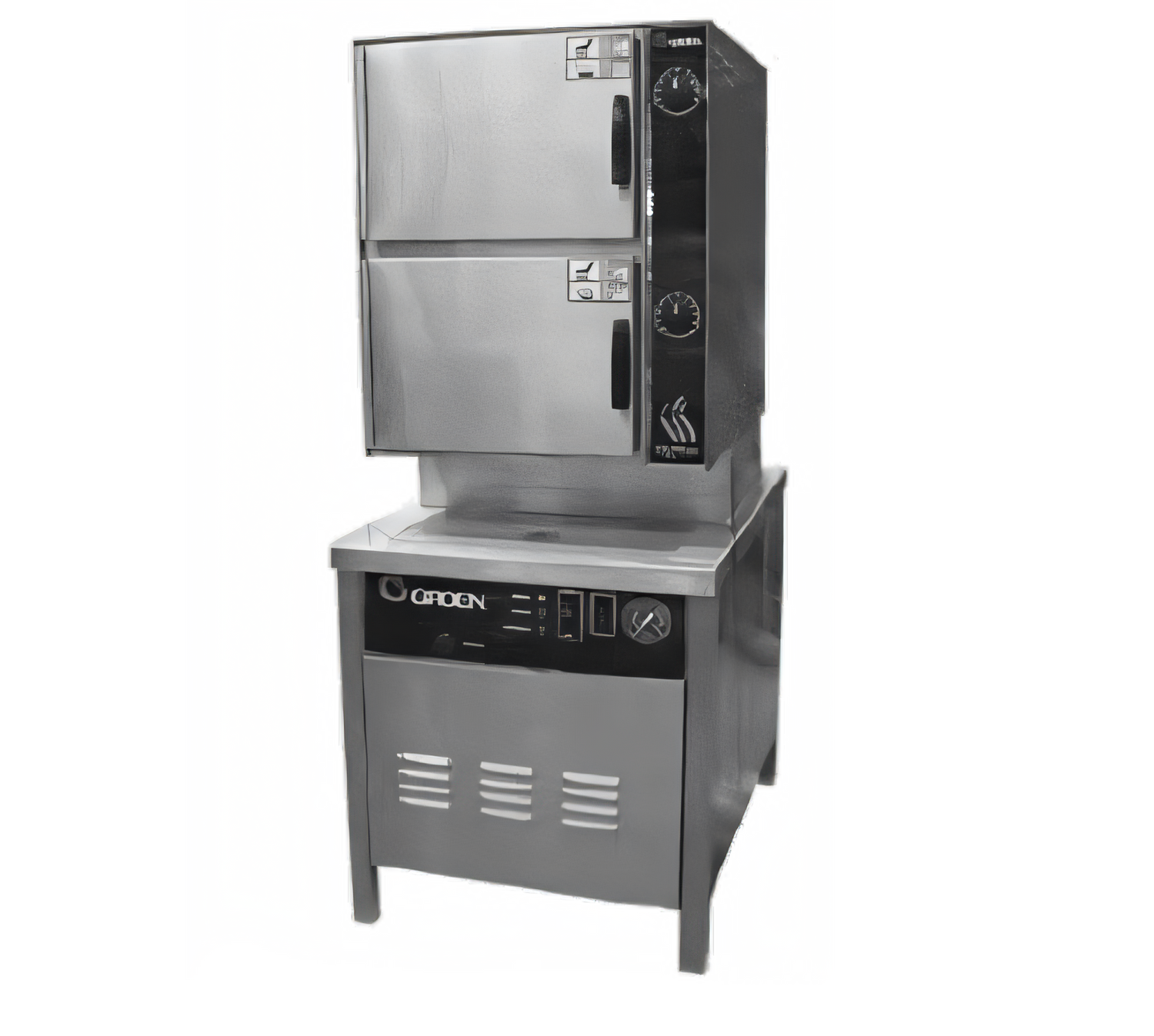

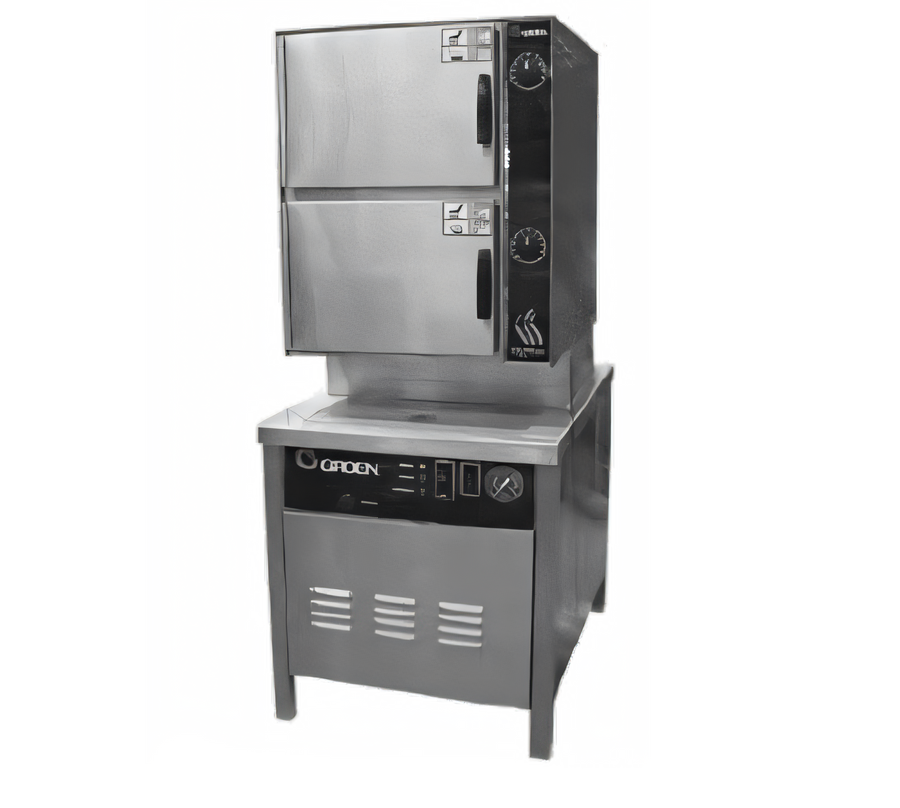

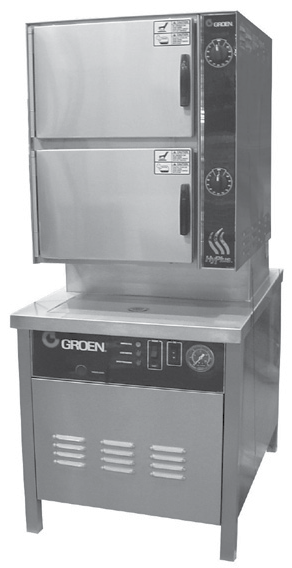

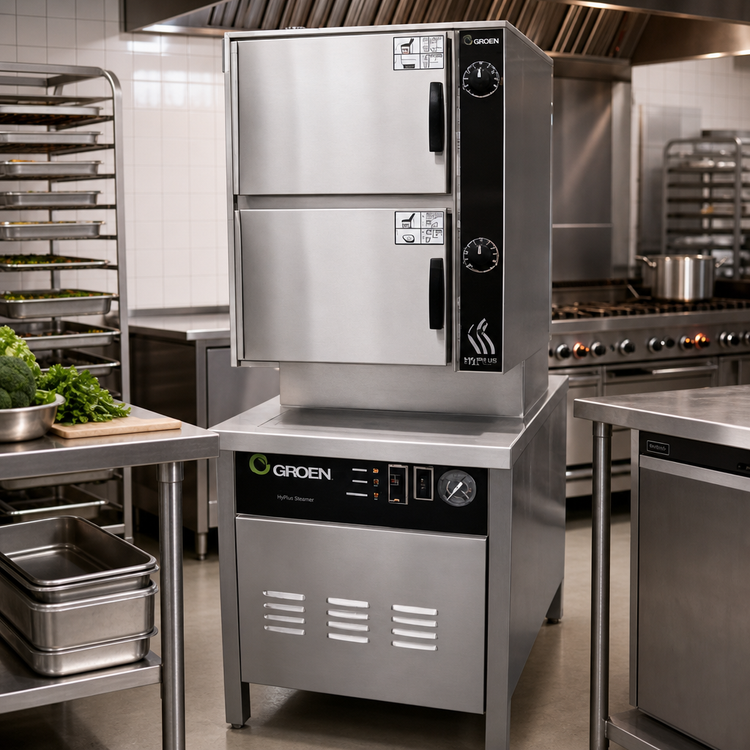

Groen HyPlus™ HY-6SM Pressureless Direct-Steam Steamer
Two-cavity • 6-pan • 24" cabinet baseBoost production while preserving food quality with the Groen HyPlus™ HY-6SM. This heavy-duty, pressureless steamer connects to your existing boiler to deliver fast, even steam without babysitting or pressure build-up.
Why chefs choose HyPlus™
- Pressureless design—safely open the door mid-cycle to add or remove pans.
- Two independent cavities; each holds (3) 12" × 20" × 2-½" pans (6 total).
- High-velocity side-mounted blower for uniform steam distribution.
- Individual 60-minute timers plus continuous-steam setting for batch or à-la-carte service.
- Field-reversible, insulated stainless-steel doors with slam-shut positive latch and replaceable gasket.
- Integral drip sink and condensate drain keep work areas clean and safe.
- All-stainless construction with removable pan racks and side service panel for quick cleanup.
- Adjustable bullet feet and compact 24" footprint fit existing cooklines.
- Made in the USA and fully UL & NSF listed.
Performance highlights
- Requires 52 lb/hr of clean, food-safe steam at ≤ 15 psi (½" NPT).
- Low electrical demand—115 V, 1-phase, 4 A (15 A circuit).
- Hidden magnetic door switch stops steam when the door opens for operator safety.
Specifications
| Model | HY-6SM (HyPlus™) |
|---|---|
| Compartments | 2 pressureless cavities |
| Pan capacity | (3) 12" × 20" × 2-½" pans per cavity | 6 total |
| Exterior dimensions | 24 1/8" W × 34 13/16" D × 57 3/16" H (613 × 868 × 1453 mm) |
| Steam connection | ½" NPT, 52 lb/hr @ ≤ 15 psi |
| Cold water inlets | (2) ⅜" NPT for condensate spray |
| Drain | 1 ¼" NPT free-venting |
| Electrical | 115 V, 1-ph, 60 Hz, 4 A |
| Construction | 304 stainless steel cabinet, cavities, doors & racks |
| Certifications | UL, NSF |
| Origin | Made in the USA |
Recommended water quality
Meeting these limits helps extend service life and maintain warranty coverage:
- pH: 7 – 9
- Total dissolved solids: 30 – 60 ppm
- Hardness: < 60 ppm
- Chlorides: < 30 ppm
- Chlorine/Chloramine: < 0.1 ppm
- Silica: < 12 ppm
Warranty
1-year parts & labor standard. Register for a FREE Groen start-up within 30 days of shipment to receive an additional 1-year parts & labor coverage.
