Groen HY-6SG-36 HyPlus Steamers (Countertop & Floor)
Groen HY-6SG-36 HyPlus Steamers (Countertop & Floor) is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Description

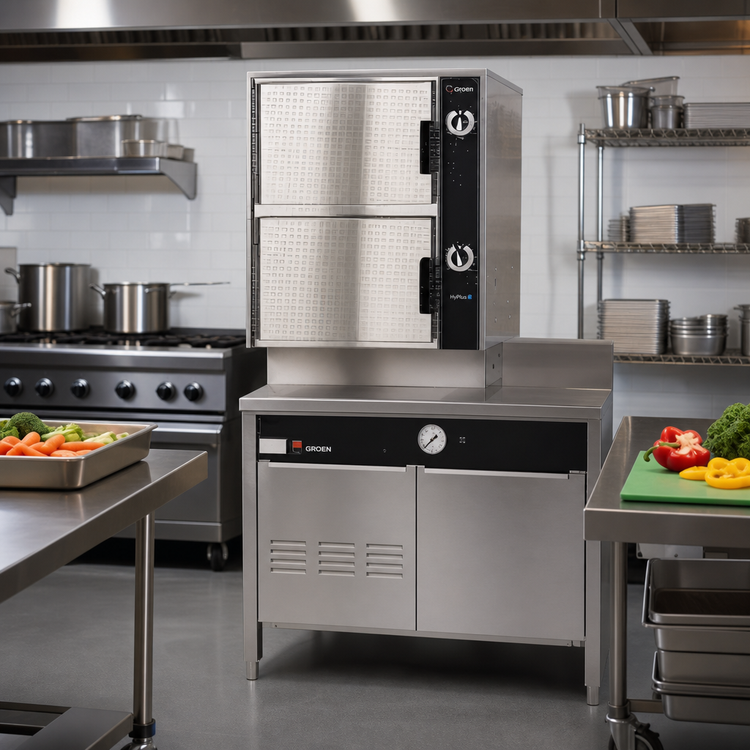

Groen HyPlus™ Gas Pressureless Steamer – Model HY-6SG-36
Twin-cavity • 6-pan capacity • 36" cabinet base • 200,000 BTUTurn high-volume batch cooking into a fast, energy-smart process. The Groen HyPlus™ HY-6SG-36 couples a 200,000 BTU atmospheric boiler with two independent pressureless steam cavities, giving you the throughput of a boiler-based system without wait times or pressurized door locks. Built and serviced in the USA, it’s the go-to solution for schools, healthcare, cafeterias and production kitchens that demand day-in, day-out reliability.
Why chefs choose HyPlus
- True pressureless design – open doors any time with zero blow-down delay.
- High-velocity side-mounted blower in each cavity for even, rapid steam distribution.
- Automatic boiler drain & blow-down when the power switch is turned off, reducing scale build-up.
- Low-water & over-pressure shutdown safeguards for worry-free operation.
- Reversible, insulated stainless doors with one-piece replaceable gasket and slam-shut latch.
- All-stainless cabinet, frame and pan racks for a lifetime of corrosion-free service.
- Wide drip sink under the doors keeps floors dry and safe.
- Electronic ignition—no standing pilot to waste fuel.
- Adjustable bullet feet included; optional flanged feet and single-water-connection kit available.
Built for volume

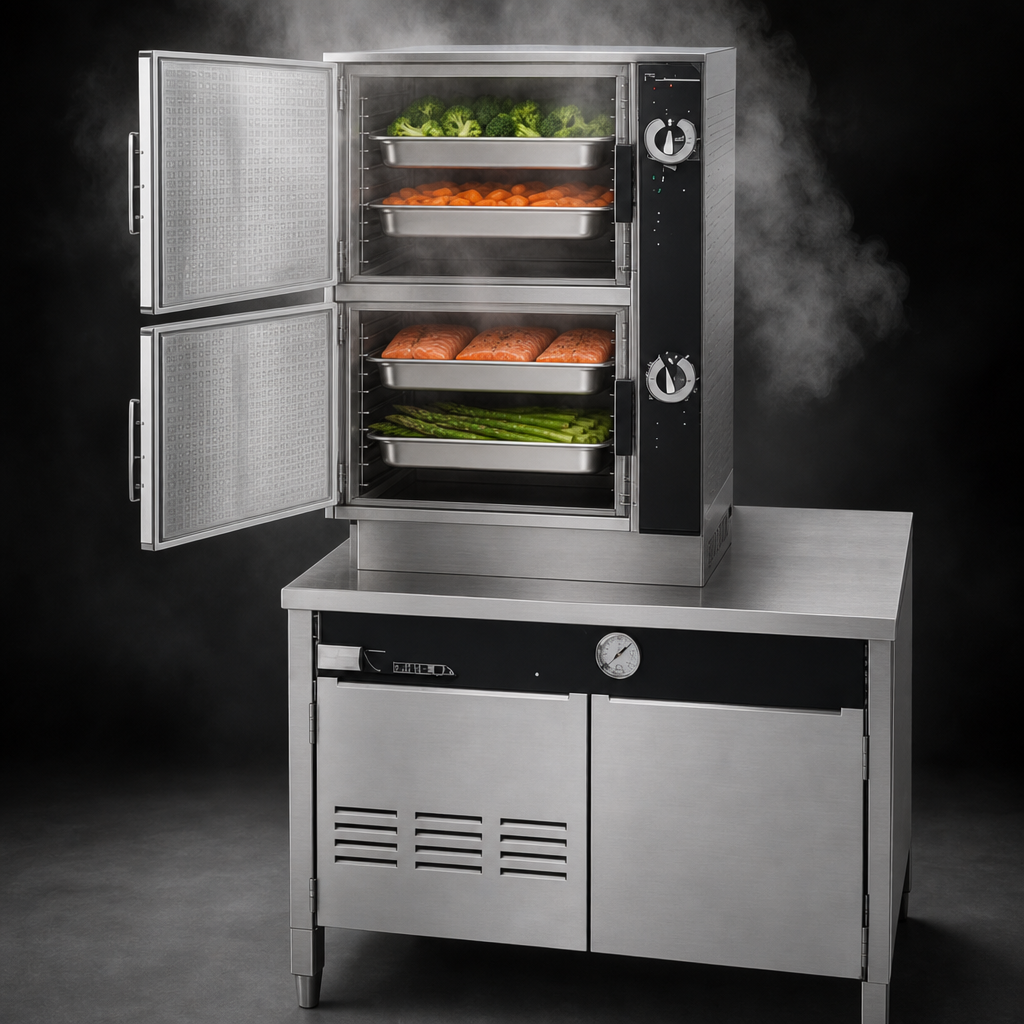

Each cavity holds up to three standard 12" × 20" × 2 ½" pans (or six 1" pans / two 4" pans), letting you steam 36 hotel pans per hour with no flavor or odor transfer between compartments.
Technical specifications
Model | HY-6SG-36 |
---|---|
Compartments | 2 independent pressureless cavities |
Total pan capacity | 6 × 12" × 20" × 2 ½" pans |

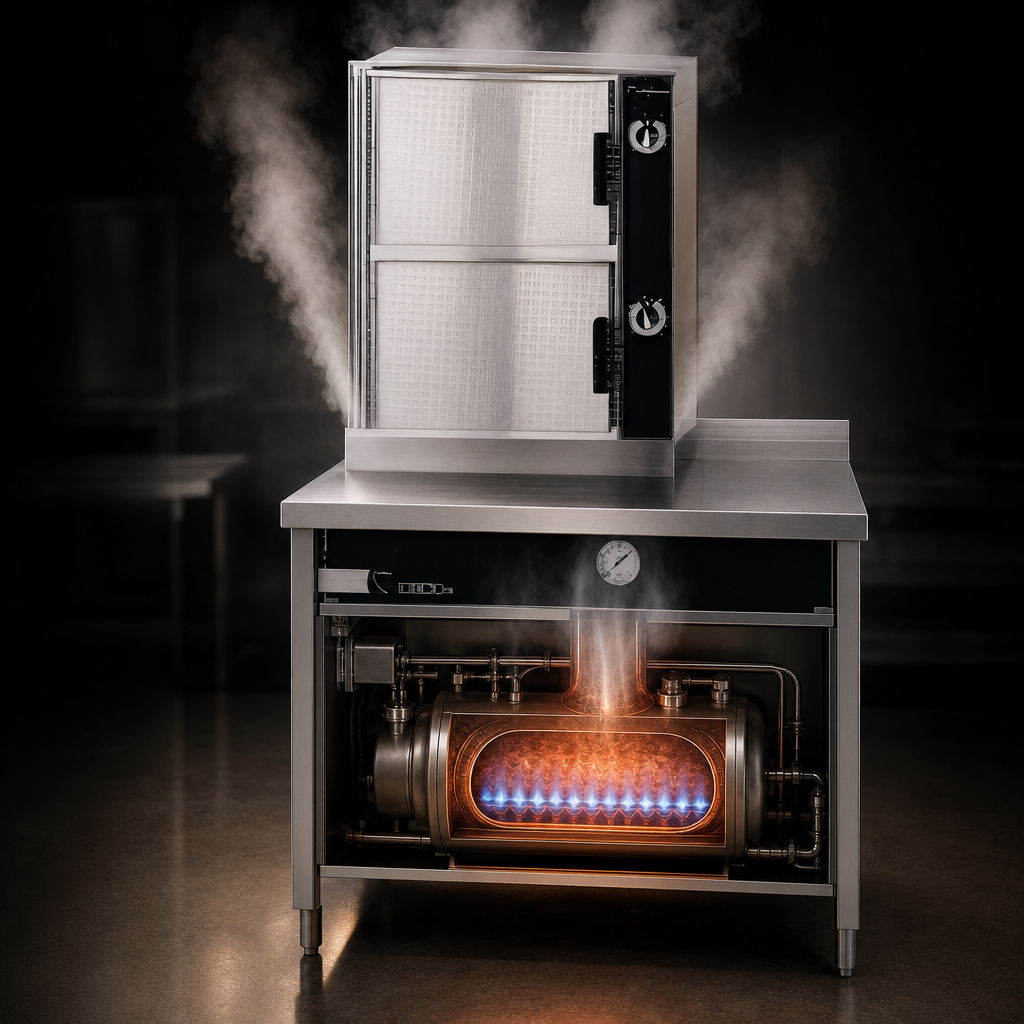

Steam generator | 200,000 BTU/hr gas-fired atmospheric boiler (3.7 BHP) |
Gas type | Natural 5–14" W.C. / Propane 11–14" W.C. |
Water connections | (2) ½" NPT cold water inlets (boiler & condensate spray) |
Drain connection | 1 ¼" NPT free-venting drain |
Gas connection | ½" NPT |
Steam take-off | ½" NPT for adjacent equipment |
Electrical | 115 V, 1-phase, 60 Hz, 4 A |
Exterior dimensions | 36" W × 34" D × 57 ⅛" H (approx.) |
Construction | All stainless steel—cavities, doors, cabinet & frame |
Certifications | CSA-Star, UL, NSF, ASME-code boiler, CSD-1, Made in USA |
Standard warranty: 12 months parts & labor (24 months or 4,000 hours with completed Groen Free Start-Up). Extended coverage available at time of purchase.
Specifications are based on the latest manufacturer’s data and are subject to change without notice.
