Groen HY-6SG-24 HyPlus Steamers (Countertop & Floor)
Description

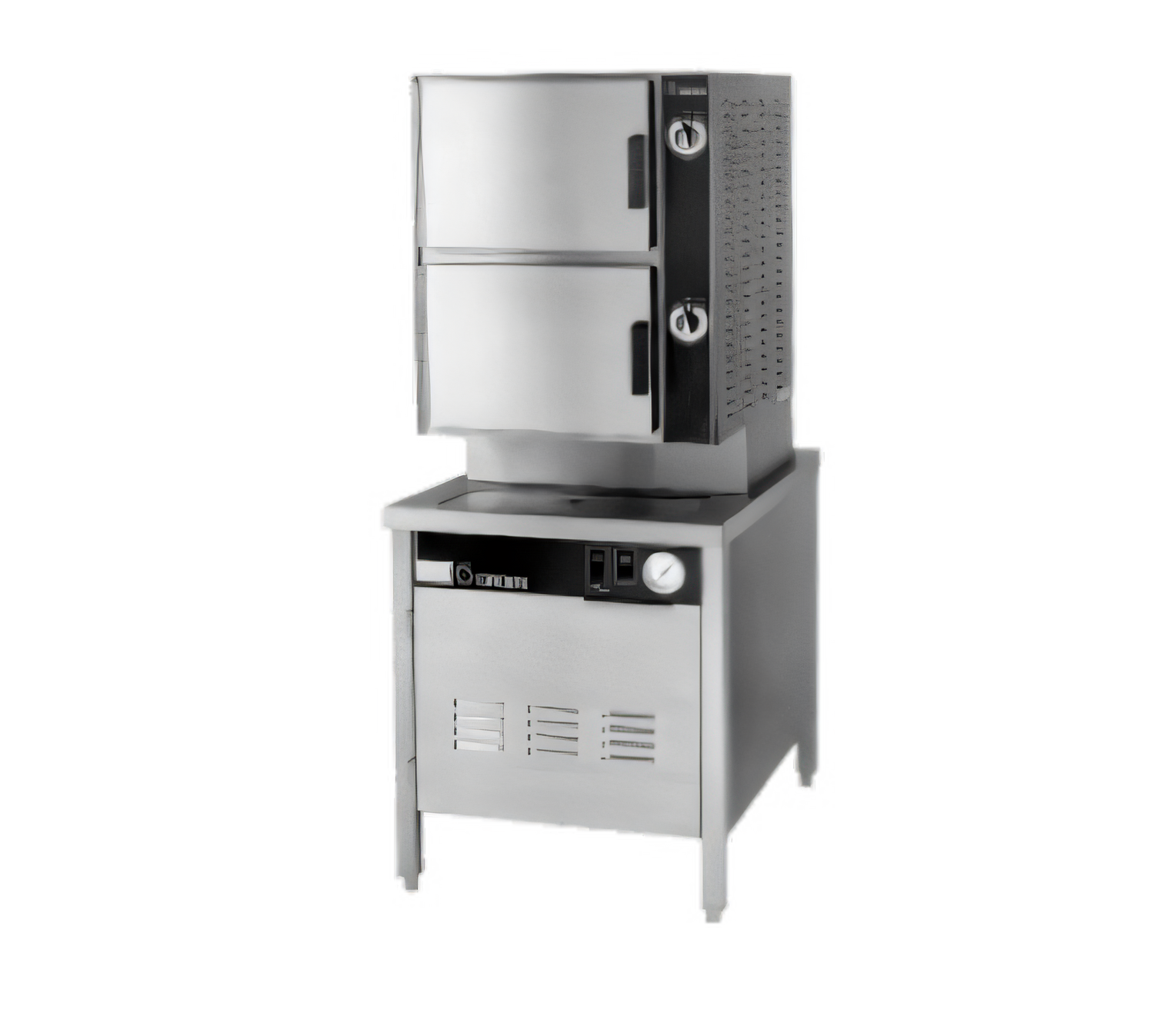

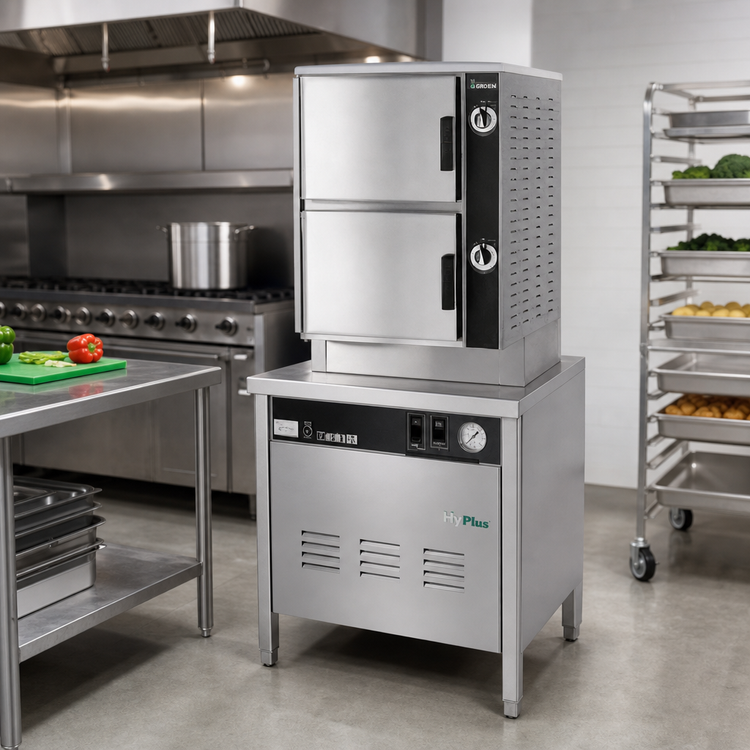

Groen HyPlus™ Gas Pressureless Steamer
2-Compartment • 24" Cabinet Base • 200,000 BTU (CSD-1)Built for high-volume kitchens that refuse to compromise on speed, consistency or footprint, the HyPlus™ delivers powerful atmospheric steam in two independent cavities while fitting on a compact 24 inch base. From all-stainless construction to automatic boiler blow-down, every detail is engineered for years of worry-free service.
Why You’ll Love It

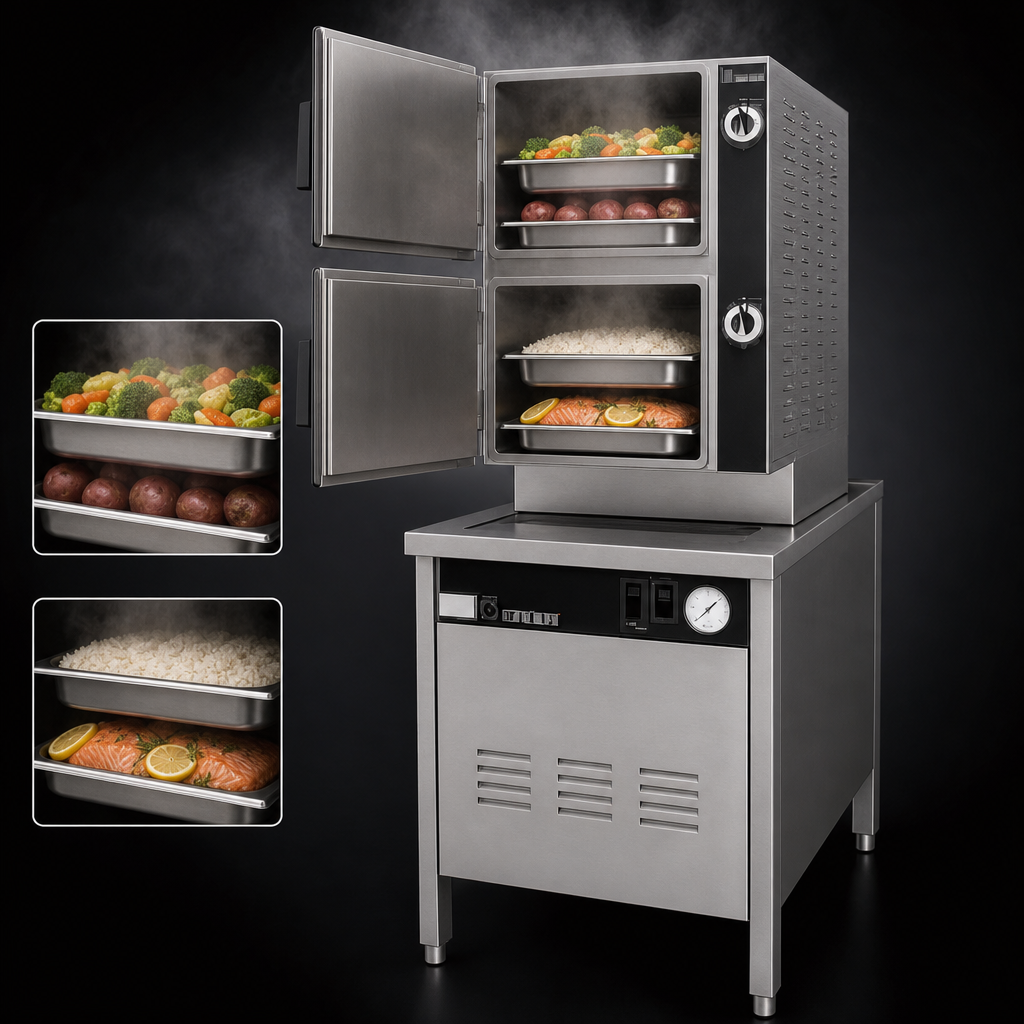

- True pressureless steaming – cooks at 212 °F so doors can be opened during the cycle for continuous production.
- High-output gas boiler – 200,000 BTU, 3.7 BHP generator with electronic ignition supplies instant, dry steam to both cavities.
- 6-pan capacity – each compartment holds (3) 12 × 20 × 2-1/2" pans (or 6 x 1" / 2 x 4" alternatives).
- Uniform results – side-mounted blower forces steam between and inside loaded pans for even cooking.
- Field-reversible, insulated doors with one-piece replaceable gasket and magnetic interlock that stops steam when opened.
- Automatic boiler drain – when the power switch is turned off the generator cools, then self-drains to minimize scale build-up.
- Dual ½" water connections plus built-in hot & cold swing faucet simplify installation and clean-up.

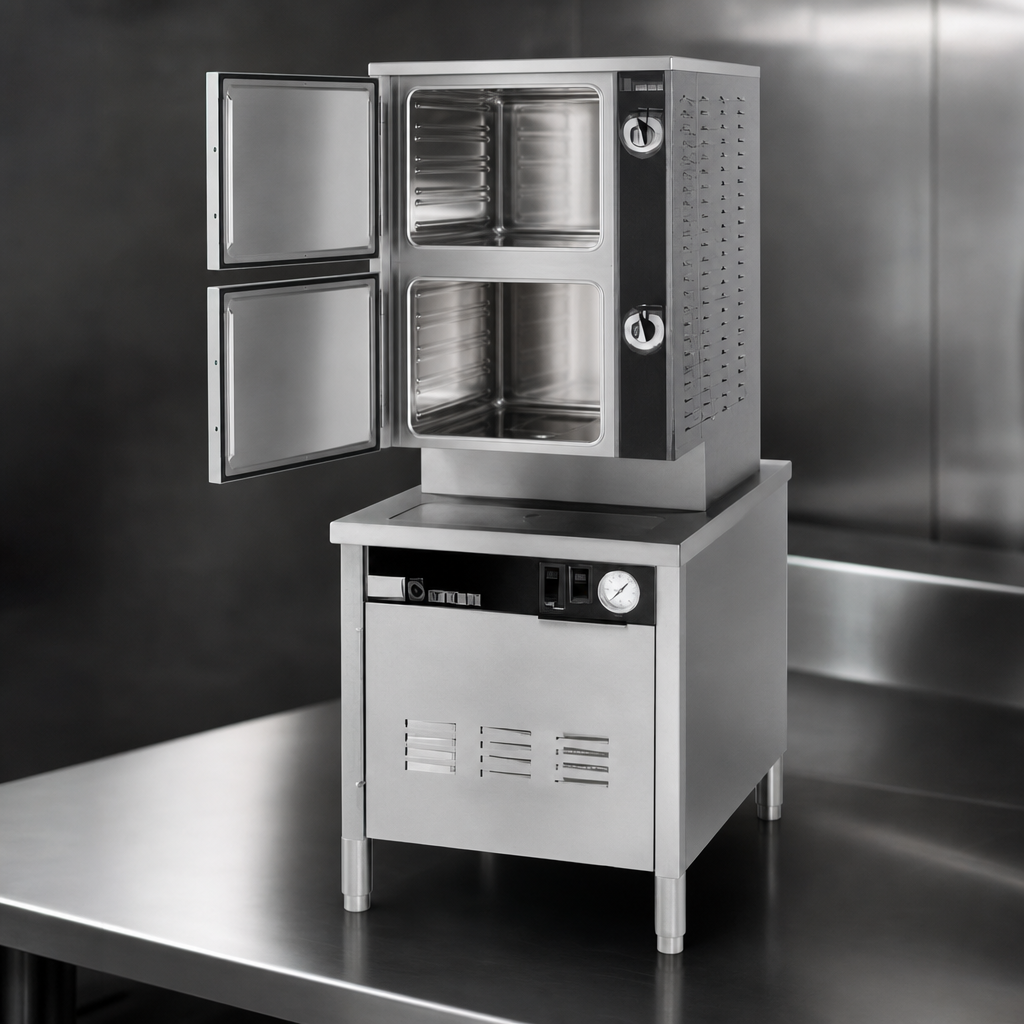

- All-stainless steel cavities, cabinet, pan racks and drip sink for maximum durability and easy sanitation.
- Safety first: low-water cut-off, high-pressure relief, pop safety valve and CSD-1 compliant controls.
- ASME-code boiler, UL and NSF listed; backed by Groen’s nationwide service network.
Technical Specifications
| Compartments | 2 independent cavities (pressureless) |
|---|---|
| Cabinet width | 24 in W (610 mm) |
| Pan capacity (per cavity) | (3) 12 × 20 × 2-1/2" / (6) 1" / (2) 4" |
| Steam generator | 200,000 BTU atmospheric gas boiler, 3.7 BHP, electronic ignition |
| Gas connection | ½" NPT; Natural 5"–14" WC / Propane 11"–14" WC |
| Water connections | (2) ½" NPT cold supplies (boiler & condensate spray) |
| Drain | 1-¼" NPT free-venting |
| Electrical | 115 V, 1 Ph, 60 Hz, 4 A (controls & blower) |
| Construction | 304 stainless steel cabinet, cavities & removable pan racks |
| Certifications | ASME, UL, NSF, CSD-1 |
| Standard warranty | 1-year parts & labor; extends to 2 years/4,000 hrs with free Groen start-up* |
What’s in the Box
- HyPlus™ steamer with adjustable bullet feet
- (2) removable stainless pan racks
- Integrated drip sink with condensate drain
- Hot & cold swing-spout faucet
- Installation & operation manual
Popular Accessories
- Flanged feet for bolting to the floor
- Single water connection kit
- Independent cold-water line to condensate spray
- Water treatment system (recommended after quality test)
*Free factory authorized start-up must be scheduled within 30 days of shipment to receive the extended steamer warranty.
