Groen HY-6SE-36 HyPlus Steamers (Countertop & Floor)
Description

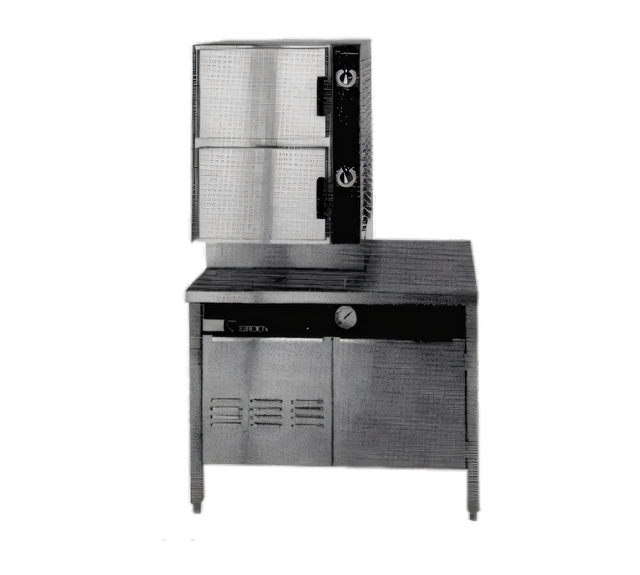

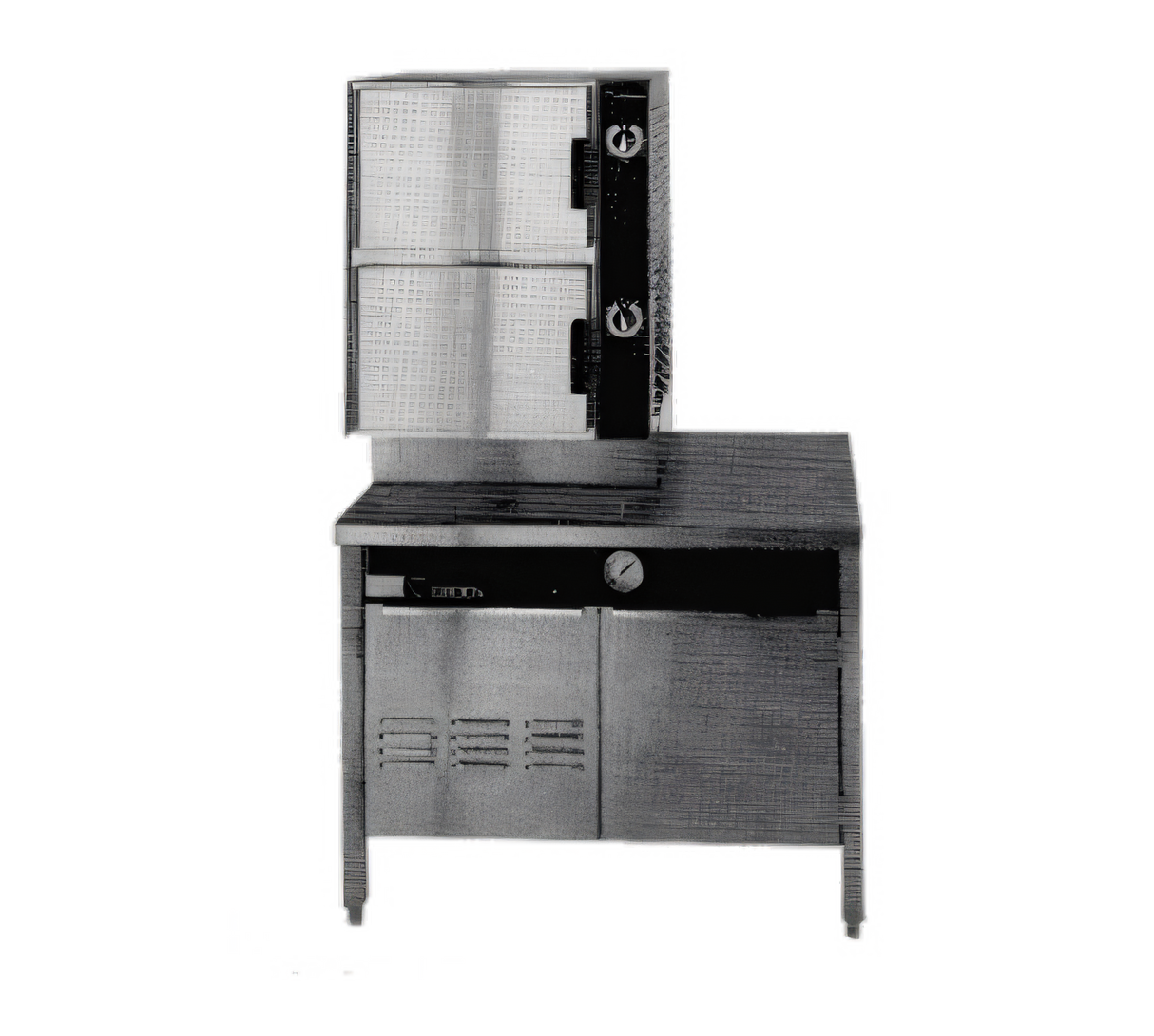

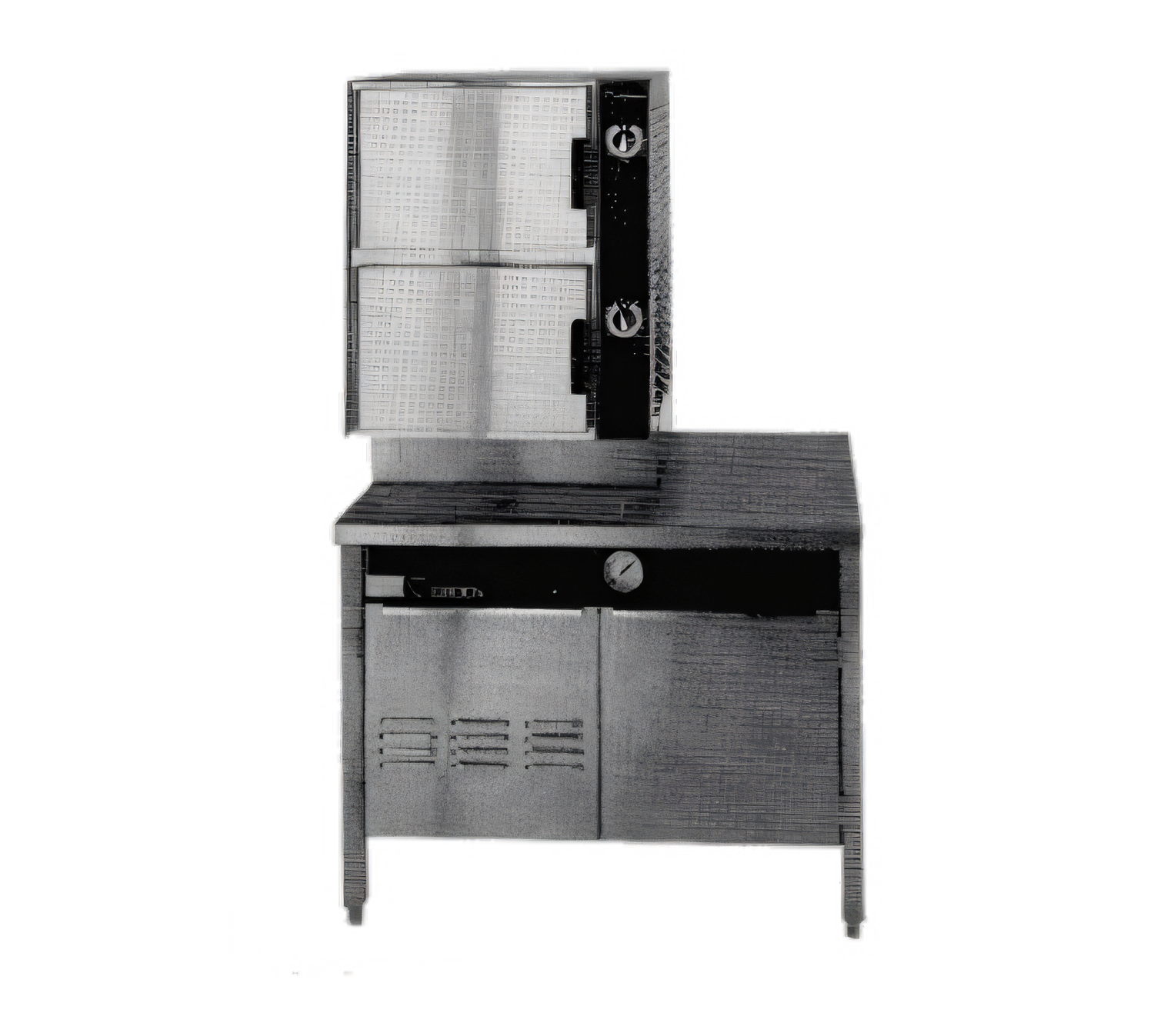

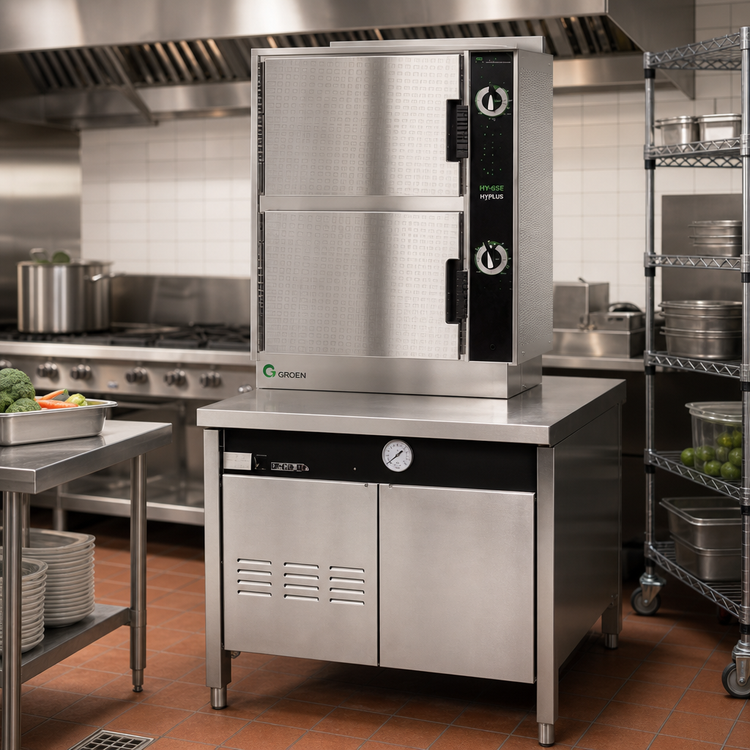

Groen HyPlus™ HY-6SE-36 Pressureless Electric Steamer
36" cabinet base • two independent cavities • six-pan total capacityBuilt in the USA for high-volume, high-reliability steaming, the Groen HyPlus HY-6SE-36 delivers gentle pressureless steam with the throughput of a boiler system—without the maintenance headaches. From K-12 cafeterias to healthcare and full-service restaurants, it’s the workhorse you can count on for perfectly cooked vegetables, seafood, proteins and more.
Why you’ll love it

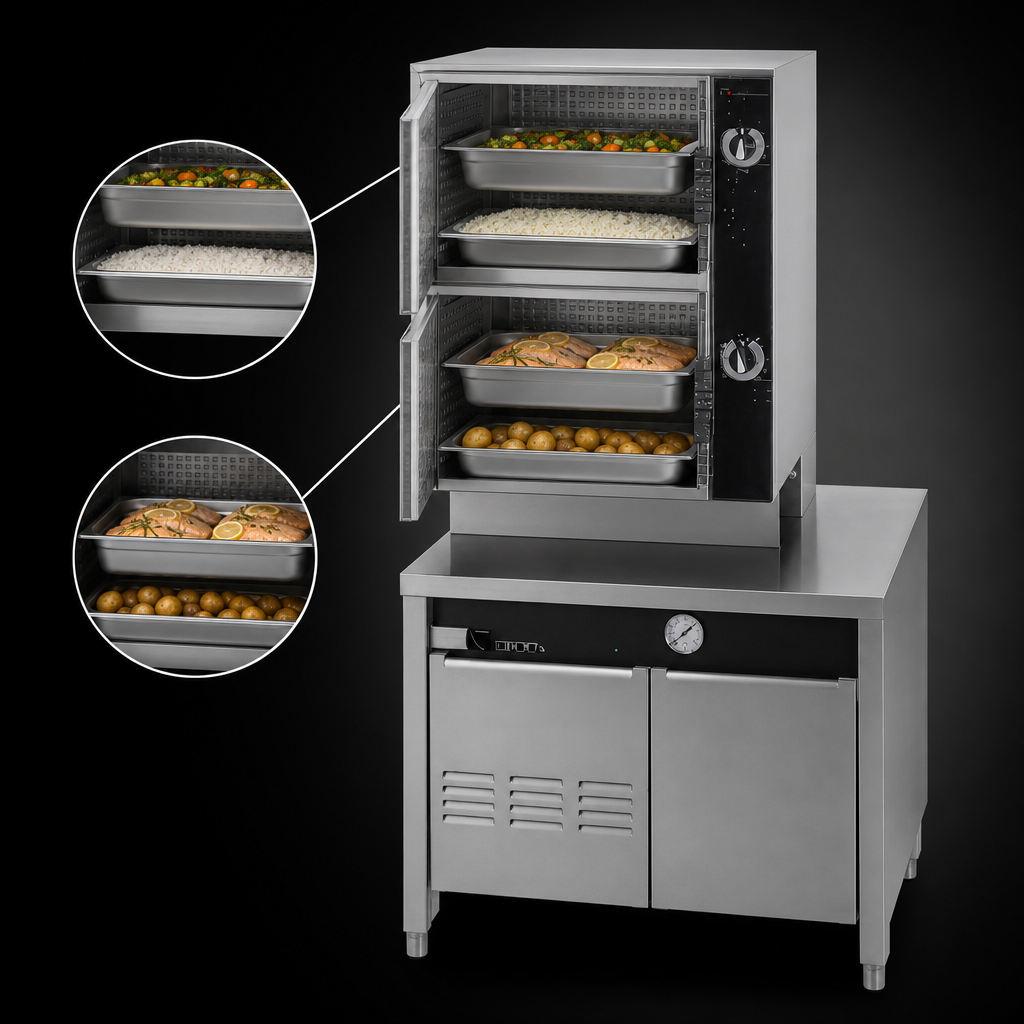

- Two completely independent cavities—steam different foods simultaneously without flavour transfer.
- 6-pan throughput—each cavity holds (3) full-size 12" × 20" × 2-1/2" pans.
- Atmospheric boiler (24, 36 or 48 kW) delivers a continuous 212 °F steam supply at up to 4.7 BHP.

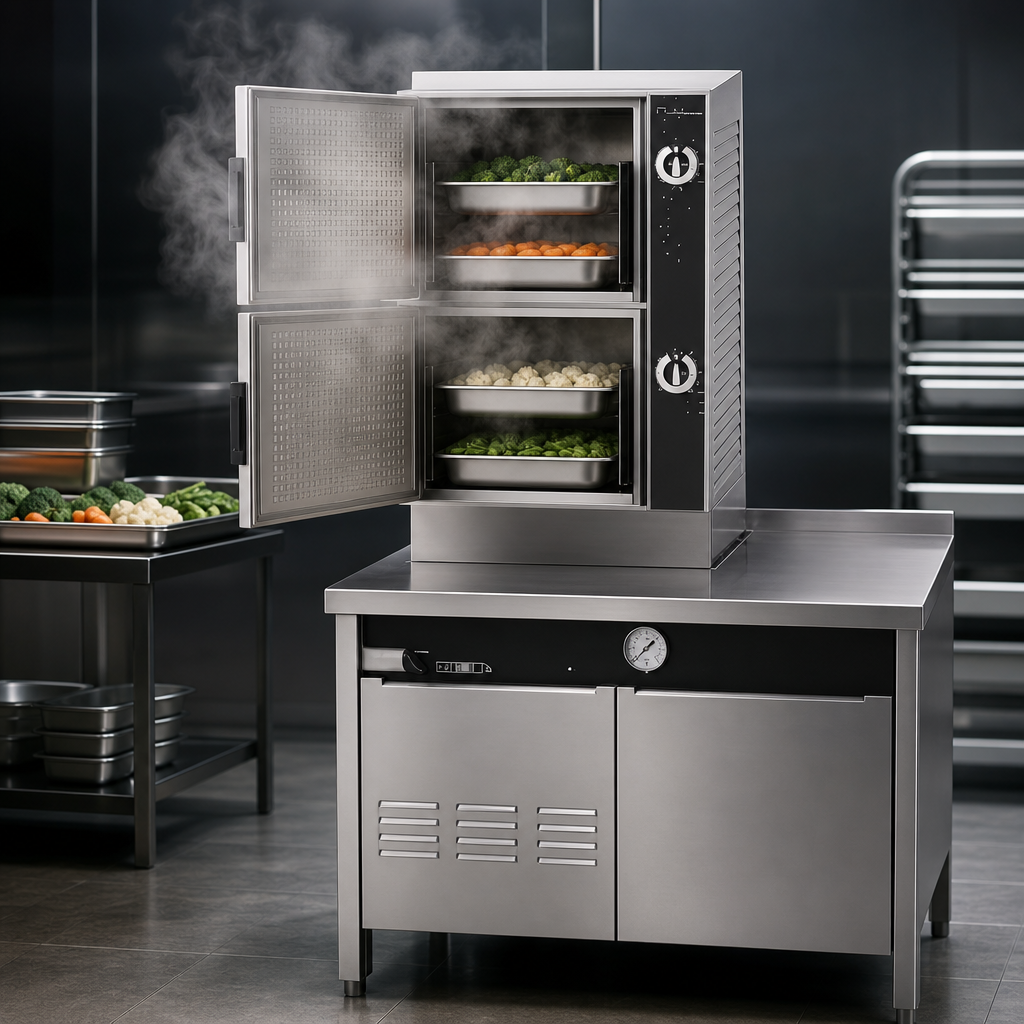

- Pressureless design ends risky door blow-back and lets you open a cavity at any time for batch cooking.
- Side-mounted blower in every cavity floods pans with high-velocity steam for fast, even results.
- Automatic drain & purge—boiler empties itself when switched off (after cooling to 170 °F) to minimise scale build-up.
- Safety first: low-water sensor, over-pressure shutdown, magnetic door interlock and CSD-1 compliance.
- All-stainless construction with removable pan racks and #3 finish exterior for decades of service.
- Dual ½" NPT water connections separate treated and untreated supply lines, maximising boiler life.
Capacity at a glance
| Pan size | Pans per cavity | Total pans |
|---|---|---|
| 12" × 20" × 1" hotel pan | 6 | 12 |
| 12" × 20" × 2-1/2" hotel pan | 3 | 6 |
| 12" × 20" × 4" hotel pan | 2 | 4 |
Electrical selections
| Boiler power | 208 V / 3 ph | 240 V / 3 ph | 480 V / 3 ph |
|---|---|---|---|
| 24 kW (2.2 BHP) | 67 A | 58 A | 29 A |
| 36 kW (3.5 BHP) | 100 A | 87 A | 44 A |
| 48 kW (4.7 BHP) | 134 A | 116 A | 58 A |
Utility requirements
- 208, 240 or 480 V, 3-phase, 60 Hz electrical service (see amp draw above).
- (2) ½" NPT cold-water inlets (treated & untreated).
- 1-1/4" NPT open drain/vent.
- ½" NPT steam power take-off provided for adjacent equipment.
Certifications & compliance
- UL & UL Sanitation listed
- NSF certified
- ASME-code boiler, National Board registered (15 psi)
- CSD-1 compliant
- Made in USA
Warranty
1-year parts & labour (2 years / 4,000 hrs on steamers with authorised start-up). Extended coverage available at time of purchase. Phone support: 888-994-7636.
