Groen HY-10SG-36 HyPlus Steamers (Countertop & Floor)
Description
Groen HyPlus™ HY-10SG Pressureless Gas Steamer
36" cabinet base • two independent cavities • 200,000 BTUBring high-volume, high-quality steaming to your kitchen with the Groen HyPlus™ HY-10SG. This Made-in-USA pressureless steamer pairs a rugged 200,000 BTU gas boiler with two fast-recovery cavities—delivering consistent, atmospheric steam at 212 °F for everything from vegetables to seafood, proteins, and more.
Why you’ll love it

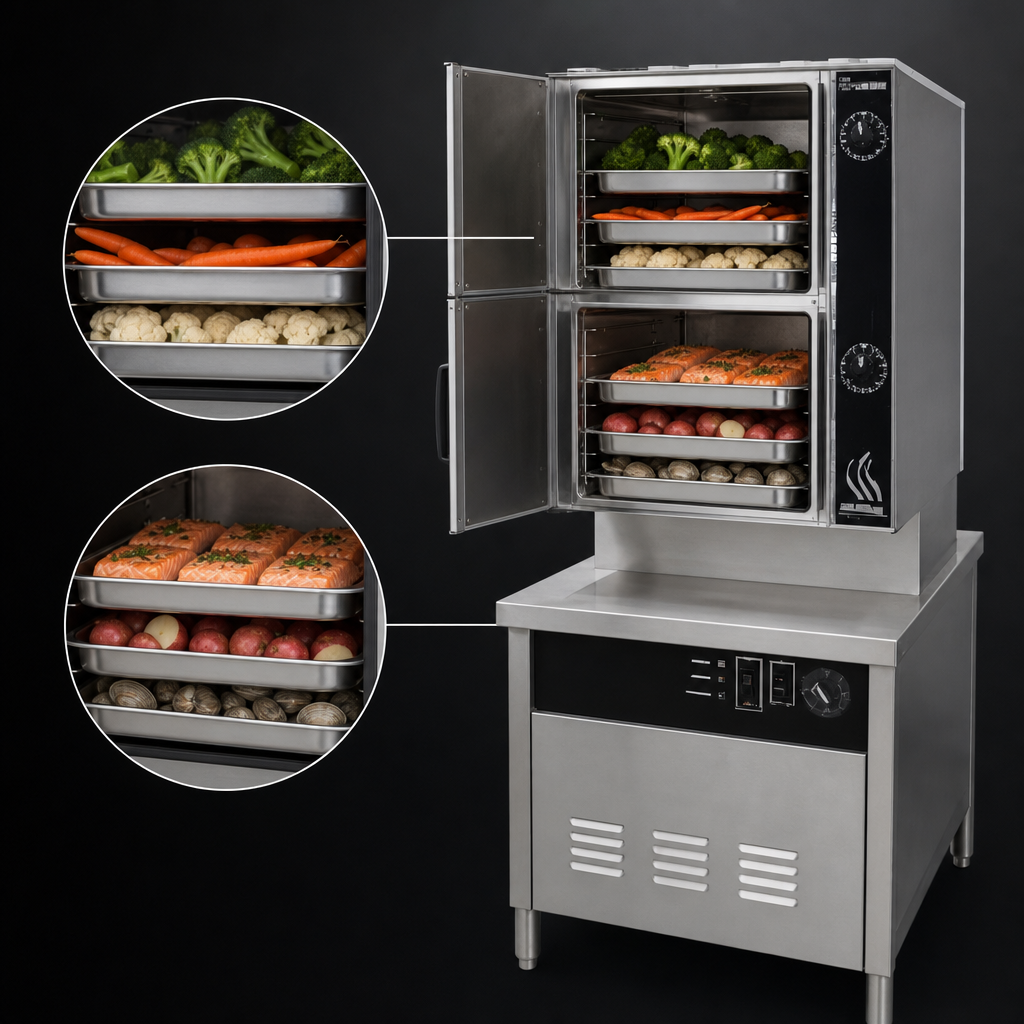

- Double productivity: Two independent 60-min timer controls let you cook different foods simultaneously.
- 10-pan output: Holds up to (10) 12" × 20" × 2-1/2" steam pans (5 per cavity) for maximum throughput.

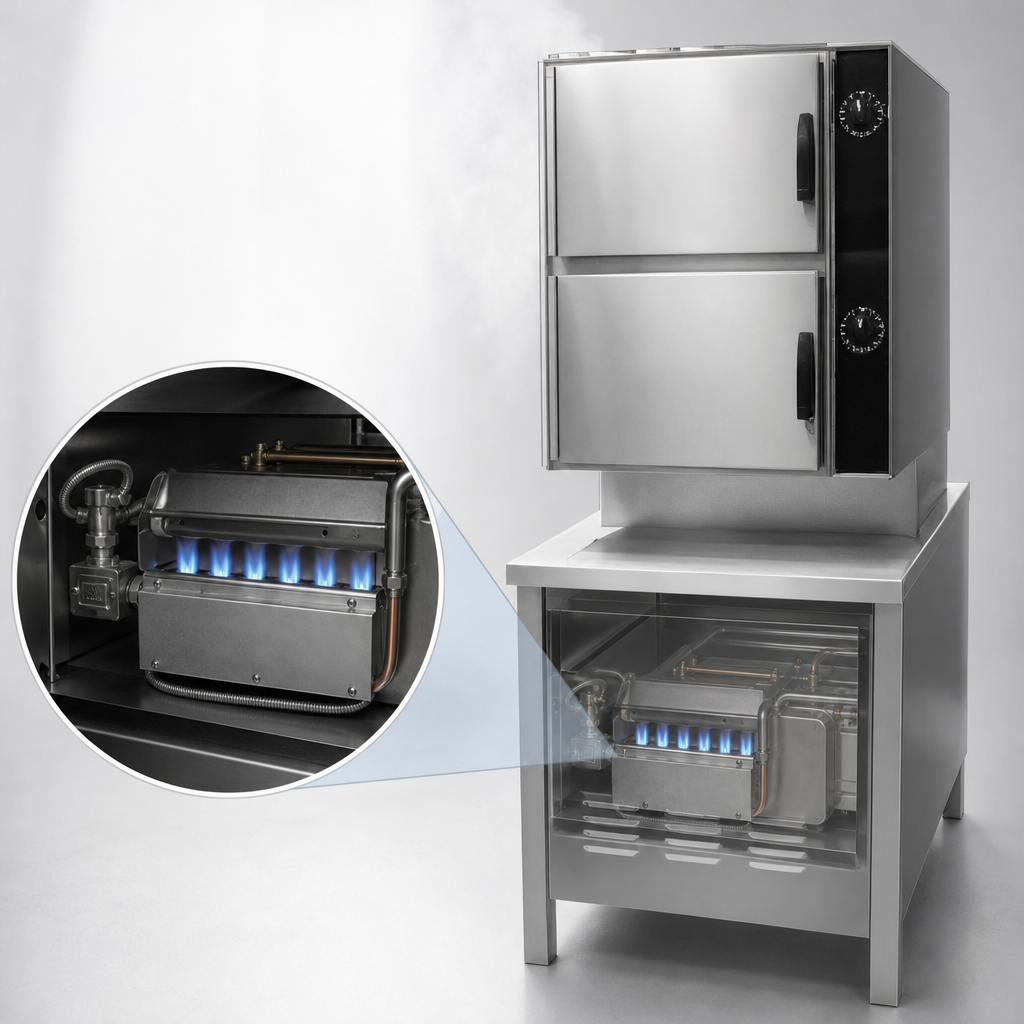

- Powerful gas boiler: 3.7 BHP generator delivers a constant supply of pressureless steam—no recovery time.
- All-stainless build: Cavities, pan racks, doors, and cabinet base resist corrosion and clean up fast.
- Field-reversible doors: Continuous hinges, one-piece replaceable gaskets, and positive-lock latches.
- Automatic blow-down: Boiler drains itself after cool-down, minimizing scale and extending life.
- Safety first: Low-water and over-pressure shut-offs, pop safety valve, and magnetic door interlock.
- CSD-1 compliant and fully certified to CSA Star & NSF standards.
Product specifications
| Model | HY-10SG HyPlus™ |
|---|---|
| Steam cavities | 2 (pressureless, independent) |
| Pan capacity | (5) 12″ × 20″ × 2.5″ pans per cavity (10) total |
| Heat input | 200,000 BTU/hr (natural or LP gas) |
| Steam generator | 3.7 boiler HP, 15 psi max |
| Water connections | (2) ½″ NPT cold water inlets (dual supply) Optional single-connection kit |
| Drain | 1¼″ NPT free-venting |
| Electrical | 115 V, 1-ph, 60 Hz, 4 A |
| Gas connection | ½″ NPT |
| Overall dimensions (W × D × H) | 36″ W × 38⅝″ D × 70 ⅜″ H (including adjustable bullet feet) |
| Construction | Stainless steel cabinet, cavities, doors & pan racks |
| Certifications | CSA Star, NSF, CSD-1, Made in USA |
Utility requirements
- Gas: ½″ NPT, specify natural or propane
- Water: two ½″ NPT cold water lines (treated water strongly recommended)
- Drain: 1¼″ NPT free-venting line
- Electrical: 115 V, 1-phase, 15 A service (4 A max load)
- Steam power take-off: ½″ NPT for adjacent equipment (standard)
Popular options (sold separately)
- Flanged feet for bolt-down installations
- Independent water supply for condensate spray
- Single-water-connection kit
- Groen-approved water filtration system
Warranty & support
Standard 1-year parts & labor warranty. Schedule a complimentary Groen factory start-up within 30 days of shipment for an extra year of coverage on steamers, plus water-related service protection when an approved water treatment system is installed. Lifetime technical support is available via Groen’s service hotline (888-994-7636).
The HY-10SG requires incoming water that meets Groen’s specifications (pH 7–9, TDS 30–60 ppm, hardness <60 ppm, chlorine/chloramine <0.1 ppm, chlorides <30 ppm). Out-of-spec water can damage the boiler and is not covered under warranty.
