Groen HY-10SG-24 HyPlus Steamers (Countertop & Floor)
Description

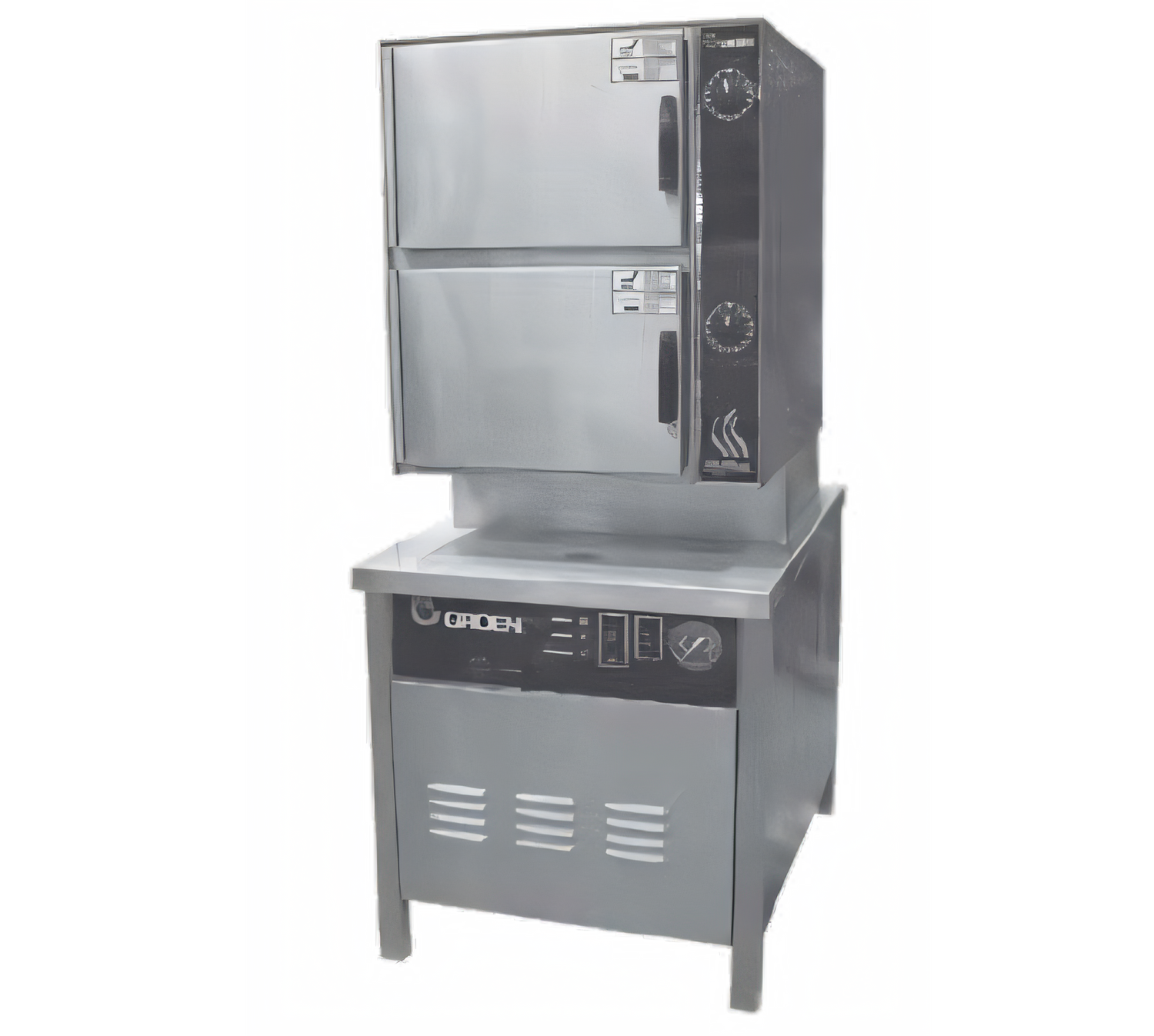

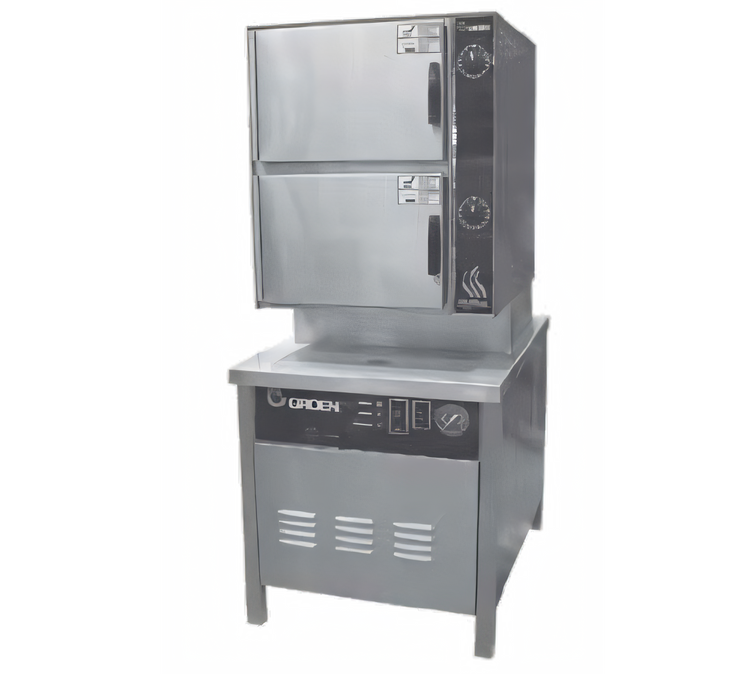

Groen HyPlus™ HY-10SG Pressureless Gas Steamer

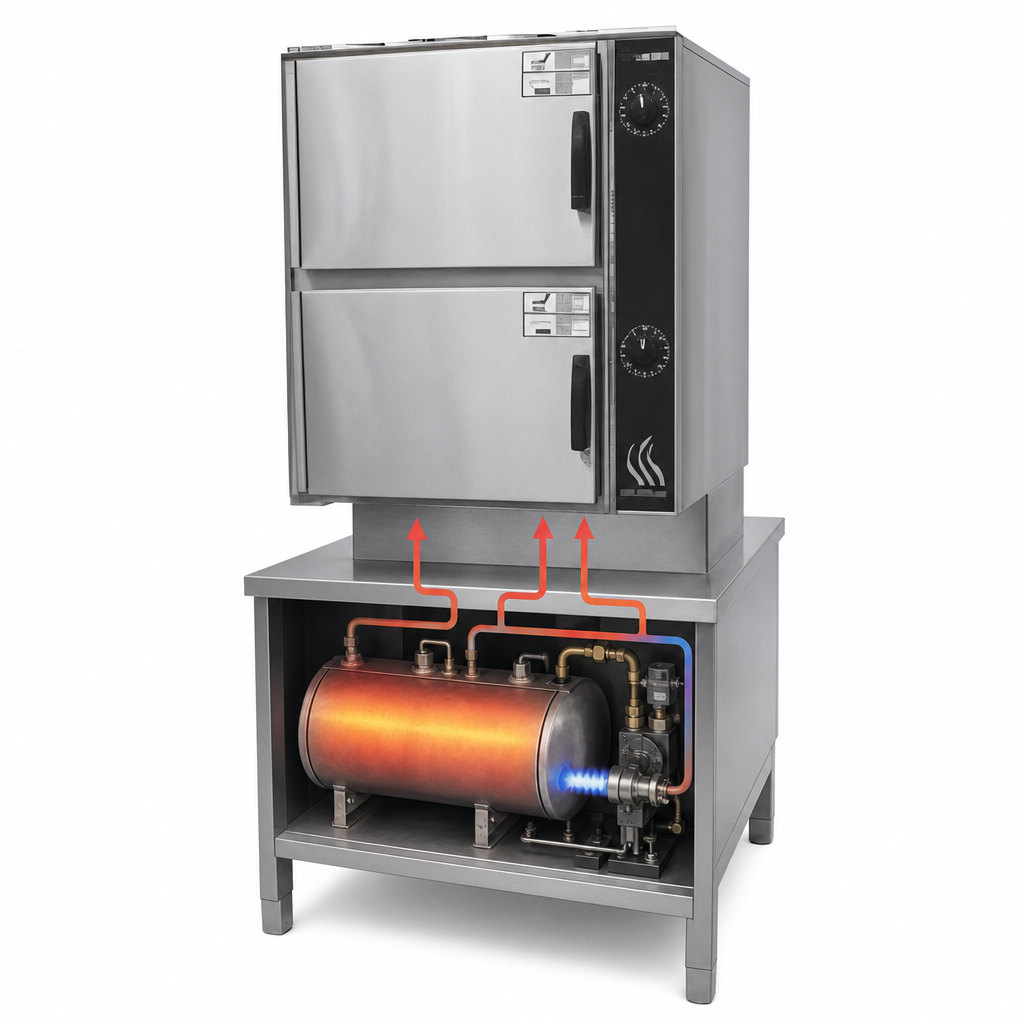

Two-compartment | 24 in. cabinet base | 200,000 BTUPower through high-volume production with Groen’s flagship HyPlus™ pressureless steamer. Designed around a robust 200 kBTU gas-fired boiler, the HY-10SG delivers consistent 212 °F atmospheric steam to two independent cavities—giving you speed, capacity and menu versatility in less than 25 in. of floor space.
Why choose the HyPlus™ HY-10SG?
- Pressureless design lets you open doors during the cook cycle—no waiting for depressurization.
- Side-mounted blower system bathes every pan in high-velocity steam for faster, more even results.

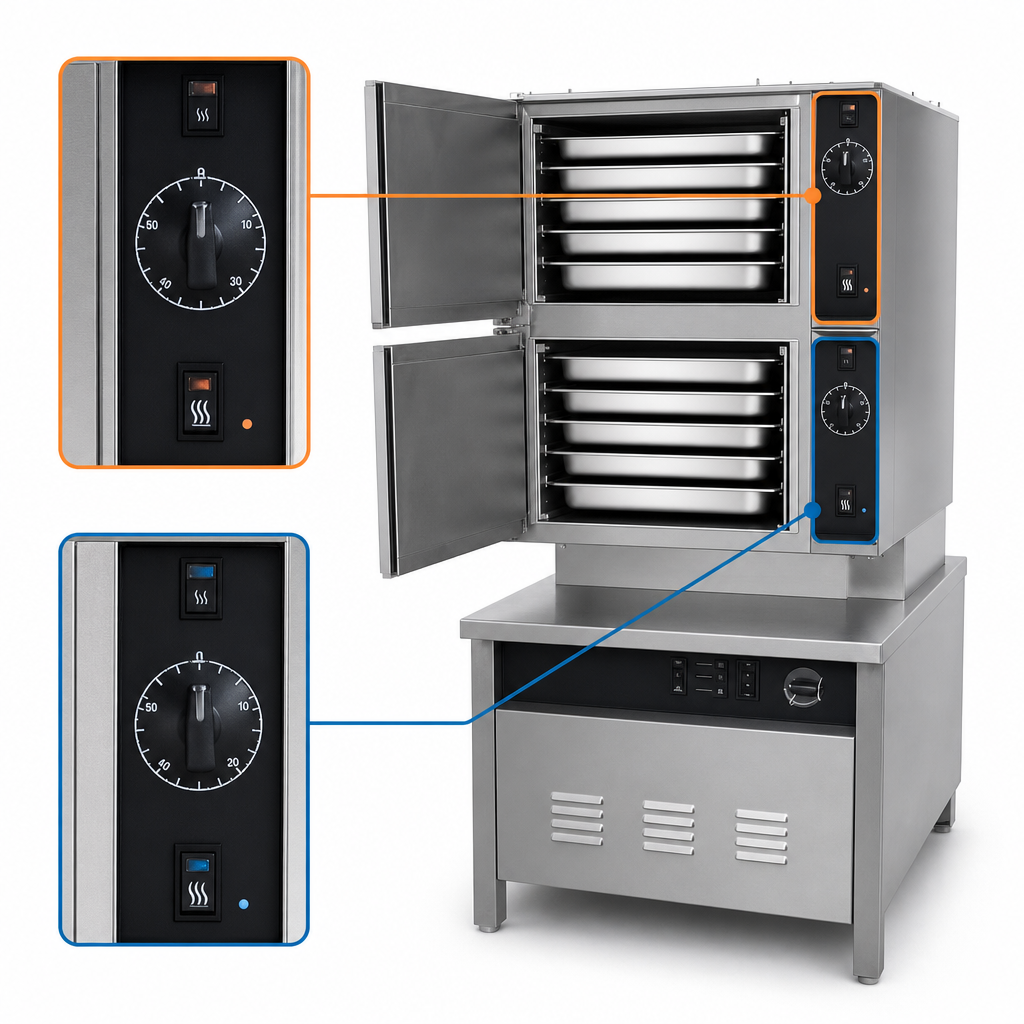

- Independent 60-minute timer (plus constant steam) for each cavity to handle mixed loads with ease.
- Field-reversible, insulated stainless doors with one-piece replaceable gasket and “slam-shut” positive latch.
- Automatic cool-down & drain cycle minimizes scale build-up and downtime.
- All-stainless construction, smudge-resistant control fascia, and removable pan racks for quick clean-ups.
- NSF, CSA Star & CSD-1 compliant—proudly Made in the USA.
Pan Capacity
| Pan size | Pans / cavity | Total pans |
|---|---|---|
| 12 × 20 × 1 in. | 10 | 20 |
| 12 × 20 × 2-1/2 in. | 5 | 10 |
| 12 × 20 × 4 in. | 3 | 6 |
Technical Specifications
| Model | HY-10SG |
|---|---|
| Compartments | 2 independent cavities |
| Boiler input | 200,000 BTU/hr (natural or propane) |
| Steam generator horsepower | 3.7 BHP |
| Operating temperature | ≈ 212 °F (100 °C) |
| Gas connection | 1/2 in. NPT |
| Water connections | Two ½ in. NPT cold-water inlets (treated & untreated) |
| Drain | 1-1/4 in. NPT free-venting |
| Electrical | 115 V, 1 ph, 60 Hz, 4 A |
| Overall dimensions | 24 1/8 W × 37 5/8 D × 70 3/16 H in. |
| Certifications | NSF, CSA Star, CSA Flame, CSD-1, Made in USA |
Installation Requirements
- Level unit on adjustable bullet feet (optional flanged feet available).
- Provide 115 V/15 A single-phase power and appropriate gas supply pressure (see data plate).
- Connect dedicated treated & untreated cold-water lines plus 1-1/4 in. free-venting drain.
- Allow clearance for service—3 in. sides, 6 in. rear (minimum).
- Ventilation must meet local codes for gas equipment.
Warranty Coverage
1-year parts & labor standard. Register for Free Start-Up by an Authorized Service Agent to earn an additional 1-year coverage and extend protection on water-related components when recommended treatment is installed.
