Groen HY-10SE-36 HyPlus Steamers (Countertop & Floor)
Description

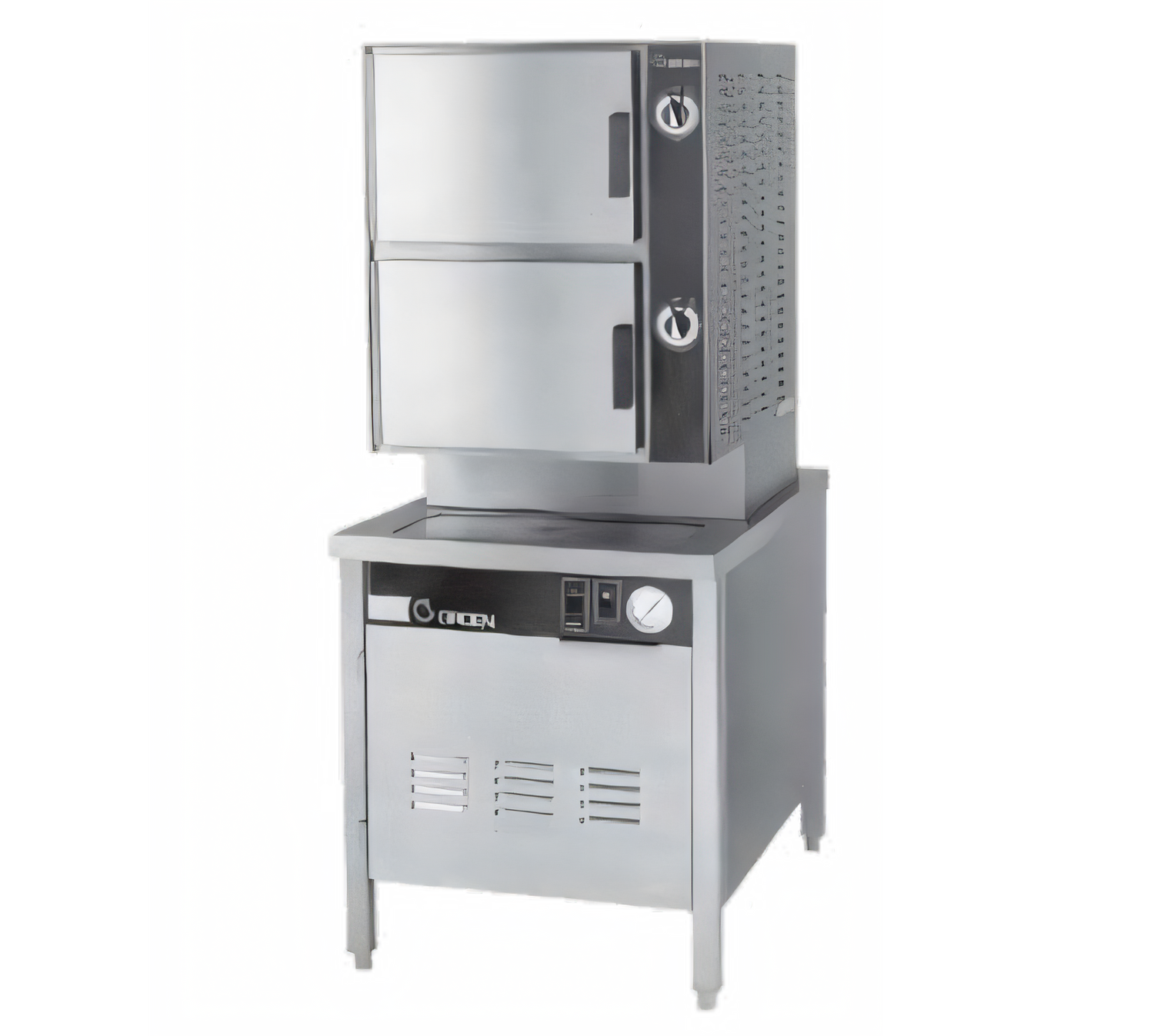

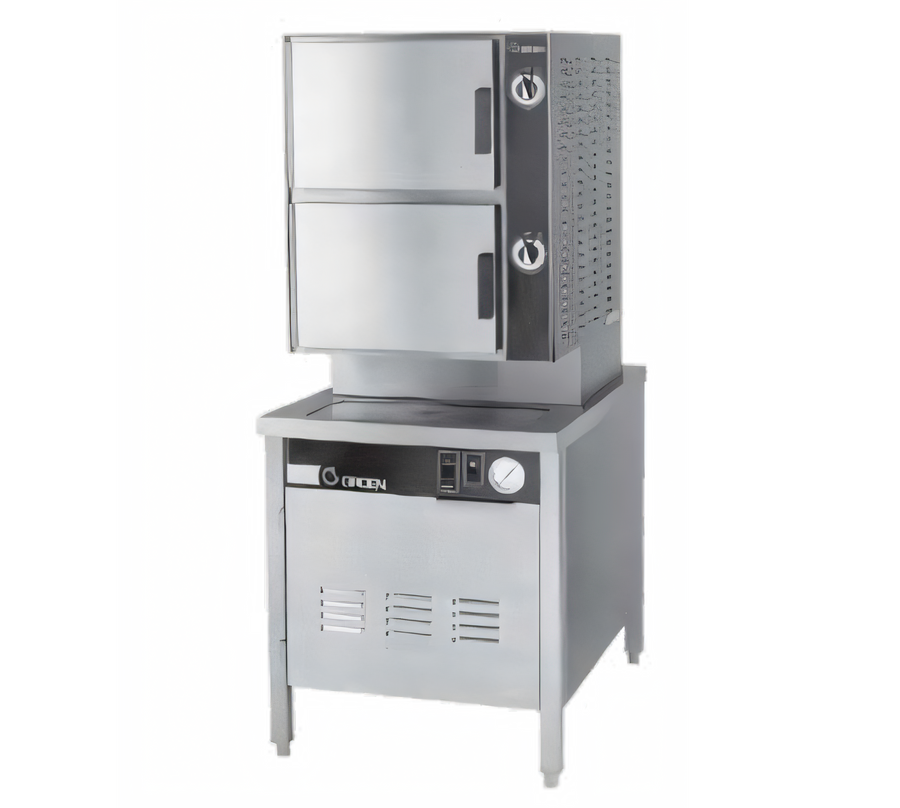

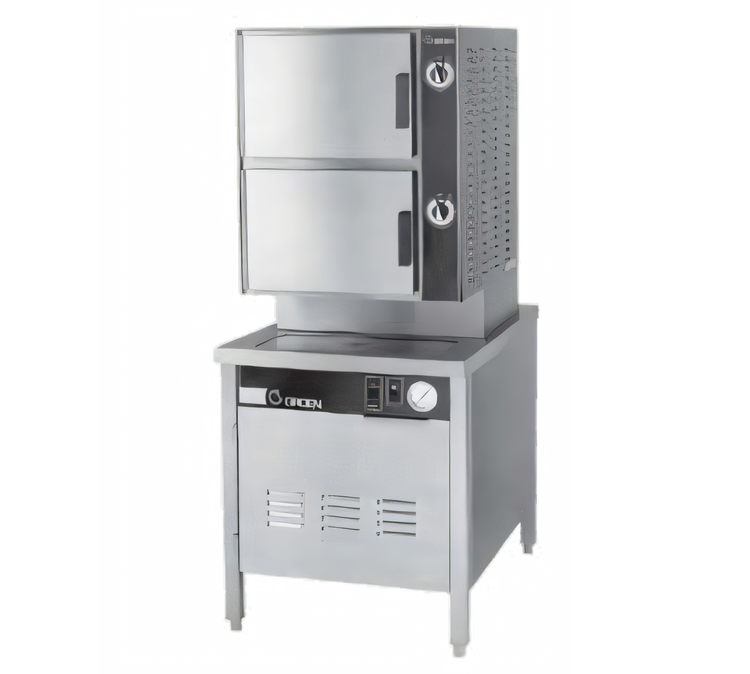

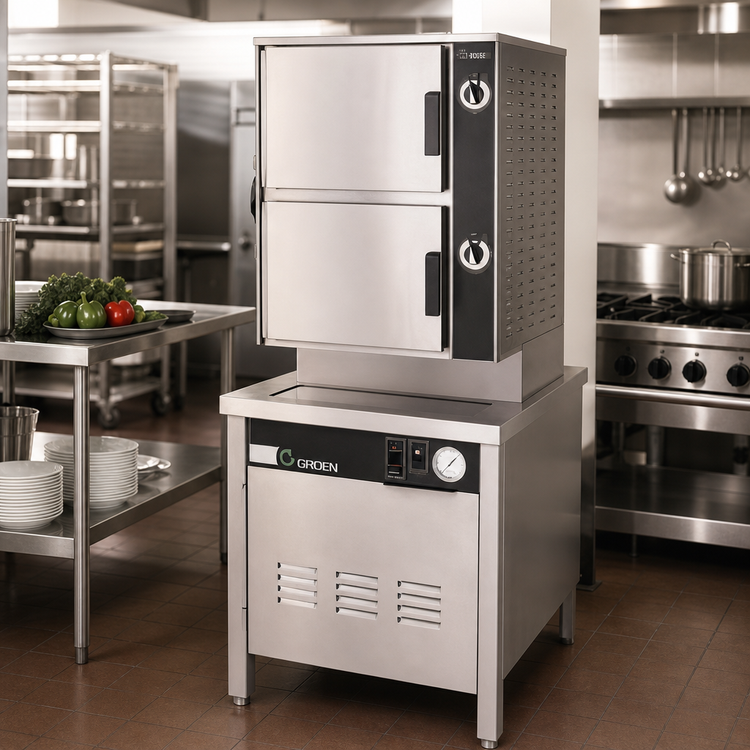

Groen HyPlus™ Pressureless Electric Steamer — 2 Compartments, 36″ Cabinet Base
Model HY-10SE | Continuous, even 212 °F steam for high-volume kitchensBoost throughput without the learning curve. The HyPlus™ combines a rugged stainless-steel build with a self-contained electric pressure boiler to deliver atmospheric steam on demand—so you can batch-cook vegetables, seafood, proteins and re-heat plates faster, safer and more consistently than ever.
Key Advantages

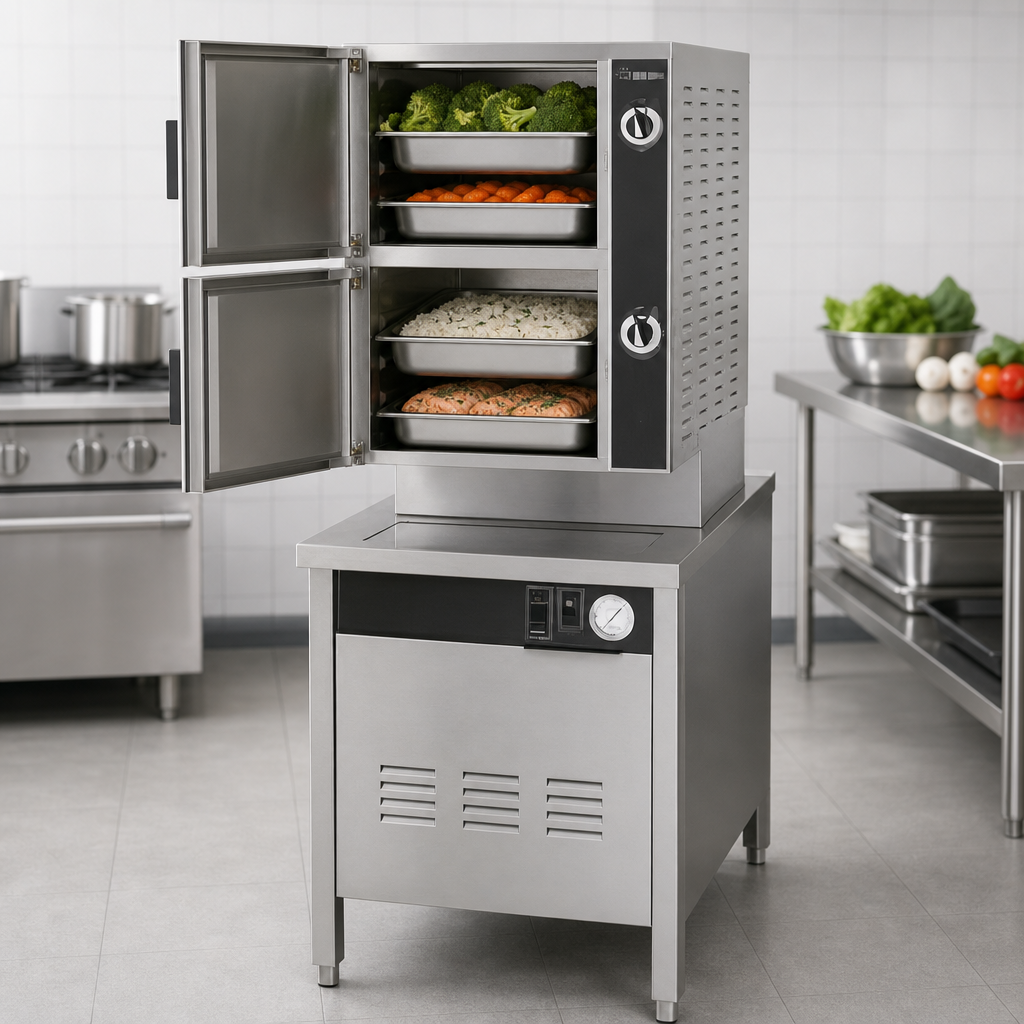

- Two independent 1.5 cu-ft cavities for simultaneous menu flexibility.

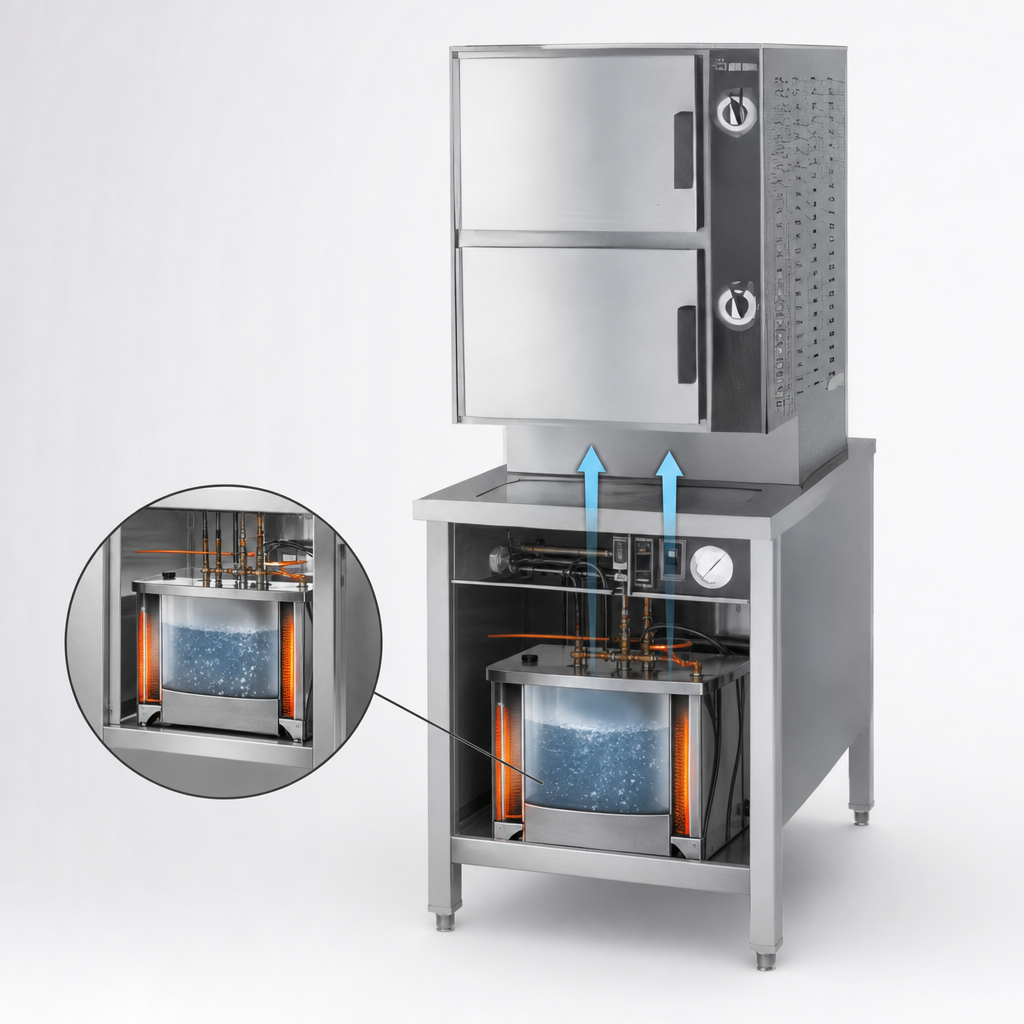

- Electric-heated pressure boiler (24 kW, 36 kW or 48 kW) provides uninterrupted steam at up to 15 psi.
- Handles 5 full-size hotel pans (12″ × 20″ × 2½″) per cavity—10 pans total.
- All-stainless cabinet, cavities & doors resist corrosion and speed cleaning.
- Reversible, insulated slam-shut doors with one-piece, field-replaceable gasket.
- Powerful side-mounted blower ensures even heat distribution over every pan.
- Automatic boiler blow-down when power is turned off reduces scale build-up.
- Built-in safety: low-water cut-off, pop safety valve, sight glass & magnetic door interlock.
- Dual ½″ NPT cold-water inlets plus 1¼″ NPT free-venting drain for straightforward installation.
- Made in the USA; cULus, NSF & CSD-1 compliant.
Pan Capacity
| Pan size | Per cavity | Total |
|---|---|---|
| 12″ × 20″ × 1″ | 10 | 20 |
| 12″ × 20″ × 2½″ | 5 | 10 |
| 12″ × 20″ × 4″ | 3 | 6 |
Utilities & Connections
| Steam generator | Electric pressure boiler, 24/36/48 kW (2.2 – 4.7 BHP) |
|---|---|
| Electrical | 208, 240 or 480 V, 3-phase, 60 Hz |
| Cold water | (2) ½″ NPT inlets (single-connection kit optional) |
| Drain | 1¼″ NPT free-venting |
| Steam take-off | ½″ NPT (36 kW & 48 kW models) |
Dimensions
| Width | 36″ (914 mm) |
|---|---|
| Depth | 34″ (864 mm) |
| Height | 70⅛″ (1,783 mm) with adjustable bullet feet |
Refer to spec drawing for service clearances.
Included / Optional
- Condensate drip sink with integral drain (standard)
- Adjustable stainless bullet feet (standard) or flanged feet (option)
- Power take-off valve for adjacent equipment on 36 kW & 48 kW units (standard)
- Single water connection conversion kit (option)
Warranty & Support
Ships with a 1-year parts & labor warranty—extended to 2 years when a free Groen start-up and water test are completed. Dedicated U.S.-based service hotline: 888-994-7636.
