Groen HY-10SE-24 HyPlus Steamers (Countertop & Floor)
Description

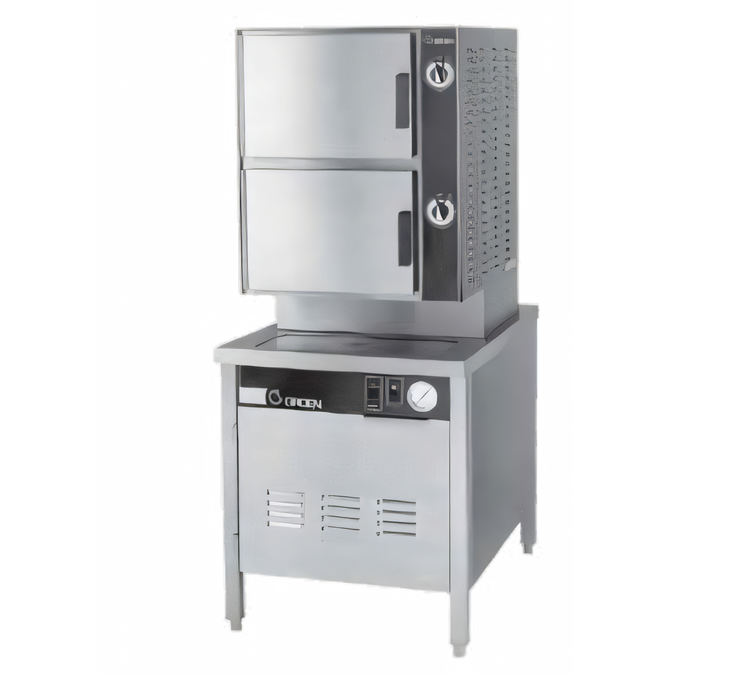

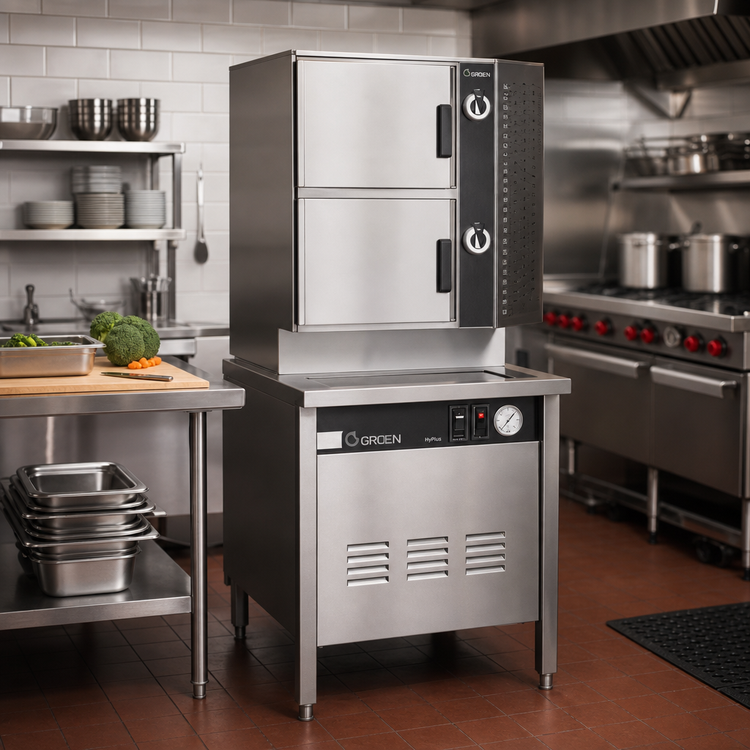

Groen HyPlus™ HY-10SE Pressureless Electric Steamer
Two-compartment | 24" cabinet base | Made in the USAEngineered for high-volume, high-quality batch cooking, the Groen HyPlus™ HY-10SE delivers fast, even steaming without the wait—or risk—of a pressurized system. Two independent cavities, each powered by a dedicated blower and an electric cabinet-mounted boiler, let you turn out vegetables, proteins, dumplings, pasta, and more with consistent, brilliant results shift after shift.
Why Kitchens Choose HyPlus™
- True pressureless design—doors can be opened mid-cycle for convenient batch loading or sampling.
- High pan capacity—handles five 12" × 20" × 2-1/2" pans per cavity (10 total) or up to 20 shallow pans for maximum throughput.
- Powerful steam distribution thanks to side-mounted blowers that drive steam across every shelf for even cooking.

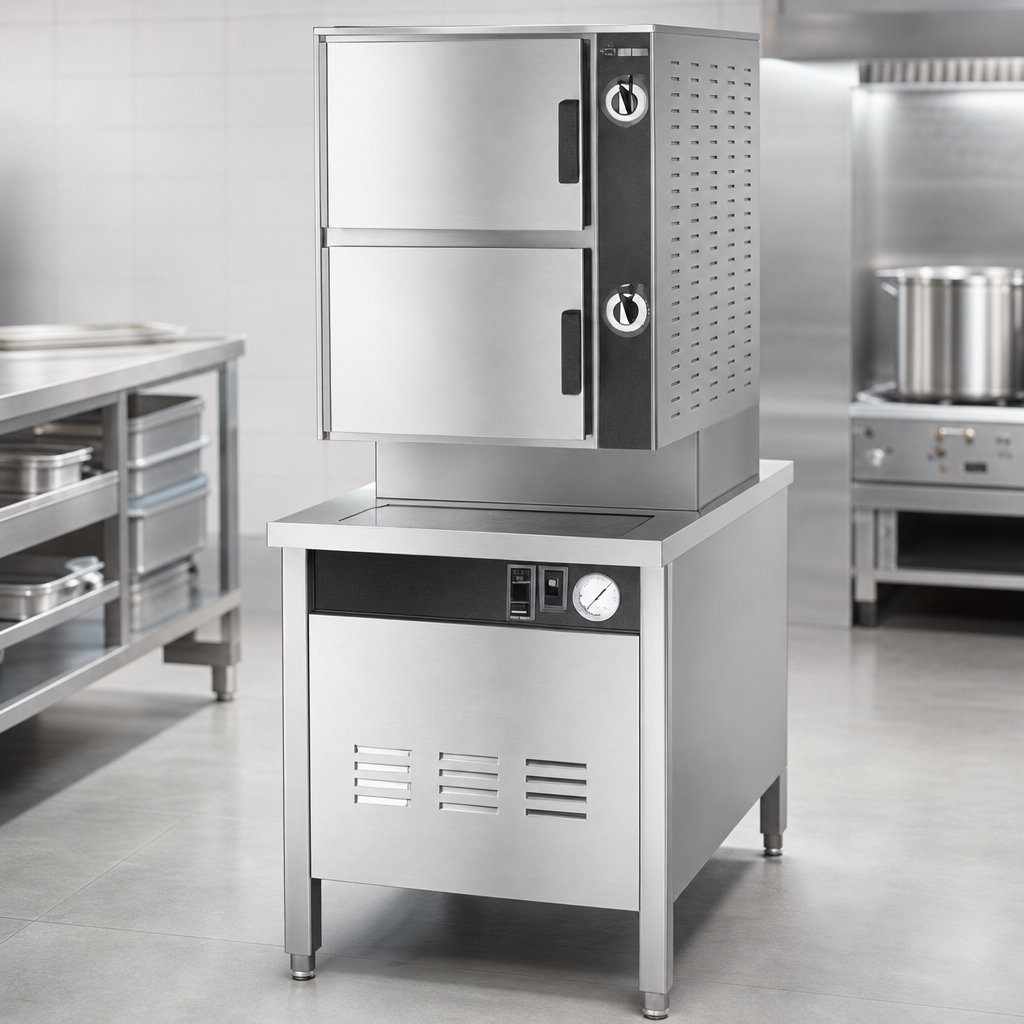

- Stainless steel, inside & out—rugged, easy-to-sanitize construction extends service life and maintains a premium appearance.
- Field-reversible, insulated doors with a one-piece replaceable seal and slam-shut positive-lock latch.
- Automatic boiler blow-down & fill—reduces scale build-up and keeps maintenance to a minimum.
- Dual ½" NPT cold-water connections meet CSD-1 code requirements right out of the box.
- cULus, NSF & CSD-1 compliant—built, tested, and certified for the most demanding commercial kitchens.
Operator-Friendly Controls

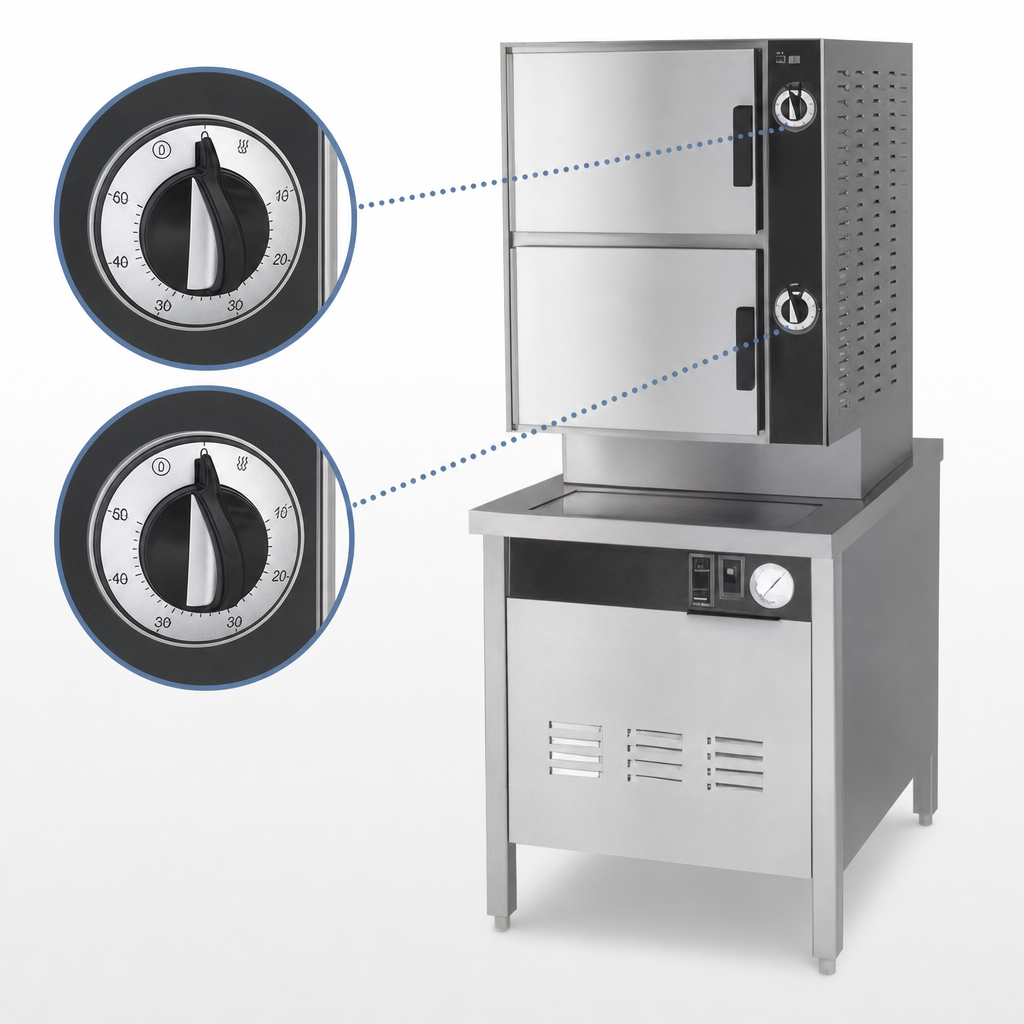

- Independent ON/OFF/Appreciate and 60-minute timer for each cavity plus a constant steam setting.
- Cabinet front boiler control panel with power switch, reset light, low-water sensor, and external pressure gauge.
- Hidden magnetic door switch instantly stops steam when a door opens for added safety.
Technical Specifications
| Model | HY-10SE |
|---|---|
| Compartments | 2 independent cavities |
| Pan Capacity (per cavity) |
5 × 12" × 20" × 2-1/2" 10 × 12" × 20" × 1" 3 × 12" × 20" × 4" |
| Cabinet Base Width | 24-1/8" (613 mm) |
| Overall Dimensions (W × D × H) | 24-1/8" × 34-3/4" × 70-1/8" (613 × 883 × 1783 mm) |
| Electric Boiler Options | 24 kW (2.2 BHP) • 36 kW (3.5 BHP) • 48 kW (4.7 BHP) |
| Voltage | 208, 240, or 480 V, 3-phase, 60 Hz |
| Water Connections | 2 × ½" NPT cold water |
| Drain | 1-1/4" NPT free-venting |
| Steam Take-Off | ½" NPT (standard on 36 kW & 48 kW units) |
| Certifications | cULus, NSF, CSD-1, Made in USA |
Recommended Water Quality
- pH: 7 – 9
- Total Dissolved Solids: 30 – 60 ppm
- Hardness: < 60 ppm
- Chlorine/Chloramine: < 0.1 ppm
- Chlorides: < 30 ppm
- Silica: < 12 ppm
- Undissolved Solids: < 5 microns
A complimentary start-up visit by an authorized Groen service agent includes on-site water testing. Purchase and proper maintenance of the recommended treatment system extends the standard 1-year parts & labor warranty to 2 years and covers water-related service issues for the full term.
Product information is based on data available at the time of publication and is subject to change without notice. Always consult the installation manual and local codes prior to utility rough-in.
