Groen EE-40 Steam Kettles
Description

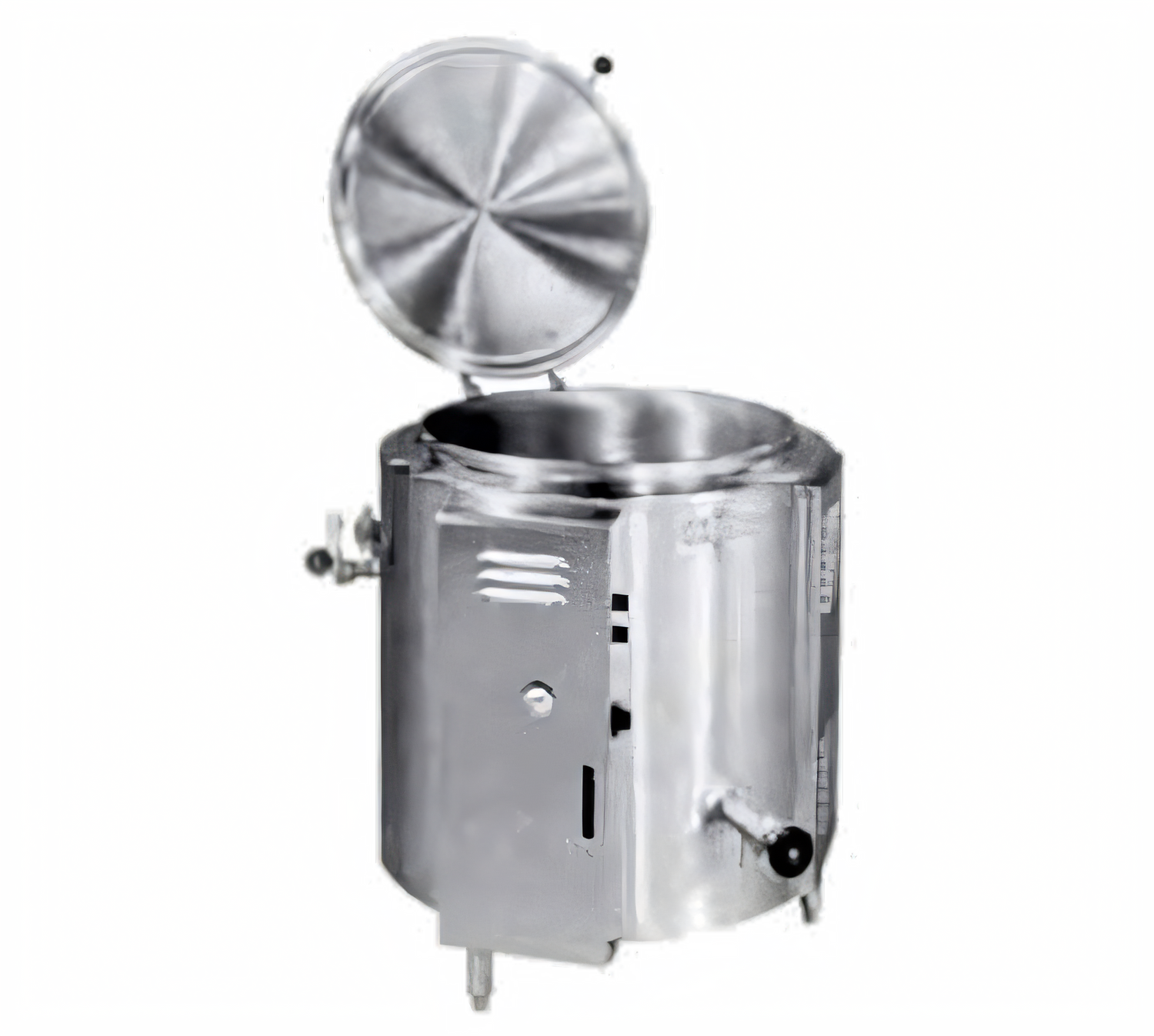

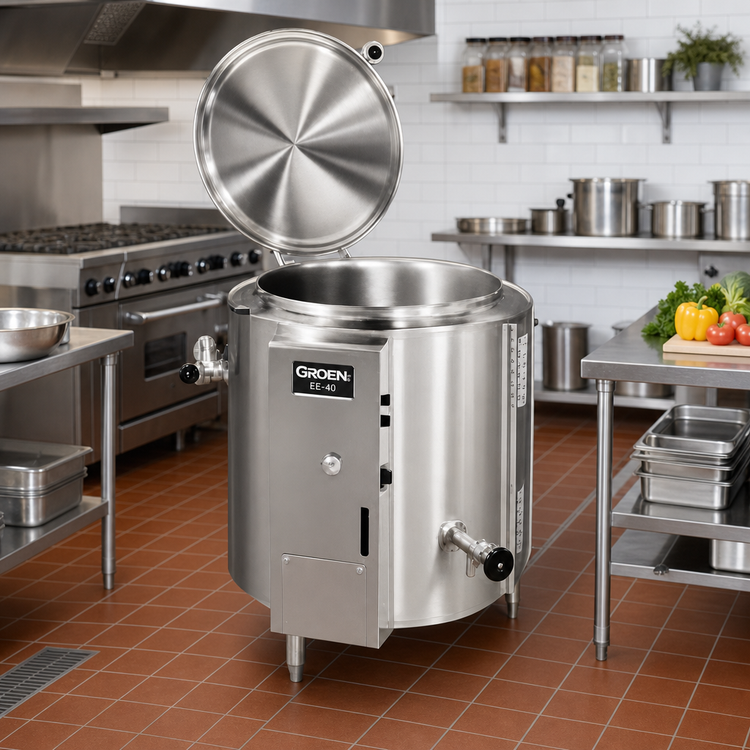

Groen EE-40 40 Gallon Electric Steam Jacketed Kettle
Self-Contained • 2/3 Jacket • Type 316 Stainless Steel • 30 PSIBuilt for high-volume kitchens that refuse to compromise on quality, the Groen EE-40 delivers quick, even heating, effortless operation and legendary Groen durability in a compact, floor-mounted package.
Key Features & Benefits
- 40 gallon (≈151 L) working capacity—ideal for soups, sauces, pasta, rice, gravies and more.

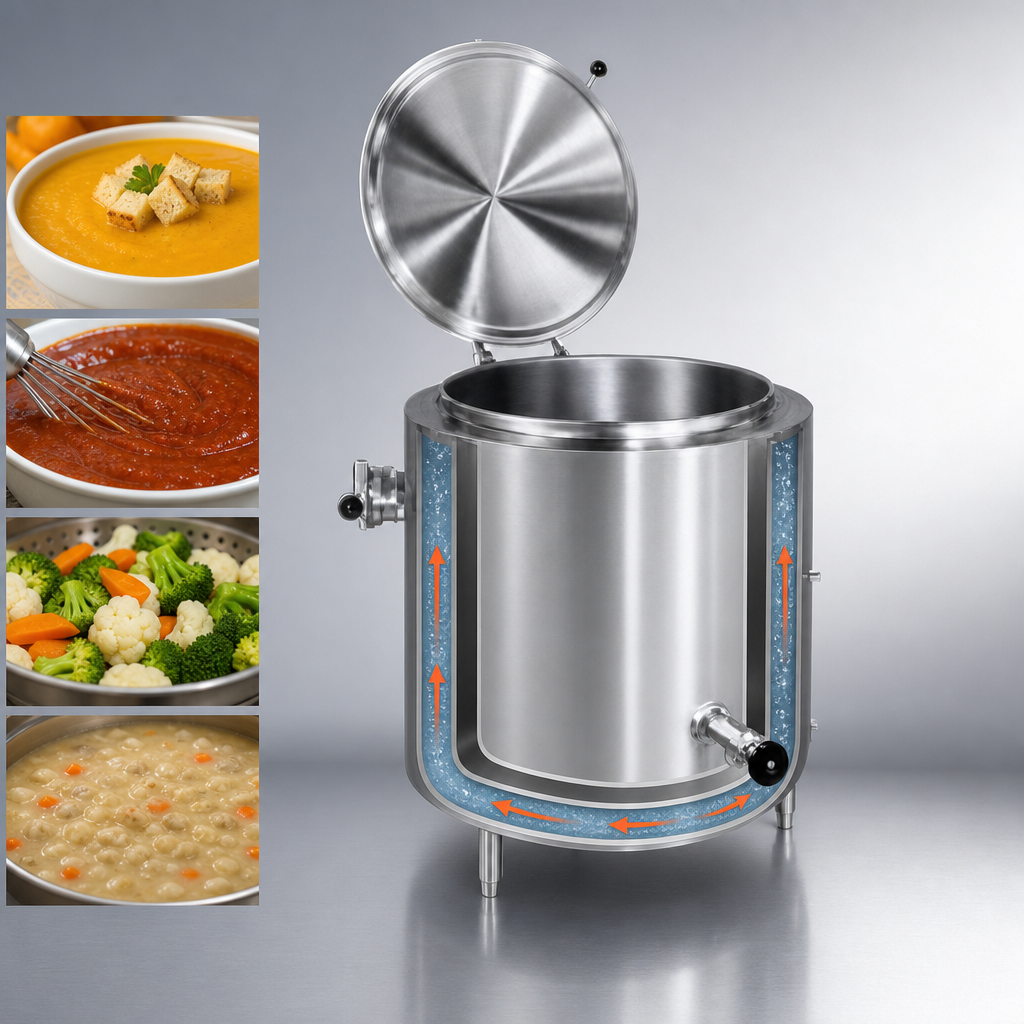

- 2/3 steam jacket surrounds food zone for rapid, uniform heat transfer with no hot spots.
- Type 316 stainless steel liner, dome cover and fittings withstand salt, acids and heavy-duty cleaning.

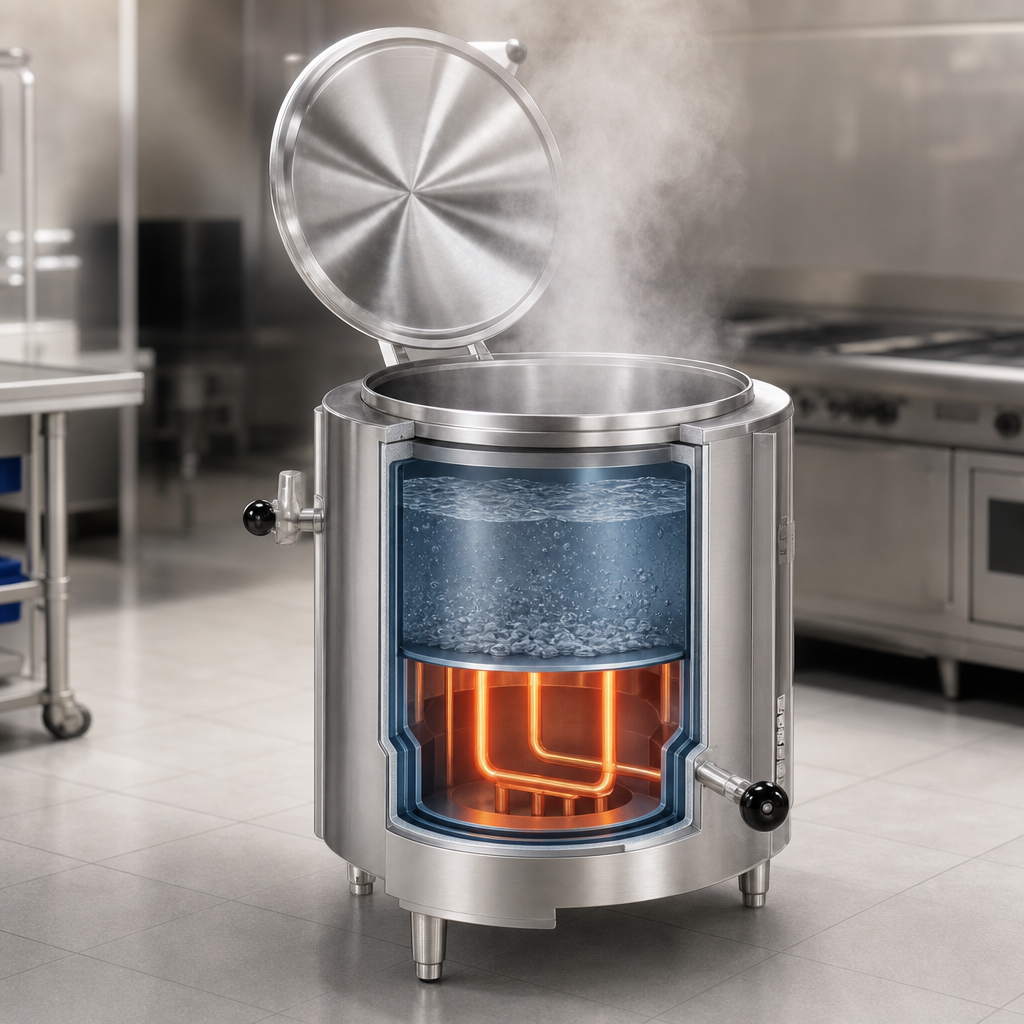

- Self-contained electric steam generator eliminates the need for an external boiler.
- Precise thermostat cycles between 150 – 270 °F (65 – 132 °C) and holds set temperature automatically.
- 2" sanitary tangent drawoff (TDO) with 316 SS compression disk valve for fast, tool-free disassembly & cleanup.
- Removable 1/4" perforated stainless steel strainer keeps product particles out of the drawoff line.
- One-piece hinged dome cover (standard on ≤40 gal models) retains heat and condensation.
- Open tri-leg stainless steel base with adjustable bullet feet simplifies floor sanitation.
- Stainless control enclosure puts thermostat, pilot light, pressure/vacuum gauge & sight-glass at your fingertips.
- ASME code stamped, UL & NSF listed; National Board registered for 30 PSI operation.
- Made in the USA and backed by Groen’s limited 1-year parts & labor warranty.
Performance-Driven Design
The EE-40’s factory-charged steam jacket is filled with chemically-pure water and rust inhibitors to maximize service life while the air-gap insulated, fully sheathed exterior stays cooler to the touch and minimizes energy loss. A low-water cutoff, safety valve and pressure gauge provide fool-proof protection for operators and product alike.
Perfect For
- Soups & Chowders
- Sauces & Gravies
- Pasta & Rice
- Vegetables & Seafood
- Meat, Poultry & Stews
- Pie & Dessert Fillings
Technical Specifications
| Model | EE-40 (Floor Mounted, Stationary) |
|---|---|
| Capacity | 40 gal / 151 L |
| Jacket Coverage | 2/3 kettle body |
| Working Pressure | 30 PSI (steam jacket) |
| Temperature Range | 150 – 270 °F (65 – 132 °C) |
| Interior / Exterior Material | Type 316 stainless steel liner; #3 finish exterior with air-gap insulation & stainless sheathing |
| Drawoff Valve | 2" sanitary tangent drawoff, compression disk, with removable 1/4" perforated strainer |
| Cover | One-piece, hinged, domed stainless steel |
| Base | Open tri-leg stainless frame with adjustable bullet feet |
| Controls | Thermostat, pilot light, contactor, pressure/vacuum gauge, water-level sight glass, safety valve, low-water cutoff |
| Electrical | Single connection; specify 208 V, 240 V or 480 V • 3-phase (208 V/240 V also available in single-phase) |
| Certifications | UL, NSF, ASME Code stamped, National Board registered |
| Country of Origin | USA |
Includes Groen limited 1-year parts & labor warranty (see complete terms for details).
