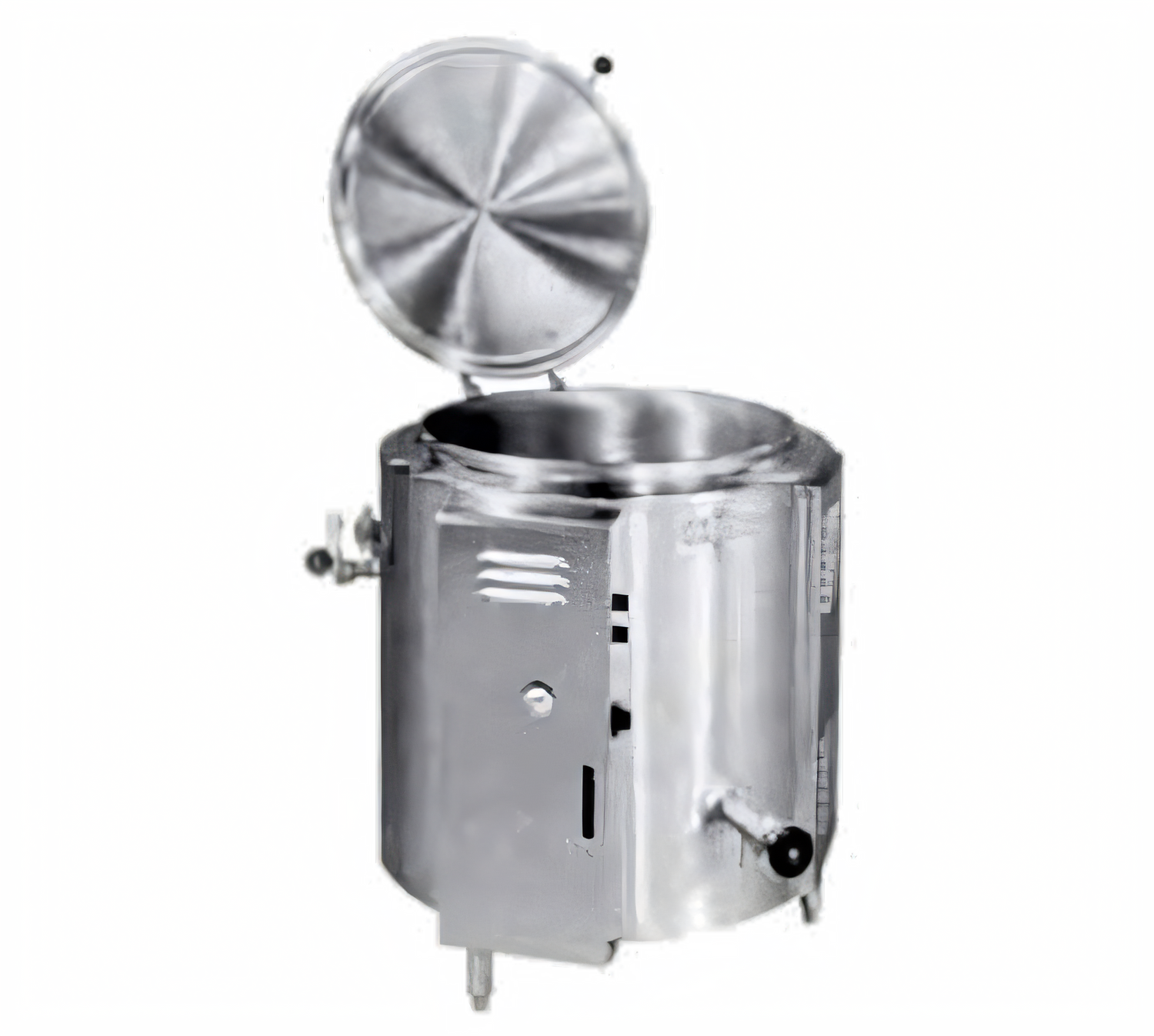

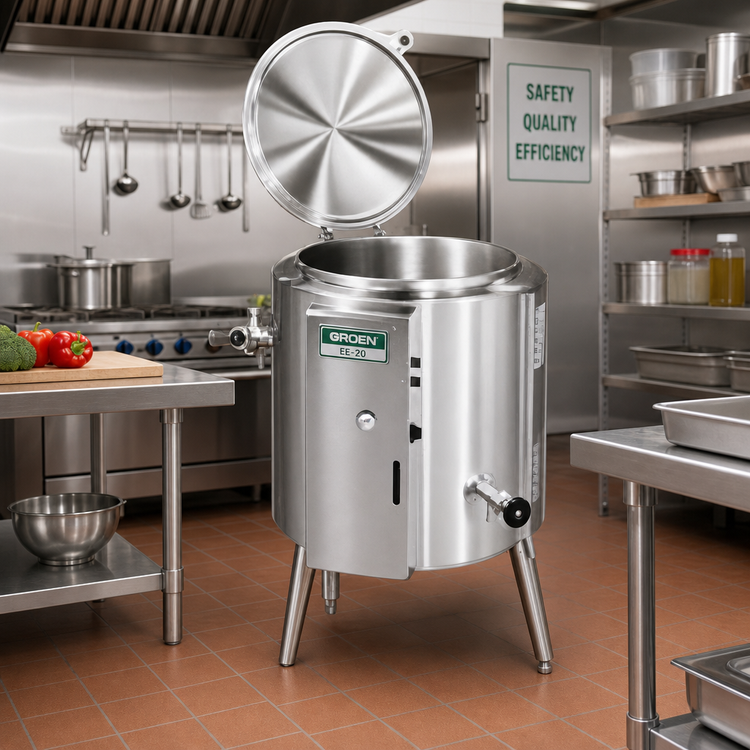

Groen EE-20 20-Gallon Electric Steam Jacketed Kettle with Tri-Leg Base

Floor-Mounted, Stationary, 2/3 Jacket, 316 Stainless Steel Liner

Built for reliable batch cooking, this 20-gallon electric steam kettle combines a 316 stainless steel liner, insulated construction, and a sanitary 2-inch drawoff.

  • 20-gallon floor-mounted, stationary kettle for high-volume batch prep.
  • Self-contained electric steam source with automatic thermostat control.
  • Type 316 stainless steel liner and stainless steel sheathing for durability.
  • 2-inch tangent drawoff with removable 1/4-inch perforated strainer and hinged cover simplify use.
  • Open tri-leg base with bullet feet provides stable floor installation.
  • Available in 208, 240, or 480 Volt service; 20-gallon models can also be ordered in single phase.
  • Rated for operation up to 30 PSI.

Overall Dimensions:

32.13"W x 33.75"D x 37.0"H

Product Weight:

410.0 lb

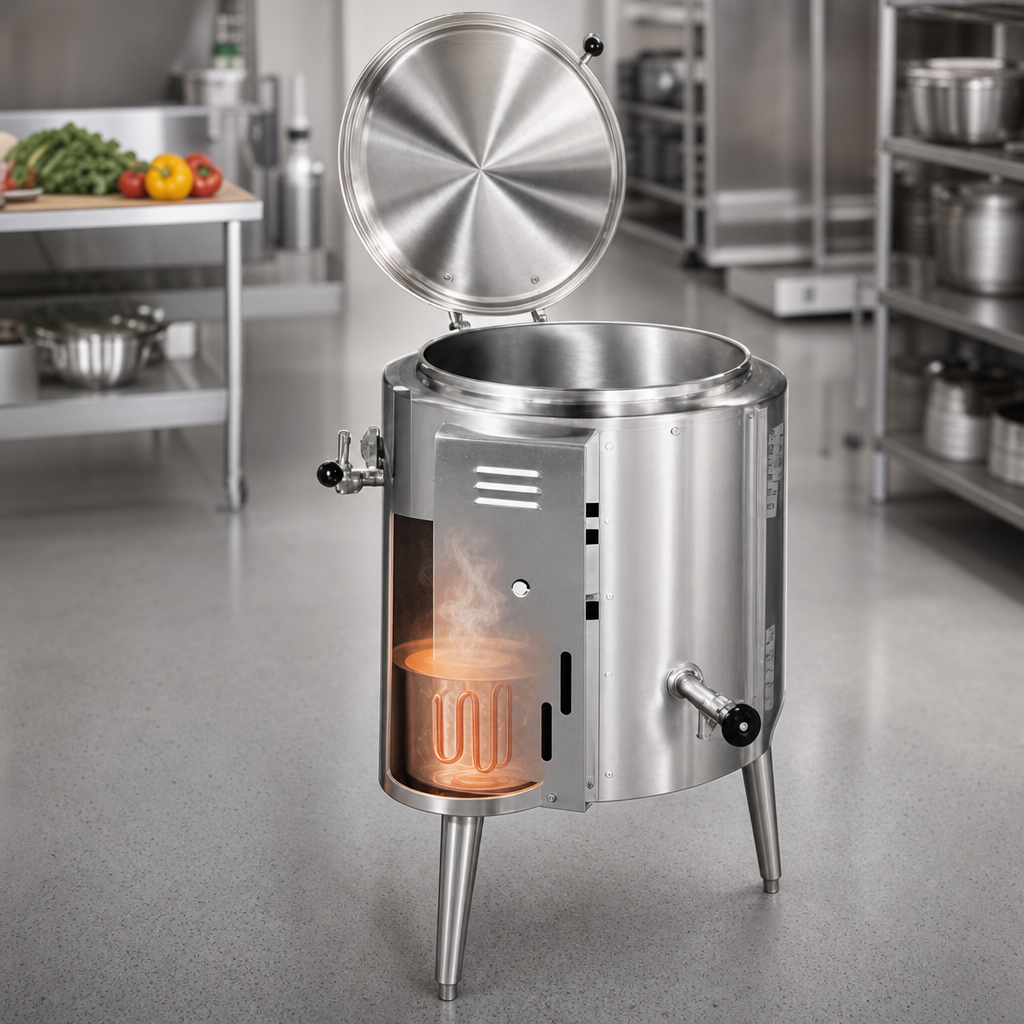

Self-Contained Electric Heat

Built-in electric steam source provides consistent kettle heating without a separate boiler.

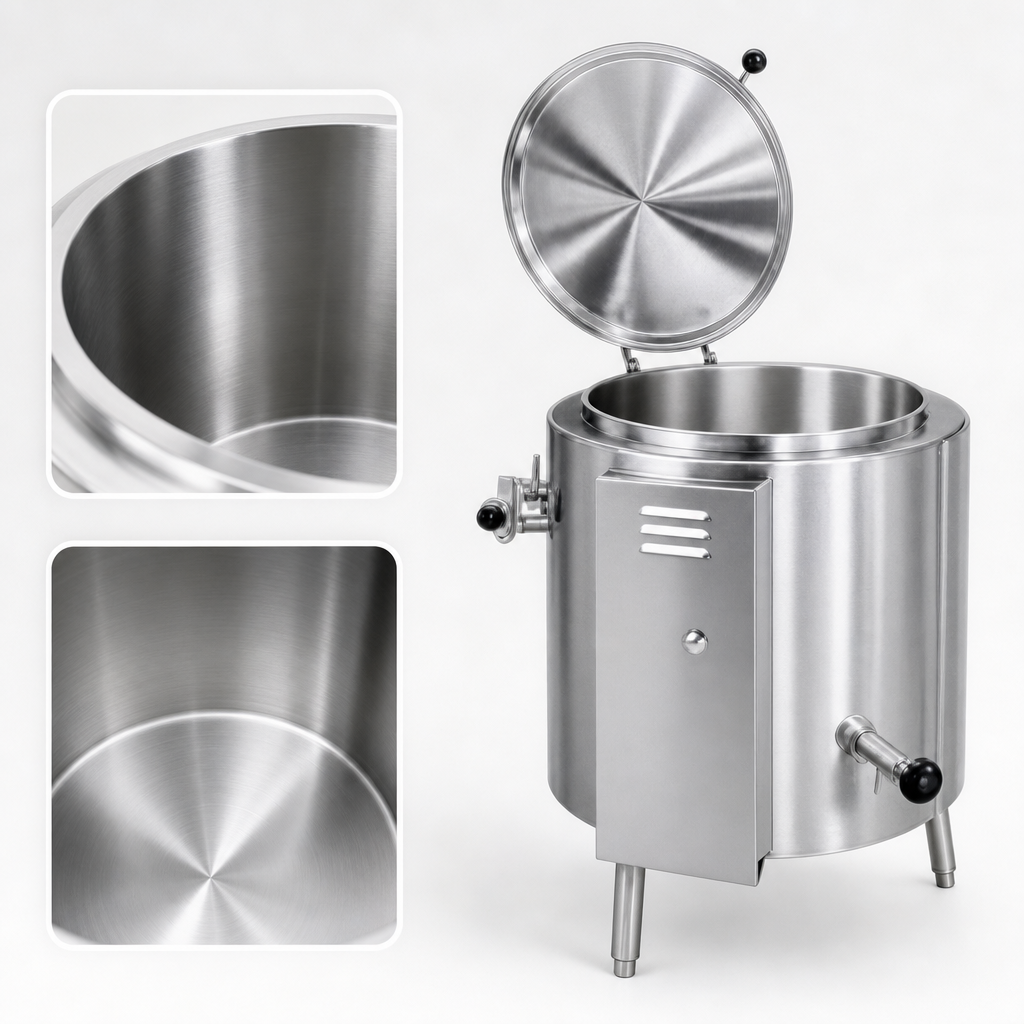

316 Stainless Steel Liner

One-piece welded type 316 stainless steel kettle liner with a polished interior finish for durability and easier cleaning.

Insulated Stainless Construction

Stainless steel sheathing and air-gap insulation help retain heat and keep the exterior cooler to the touch.

Sanitary Drawoff

2-inch tangent drawoff with a removable 1/4-inch perforated stainless steel strainer simplifies draining and cleanup.

Hinged Dome Cover

One-piece hinged cover is standard on 20-gallon units for convenient access.

Automatic Safety Controls

Thermostat control, pressure/vacuum gauge, safety valve, sight glass, and low-water cut-off support safe operation.

Tri-Leg Base

Open tri-leg base with bullet feet provides stable, stationary floor mounting.

Flexible Electrical Service

Single electrical connection required; specify 208, 240, or 480 Volt service. Twenty-gallon models are also available in single phase.

Type Steam Kettle
Style Steam Jacketed
Installation Type Floor Model
Capacity 20 Gallons
Controls Automatic Thermostat
Material Stainless Steel
Interior Finish 316 Stainless Steel
Voltage 208/240/480 Volts
Amps 30 Amps @ 208 Volts; 29 Amps @ 240 Volts; 14 Amps @ 480 Volts
Watts 10.8 kW @ 208 Volts; 12 kW @ 240 Volts; 12 kW @ 480 Volts
Hertz 50/60 Hz
Phase 3-Phase
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 33 Inches
Shipping Depth 34 Inches
Shipping Height 37 Inches
Shipping Weight 410 lb.

Warranty & Protection

1 year parts and labor, or 2000 operating hours, or 15 months from shipment, whichever comes first.

Documents

PDF Cutsheet PDF Download PDF Brochure PDF Download PDF Roi calculator PDF Download PDF Start-up request form PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It is a floor-mounted, stationary, self-contained electric steam-jacketed kettle with an open tri-leg base.
Specify 208, 240, or 480 Volt, 3-phase service at 50 or 60 Hz. Twenty-gallon models are also available in single phase.
The kettle proper is made of type 316 stainless steel.
The EE-20 includes a 2-inch tangent drawoff with a removable 1/4-inch perforated stainless steel strainer, and a hinged dome cover is standard on 20-gallon units.
The unit is built for operation up to 30 PSI.
The self-contained electric steam source provides kettle temperatures from about 150°F to approximately 270°F.
