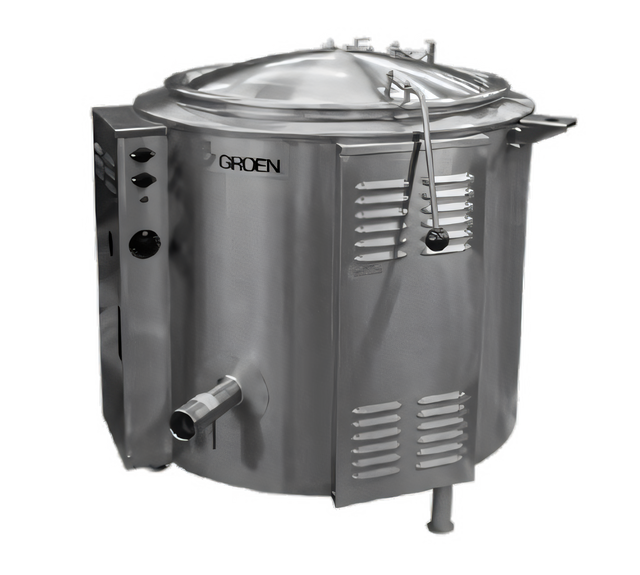

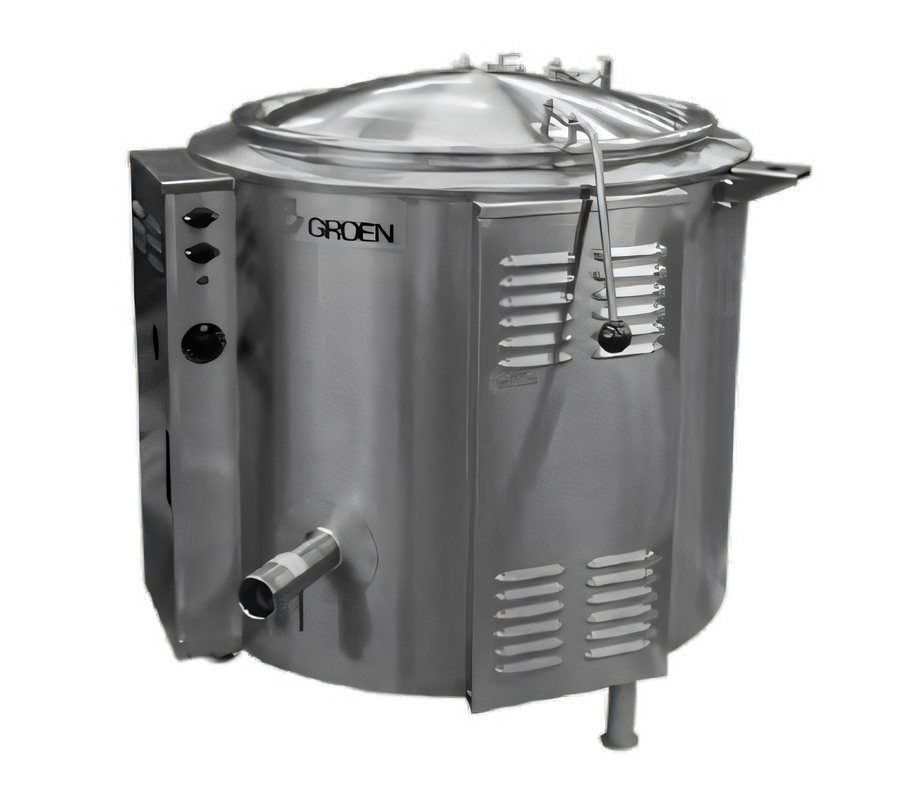

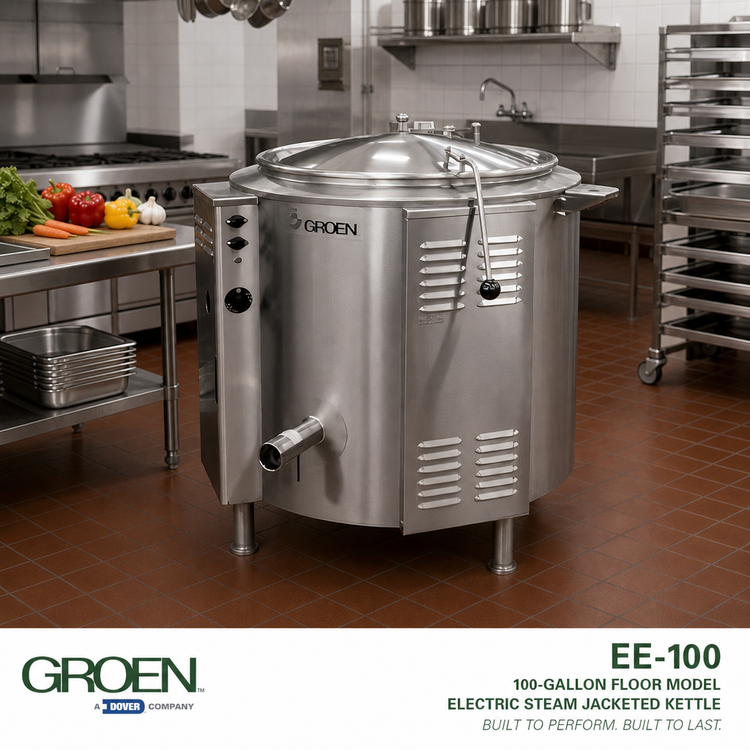

Groen EE-100 100-Gallon Floor Model Electric Steam Jacketed Kettle with Tri-Leg Base

Self-Contained, 2/3-Jacketed, Stainless Steel, 30 PSI

Built for high-volume batch cooking, this electric steam kettle delivers even heating, durable stainless steel construction, and easy floor-mounted operation.

  • 100-gallon capacity handles large-volume production for soups, sauces, vegetables, and more.
  • Self-contained electric steam source provides even heating without an external boiler.
  • 2/3-jacketed 316 stainless steel liner and insulated stainless steel shell help retain heat.
  • 2-inch sanitary tangent drawoff with removable 1/4-inch perforated strainer simplifies emptying.
  • Open tri-leg base with bullet feet supports stable floor-mounted installation.
  • Spring-assisted domed cover and 30 PSI working pressure are built for demanding kitchen use.

Overall Dimensions:

44.13"W x 44.75"D x 50.0"H

Product Weight:

905.0 lb

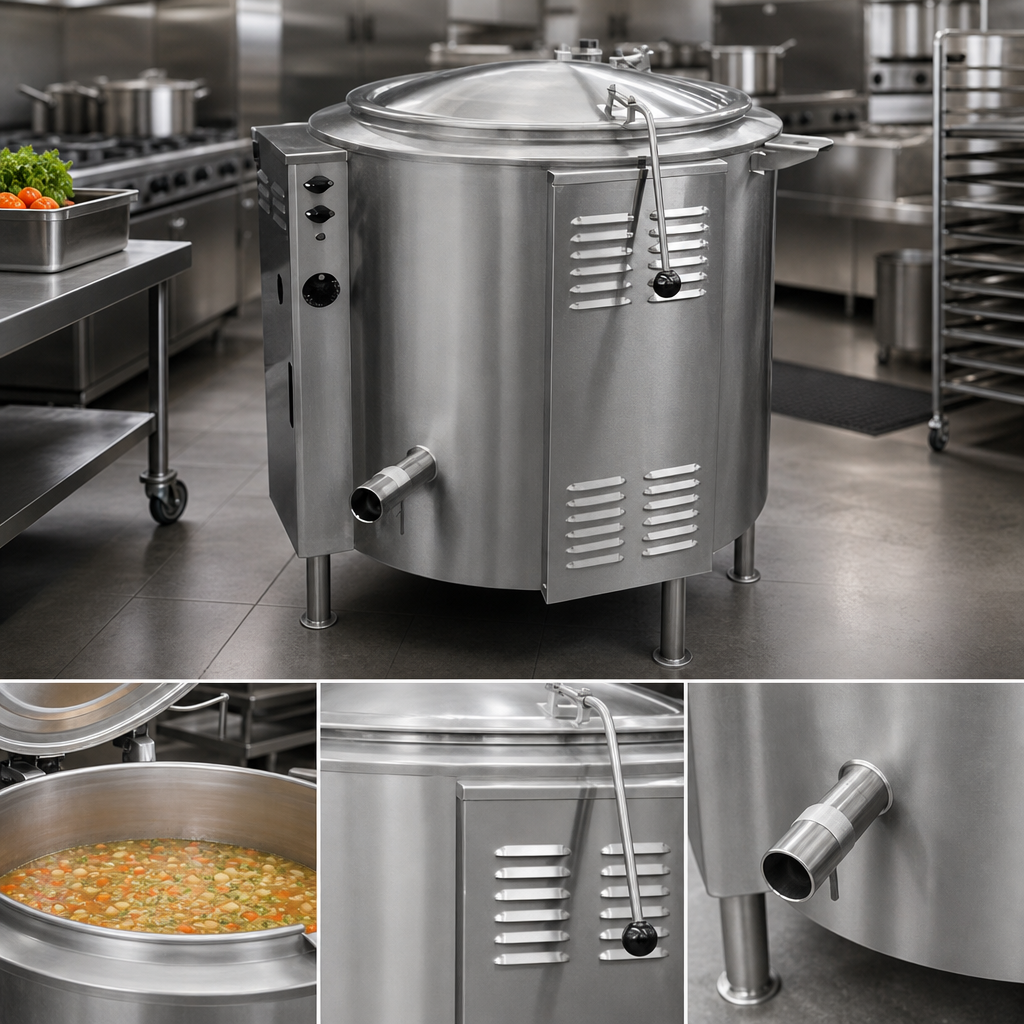

100-Gallon Capacity

Large-capacity kettle for high-volume commercial batch cooking.

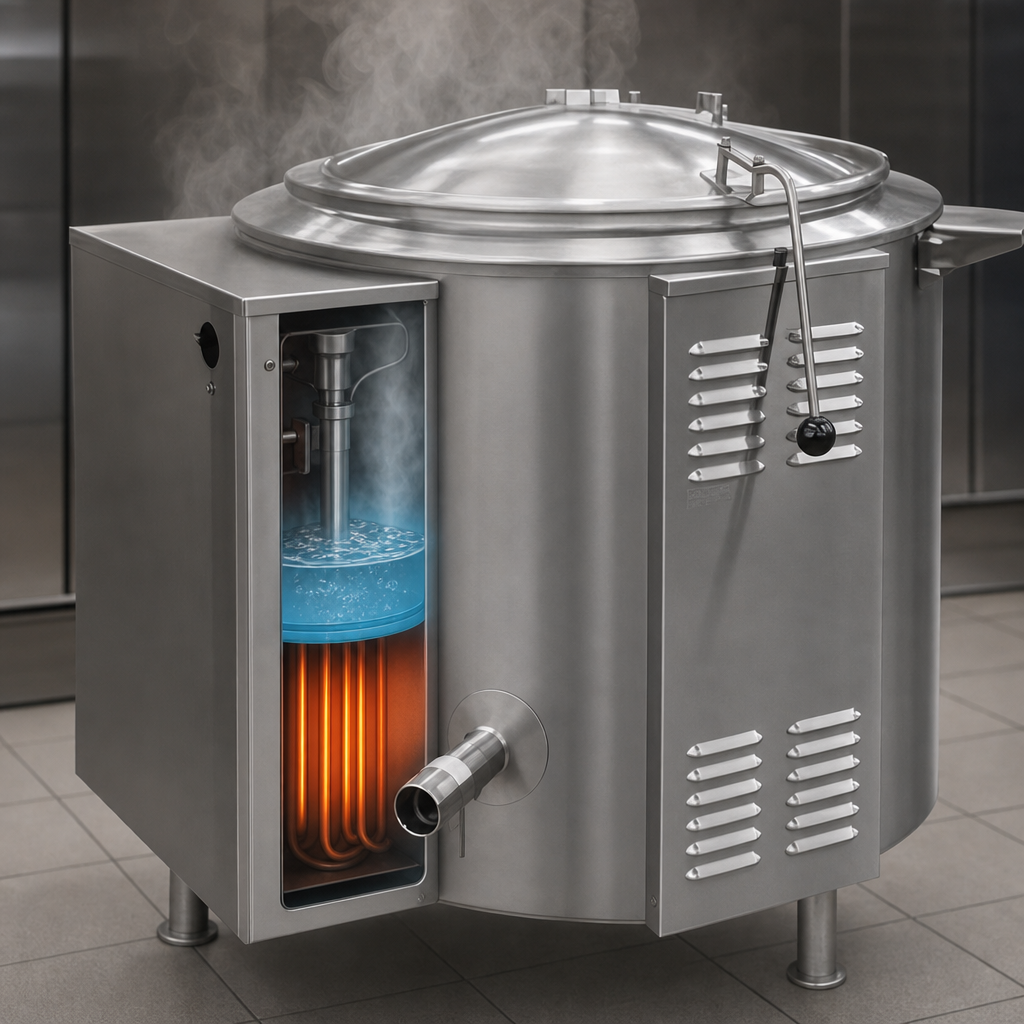

Self-Contained Electric Steam Source

Built-in electric steam source provides kettle heat without requiring an external boiler.

2/3-Jacketed 316 Stainless Steel Liner

Partial steam jacket and durable 316 stainless steel liner support efficient, even heating.

Insulated Stainless Steel Construction

Outer sheathing and insulation help retain heat and keep the exterior cooler to the touch.

2-Inch Tangent Drawoff

Sanitary drawoff design includes a removable 1/4-inch perforated stainless steel strainer for easy draining.

Spring-Assisted Domed Cover

Counterbalanced cover design helps simplify opening and closing on larger-capacity units.

Open Tri-Leg Base

Floor-mounted tri-leg support provides a stable installation footprint.

Operator Control Housing

Stainless steel control enclosure houses the thermostat, gauge, safety valve, sight glass, and low-water cut-off.

Type Steam Jacketed Kettle
Style Self-Contained
Installation Type Floor Model
Capacity 100 Gallons
Jacket 2/3 Jacket
Base Tri-Leg
Material Stainless Steel
Liner Material 316 Stainless Steel
Interior Finish Polished 180 Emery Grit
Finish #3 Finish
Controls Automatic Thermostat
Temperature Range 150°F to 270°F
Working Pressure 30 PSI
Voltage 208/240/480 Volts
Phase 3-Phase
Hertz 50/60 Hz
Watts 32.4 kW at 208 Volts; 36 kW at 240 Volts; 36 kW at 480 Volts
Country of Origin USA
Selling Unit Each
Units Per Case 1

Warranty & Protection

12 months from installation or 15 months from shipment, whichever comes first.

Documents

PDF Cutsheet PDF Download PDF Brochure PDF Download PDF Start-up request form PDF Download PDF Roi calculator PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It requires a single electrical connection. Specify 208, 240, or 480 Volts, 3-Phase, 50 or 60 Hz.
This model has a 100-gallon capacity.
The 100-gallon model uses a one-piece domed cover with a No. 51 counterbalanced spring-assisted actuator.
It includes a 2-inch sanitary tangent drawoff with a 316 stainless steel compression disk drain valve and a removable 1/4-inch perforated stainless steel strainer.
The unit is built for operation up to 30 PSI.
No. The document states that single-phase operation is available on 20- and 40-gallon models only.
