Groen DL-60, TA/3 Steam Kettles
Description

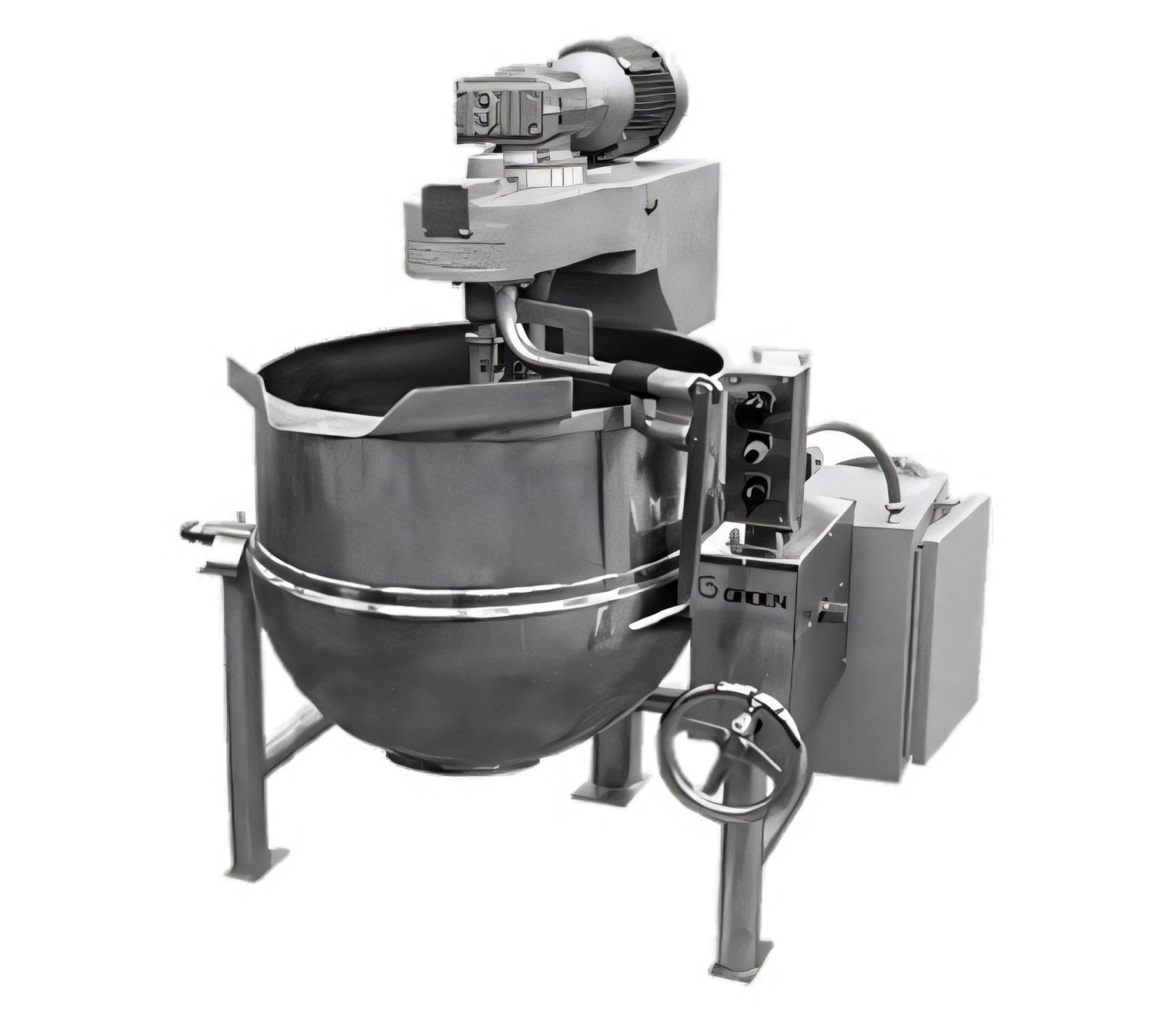

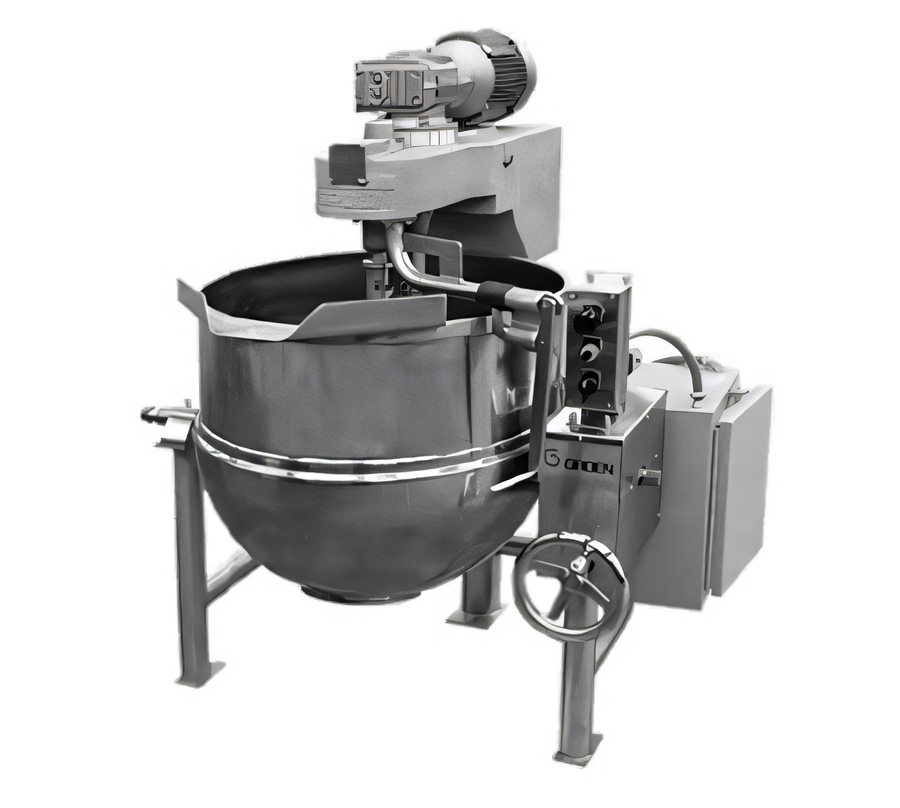

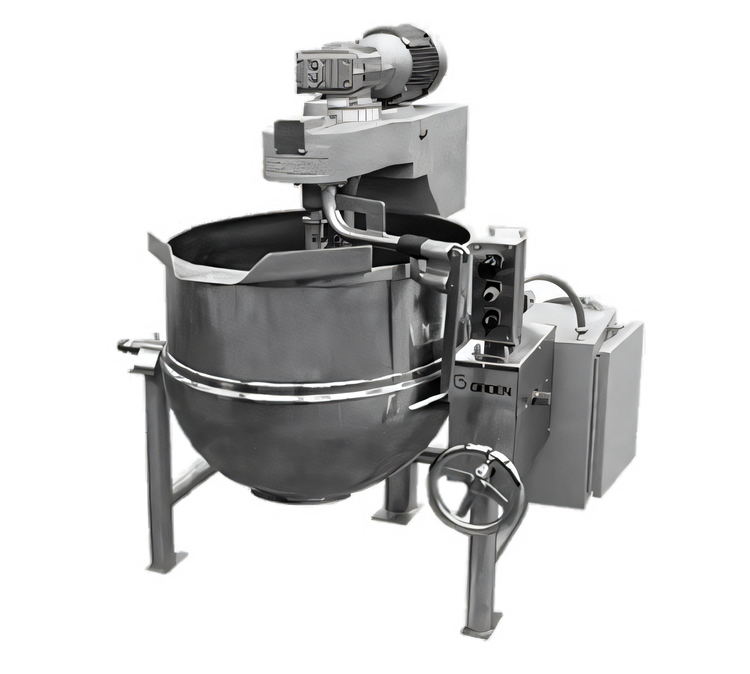

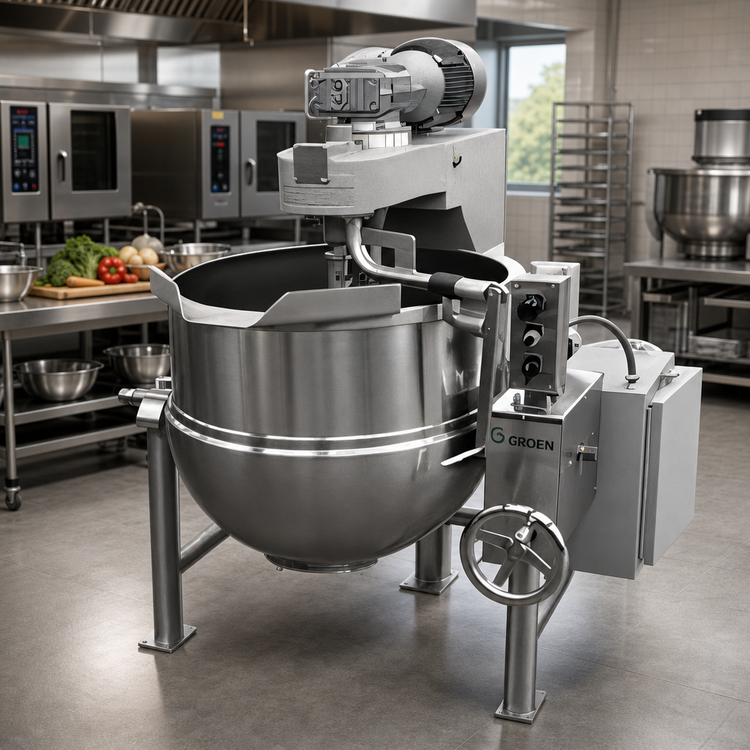

Groen DL-60 TA/3 60-Gallon Direct-Steam Tilting Cooker/Mixer
Twin-Shaft Scraper Agitation · 316 Stainless Interior · 50 PSI RatedBoost batch consistency, cut cooking times and simplify clean-up with Groen’s floor-mounted DL-60 TA/3 cooker/mixer. A rugged 2⁄3-jacketed kettle teams rapid direct-steam heating with a variable-speed twin-shaft agitator that scrapes every inch of the vessel wall, delivering perfectly blended soups, sauces, stews and more—every single time.
Why chefs choose the DL-60 TA/3
- 60 gal (227 L) capacity with easy-read 10-gal graduation marks

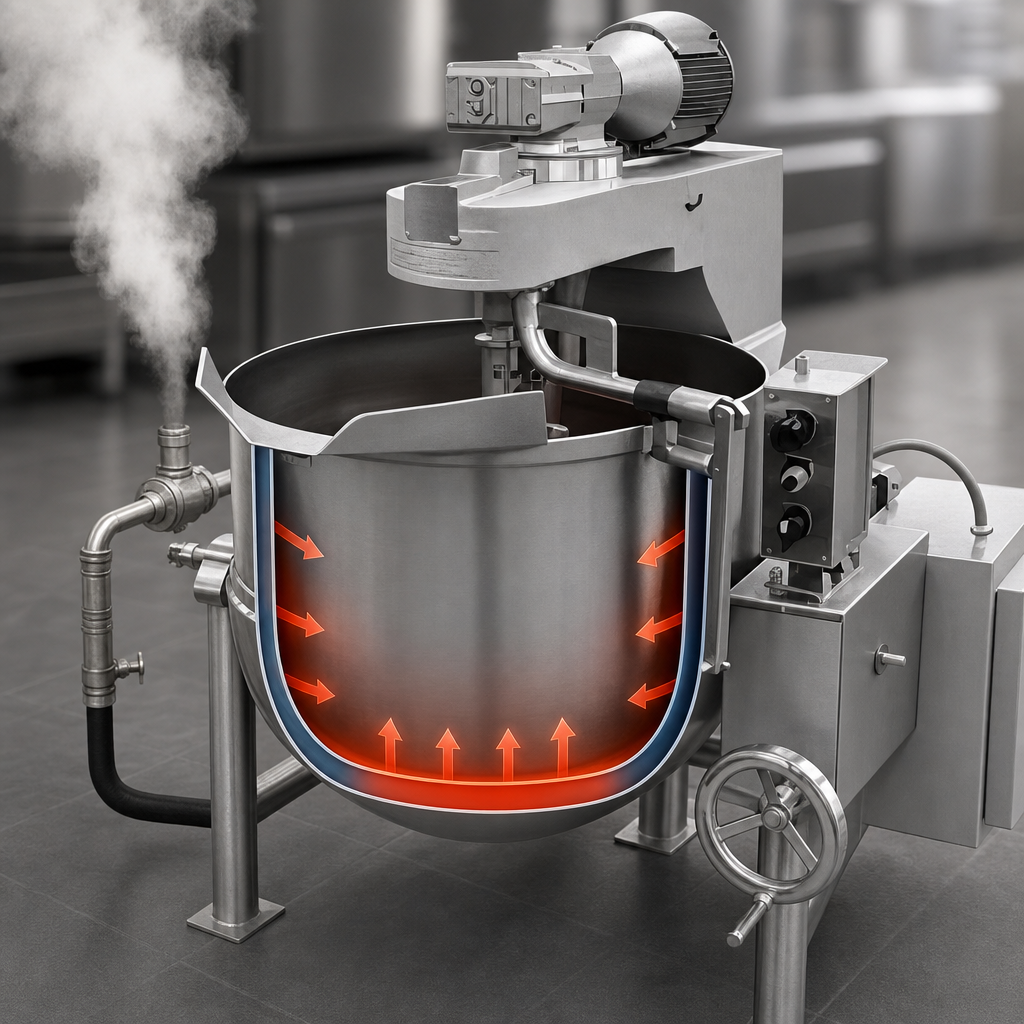

- 2⁄3 steam jacket for fast, even heat transfer—no hot spots
- Direct-steam design handles up to 50 PSI working pressure
- Seamless 316 stainless interior resists acid, salt and cleaning chemicals

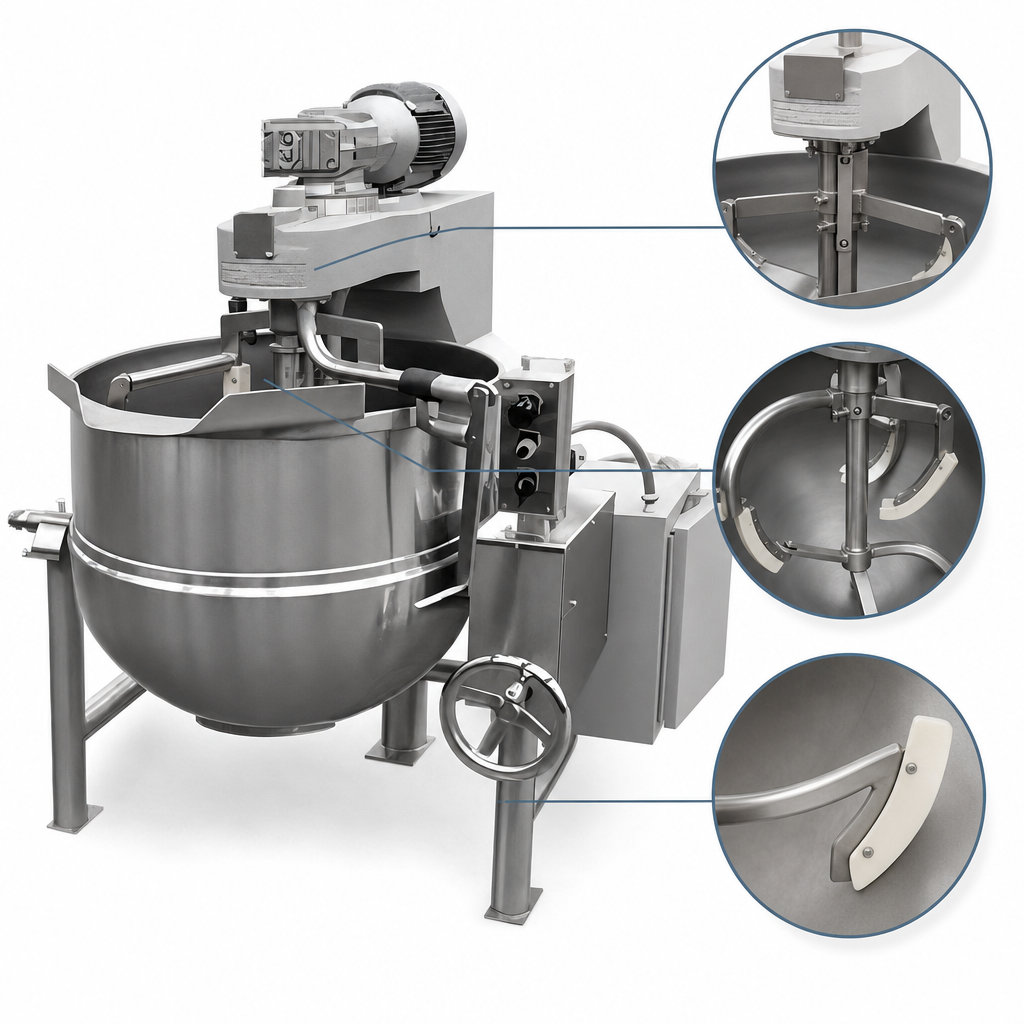

- Console-mounted twin-shaft scraper mixer (anchor + counter-rotator)
- Removable nylon scraper fingers prevent burn-on and reduce waste
- Variable-speed drive—up to 2 HP (≈1.7 kW) for gentle fold or vigorous mix
- Mechanically assisted tilt-out agitator assembly for full kettle access
- Positive-lock worm-gear tilt with sanitary butterfly pouring lip
- 2″ flush-mounted ball valve for quick, clog-free product draw-off
- ASME-code stamped, National Board registered, NSF listed & Made in USA
Perfect for
- Soups, stews & chili
- Sauces, gravies & roux
- Stocks & bone broths
- Pie fillings & custards
- Pasta, rice & vegetables
- Wet-roasting meats & poultry
Technical specifications
| Model | DL-60 TA/3 |
|---|---|
| Capacity | 60 gal (227 L) |
| Jacket Coverage | 2⁄3 of vessel |
| Heating Source | Remote direct steam (3⁄4″ NPT inlet & condensate) |
| Working Pressure | 5 – 50 PSI |
| Interior Material | 316 stainless steel, one-piece welded |
| Jacket Material | 304 stainless steel |
| Agitator System | Twin-shaft scrape-surface (anchor & counter-rotator) |
| Agitator Motor | Variable-speed, up to 2 HP (≈1.7 kW) |
| Speed Range | 23 – 120 RPM (main) / 60 – 120 RPM (secondary) |
| Tilt Mechanism | Manual worm-gear with positive lock |
| Product Outlet | 2″ sanitary flush ball valve |
| Electrical | 208 V, 3-ph (standard) — other voltages optional |
| Base | Stainless tri-leg with floor flanges |
| Certifications | ASME, NSF, cULus, Made in USA |
Covered by Groen’s 1-year parts & labor warranty and supported nationwide by Factory-Authorized Service agents.
