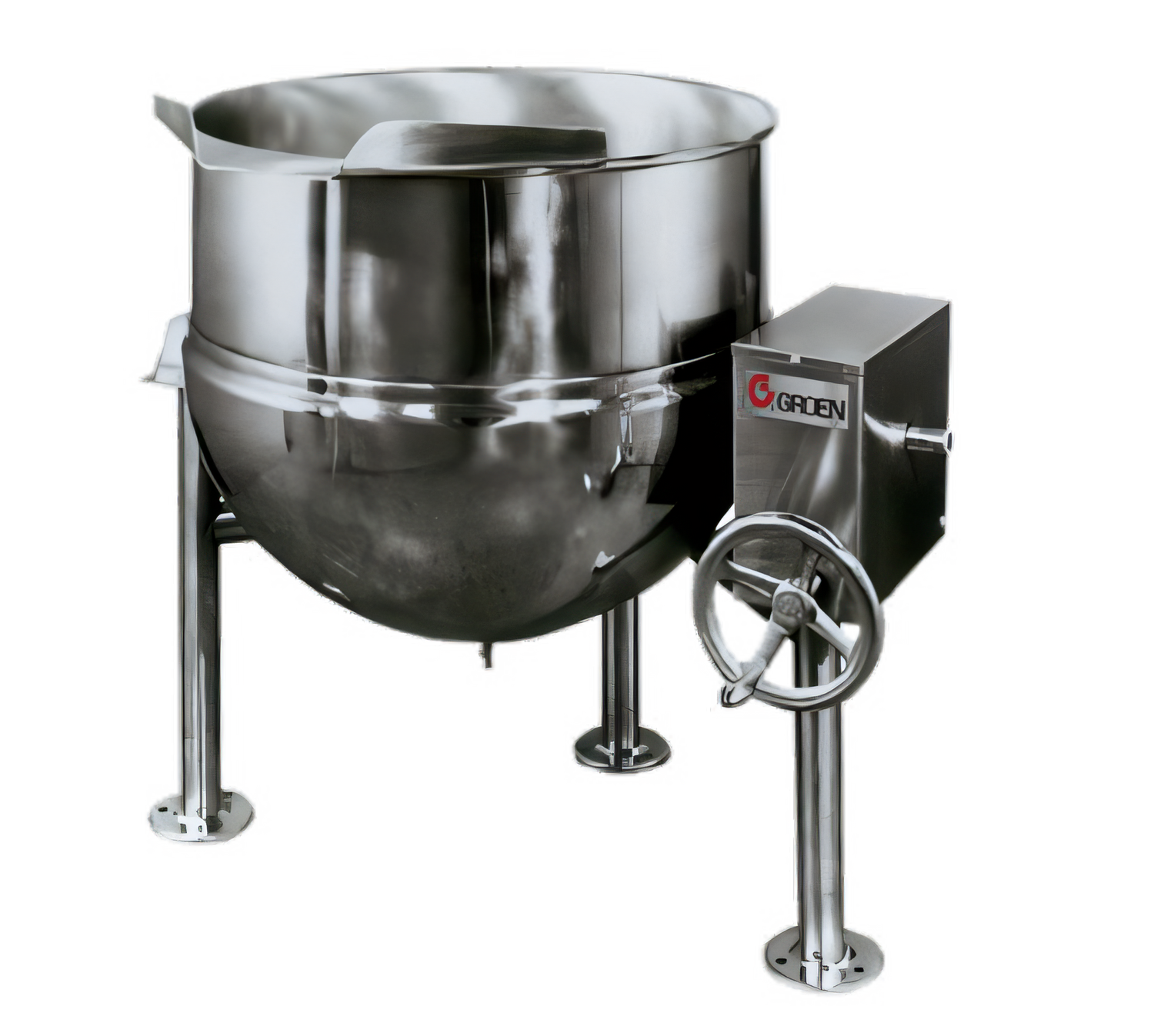

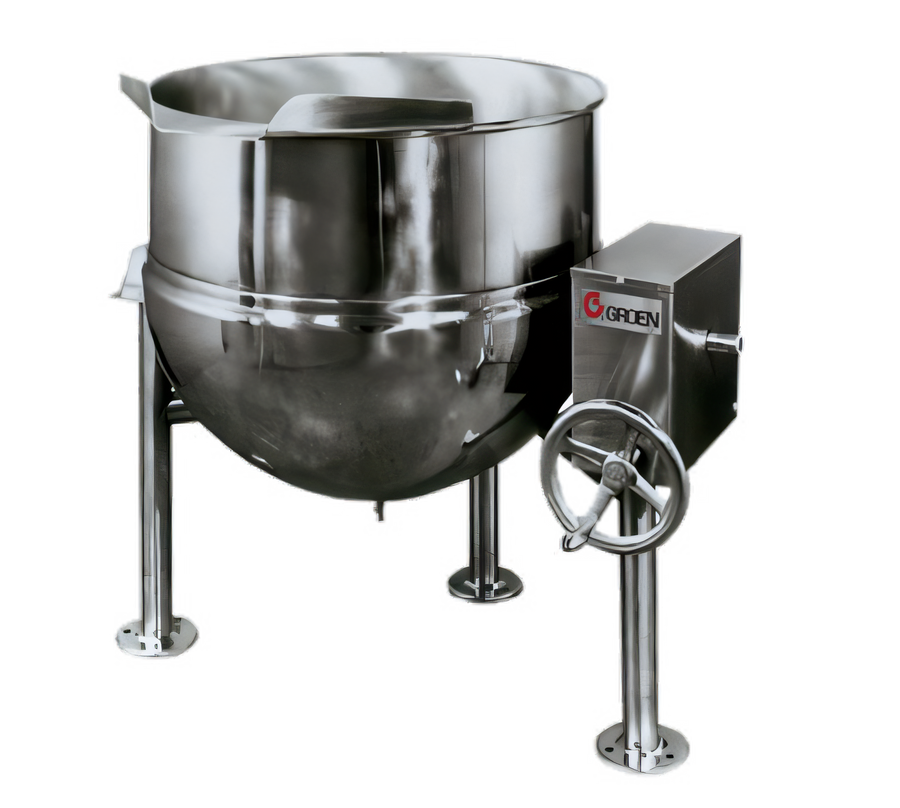

Groen DL-60 60-Gallon Floor-Mounted Direct Steam Tilting Kettle

Manual Crank Tilt, 2/3 Jacket, Tri-Leg Base

Built for high-volume batch cooking, this 60-gallon direct steam kettle combines durable stainless steel construction, precise manual tilt control, and secure floor-mounted stability.

  • 60-gallon capacity for large-batch cooking and holding.
  • Direct steam, 2/3-jacket design for efficient heat transfer.
  • Manual crank tilt with self-locking worm gear for controlled pouring.
  • 316 stainless steel liner and stainless steel construction for durability and sanitation.
  • Tri-leg floor stand with adjustable flanges for secure installation.
  • NSF-listed, ASME shop-inspected, and manufactured in the USA.

Overall Dimensions:

47.0"W x 38.25"D x 44.0"H

Product Weight:

280.0 lb

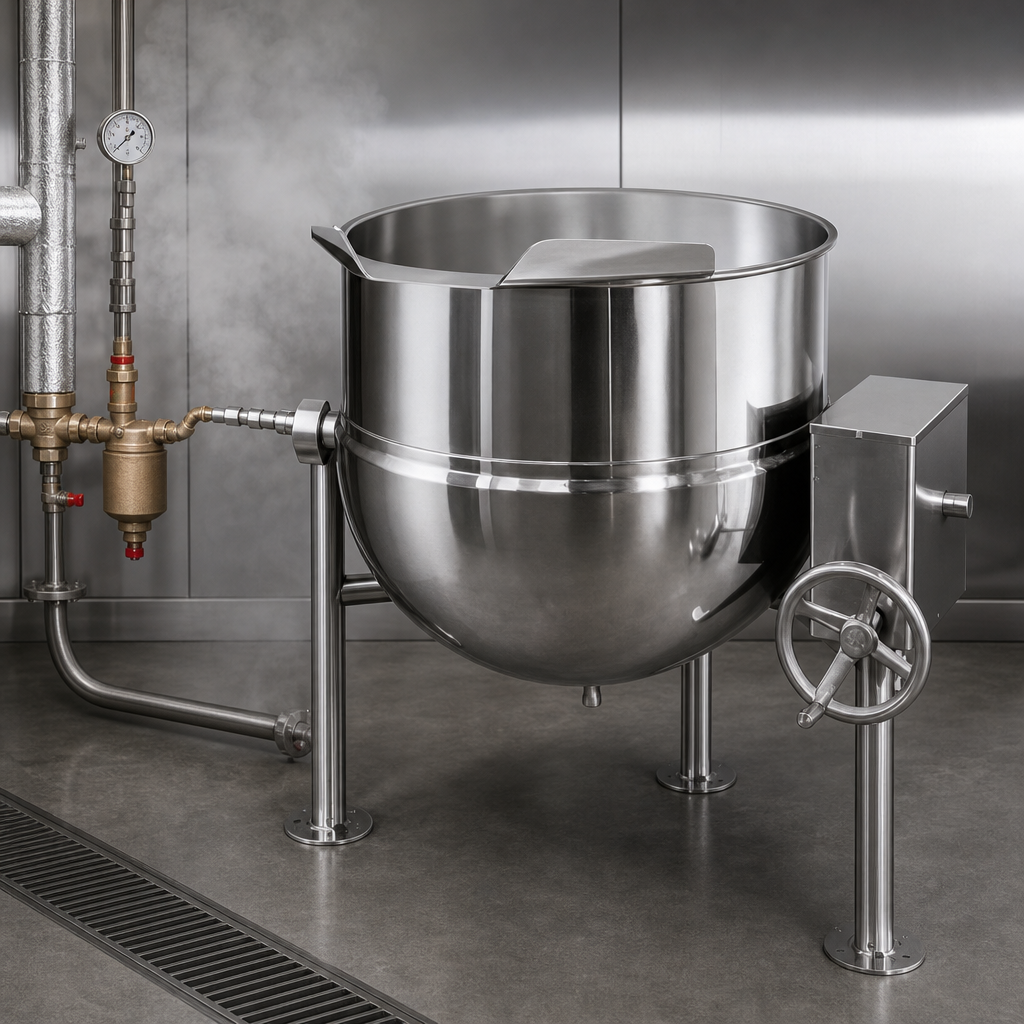

Direct Steam Operation

Connects to a remote steam source and operates at 5 to 25 PSI; steam trap assembly is required and sold separately unless ordered as an option.

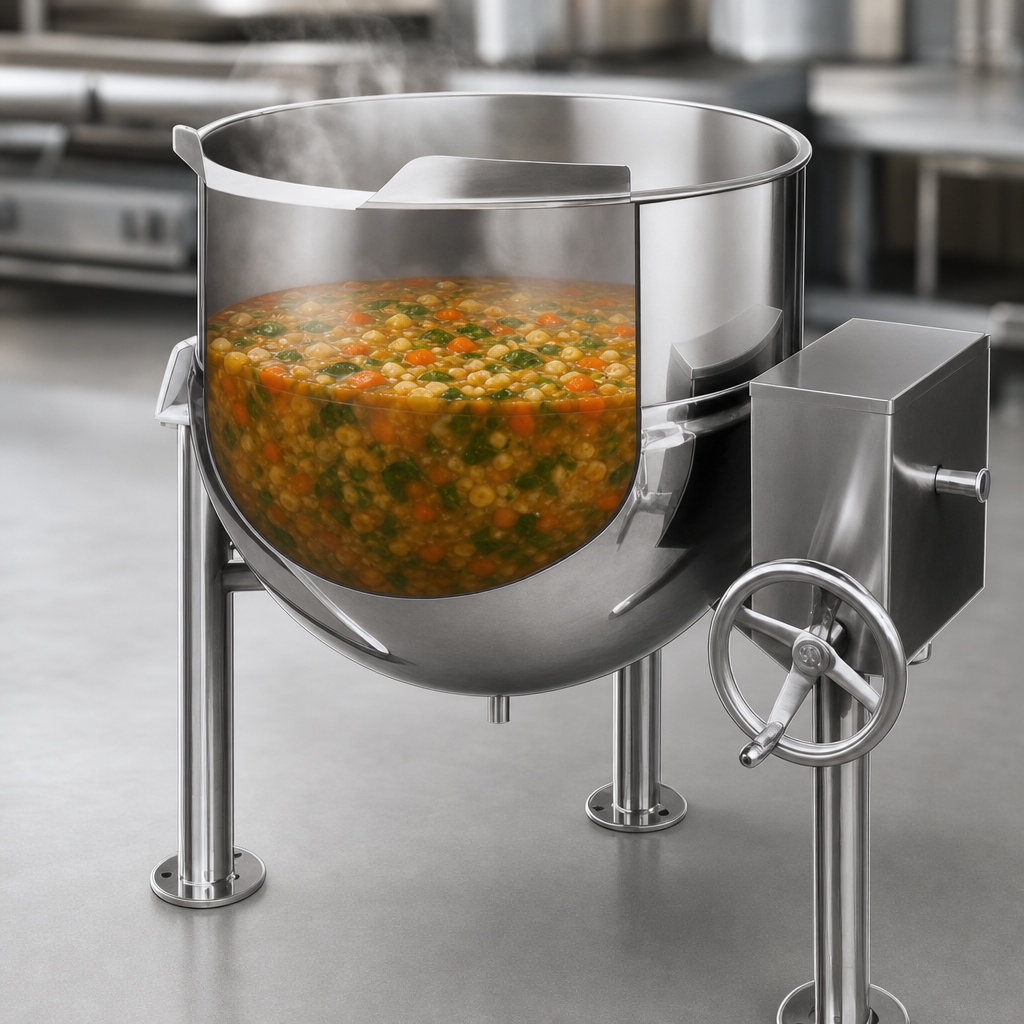

60-Gallon Capacity

Large-capacity kettle suited for high-volume batch cooking.

2/3 Steam Jacket

Steam jacket covers two-thirds of the kettle for efficient heat transfer.

316 Stainless Steel Liner

One-piece welded interior liner supports sanitation and long service life.

Manual Crank Tilt

Self-locking worm gear tilt mechanism and large hand crank provide controlled, precise pouring.

Tri-Leg Floor Stand

Stainless steel tubular leg support with adjustable floor flanges helps secure the kettle to the floor.

Standard Faucet Mounting Bracket

Includes a standard bracket for faucet mounting.

NSF and ASME Construction

Designed to meet NSF sanitation requirements and ASME code requirements; manufactured in the United States.

Sanitary Finish

Interior is polished to a 180 emery grit finish and the exterior has a semi-deluxe buff finish.

Type Direct Steam Kettle
Style Tilting
Installation Type Floor Model
Capacity 60 Gallons
Material Stainless Steel
Interior Finish 316 Stainless Steel
Finish Semi-Deluxe Buff
Kettle Jacket 2/3 Jacket
Base Tri-Leg
Tilt Mechanism Manual Crank
Steam Pressure 5 to 25 PSI
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 47 Inches
Shipping Depth 39 Inches
Shipping Height 44 Inches
Shipping Weight 280 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

1-year limited warranty: 12 months from installation or 15 months from shipment, whichever occurs first.

Documents

PDF Cutsheet PDF Download PDF Brochure PDF Download PDF Roi calculator PDF Download PDF Start-up request form PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It has a 60-gallon capacity.
The kettle uses a manual crank tilt with a self-locking worm gear.
It operates dependably at steam pressures from 5 to 25 PSI, with a maximum working pressure of 25 PSI.
No. A steam trap assembly is required for installation and is not provided unless ordered as an option.
A cover is optional. Lift-off and counter-balanced cover options are available.
