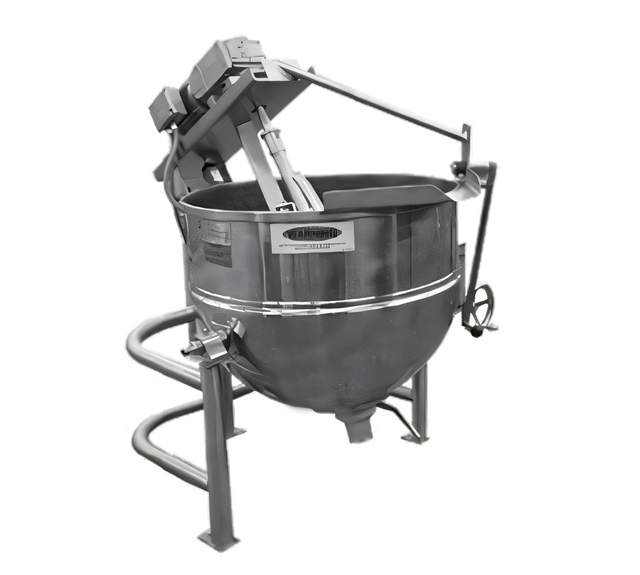

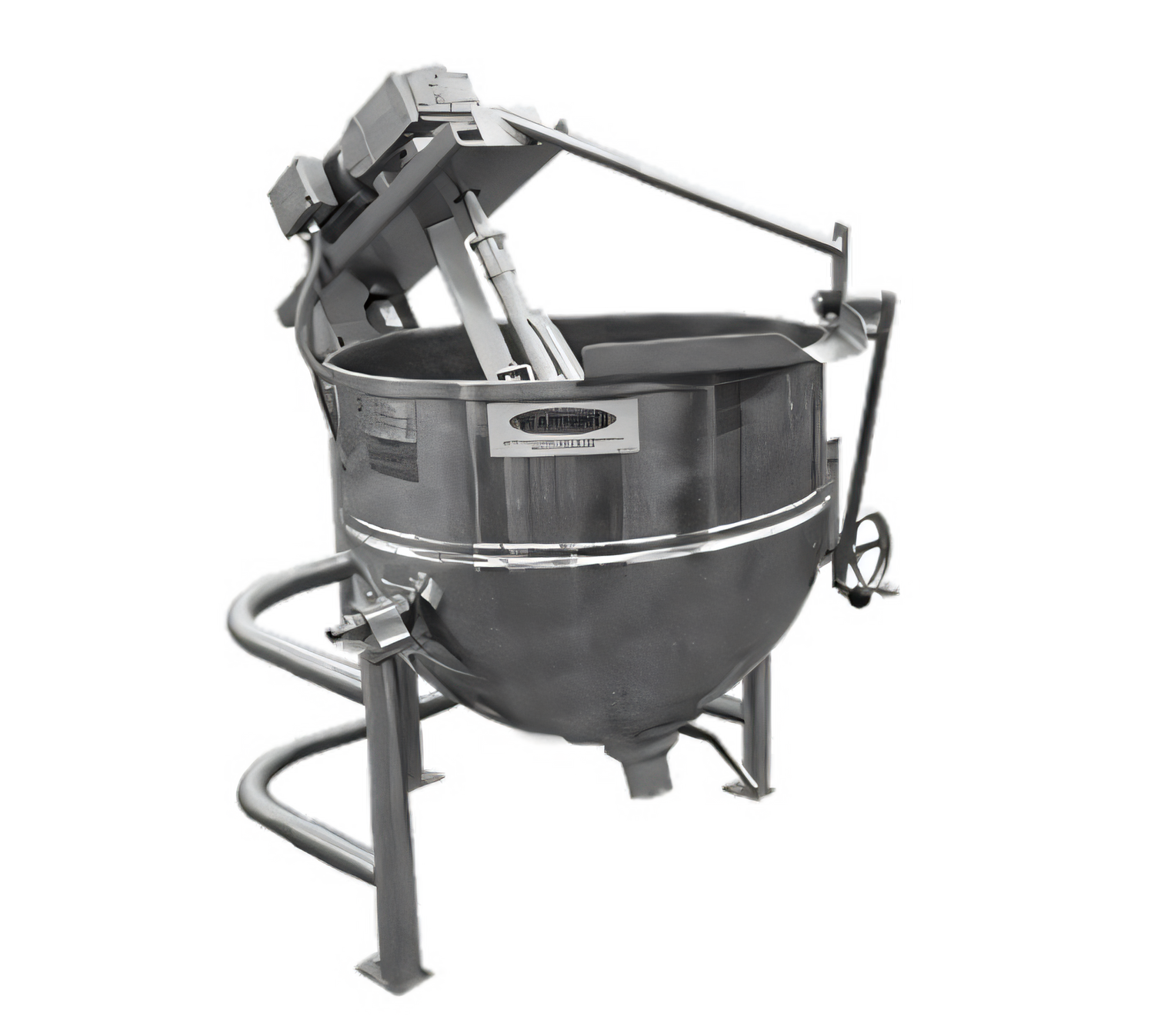

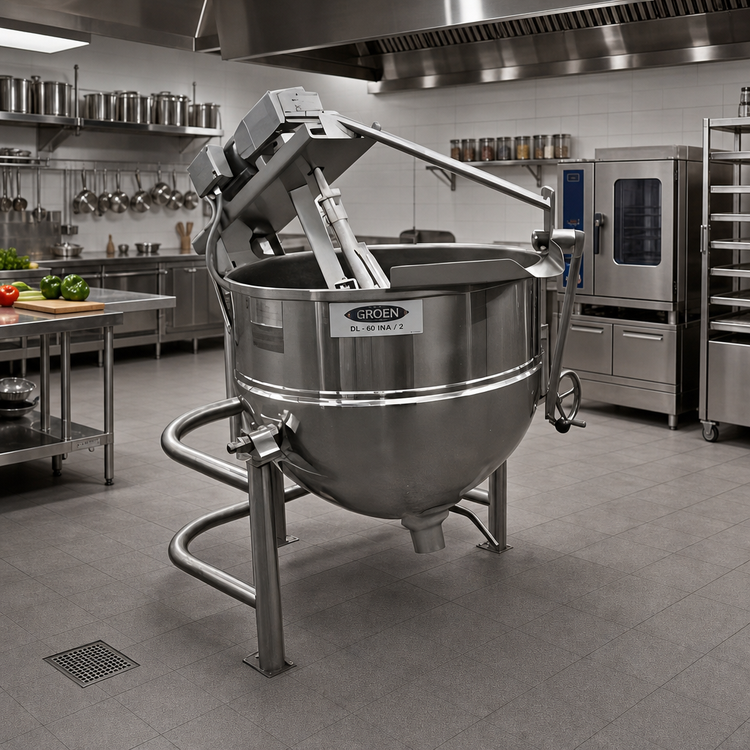

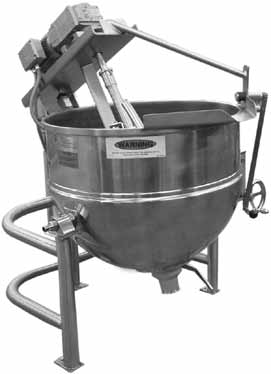

Groen DL-60 INA/2 60-Gallon Direct Steam Tilting Cooker/Mixer Kettle with Inclined Agitator

2/3 Jacket, 316 Stainless Steel Liner, Tri-Leg Floor Stand

Built for high-volume batch cooking, this 60-gallon direct steam kettle combines tilting discharge, an inclined agitator, and sanitary stainless steel construction for efficient mixing and easy cleanup.

  • 60-gallon cooker/mixer kettle for large-batch soups, sauces, stews, and other high-volume recipes.
  • Direct steam design with a 2/3 jacket helps deliver even heat transfer.
  • 316 stainless steel kettle interior and stainless steel construction support durability and sanitation.
  • Inclined agitator mixer folds and blends product gently, with electronic variable-speed control.
  • Tilting kettle body and 2" flush-mounted ball valve make product discharge easier and more controlled.
  • Tri-leg, floor-mounted design provides a stable footprint for busy commercial kitchens.
  • Remote steam source required; steam trap assembly is included standard.

Overall Dimensions:

45.0"W x 49.0"D x 43.0"H

Product Weight:

570.0 lb

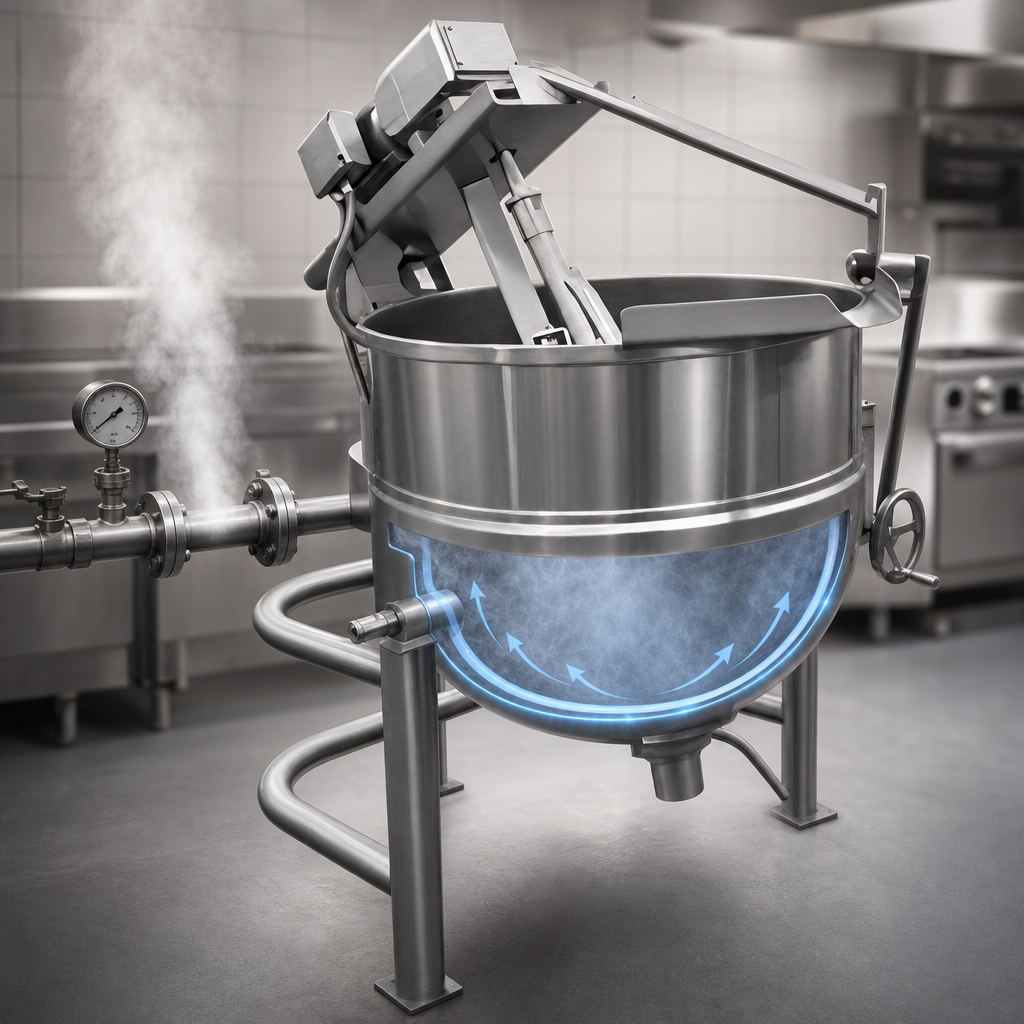

Direct Steam Operation

Uses a remote steam source and injects steam directly into the jacket for efficient heating.

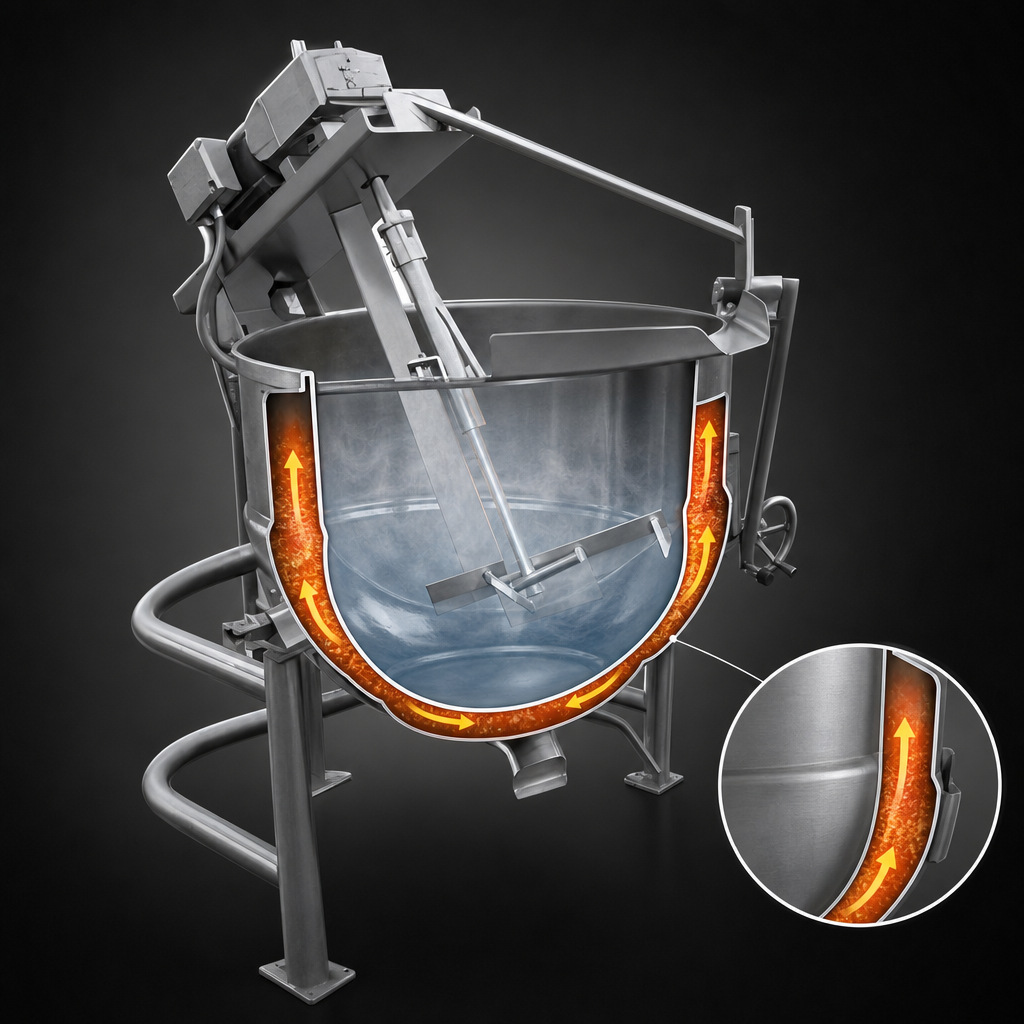

2/3 Steam Jacket

A two-thirds jacketed design helps provide even heat distribution around the kettle.

316 Stainless Steel Liner

The kettle interior is one-piece welded 316 stainless steel for durability and sanitation.

Inclined Agitator Mixer

Angle-entry agitator helps fold and blend product gently and is removable for cleaning.

Variable-Speed Agitator Control

Electronic control allows the agitator speed to be adjusted between minimum and maximum settings.

Tilting Kettle Design

Positive locking worm-and-gear tilt mechanism supports controlled emptying and product handling.

2-Inch Flush-Mounted Ball Valve

Sanitary quick-opening bottom outlet simplifies discharge.

Tri-Leg Floor Stand

Stainless steel tri-leg stand with floor flanges provides a stable mounted base.

Steam Trap Assembly Included

Standard steam trap assembly with check valve and globe valve is provided.

Etch Markings

Kettle includes 10-gallon etch markings for easier batch measurement.

Type Direct Steam Cooker/Mixer Kettle
Style Tilt
Installation Type Floor Model
Base Tri-Leg
Capacity 60 Gallons
Jacket 2/3 Jacket
Material Stainless Steel
Interior Finish 316 Stainless Steel
Finish Bright Semi-Deluxe Buff
Controls Electronic Variable Speed
Working Pressure 50 PSIG
Country of Origin USA
Selling Unit Each
Units Per Case 1

Warranty & Protection

1-year limited warranty, or 15 months from shipment, or 2000 operating hours, whichever occurs first.

Documents

PDF Cutsheet PDF Download PDF Brochure PDF Download PDF Owner's manual PDF Download PDF Start-up request form PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

This model has a 60-gallon capacity.
It operates from a direct steam source with a 2/3 steam jacket.
It uses an inclined agitator mixer with electronic variable-speed control.
The kettle tilts for emptying and includes a 2" flush-mounted sanitary ball valve.
A remote steam source is required, along with an agitator power connection and 3/4" NPT steam inlet and condensate connections.
