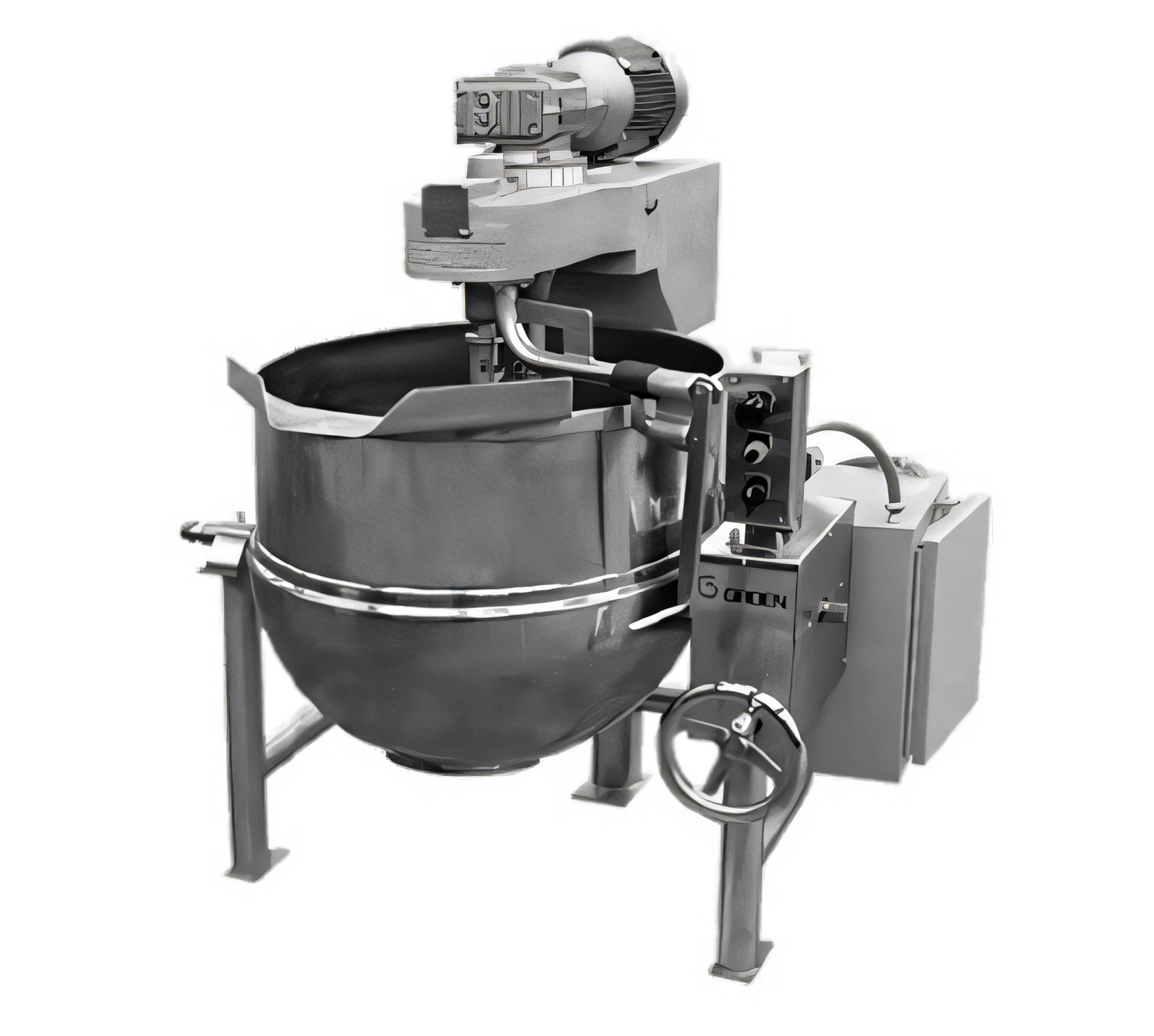

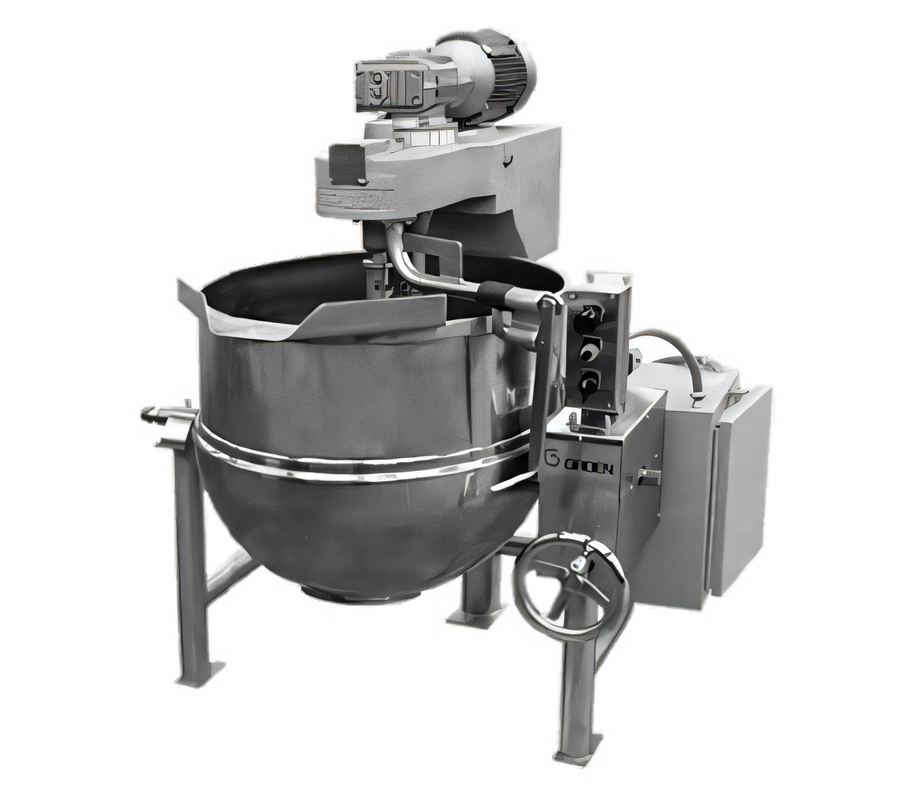

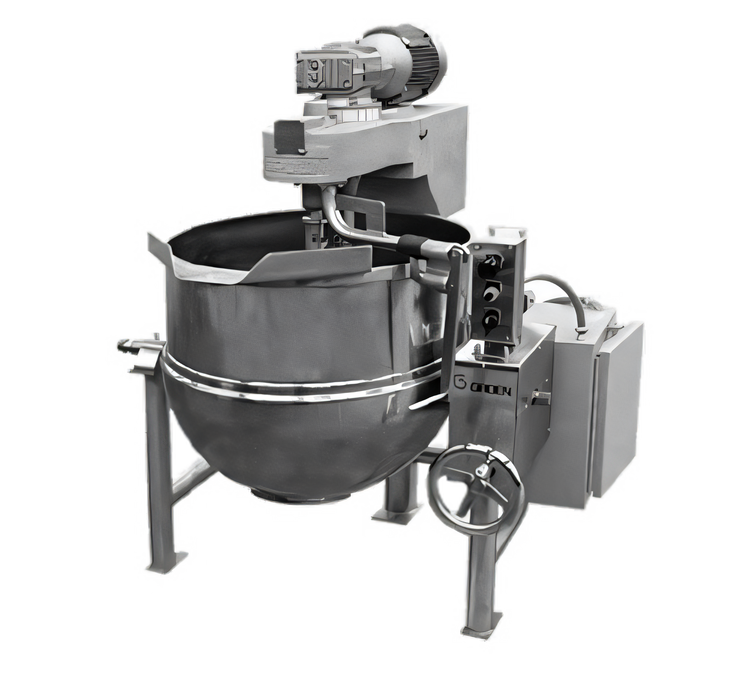

Groen DL-40 TA/3 40-Gallon 2/3 Jacketed Tilting Direct Steam Cooker/Mixer Kettle with Twin Shaft Agitator

316 Stainless Steel Liner, Tri-Leg Stand, Floor-Mounted Control Console

Built for high-volume batch cooking, this 40-gallon steam kettle combines a tilting cooker with a twin-shaft scraper mixer for efficient stirring and easy discharge.

  • 40-gallon direct steam cooker/mixer built for soups, sauces, stocks, and other batch applications.
  • Console-mounted tilt-out twin shaft scraper mixer helps keep product moving and simplifies cleanup.
  • 316 stainless steel kettle liner and stainless steel construction support long service life.
  • Positive-locking worm-and-gear tilt mechanism and 2-inch sanitary ball valve improve control.
  • Variable-speed electronic agitator control lets you match mixing intensity to the product.
  • Remote steam source requirement and standard steam trap assembly support dependable operation.

Overall Dimensions:

40.0"W x 60.0"D x 32.5"H

Product Weight:

520.0 lb

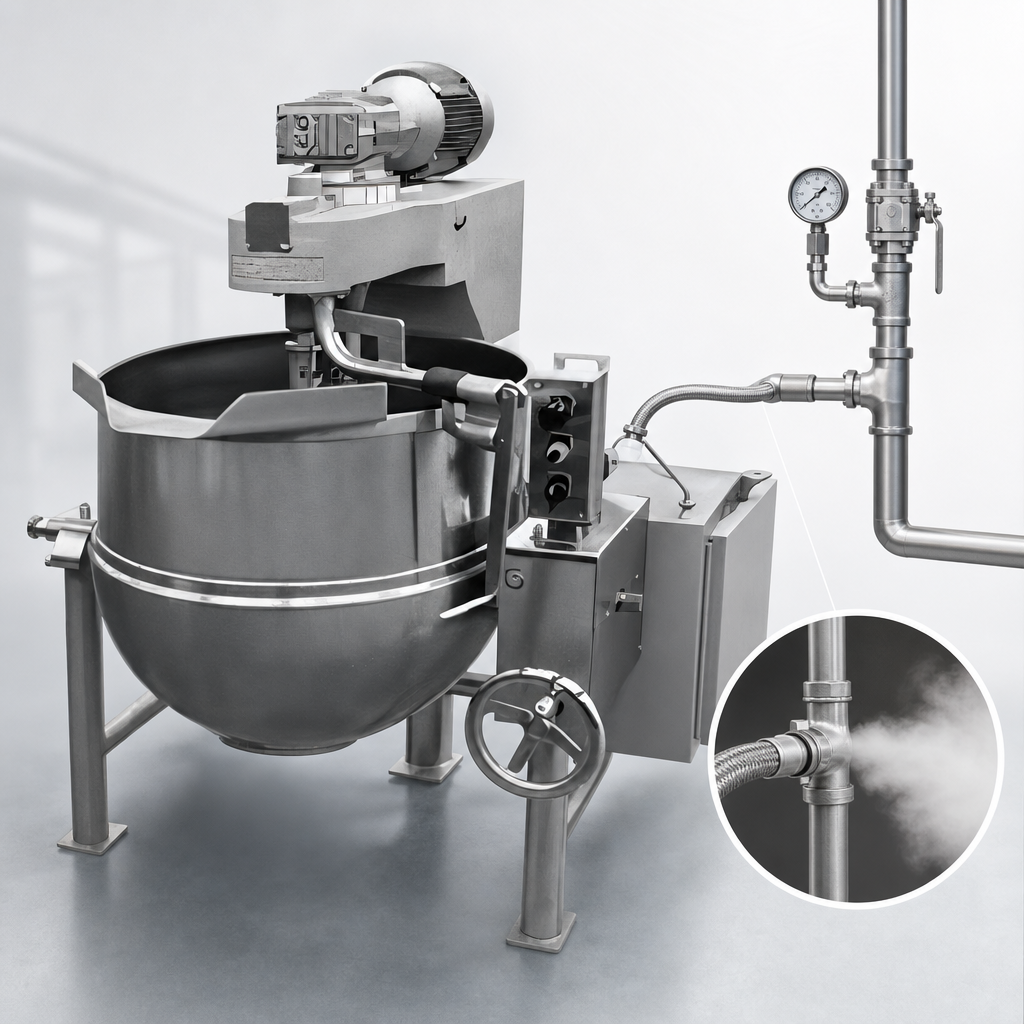

Direct Steam Operation

Operates from a direct steam source and requires a remote steam supply for heating.

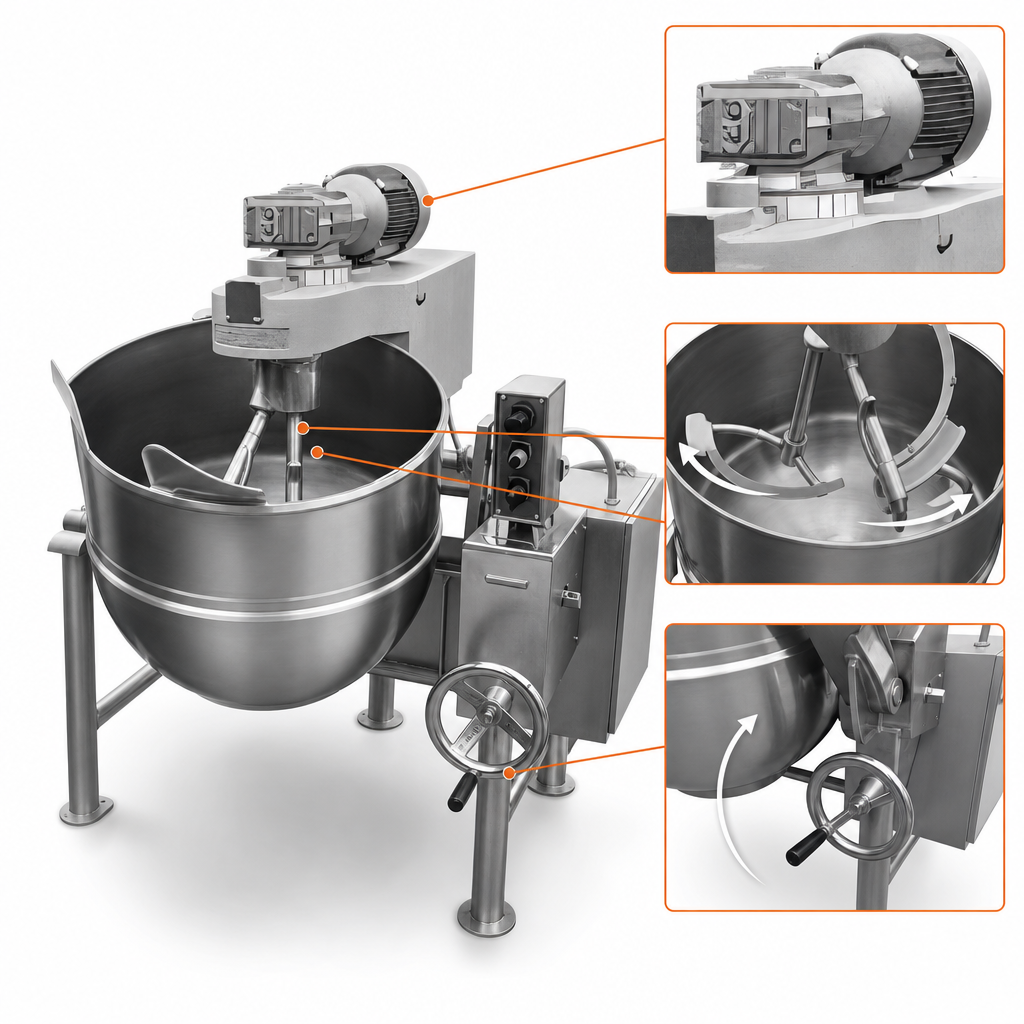

Tilt-Out Twin Shaft Mixer

Console-mounted scraper mixer uses a main anchor-type agitator and a secondary counter-rotating agitator for thorough mixing.

316 Stainless Steel Liner

One-piece welded interior liner provides a durable, sanitary food-contact surface.

2/3 Steam Jacket

304 stainless steel jacket surrounds two-thirds of the kettle for efficient steam transfer.

Positive-Locking Tilt Mechanism

Worm-and-gear tilt system is enclosed in a polished, drip-proof stainless steel housing.

Sanitary Drawoff

Includes a 2-inch flush-mounted quick-opening ball valve and etch markings for measuring.

Variable-Speed Electronic Control

Agitator speed can be adjusted between the minimum and maximum settings.

Stainless Tri-Leg Stand

Kettle is mounted on a stainless steel tri-leg stand with floor flanges for stability.

Standard Steam Hardware

Steam trap assembly with check valve and globe valve is provided as standard.

Type Steam Kettle Cooker/Mixer
Style Direct Steam
Tilt Type Tilting
Installation Type Floor Model
Capacity 40 Gallons
Base Tri-Leg
Jacket 2/3 Jacket
Material Stainless Steel
Interior Finish 316 Stainless Steel
Finish Bright Semi-Deluxe Buff
Controls Variable Speed Electronic
Voltage 208 Volts
Watts 1.7 kW
Steam Pressure 50 PSIG
Shipping Width 40 Inches
Shipping Depth 60 Inches
Shipping Height 33 Inches
Shipping Weight 520 lb.
Country of Origin USA
Selling Unit Each
Units Per Case 1

Warranty & Protection

12 months from installation, 15 months from shipment, or 2,000 operating hours, whichever comes first.

Documents

PDF Cutsheet PDF Download PDF Start-up request form PDF Download PDF Owner's manual PDF Download PDF Brochure PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It has a 40-gallon capacity.
Yes. It operates from a direct steam source and requires a remote steam supply.
The kettle interior is 316 stainless steel.
It includes a console-mounted tilt-out twin shaft scraper mixer with an anchor-type main agitator and a secondary counter-rotating agitator.
Specify 208 Volt power; 1-phase or 3-phase is standard, and other voltages are available.
The unit operates at steam pressure of 50 PSIG or below, and higher working pressure is available.
