Groen DL-40 Steam Kettles
Groen DL-40 Steam Kettles is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Groen DL-40 Steam Kettles
Description

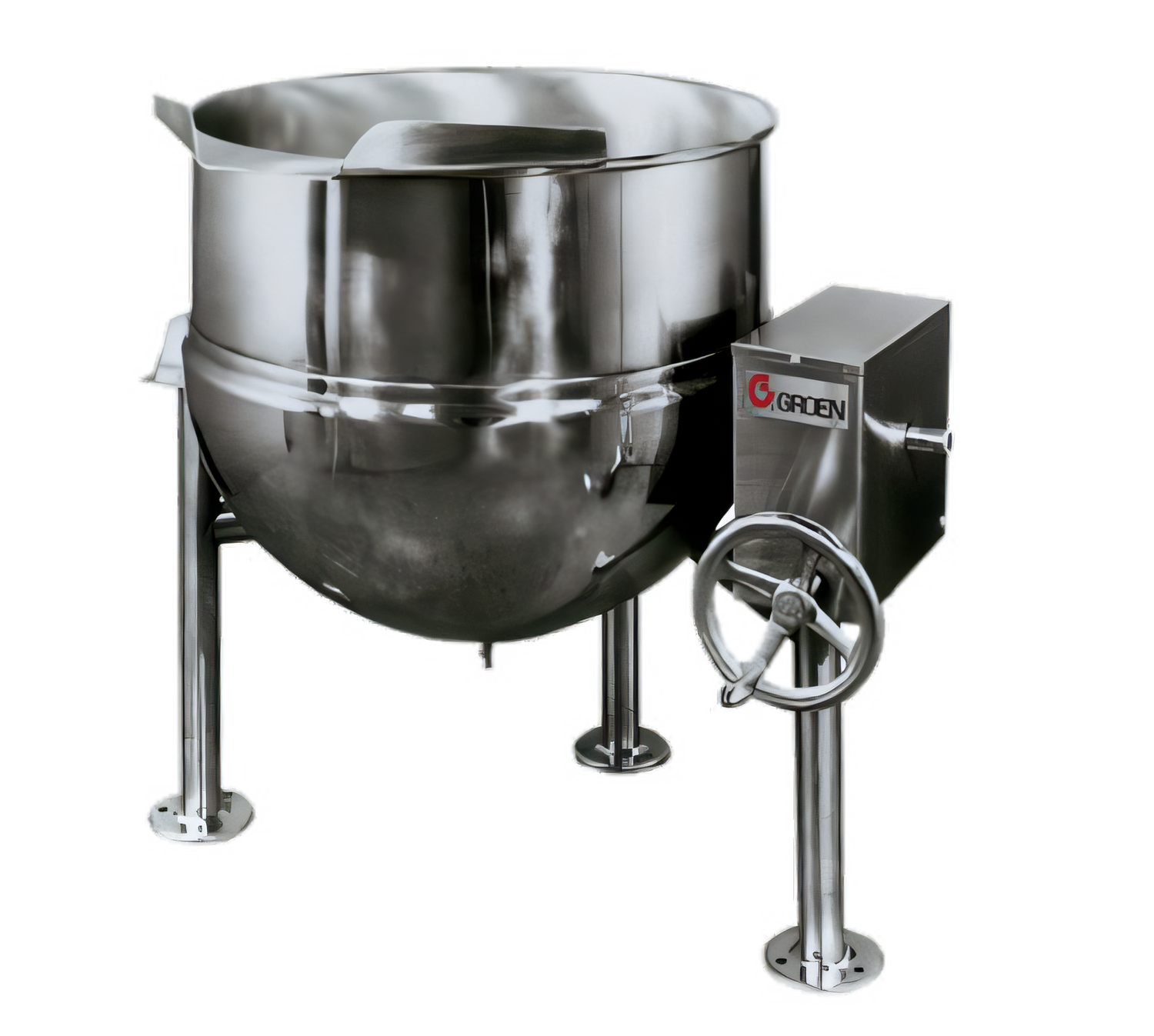

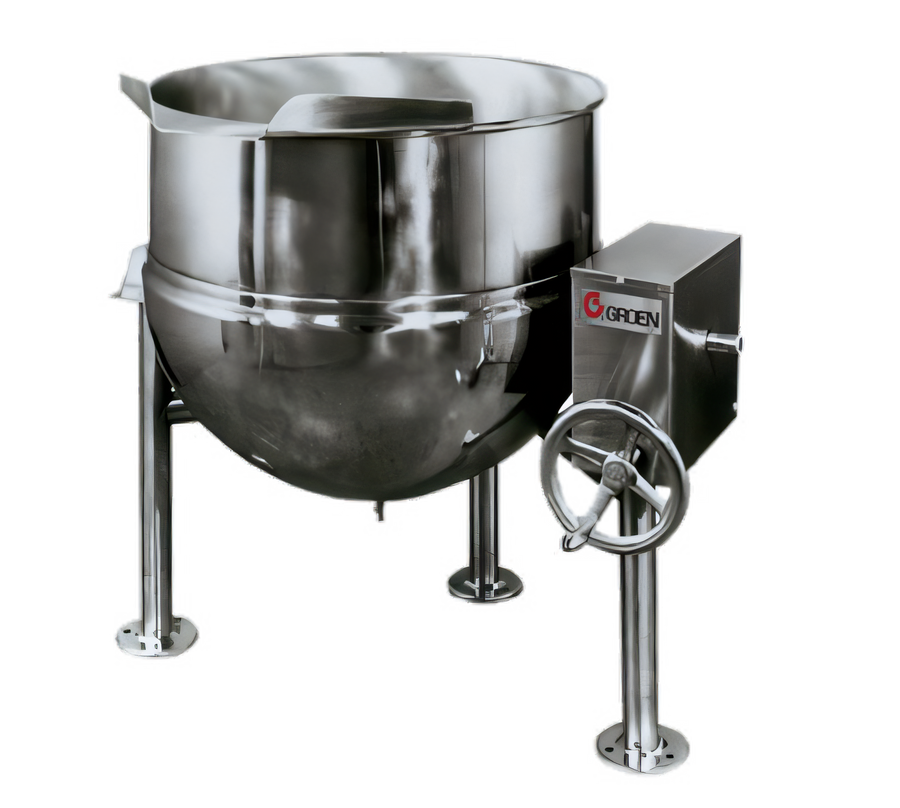

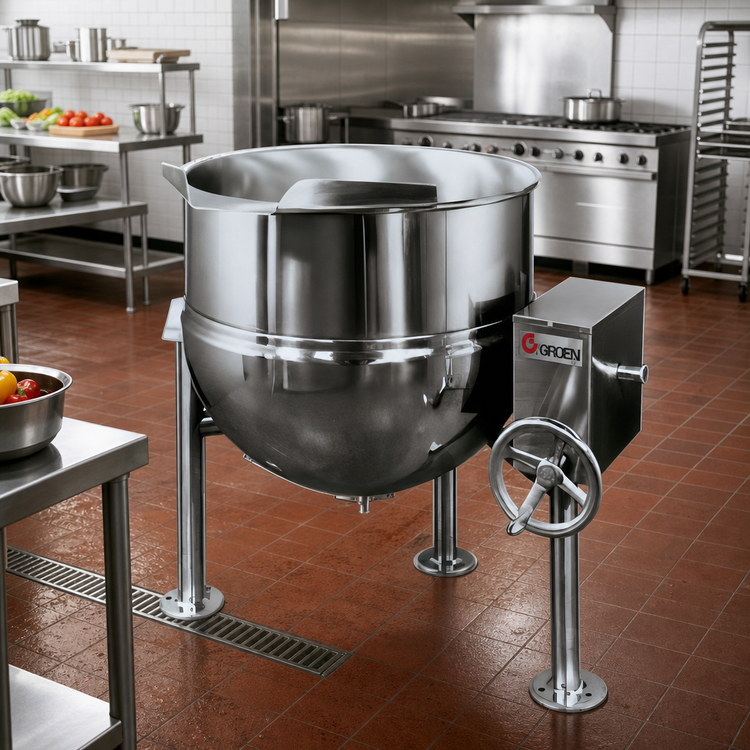

Groen DL-40 Direct Steam Tilting Kettle
40 gal | 2/3 Jacket | 316 SS Liner | Made in USADesigned for high-volume, high-precision cooking, the Groen DL-40 is a floor-mounted, direct-steam kettle that delivers superior temperature control, easy one-hand tilting and legendary Groen durability. With a full 40-gallon (≈151 L) capacity and a 2/3 jacketed 316 stainless steel liner, it tackles soups, sauces, pasta, stocks and more—while saving space and labor every shift.
Chef-Focused Advantages

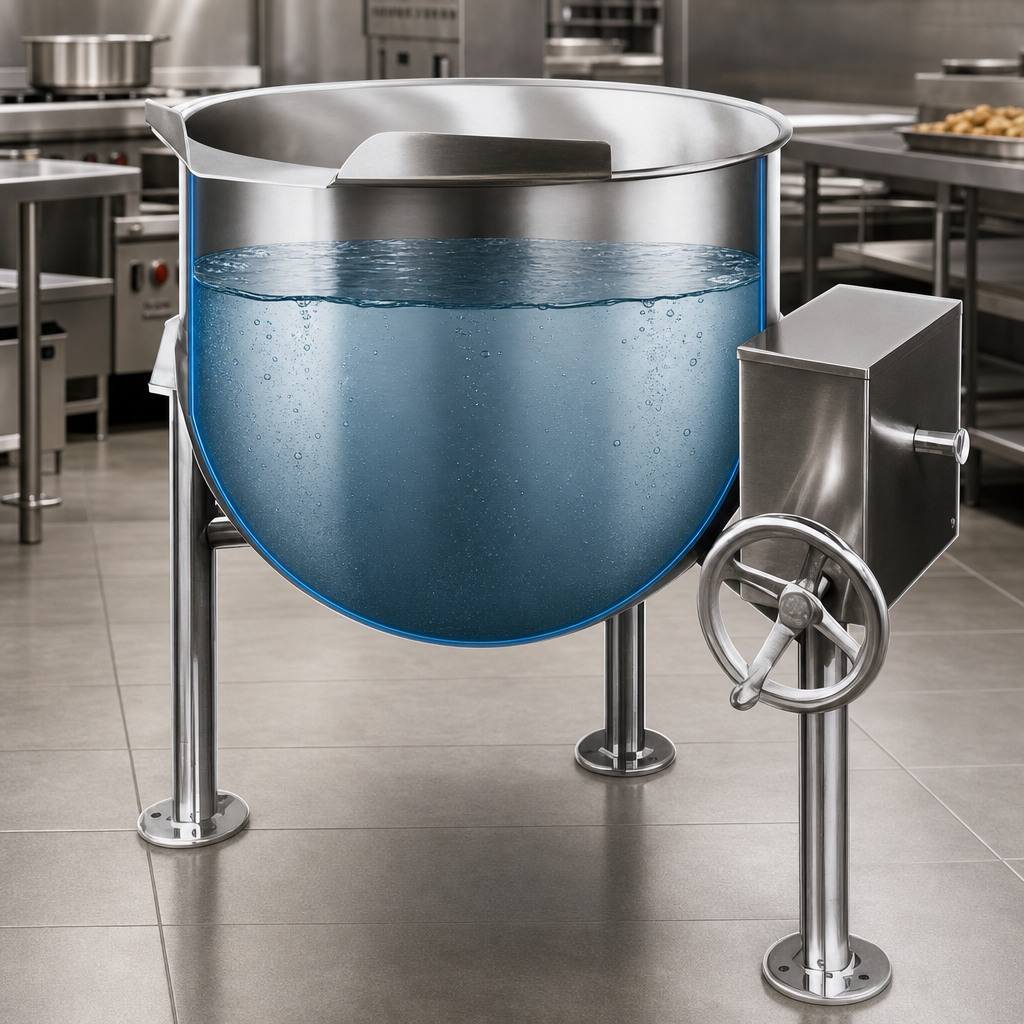

- 40 gal (151 L) working capacity—ideal for medium to large batch production.

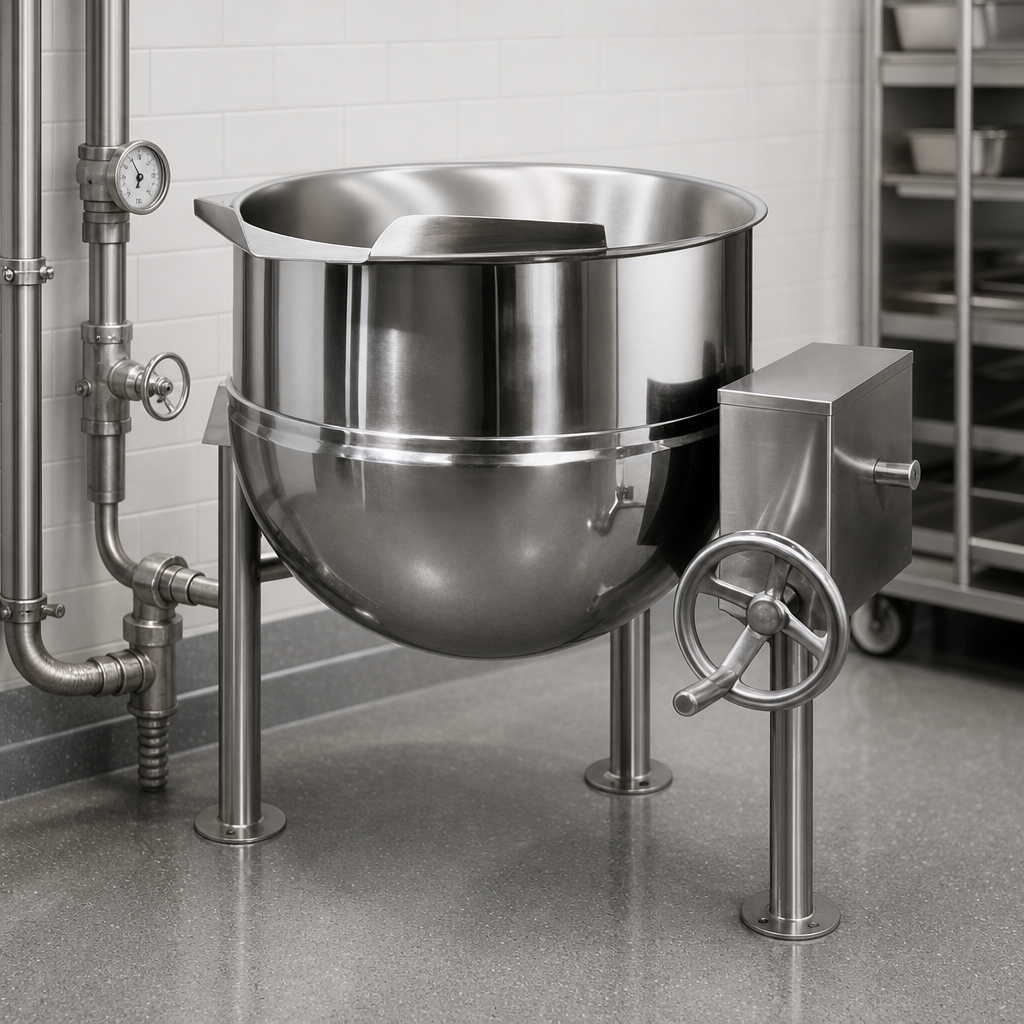

- Direct-steam operation, 5–25 PSI (ASME stamped & registered for 25 PSI).
- 2/3 steam jacket surrounds product zone for faster heat-up & even cooking.
- Type 316 stainless steel liner resists acidic products and harsh cleaners.
- Hand-crank, self-locking worm-gear tilt with enclosed rotary steam joint for drip-free service.
- Reinforced bar rim & butterfly pouring lip give mess-free, controlled transfers.
- Stainless tri-leg base with adjustable flanged feet bolts securely to the floor.
- NSF listed construction meets the most demanding sanitation codes.
- Fabricated, tested & Made in the USA for unbeatable reliability and support.
Technical Specifications
| Capacity | 40 gal | 151 L |
|---|---|
| Jacket Coverage | 2/3 of kettle body |
| Interior Material / Finish | 316 SS, 180-grit polish |
| Jacket Material | 304 SS, welded one-piece |
| Steam Pressure Range | 5–25 PSI (max working pressure 25 PSI) |
| Tilt Mechanism | Manual hand-crank, self-locking worm gear |
| Base | Tri-leg stand, stainless, adjustable flanged feet |
| Certifications | ASME stamped, NSF listed, Made in USA |
| Standard Warranty | 1-year parts & labor (2,000 operating hours) (extended coverage available) |
Optional Accessories
- No. 31 lift-off or No. 51 counterbalanced cover
- 2" or 3" tangent draw-off valve
- Basket inserts (TRI-BC)
- Single or double pantry fill faucet
- Cold-water jacket cooling kit
- Steam trap assembly
- Perforated or solid disc strainers, lip strainers, pan carriers & more
The DL-40 operates from a remote steam supply. A steam trap assembly and proper steam/condensate plumbing are required and not included. Consult your licensed installer to verify floor reinforcement, steam line sizing and local code compliance.
Backed by Groen’s industry-leading service network and a century-plus track record, the DL-40 is the dependable, operator-friendly solution for kitchens that refuse to compromise.
