Groen DL-40, INA/2 Steam Kettles
Description

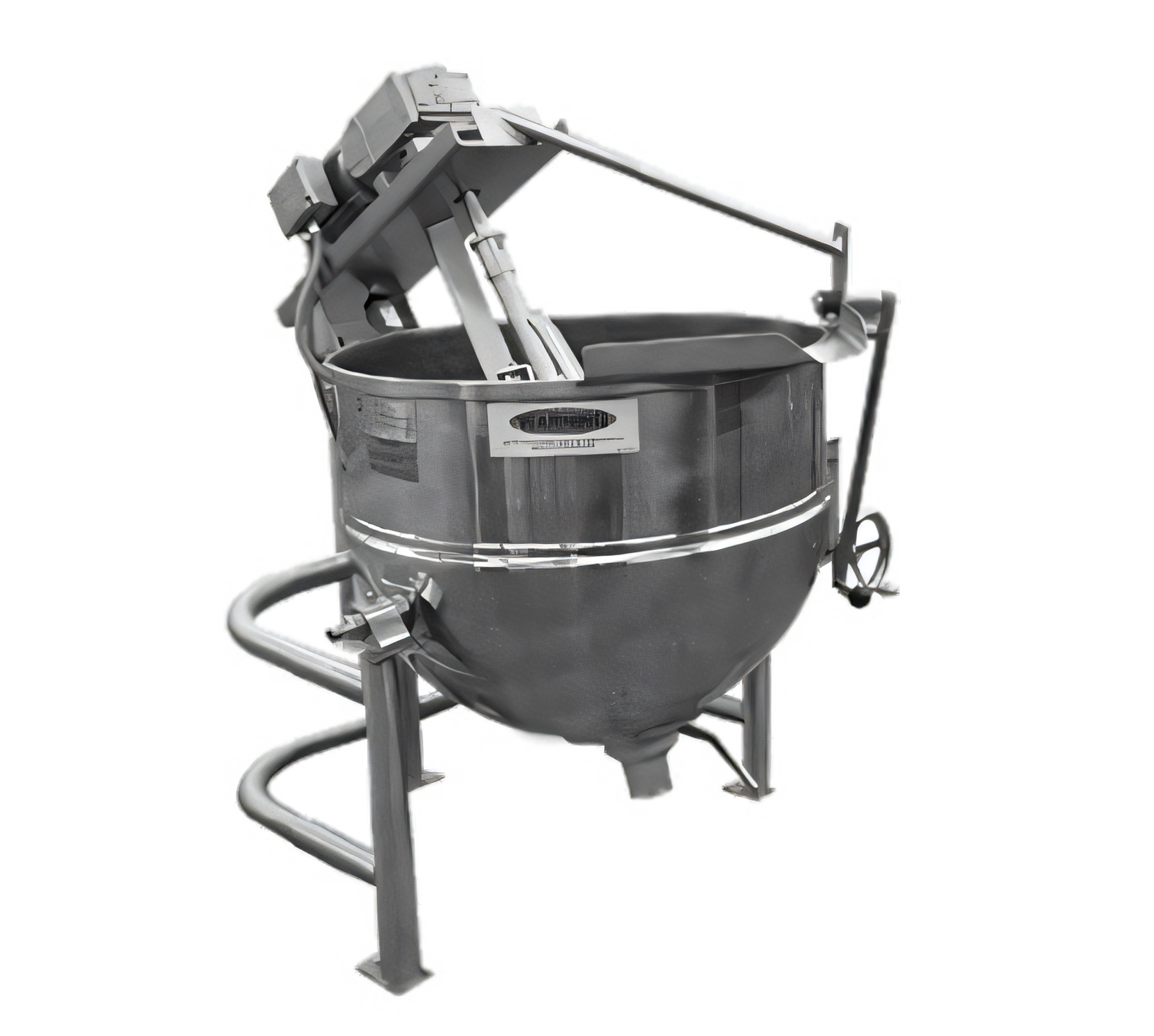

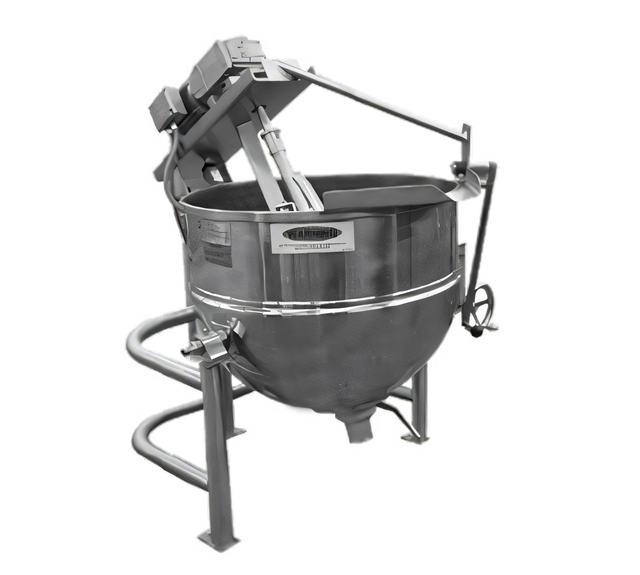

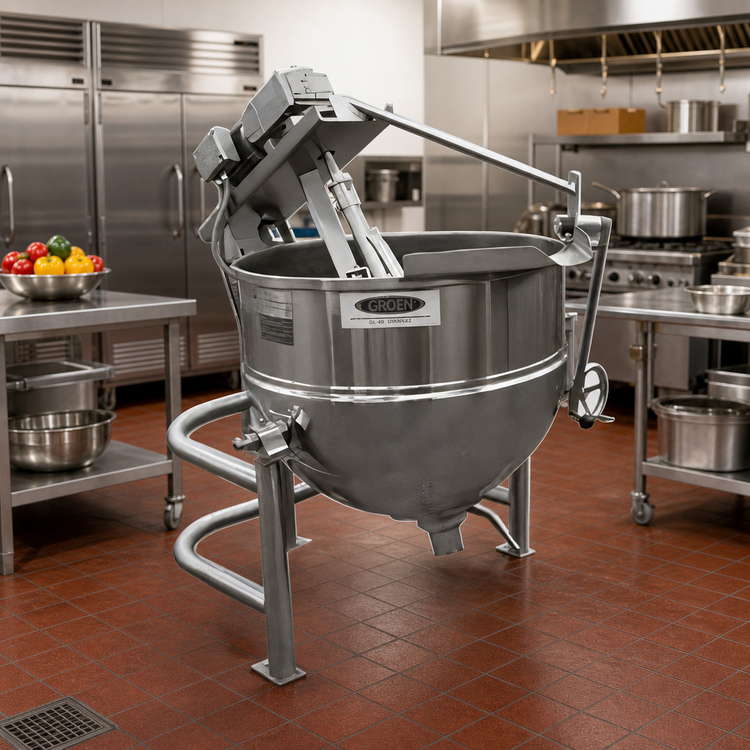

Groen 40-Gallon Direct-Steam Cooker/Mixer Kettle with Inclined Agitator
Model DL-40 INA/2 | 2/3 Jacket | 316 Stainless | 50 psiEngineered for high-volume, high-precision food production, the Groen DL-40 INA/2 pairs rapid direct-steam heating with a powerful, variable-speed inclined agitator. From silky sauces to hearty stews, this 40-gallon tilting kettle/mixer delivers uniform cooking, unmatched durability and effortless pour-off—perfect for commissaries, central kitchens and large-scale catering operations.
Key Performance Benefits

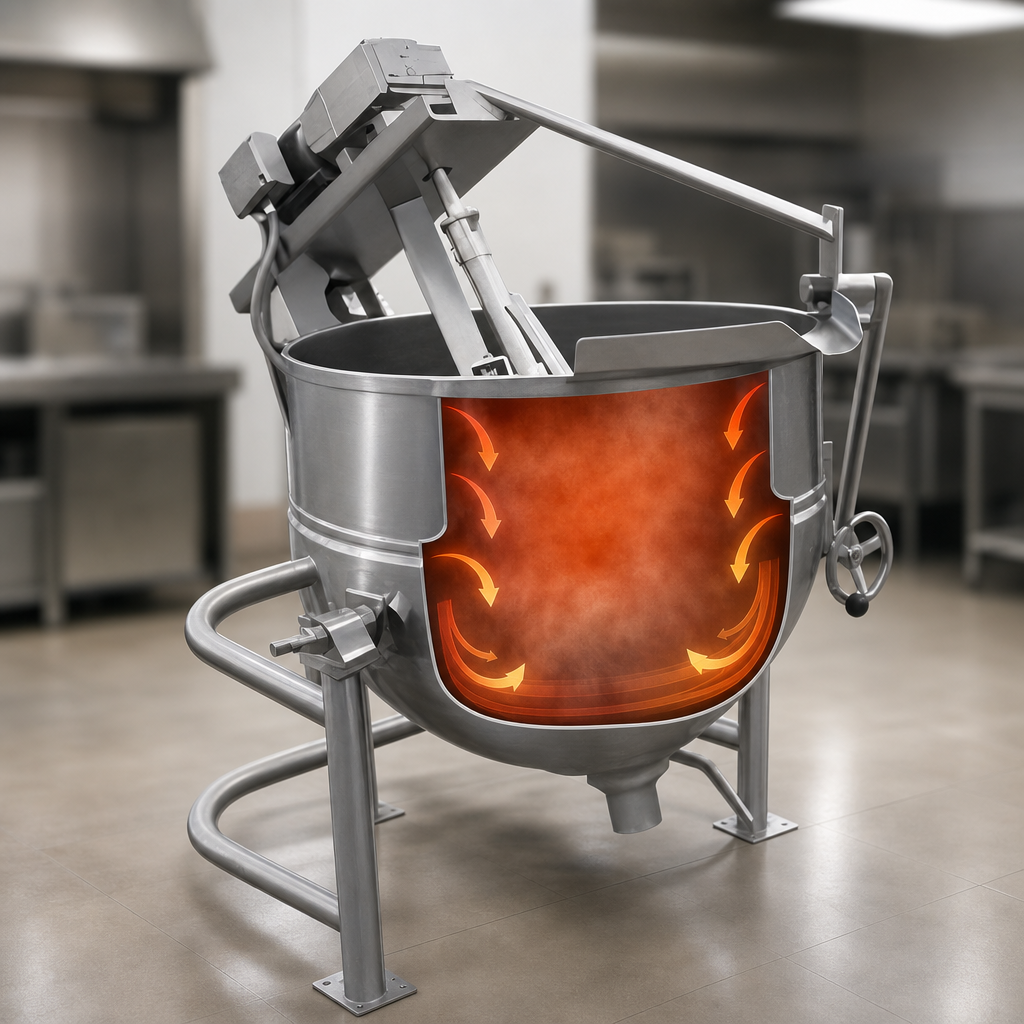

- Fast, even heating via 2/3-jacket design rated up to 50 psi direct steam.
- Corrosion-resistant 316 SS liner handles acidic products without pitting.
- Variable-speed (≈20–150 RPM) 1.7 kW inclined agitator lifts, folds & scrapes for consistent, burn-free results.
- Sanitary 2" flush-mounted ball valve provides quick, clog-free product draw-off.
- Positive-locking worm-and-gear tilt mechanism for smooth, controlled pouring.
- Reinforced rim with butterfly-shaped lip keeps drips off the floor and operator.
- NSF-listed, ASME code-stamped and National Board registered for full compliance.
- Proudly made in the USA and supported by Groen’s nationwide service network.
Ideal Applications
- Soups, stews & stocks
- Sauces, gravies & roux
- Pie & pastry fillings
- Pasta, rice & vegetables
- Wet-roasting meats & poultry
Technical Specifications
| Capacity | 40 gal (150 L) |
|---|---|
| Kettle Jacket | 2/3 jacket, 304 SS shell |
| Interior Liner | 316 SS, one-piece weld, 180-grit polish |
| Working Pressure | 0–50 psi direct steam |

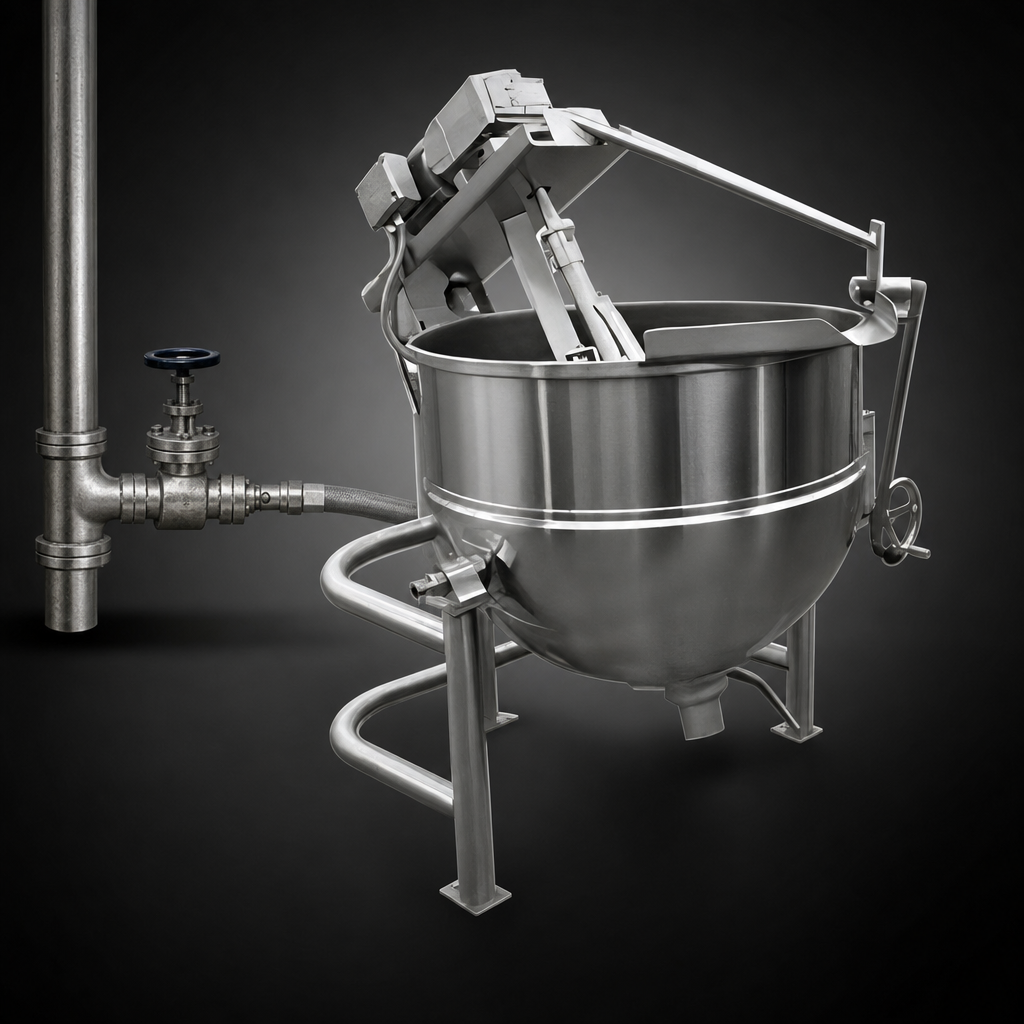

| Heat Source | Remote steam; 3/4" NPT steam & condensate |
| Agitator Type | Inclined tubular SS frame with removable scraper blades |
| Agitator Drive | 1.7 kW (≈2.3 HP) gear motor, variable speed |
| Speed Range | Approx. 20–150 RPM |
| Draw-Off Valve | 2" flush-mounted sanitary ball valve |
| Tilt Mechanism | Manual worm & gear with spring assist |
| Construction | All stainless steel; floor-mounted tri-leg stand with anchor flanges |
| Electrical (Agitator) | 208 V, 1- or 3-ph standard (240 V / 480 V optional) |
| Approx. Shipping Weight | 615 lb (279 kg) |
| Certifications | NSF, ASME, Made in USA |
Included with Your Kettle
- Floor-mounted stainless control console
- Steam trap, check & globe valves
- 10-gallon etched graduations for fast batch scaling
- Hot & cold double-pantry water faucet
- Comprehensive operator & maintenance manual
Popular Options & Accessories
- 240 V or 480 V agitator power configuration
- Kettle brush cleaning kit
- Basket inserts & lip strainers
- Pan carriers & wall-mount kits
- Contour measuring strips
Covered by Groen’s standard 1-year parts & labor warranty (extended coverage available). Questions? Call our product specialists at 888-994-7636.
