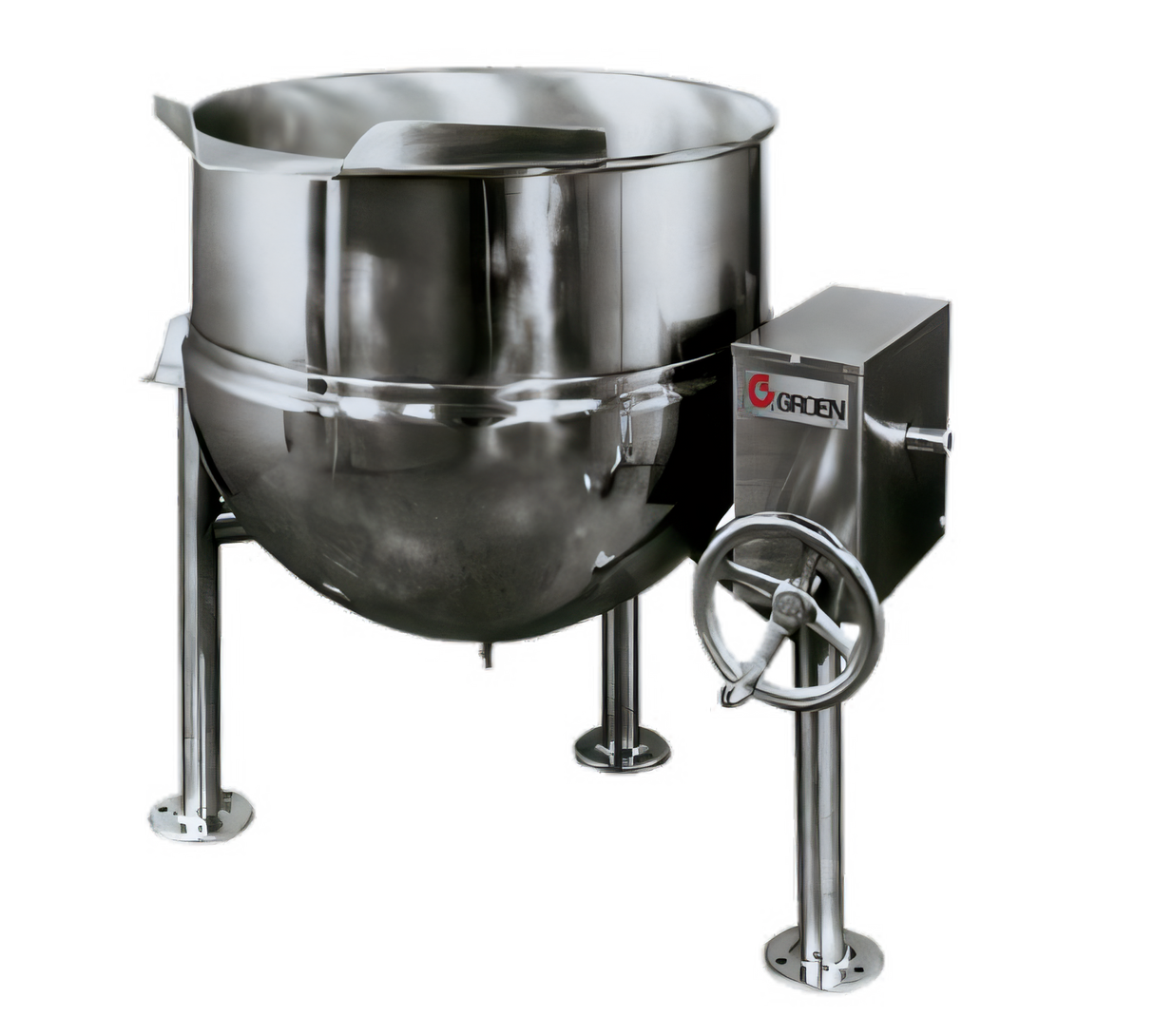

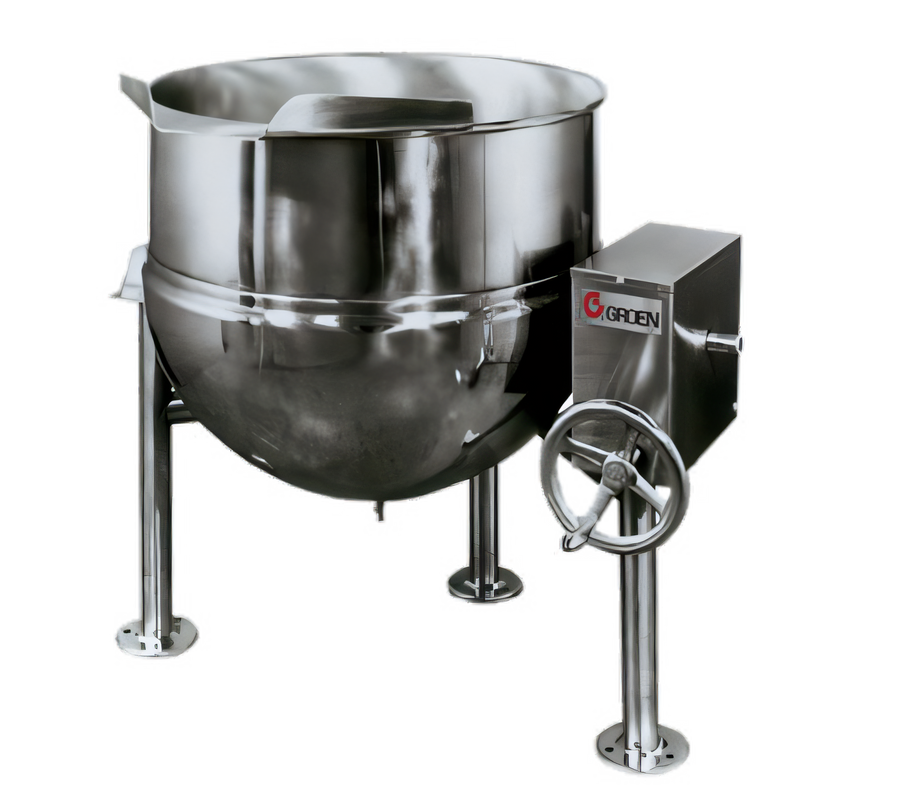

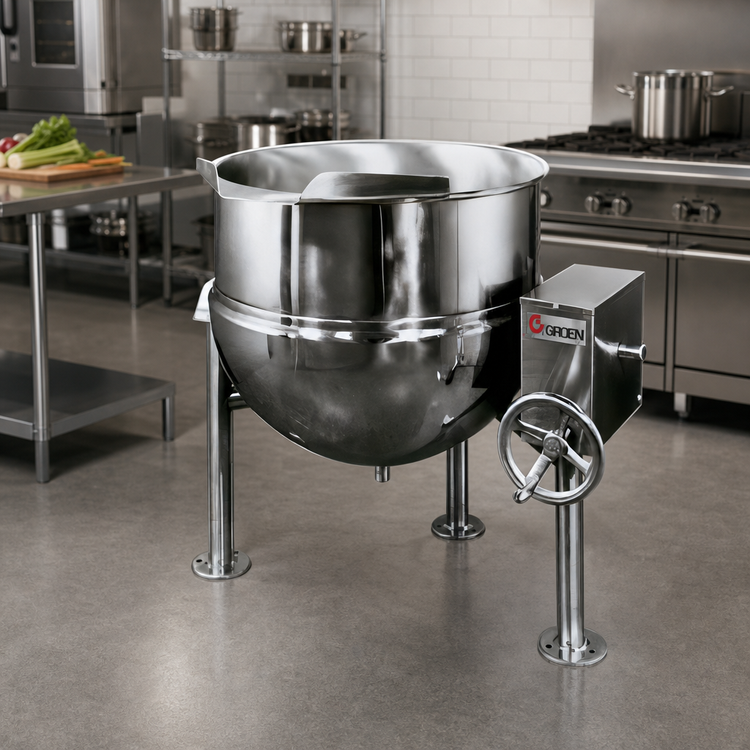

Groen DL-20 20-Gallon Direct Steam Floor-Mounted Tilting Steam Kettle

2/3 Jacket, 316 Stainless Steel Liner, Manual Tilt

Built for high-volume prep, this 20-gallon direct steam kettle combines efficient heating, controlled manual tilting, and durable stainless steel construction.

  • 20-gallon direct steam kettle for floor-mounted batch cooking applications.
  • 2/3 steam-jacketed construction with a 316 stainless steel liner supports efficient heat transfer and sanitation.
  • Manual self-locking tilt mechanism with hand crank provides precise pouring control.
  • Stainless steel tri-leg stand with adjustable floor flanges adds stability.
  • Rated for operation between 5 and 25 PSI, with a 25 PSI maximum working pressure.
  • NSF-listed and designed/manufactured in the USA.

Overall Dimensions:

36.25"W x 28.88"D x 36.0"H

Product Weight:

215.0 lb

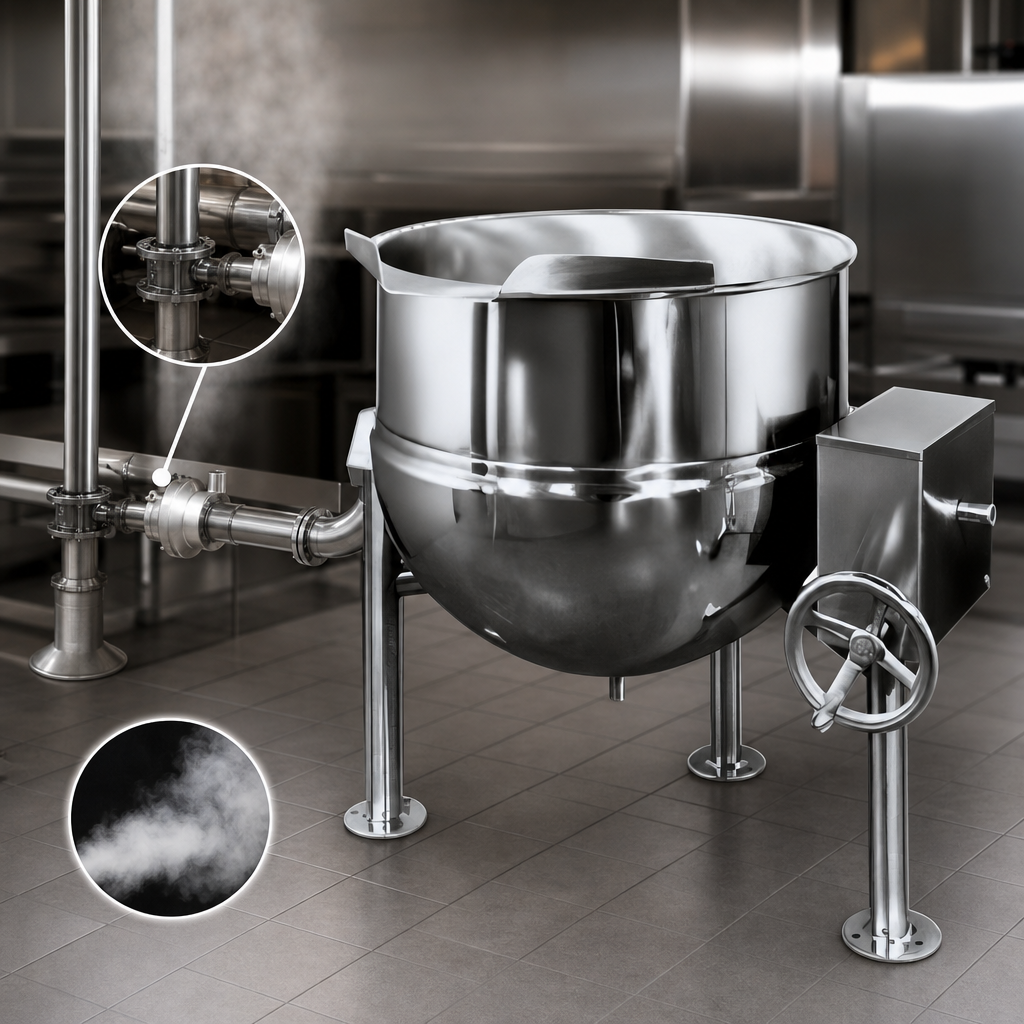

Direct Steam Operation

Uses a remote steam source for efficient kettle heating.

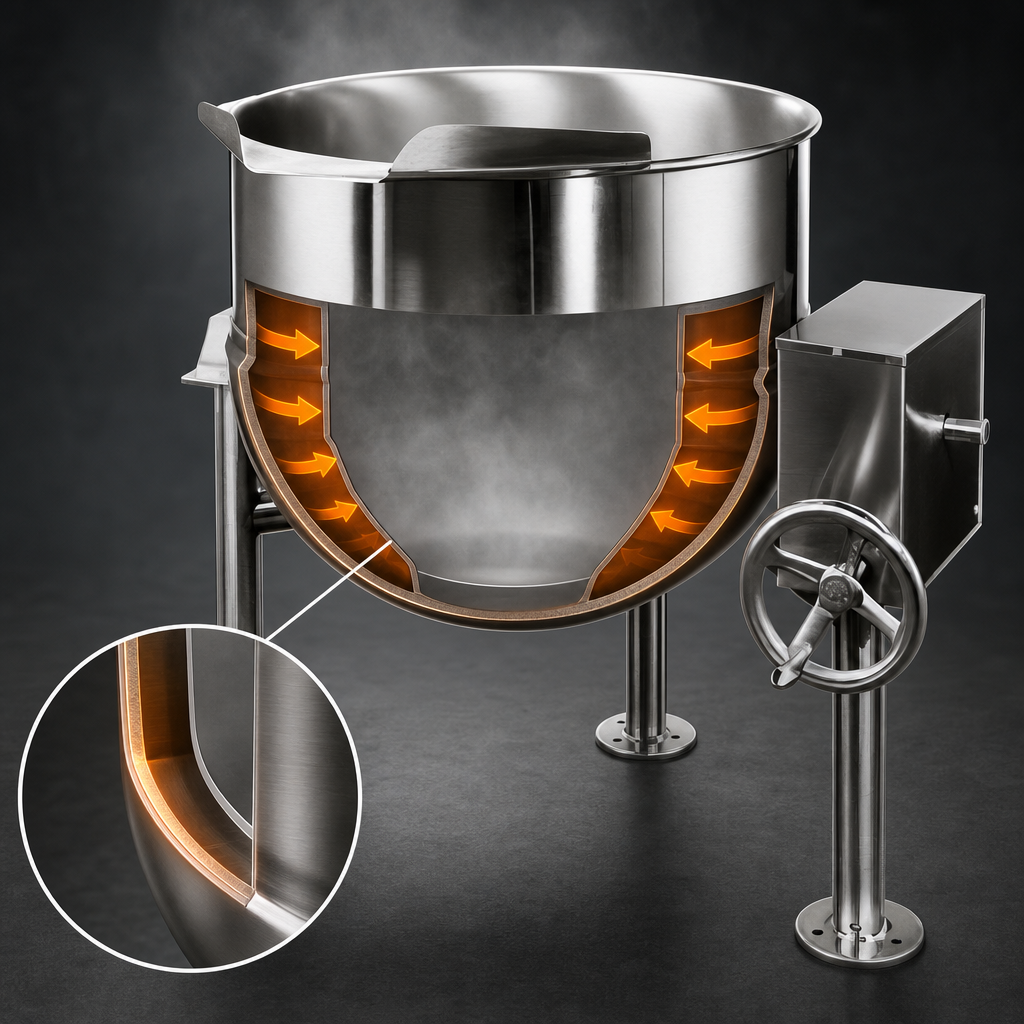

2/3 Steam Jacketed Construction

Jacketed kettle design helps distribute heat around the vessel.

316 Stainless Steel Liner

One-piece welded interior liner supports durability and sanitation.

Manual Tilt Mechanism

Self-locking worm gear tilt with a large hand crank provides controlled pouring.

Tri-Leg Floor Stand

Stainless steel tubular leg supports with adjustable floor flanges provide a stable floor-mounted base.

Polished Interior And Buff Exterior

Interior is polished to a 180 emery grit finish, with a semi-deluxe buff exterior for easier cleaning and a bright appearance.

25 PSI Maximum Working Pressure

Designed for dependable operation at steam pressures from 5 to 25 PSI.

Accessory Ready

Optional covers, draw-off valves, basket inserts, water fill faucets, strainers, and steam trap assemblies are available.

Type Direct Steam Kettle
Style Tilting
Installation Type Floor Model
Capacity 20 Gallons
Material Stainless Steel
Interior Finish 316 Stainless Steel
Finish Semi-Deluxe Buff
Country Of Origin USA
Shipping Width 37 Inches
Shipping Depth 29 Inches
Shipping Height 36 Inches
Shipping Weight 215 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

Standard limited warranty: 12 months from installation, 15 months from shipment, or 2,000 operating hours, whichever occurs first.

Documents

PDF Cutsheet PDF Download PDF Roi calculator PDF Download PDF Brochure PDF Download PDF Start-up request form PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

This model has a 20-gallon capacity.
Yes. The kettle is direct steam and requires a remote steam source.
The kettle operates between 5 and 25 PSI, with a maximum working pressure of 25 PSI.
No. A cover is optional. A No. 31 lift-off cover is available for 20- to 80-gallon models, and a No. 51 counterbalanced cover is available for 40- to 80-gallon models.
Available accessories include basket inserts, water fill faucets, draw-off valves, cold water cooling, steam trap assemblies, kettle brushes, strainers, and measuring strips.
It uses a manual self-locking worm gear tilt mechanism with a large hand crank for controlled pouring.
