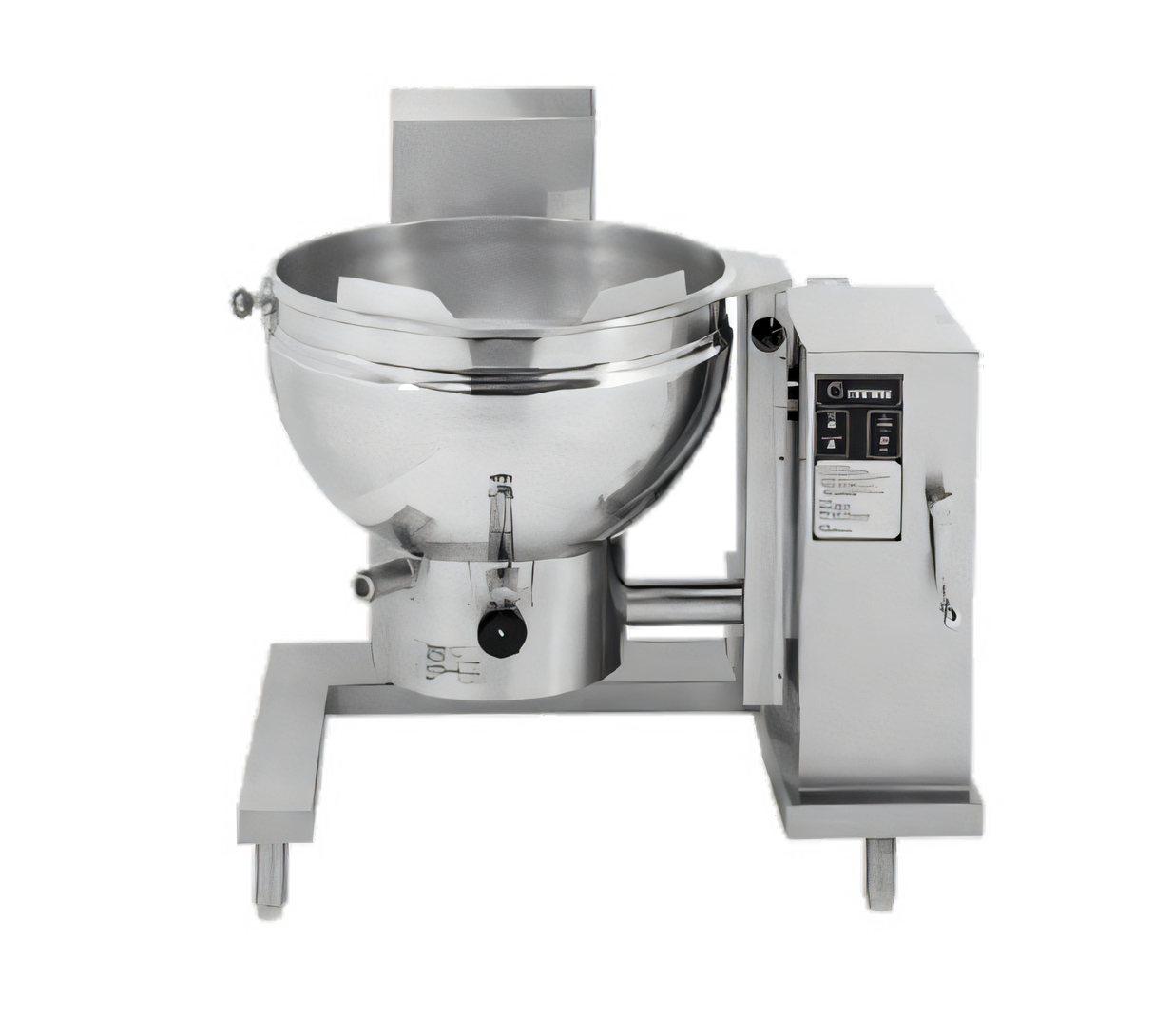

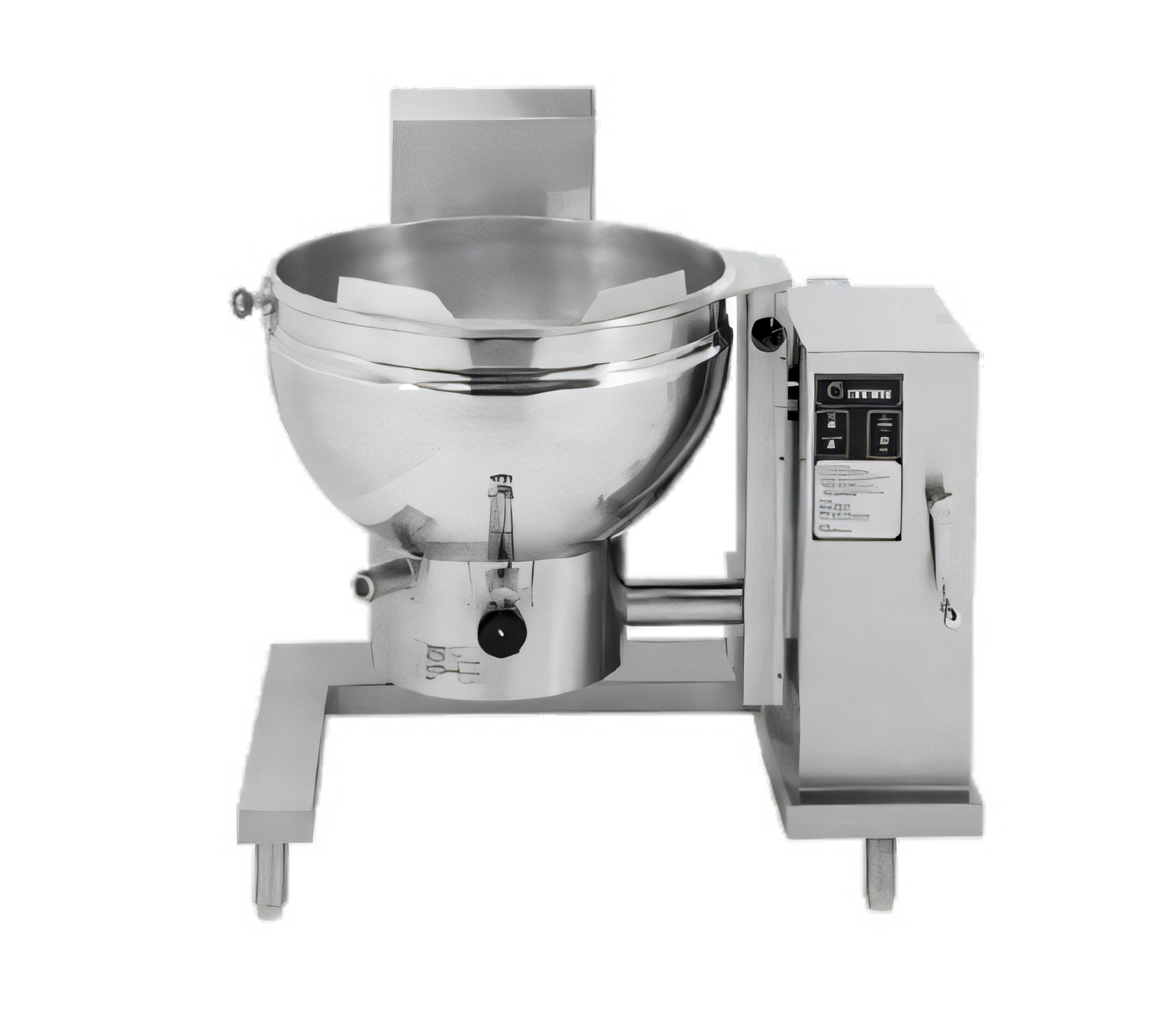

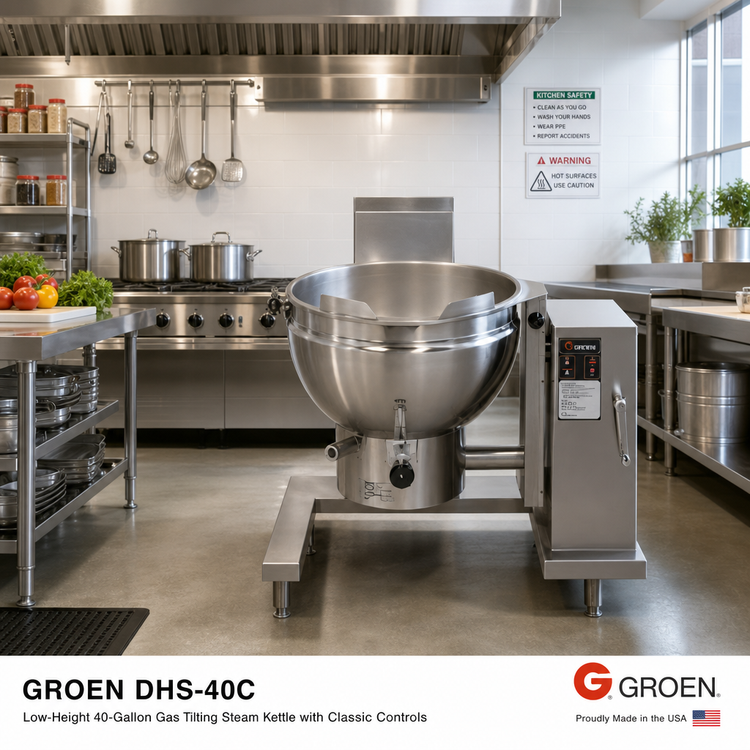

Groen DHS-40C Low-Height 40-Gallon Gas Tilting Steam Kettle with Classic Controls

Floor Model, 2/3 Jacket, Manual Crank Tilt

A compact low-height gas kettle with classic water-resistant controls, a 316 stainless steel liner, and a manual crank tilt for dependable high-volume cooking.

  • 40-gallon capacity in a low-height floor model for efficient batch cooking and easier loading.
  • Classic IPX6-rated electronic controls help protect the control set during washdown and daily cleaning.
  • 316 stainless steel liner and all-stainless construction support sanitation and long-term durability.
  • Manual crank tilt and the lower rim height simplify pouring, inspection, and cleanup.
  • 150,000 BTU gas heating with electronic ignition delivers strong, responsive performance.
  • Includes a standard faucet mounting bracket and bullet feet for stable floor installation.

Overall Dimensions:

46.0"W x 43.88"D x 40.63"H

Product Weight:

645.0 lb

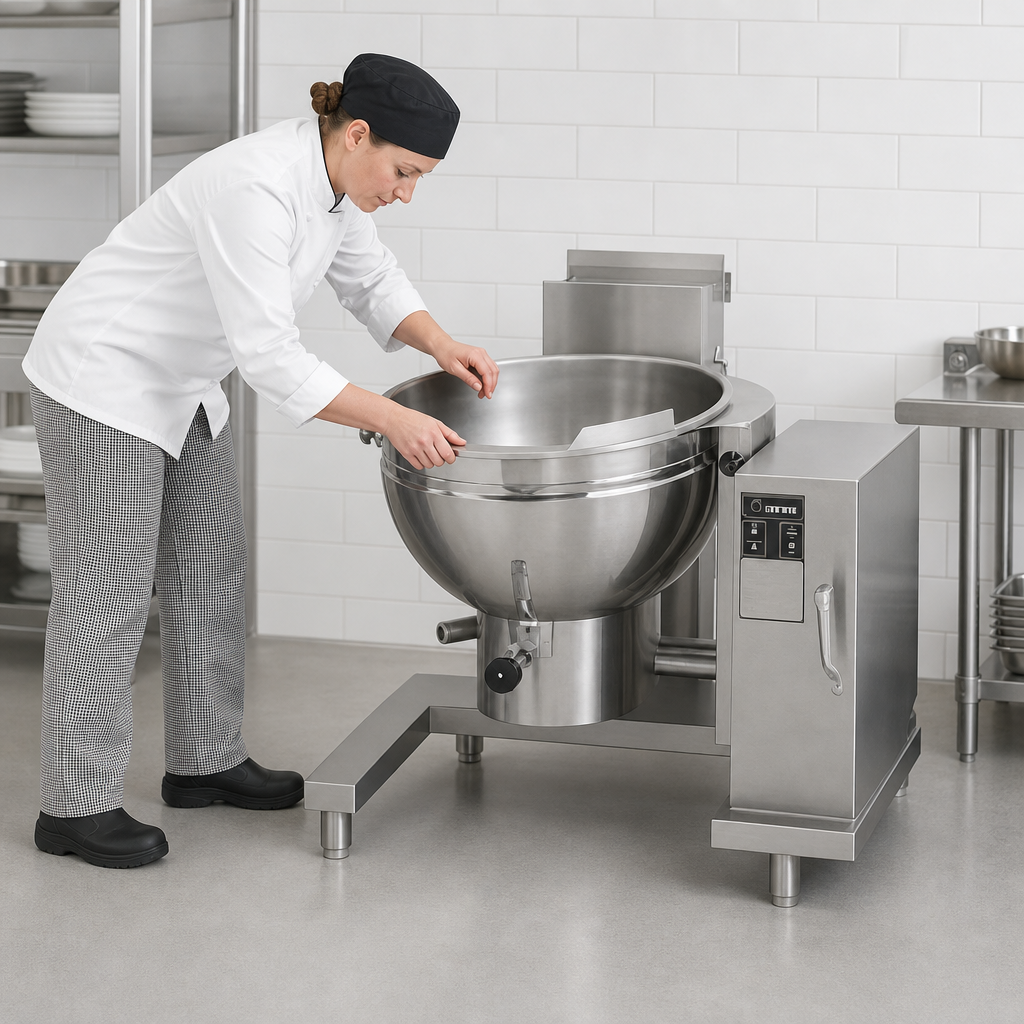

Low-Height Floor Design

Lower rim height makes inspection, ingredient loading, and cleaning easier.

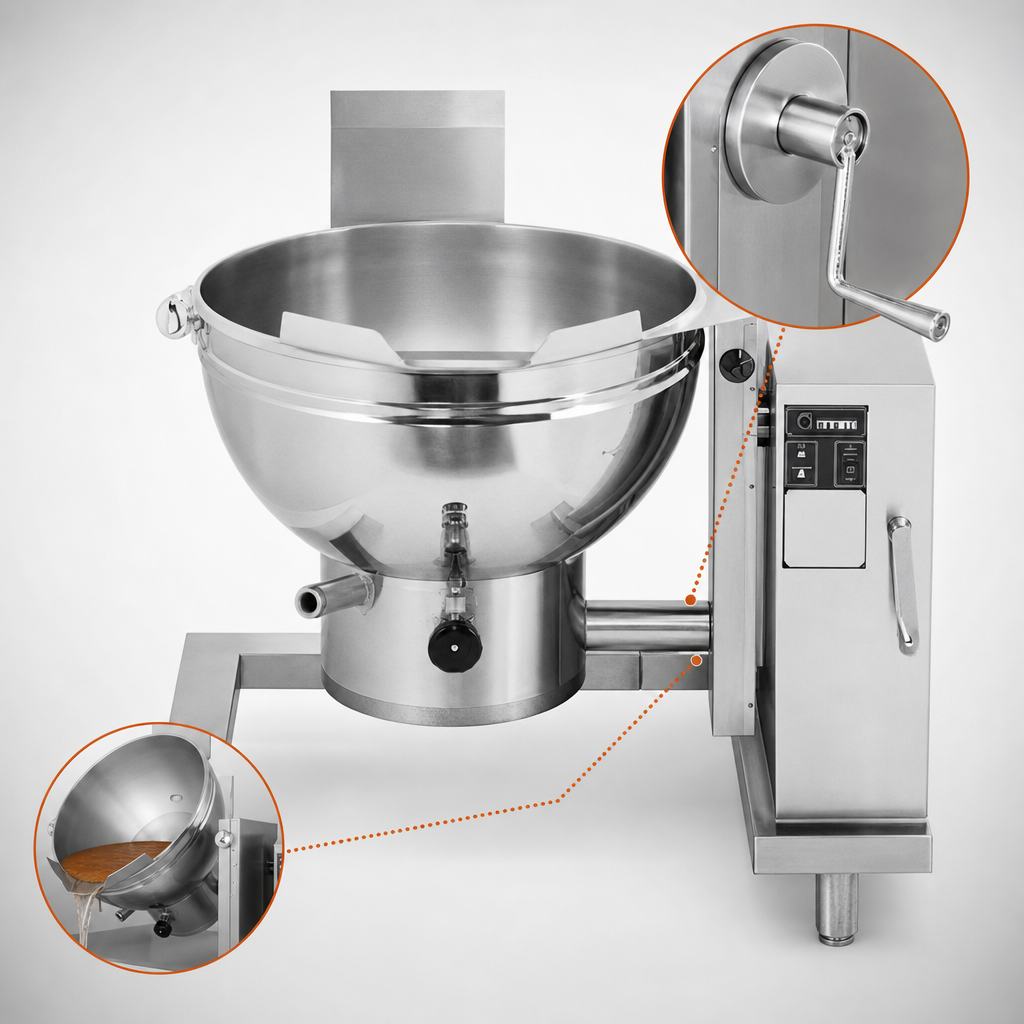

Manual Crank Tilt

Heavy-duty tilt trunnion with worm-and-gear hand crank provides smooth, self-locking pouring.

Water-Resistant Classic Controls

Classic controls are mounted in a right-side IPX6-rated enclosure for improved washdown protection.

316 Stainless Steel Liner

One-piece welded 316 stainless steel interior is built for sanitation and durability.

High-Output Gas Heat

Self-contained gas-heated steam source delivers 150,000 BTU/hr firing rate and electronic ignition.

Built-In Safety Systems

Includes pressure-vacuum gauge, pressure relief valve, pressure limit control, water sight glass, low-water cutoff, gas regulator valve, and automatic gas shutoff on tilt.

Standard Faucet Mounting Bracket

A faucet mounting bracket is included as standard equipment.

Stainless Steel Base and Bullet Feet

Enclosed stainless steel base with tubular legs and adjustable bullet feet supports stable floor mounting.

115V Control Supply

Controls operate on a 115-volt electrical supply.

Type Steam Kettle
Style Low Height
Installation Type Floor Model
Controls Classic Electronic
Capacity 40 Gallons
Material Stainless Steel
Interior Finish 316 Stainless Steel
Finish Bright High Buff
Jacket Type 2/3 Jacket
Tilt Type Manual Crank
BTU 150,000 BTU
Gas Connection Size 1/2 Inch NPT
Voltage 115 Volts
Amps 5 Amps
Hertz 60 Hz
Phase 1-Phase
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 46 Inches
Shipping Depth 44 Inches
Shipping Height 41 Inches
Shipping Weight 645 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

12 months from installation or 15 months from shipment, whichever occurs first.

Documents

PDF Cutsheet PDF Download PDF Start-up request form PDF Download PDF Roi calculator PDF Download PDF Owner's manual PDF Download PDF Brochure PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The DHS-40C has a 40-gallon capacity.
It uses Classic electronic controls in a water-resistant IPX6-rated enclosure.
Specify natural gas or propane. It uses a 1/2-inch NPT gas connection and a 115-volt, 1-phase, 60 Hz, 5 amp electrical supply for the controls.
Minimum clearances are 6 inches on the left side, 6 inches on the right side, and 10 inches at the rear.
The self-contained gas-heated steam source provides kettle temperatures of about 150°F to 295°F.
Standard warranty coverage is 12 months from installation or 15 months from shipment, whichever occurs first, for replacement parts and related labor.
