Groen DH-80C Steam Kettles
Description

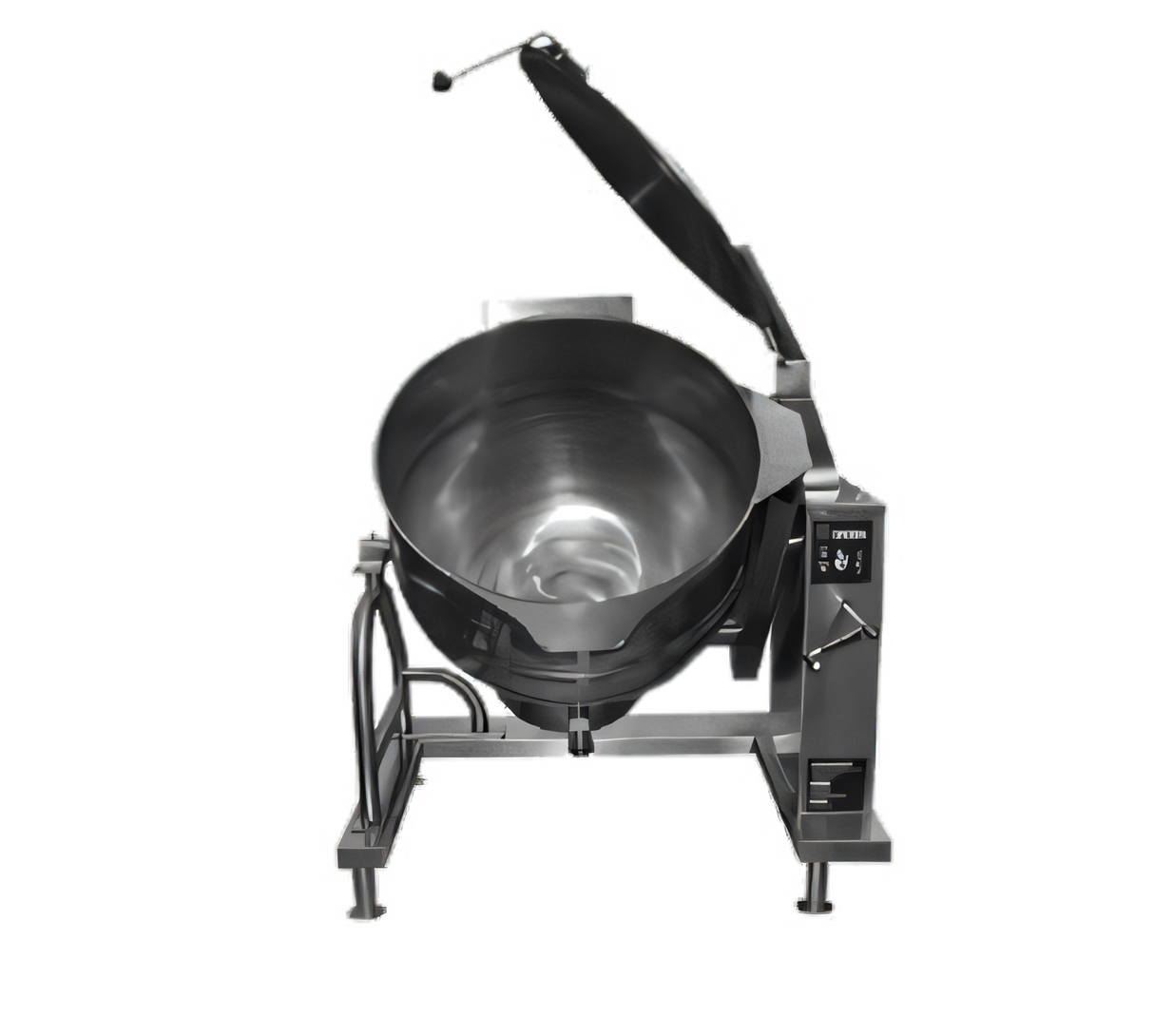

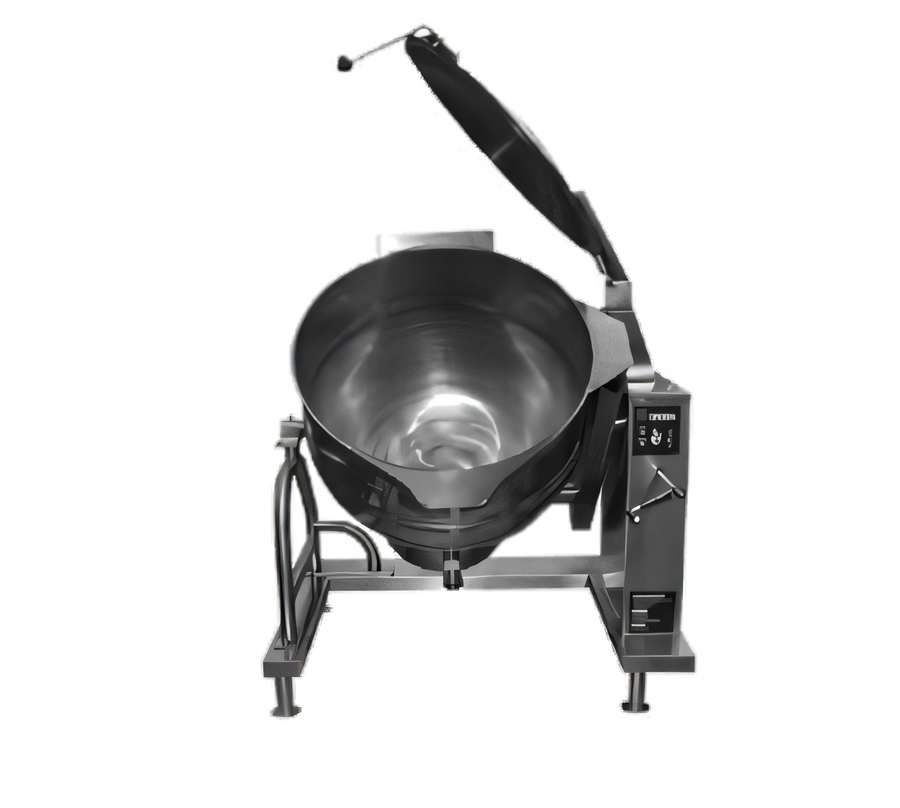

Groen DH-80C 80-Gallon Gas Tilting Steam-Jacketed Kettle
Self-Contained • Manual Crank Tilt • 2/3 Jacket • Made in USABuilt for high-volume production, the Groen DH-80C delivers the speed, consistency and food-safety assurance you need in a busy commissary, central kitchen or institutional operation. An internal gas-fired steam generator drives even heat across a heavy-duty 316 stainless interior, while Classic IPX6-rated electronic controls put simple, precise temperature management right at your fingertips.
Why Choose the DH-80C?
- Massive 80 gal / 302 L capacity cooks up to 640 lb of soup, sauce or pasta per batch.
- Self-contained 2/3 steam jacket reaches 100 – 287 °F without an external boiler.
- 150,000 BTU/h fin-tube burner with 62-65 % combustion efficiency slashes pre-heat time.
- IPX6 Classic electronic controls – power switch, 1-to-10 temp dial, heating & low-water indicators.
- Smooth crank-tilt mechanism locks securely and lets one operator pour with total control.
- All-stainless construction (316 liner & 304 exterior) stands up to steam, salt and harsh cleaners.
- ASME 50 PSI rated jacket with pressure/ vacuum gauge, relief valve & low-water cut-off for safety.
- Certified & compliant – cCSAus, NSF, IPX6, and proudly Made in the USA.
Performance & Utility
- Electronic ignition to standing pilot – reliable starts, no manual lighting.
- 0 – 2,000 ft elevation rating without de-rating.
- 1/2" NPT gas connection (natural or LP) & 115 V/60/1 power cord for controls.
- Factory-charged with chemically pure water & rust inhibitors – no on-site fill required.
Technical Specifications
| Model | DH-80C (Classic Controls) |
|---|---|
| Capacity | 80 gal / 302 L |
| Jacket Coverage | 2/3 of kettle body |
| Heating Method | Internal gas-fired steam generator |
| Input Rate | 150,000 BTU/h |
| Working Pressure | 50 PSI (ASME stamped) |
| Controls | IPX6 Classic – ON/OFF, 1-10 temperature dial, indicator lights |
| Tilt | Manual crank, self-locking |
| Interior Liner | 316 stainless steel, 180-grit finish |
| Exterior & Base | 304 stainless, flanged tubular legs with height-adjustable feet |
| Dimensions (W × D × H) | 52" × 37-1/2" × ≈61-1/2" |
| Gas Connection | 1/2" IPS; Natural 3.5" WC or LP 10" WC |
| Electrical | 115 V, 1 ph, <1 A (controls/ignition) |
| Certifications | cCSAus, NSF, IPX6, ASME, USA origin |
Built-In Safety & Sanitation
- Pressure relief valve, limit control & water-level sight glass protect operators and equipment.
- Butterfly-style pouring lip and satin-polished interior speed cleanup and resist food build-up.
- IPX6 water-resistant control housing stands up to aggressive wash-down routines.
Popular Factory Options (sold separately)
- 2" tangent draw-off valve with perforated strainer disks
- Hinged or lift-off covers & Power-Aid assisted lids
- Basket inserts, gallon etch marks, pan carrier & kettle brush kit
- Single or double pantry faucets with swing spout
Backed by Groen’s 1-year parts & labor warranty with optional extended coverage. Contact your authorized Groen representative for details.
