Groen DH-60C Steam Kettles
Description

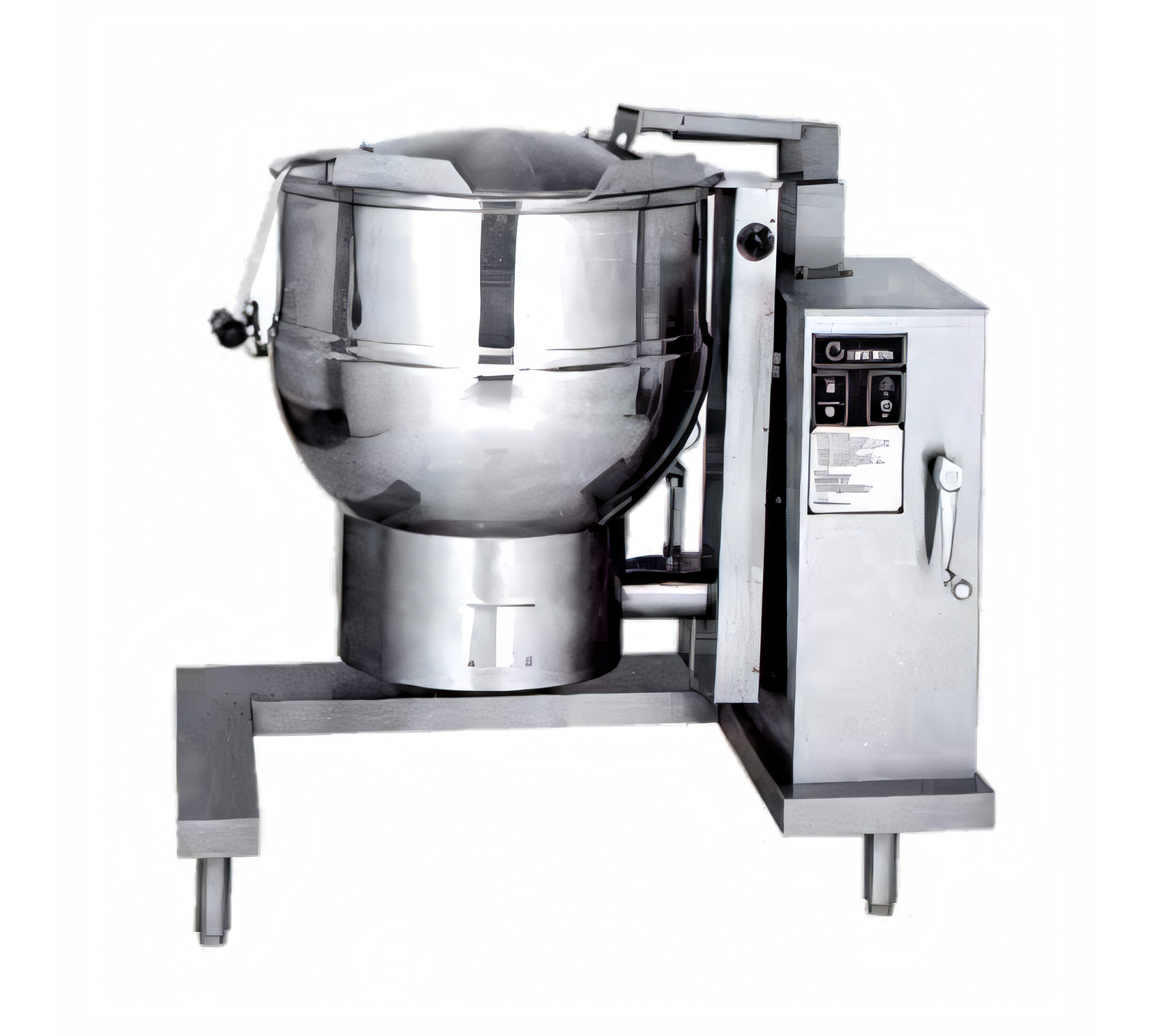

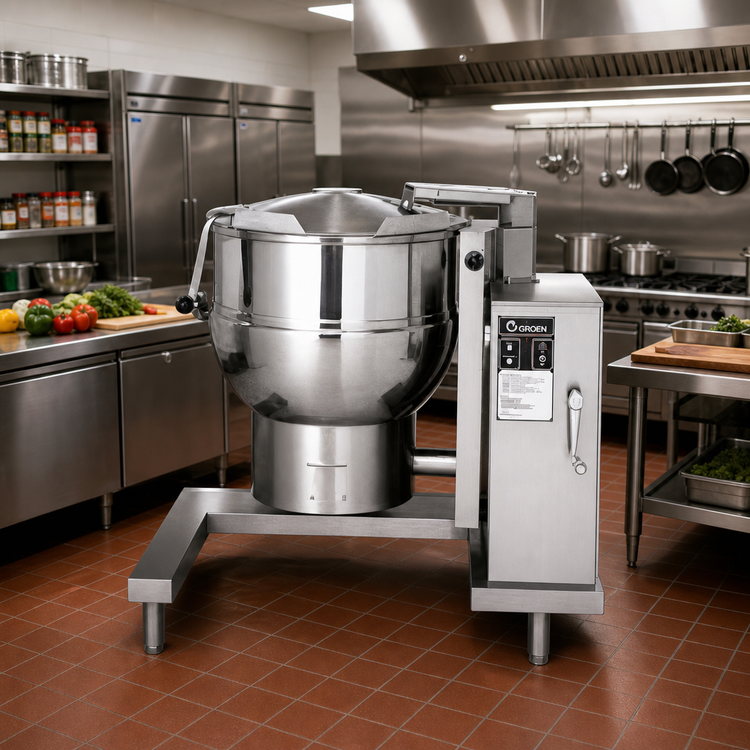

Groen DH-60C 60-Gallon Gas Tilting Steam Jacketed Kettle
2/3 jacket • Manual crank tilt • Classic electronic controlsBuilt for the busiest production kitchens, the Groen DH-60C delivers consistent, high-volume cooking performance in a rugged, self-contained package that installs anywhere you have a ½" gas line and a 115 V outlet. Its 316 stainless steel liner, IPX6-rated control console and smooth hand-crank tilting mechanism make every batch faster, safer and easier.
Key advantages

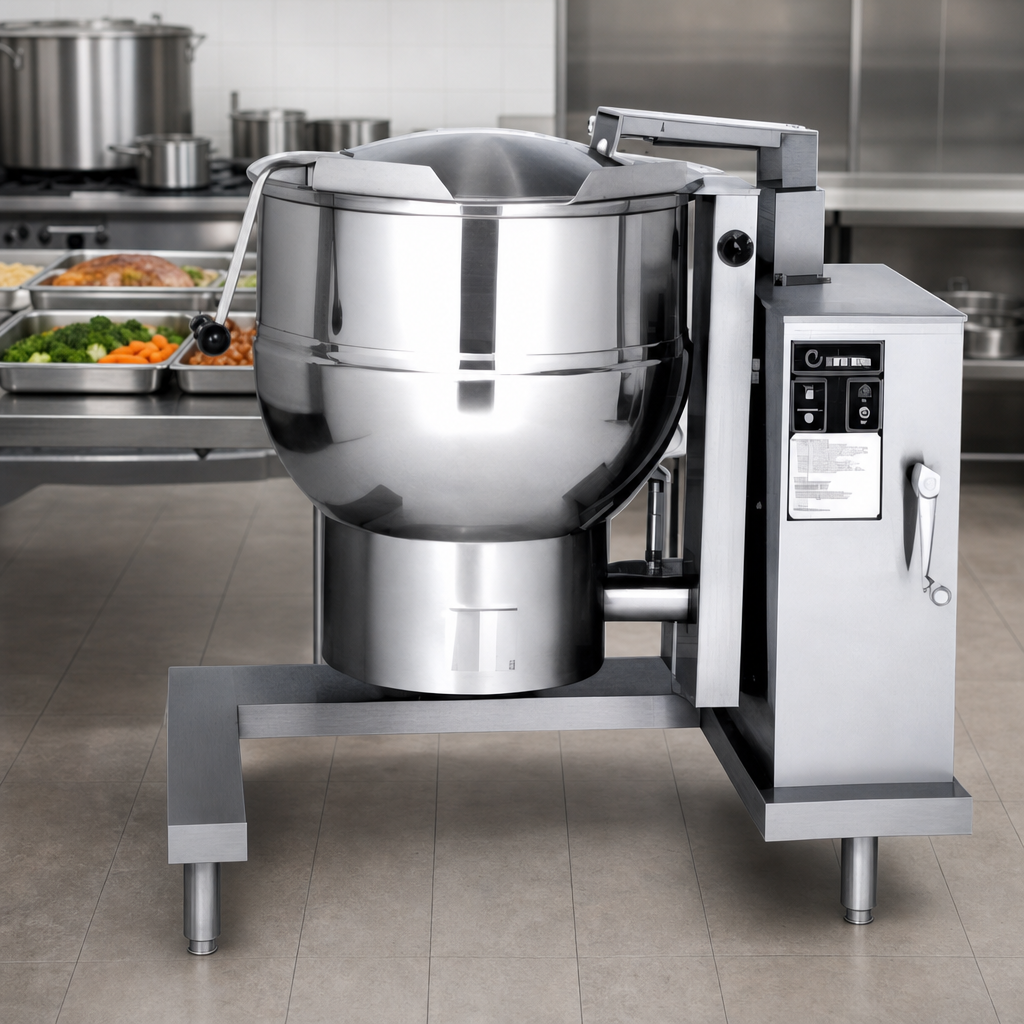

- Massive 60 gal. (225 L) capacity – ideal for soups, sauces, stocks & more
- Self-contained gas steam system reaches ≈287 °F with no external boiler
- Patented fin-tube burner puts 93,000 BTU/hr directly into the product (150,000 BTU firing rate)
- 2/3 steam jacket provides rapid, even heat distribution and eliminates hot spots
- Manual crank tilt with self-locking worm gear for smooth, controlled pouring

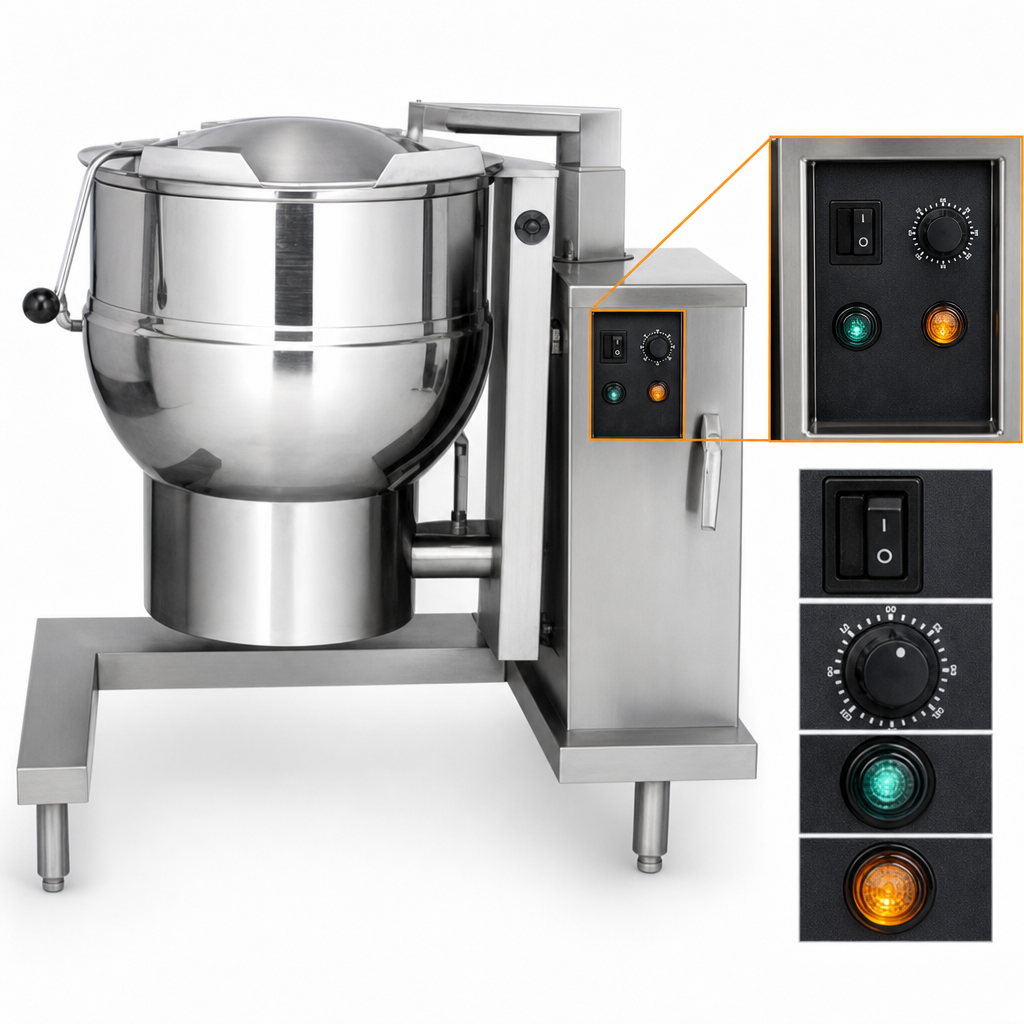

- IPX6 water-resistant Classic controls: ON/OFF, 1-10 temp dial, HEAT & LOW WATER indicators
- 316 SS one-piece welded liner resists corrosion from acidic foods
- Stainless floor console with adjustable bullet feet for quick, sanitary clean-ups
- Electronic ignition to standing pilot reduces energy waste and improves reliability
- Comprehensive safety suite: pressure relief valve, limit control, sight glass, low-water cutoff & automatic gas shut-off on tilt
- cCSAus, NSF & ASME code stamped (50 PSI max.) – proudly Made in the USA
Technical specifications
| Model | DH-60C (Classic Controls) |
|---|---|
| Capacity | 60 gal / 225 L |
| Kettle body diameter | 30 in Ø (762 mm) |
| Base width × depth | 47 in × 29 in (1194 mm × 736 mm) |
| Overall height | ≈60 ½ in (1537 mm) to top of kettle rim |
| Steam jacket | Self-contained, factory-charged; 2/3 coverage |
| Working pressure | 50 PSI (ASME code stamped) |
| Heat input | 150,000 BTU/hr (natural or propane) |
| Energy into product | 93,000 BTU/hr (62-65 % combustion efficiency) |
| Gas connection | ½" IPS, min. supply pressure: 3.5 " W.C. natural / 10 " W.C. propane |
| Electrical | 115 V, 1 ph, 50/60 Hz, for controls & ignition |
| Altitude rating | 0 – 2,000 ft (610 m) without derate |
| Construction | 316 SS liner, 304 SS exterior & base; polished to 180-grit interior / high-buff exterior |
| Origin | Designed & manufactured in the USA |
Popular accessories (sold separately)
- 2" tangent draw-off valve with perforated disk strainers
- Lift-off, hinged or Power Aid covers
- Basket inserts (TRI-BC) for pasta or rethermalizing
- Pan carrier for 40-, 60- & 80-gal models
- Single or double pantry faucets
- Kettle brush kit, contour measuring strip & gallon etch marks
Installation requires gas & electrical connections by a qualified technician and must follow local codes. For elevations above 2,000 ft or for propane operation, consult factory for proper orifice sizing.
