Groen DH-60A Steam Kettles
Description

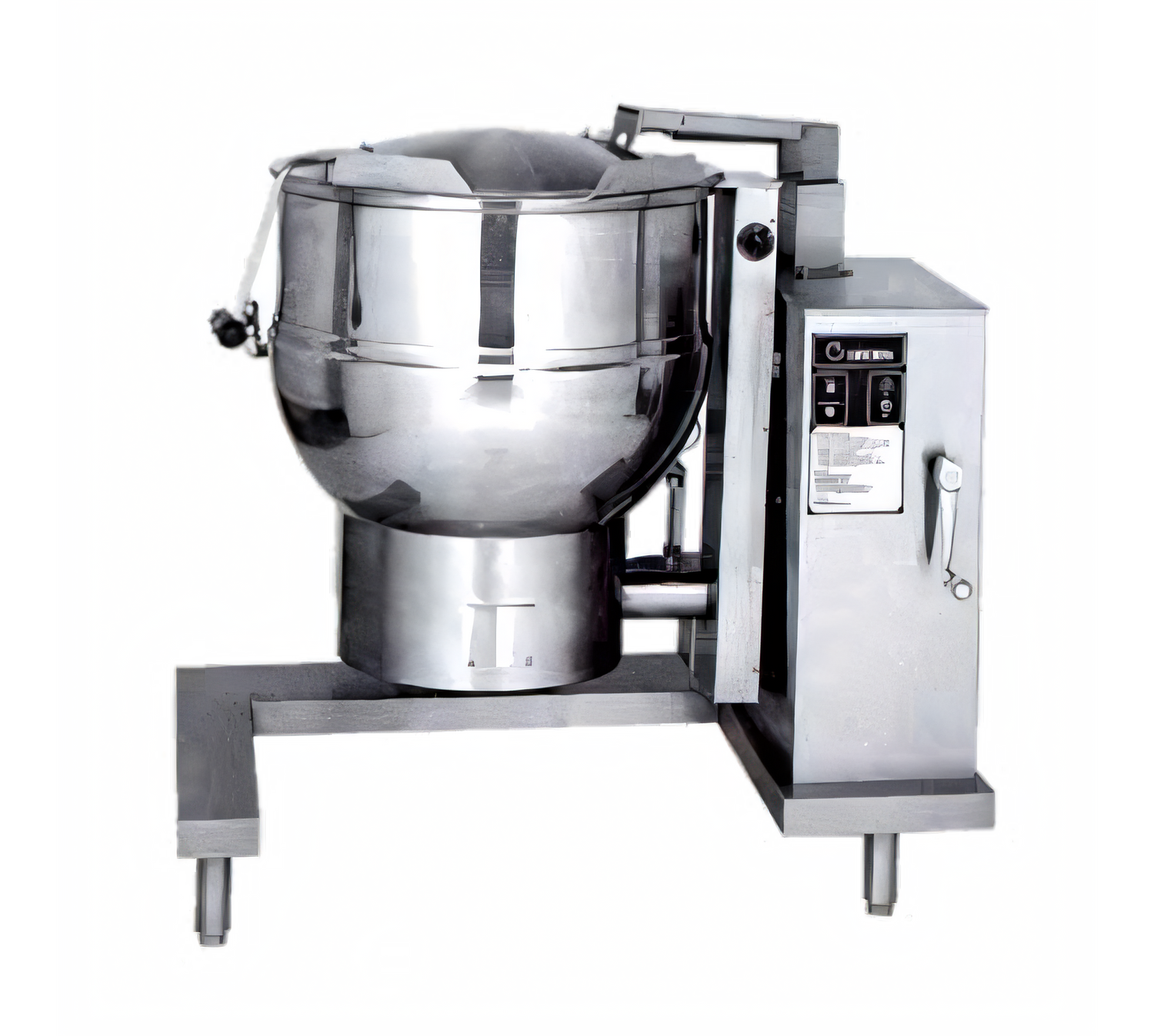

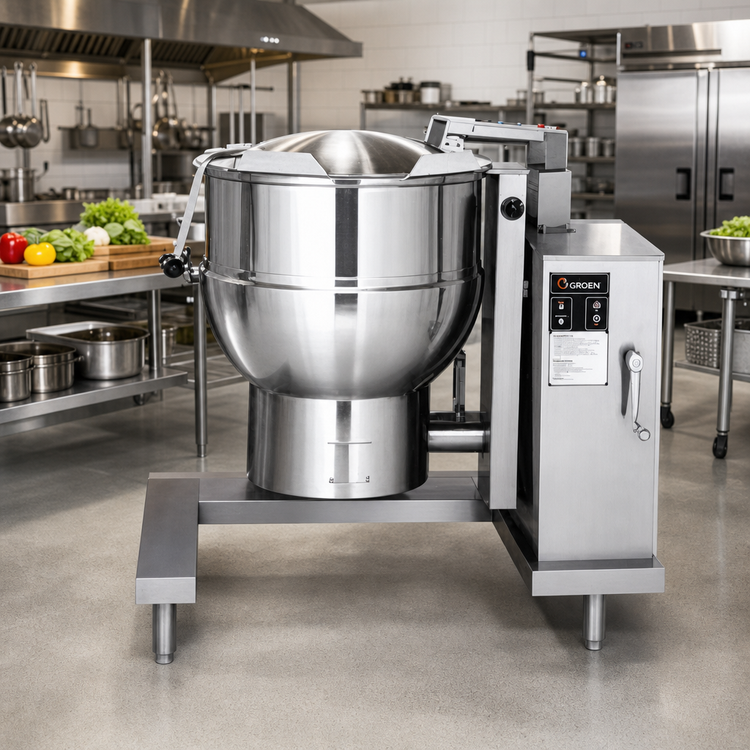

Groen DH-60A 60-Gallon Gas Tilting Kettle
Self-Contained • IPX6 Advanced Controls • Made in USABoost batch size, cut cook times and dial-in repeatable results with the Groen DH-60A. This 60-gal (225 L) tilting floor kettle combines a powerful 150,000 BTU fin-tube burner with water-resistant, digital “Advanced” controls, giving chefs full command from a gentle simmer to a rapid boil — all in a single, self-contained appliance that needs no external steam source.
Key Features & Benefits
- 60-gallon / 225-liter capacity — ideal for sauces, soups, stocks & bulk production

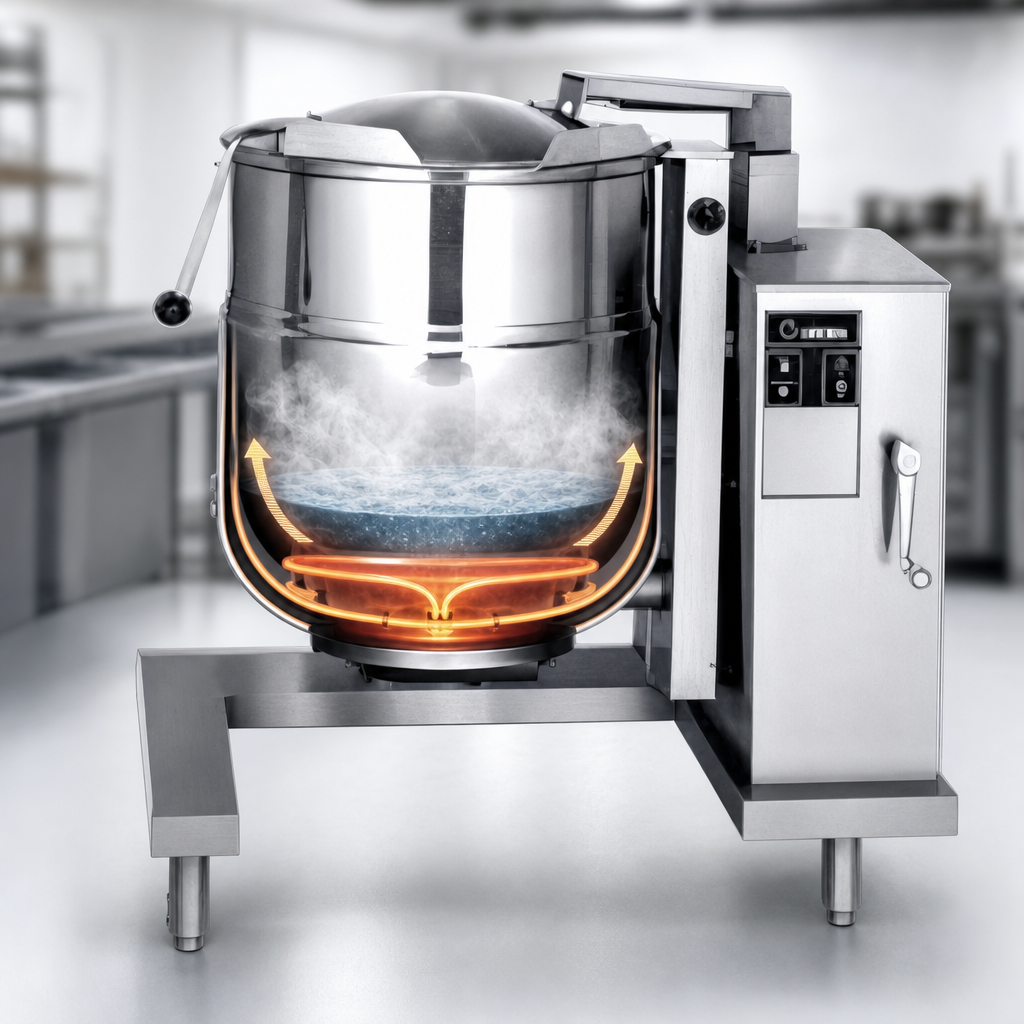

- 2/3 steam jacket design reaches ~287 °F for fast, even heat transfer

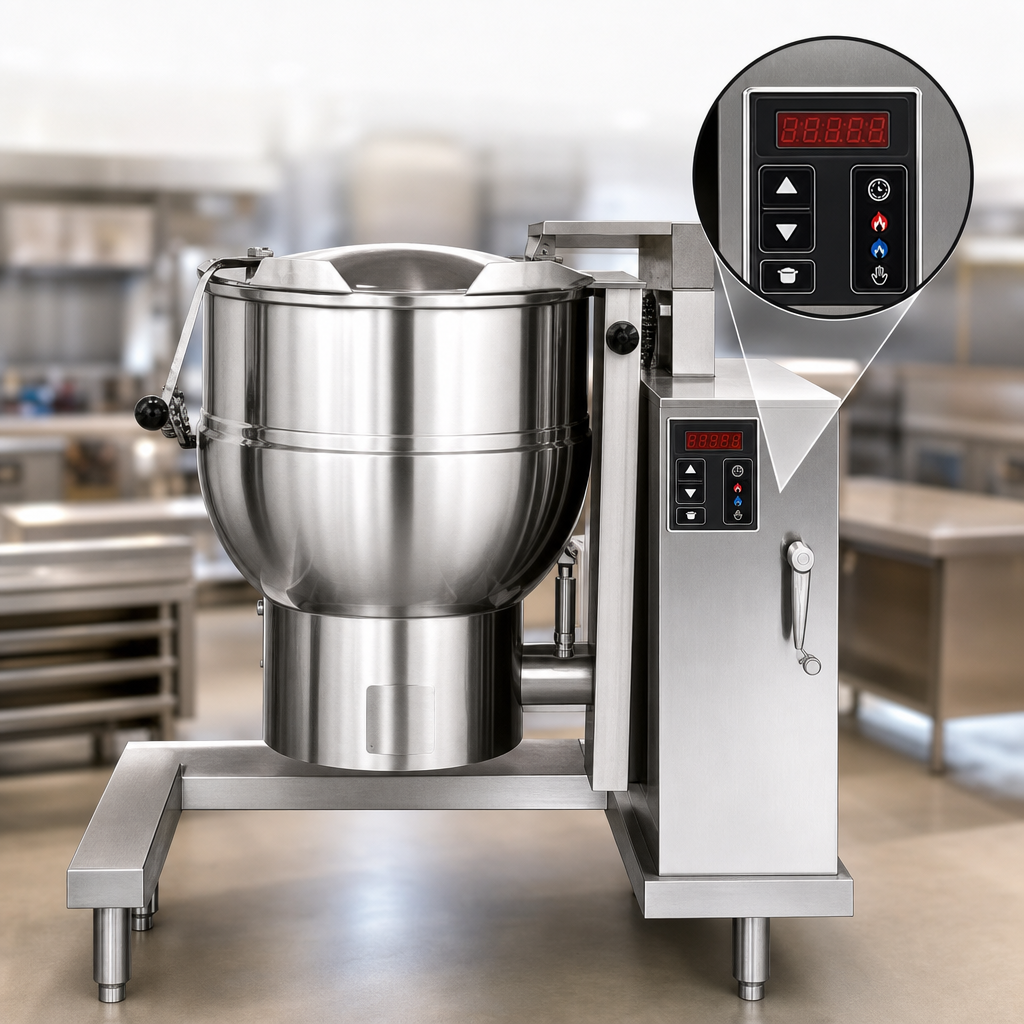

- Advanced IPX6 electronic control panel with:
- Rotary heat selector (levels 1-10) plus dedicated LOW (2) and HIGH (7) presets
- 1-minute to 10-hour countdown timer with LED display
- Manual mode for on-the-fly adjustments
- Self-locking manual crank tilt for safe, controlled pouring through a reinforced butterfly pouring lip
- 316 stainless steel kettle liner resists acid & salt corrosion better than 304 SS
- All-stainless frame, console & tubular legs with adjustable bullet feet for a rock-solid install
- Electronic ignition to standing pilot for reliable start-ups and reduced gas consumption
Built-In Safety Systems
- ASME-stamped 50 PSI jacket with pressure relief valve & pressure/vacuum gauge
- Low-water cutoff protects the jacket and automatically shuts off gas
- Gas regulator valve plus automatic gas shut-off when kettle is tilted
- Water-sight glass for quick jacket level checks
Performance Specifications
| Capacity | 60 gal / 225 L |
|---|---|
| Kettle Body Ø | 30 in (762 mm) |
| Base Footprint (W × D) | 47 in × 29 in (1194 mm × 736 mm) |
| Steam Jacket Rating | 50 PSI, 2/3 jacket |
| Heat Input | 150,000 BTU/hr (93,000 BTU into product) |
| Gas Type | Natural or Propane, ½ ” IPS connection |
| Electrical | 115 V, 1-phase, 50/60 Hz (electronic controls & ignition) |
| Elevation Rating | 0 – 2,000 ft (610 m) without derate |
| Water Resistance | IPX6 (high-pressure hose clean-down safe) |
| Construction | 316 SS liner, 304 SS exterior, welded one-piece kettle |
| Certifications | cCSAus, NSF, ASME, Made in USA |
Installation Notes
- Requires ½ ” gas supply (see incoming pressure table in spec sheet)
- 115 V, 1-amp electrical connection for controls & ignition
- No external boiler or remote steam required — factory sealed & charged
Warranty
Standard 1-year parts & labor warranty with access to Groen’s nationwide network of authorized service agents. Extended coverage available — ask your rep for details.
