Groen DH-40C Steam Kettles
Description

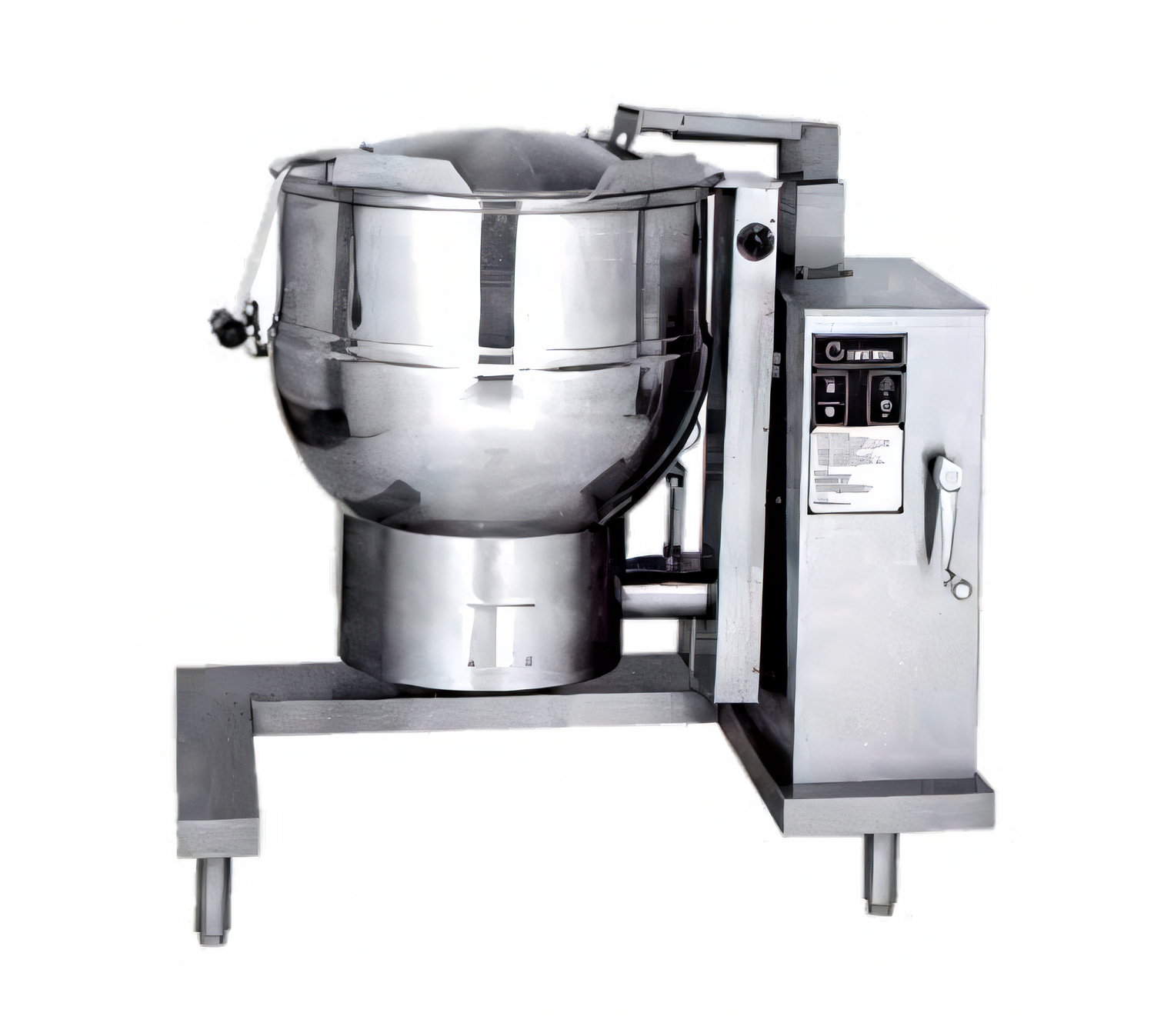

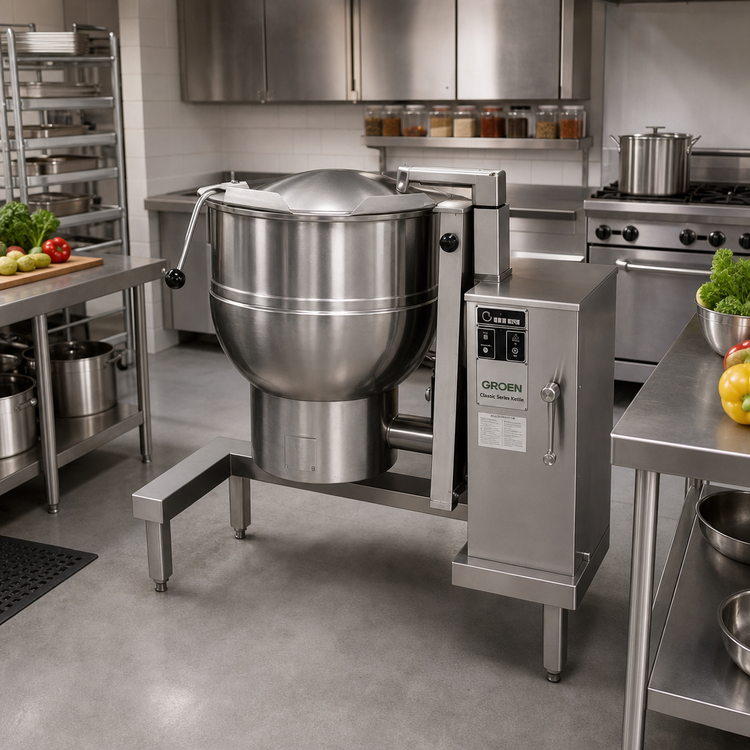

Groen DH-40C Gas Tilting Floor Kettle – 40 Gal.
Self-Contained • 2/3 Jacket • Classic Electronic ControlsBuilt for demanding, high-volume kitchens, the Groen DH-40C delivers the unrivaled speed and consistency of steam-jacketed cooking in a rugged, easy-to-clean, floor-mounted package. A 40-gallon (150 L) capacity, 100,000 BTU combustion system and precision Classic controls make it the ideal kettle for scratch-made soups, sauces, braises and more.
Why Choose the DH-40C?
- 40 gal / 150 L capacity – up to 400 servings per batch.

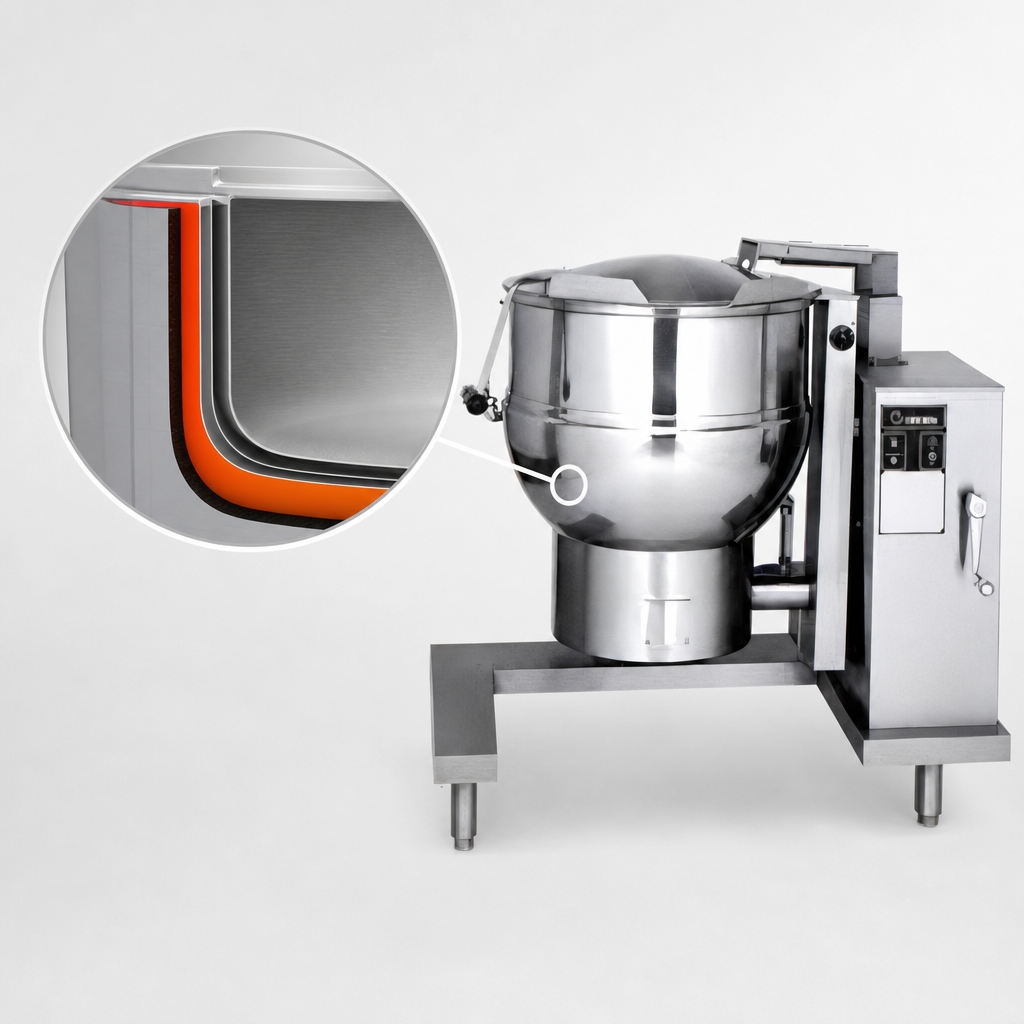

- Self-contained 2/3 steam jacket; no external boiler or steam line required.
- Patented fin-tube burner: 100,000 BTU/h input, 65,000 BTU/h into product (≈62-65 % efficiency).
- Manual crank tilt with self-locking worm gear for smooth, controlled pouring.

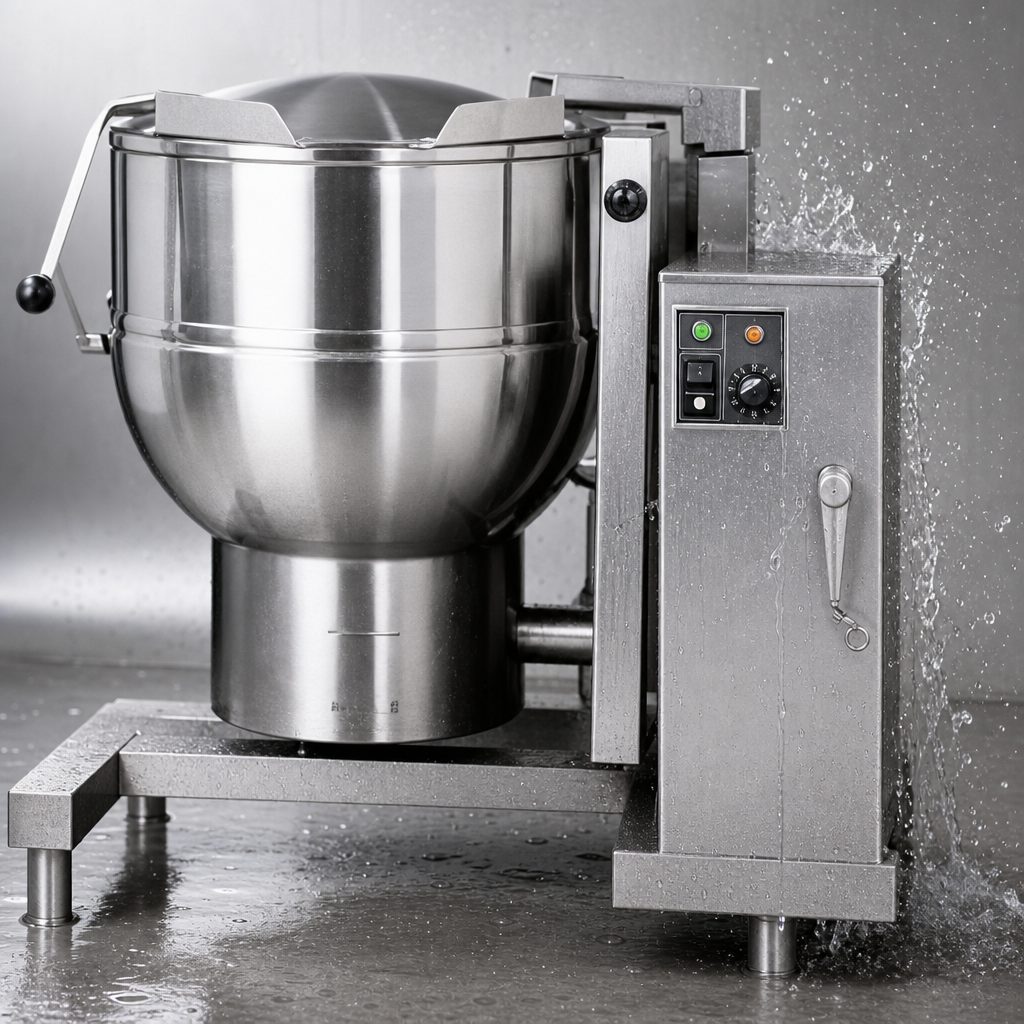

- IPX6-rated right-hand console protects the Classic electronic controls from spray-down cleaning.
- 316 stainless steel liner resists pitting from salty or acidic foods.
- All-stainless enclosure with tubular legs and height-adjustable bullet feet.
- Electronic ignition to standing pilot for reliable, match-free lighting.
- ASME stamped to 50 PSI; cCSAus gas & NSF sanitation listed.
- Designed & manufactured in the USA; backed by Groen’s 1-year parts & labor warranty.
Specifications
| Model | DH-40C (Classic controls) |
|---|---|
| Capacity | 40 gal / 150 L |
| Jacket Coverage | 2/3 kettle body |
| Heat Source | Natural gas – field convertible to LP |
| Input | 100,000 BTU/h |
| Working Pressure | 50 PSI (345 kPa) |
| Temp. Range | 100 °F – 287 °F (38 °C – 141 °C) |
| Ignition | Electronic to standing pilot |
| Tilt Mechanism | Manual crank, self-locking |
| Kettle Interior | 316 SS, 180-grit polish |
| Exterior | High-buff 304 SS |
| Controls | ON/OFF, 1-10 thermostat, Heat & Low-Water indicators |
| Gas Connection | ½ in. NPT |
| Electrical | 115 V, 1-ph, 60 Hz, 1.0 A |
| Dimensions (W×D×H) | 47 in × 29 in × 60 ½ in (1194 × 736 × 1537 mm) |
| Ship Weight | ≈ 700 lb (318 kg) |
| Certifications | cCSAus, NSF, ASME |
Built-In Safety Systems
- Pressure-vacuum gauge & 50 PSI relief valve
- Low-water cutoff with warning light
- Pressure limit control & water sight glass
- Gas regulator valve & automatic gas shut-off on tilt
Perfect For
- Soups, sauces, gravies & stocks
- Bulk pasta, rice or vegetable cook-offs
- Braising shredded meats & taco fillings
- Hot-fill canning & meal-prep production
Optional accessories – 2″ tangent draw-off valves, perforated baskets, hinged or lift-off covers and more – are available to customize your kettle. Contact us for details.
Add the Groen DH-40C to your production line and experience the proven performance, durability and food-quality advantages that have made Groen the industry’s gold standard in steam-jacketed kettles for over 40 years.
