Groen DH-40A Steam Kettles

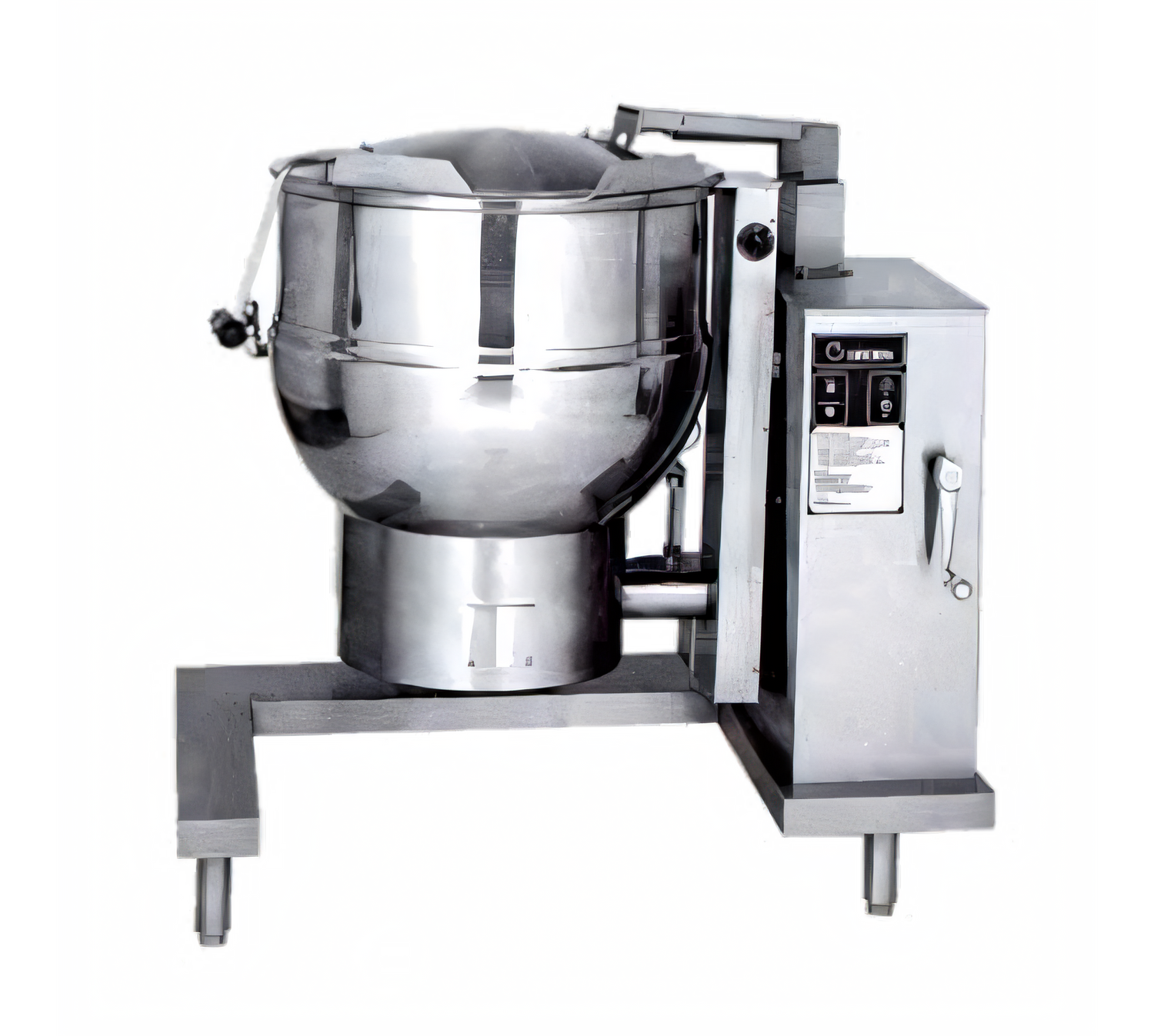

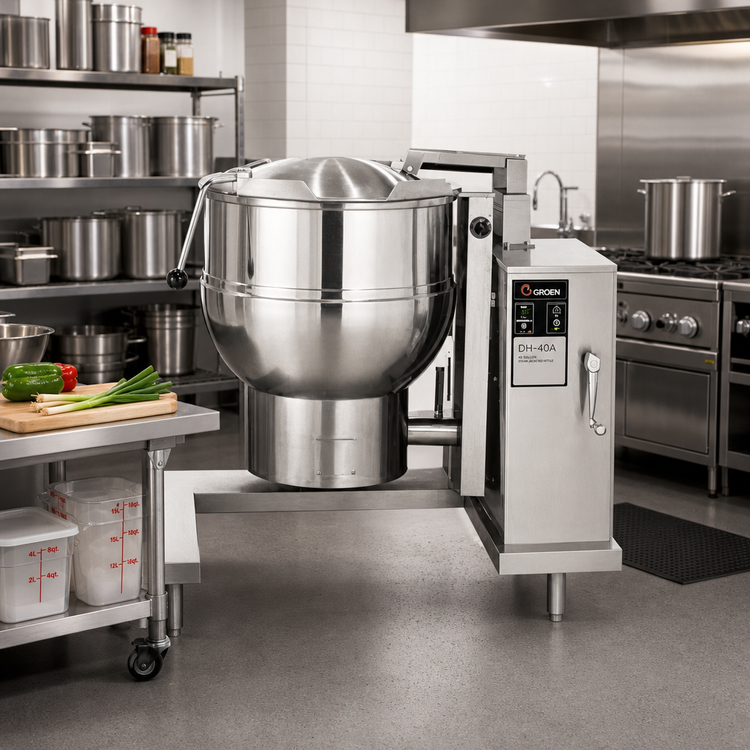

Groen DH-40A 40-Gallon Gas Tilting Floor Kettle

Produce large volumes of perfectly cooked soups, sauces, fillings and more—quickly and consistently. The Groen DH-40A combines a high-efficiency gas-fired steam jacket with intuitive electronic controls, giving operators 40 gallons of precise, repeatable cooking power in a durable, floor-mounted design.

Performance & Convenience

• True 40-gallon (150 L) capacity with 2/3 steam jacket for fast, even heat up to 287 °F.
• Patented fin-tube burner delivers 62–65 % combustion efficiency.
• 100,000 BTU/hr firing rate; 65,000 BTU/hr energy into product.

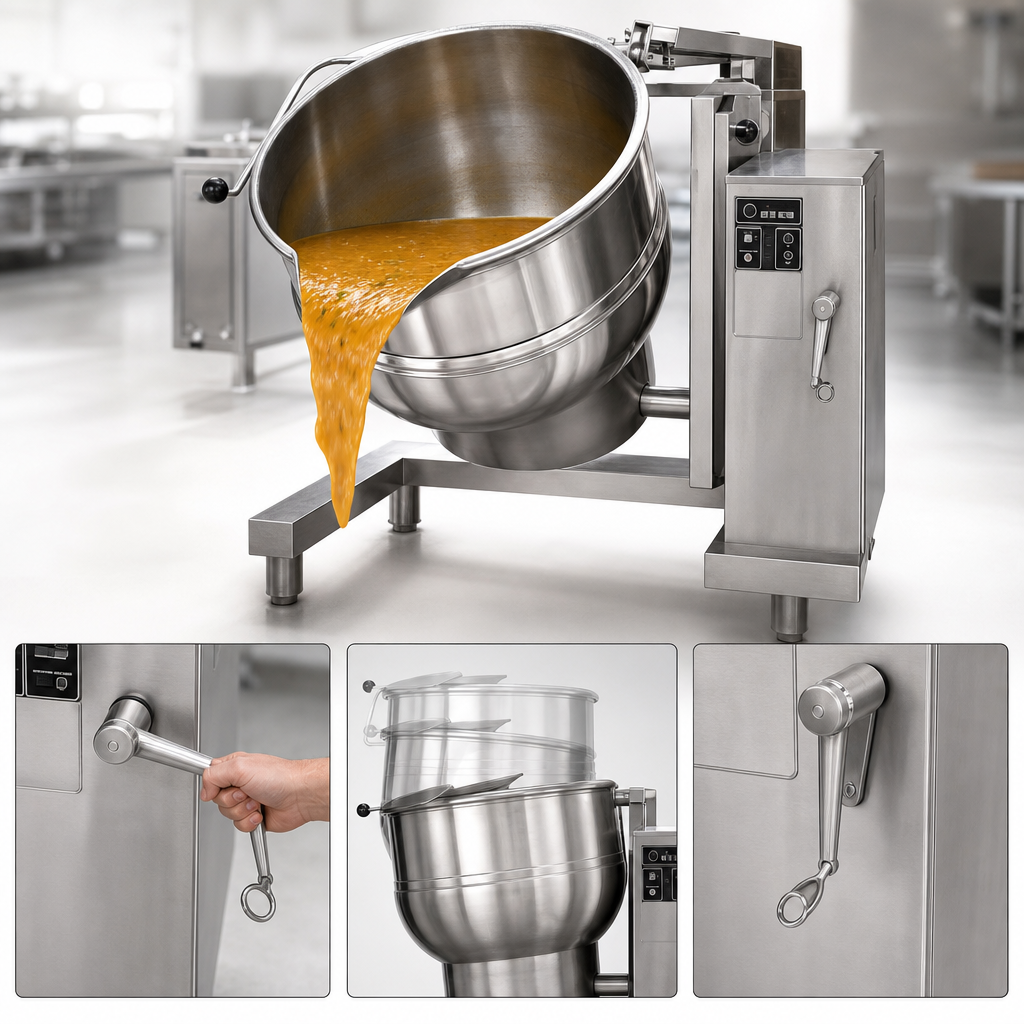

• Self-locking manual crank tilt for safe, controlled pouring.
• Electronic ignition to standing pilot—no matches required.
• All-stainless construction with 316 stainless interior liner and reinforced butterfly pouring lip.
• Stainless tubular legs with height-adjustable bullet feet for a rock-solid install.
• ASME-stamped 50 PSI steam jacket & CSA design certified for 0–2,000 ft elevation.

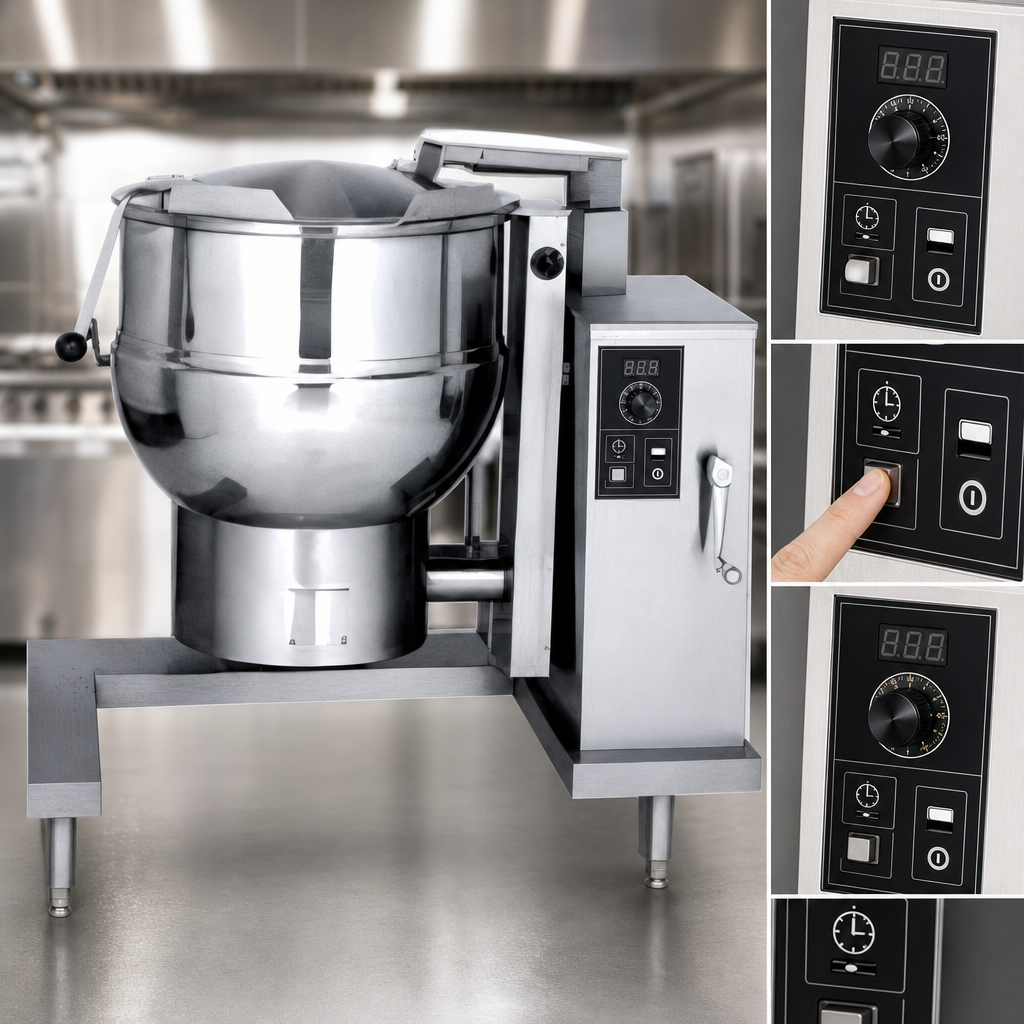

IPX6 Advanced Control Suite

• Water-resistant (IPX6) console mounted to the right of the kettle body.
• Rotary knob with 1–10 heat settings plus dedicated Low (level 2) & High (level 7) one-touch presets.
• MANUAL mode for custom heat selection.
• Digital timer adjustable from 1 minute to 10 hours with audible completion alert.
• Bright LED display toggles between set heat level or remaining cook time.
• Low-water and high-temperature indicator lights safeguard both product and equipment.

Integrated Safety Systems

• Pressure-vacuum gauge & spring-loaded pressure relief valve.
• Low-water cutoff, water sight glass and pressure limit control.
• Gas regulator and automatic gas shut-off when kettle is tilted.

Specifications

Warranty

Groen provides a 1-year parts & labor warranty (2,000 operating hours) with optional extended coverage. Technical support is available via the Groen service hotline: 888-994-7636.
