Groen | SKU:
DH-20C
Groen DH-20C Steam Kettles
$33,150.00
Unit price
/
Unavailable
FREE SHIPPING AVAILABLE!
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Groen DH-20C Steam Kettles is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Groen DH-20C Steam Kettles
$33,150.00
Unit price
/
Unavailable
Description

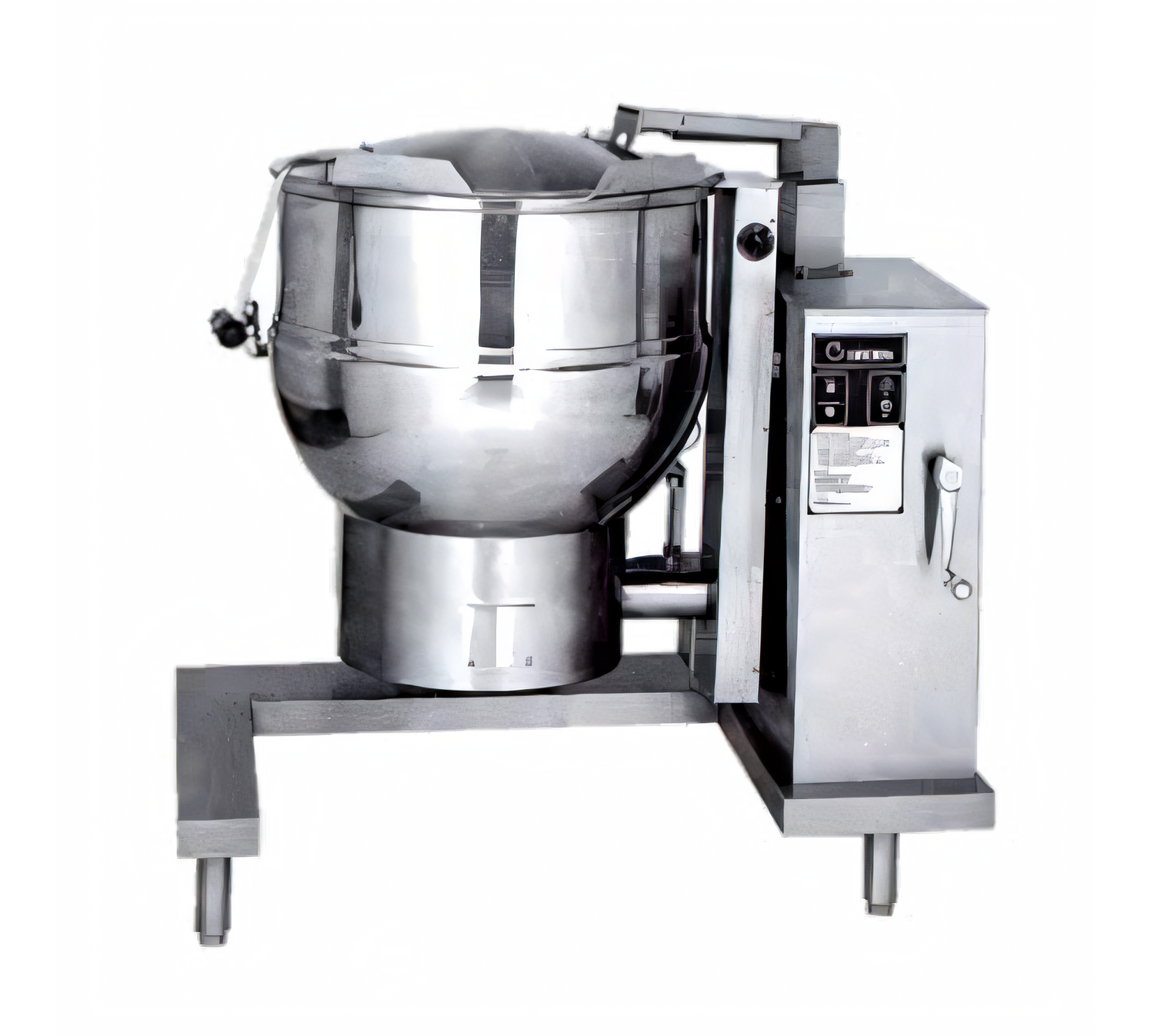

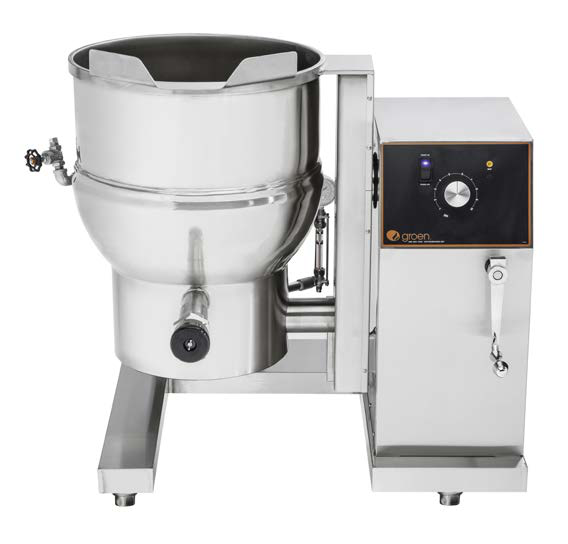

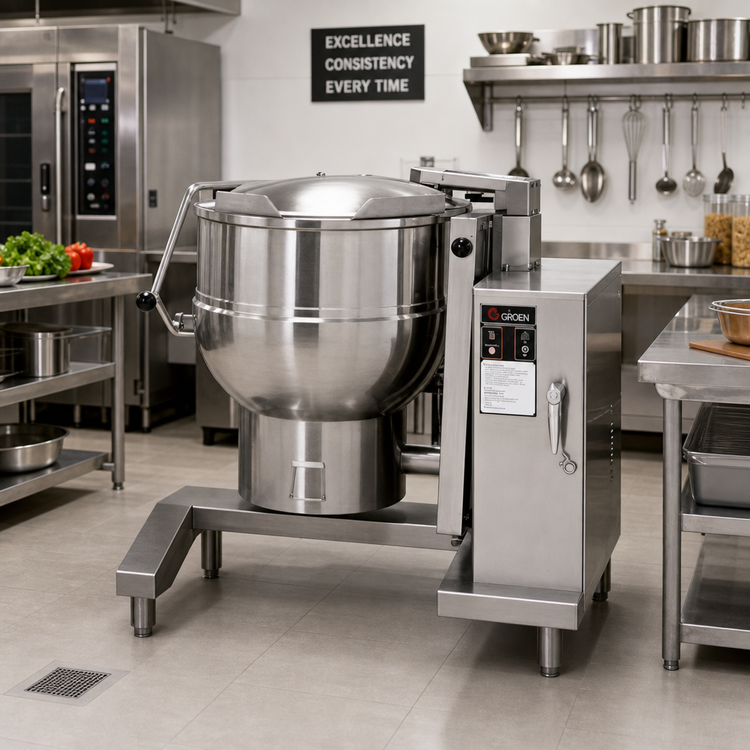

Groen DH-20C 20-Gallon Gas Tilting Kettle
Self-contained steam jacketed kettle with Classic electronic controlsEngineered for high-volume production and day-in, day-out reliability, the Groen DH-20C delivers fast, even steam heating in a space-saving 20-gallon footprint. 316 stainless construction, IPX6-rated controls, and a smooth crank-tilt design make this Made-in-USA workhorse an indispensable upgrade for any commercial kitchen.
Key Features
- 20 gal (75 L) capacity — perfect for soups, sauces, stocks & braises

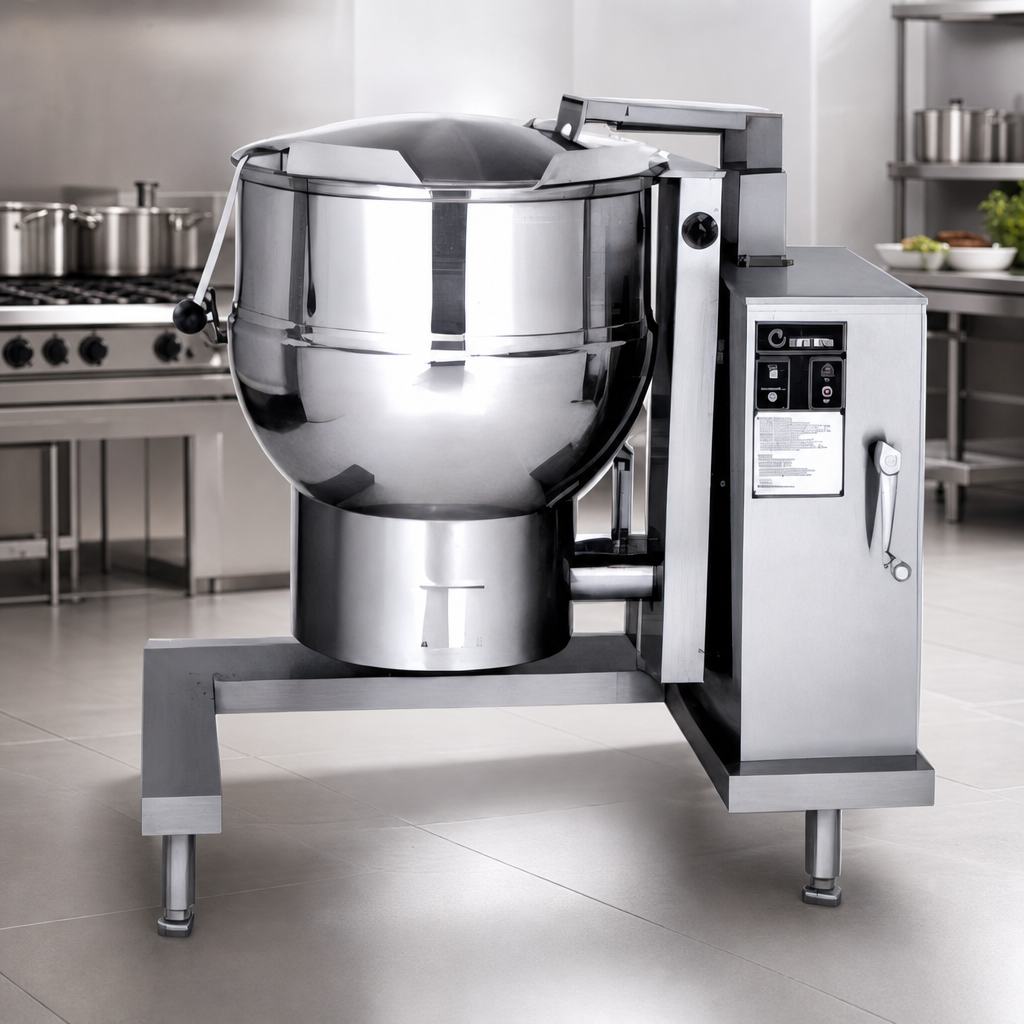

- Gas-heated 2/3 steam jacket is factory-charged; no external boiler required
- 316 stainless steel liner resists salt & acidic foods for longer kettle life

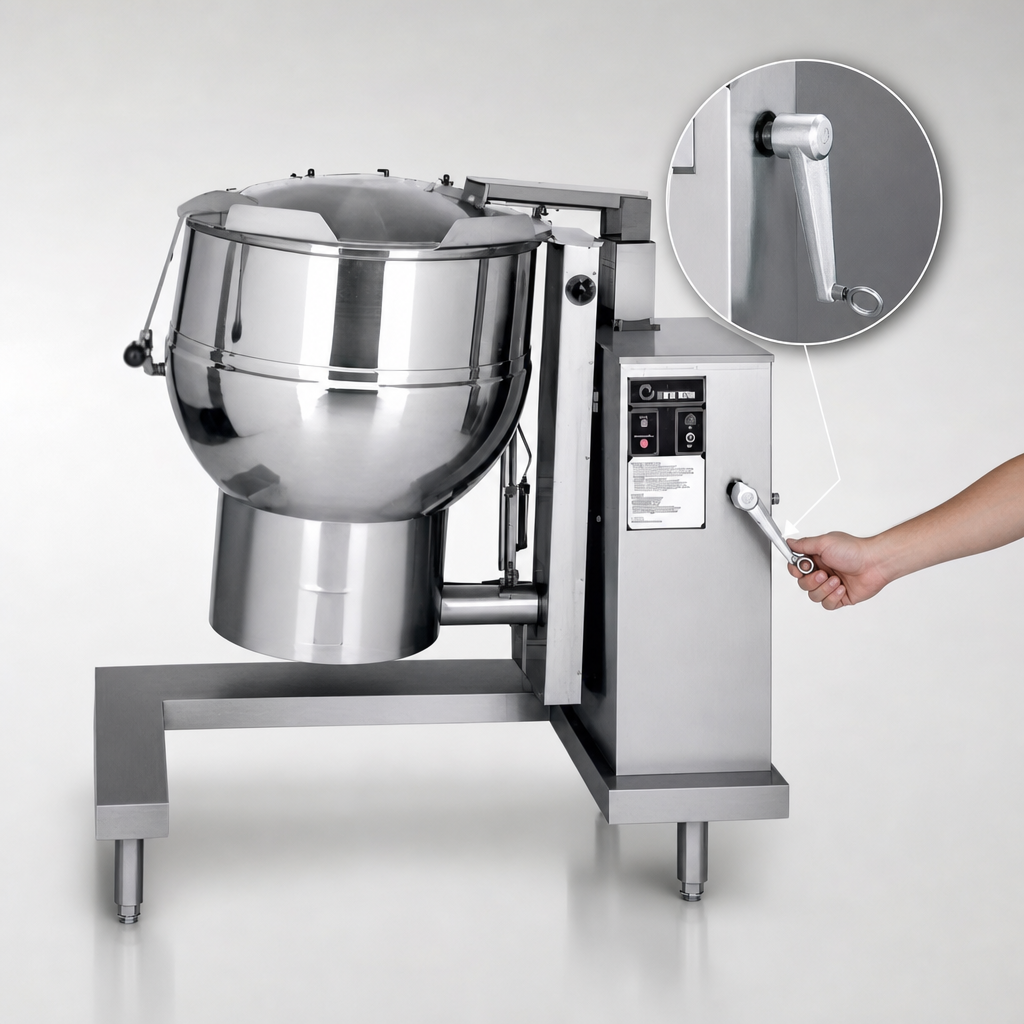

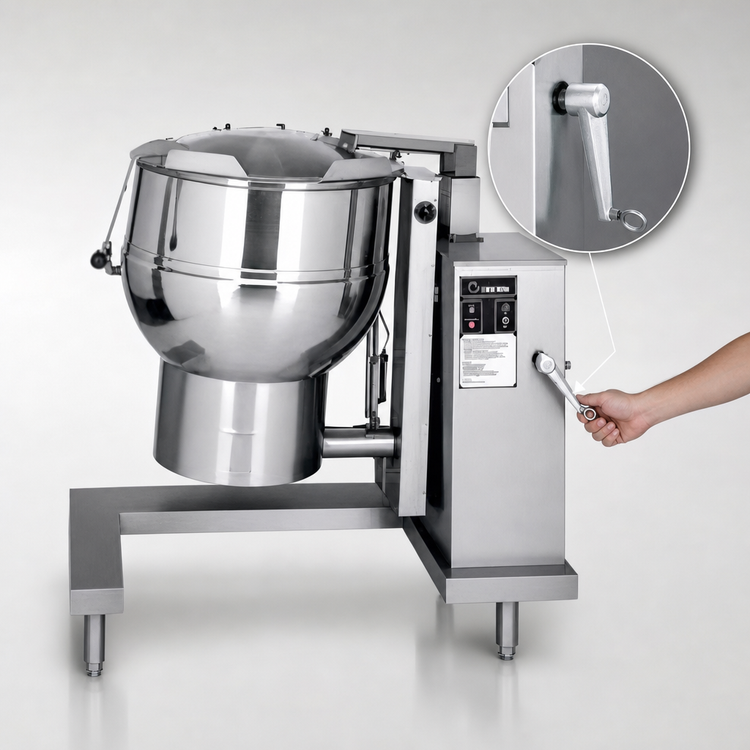

- Manual crank tilt with self-locking worm gear for safe, precise pouring
- IPX6 water-rated Classic electronic console: power switch, 1–10 temperature dial, heat & low-water lights
- Fin-tube burner, 72,000 BTU/hr input with electronic ignition-to-standing pilot (≈62-65 % combustion efficiency)
- Operating temperature range 100 °F – 287 °F (38 °C – 142 °C)
- Comprehensive safety suite: pressure/vacuum gauge, 50 PSI relief valve, pressure-limit control, water sight glass, low-water cutoff, tilt-activated gas shutoff
- Rugged stainless base with tubular legs & height-adjustable bullet feet
- Reinforced rim with butterfly pouring lip for drip-free transfers
- cCSAus, NSF & ASME certified — proudly Made in the USA
Performance
| Capacity | 20 gal / 75 L |
|---|---|
| Heat source | Natural or propane gas (specify when ordering) |
| Input rate | 72,000 BTU/hr |
| Energy to product | 44,140 BTU/hr |
| Steam jacket rating | 50 PSI, ASME stamped |
| Usable temp range | 100 °F – 287 °F (38 °C – 142 °C) |
| Elevation rating | 0 – 2,000 ft (610 m) |
Utility Requirements
| Gas connection | ½" IPS — 3.5" W.C. (natural) / 10" W.C. (propane) |
|---|---|
| Electrical | 115 V, 1 ph, 50/60 Hz (controls & ignition) |
Dimensions & Clearances
| Kettle body Ø | 20" (508 mm) |
|---|---|
| Base width | 35" (889 mm) |
| Base depth | 29" (736 mm) |
| Overall height (lid closed) | 51" (1,295 mm) |
| Right-side service clearance | 12" (305 mm) minimum |
Popular Accessories (sold separately)
- 2" sanitary tangent draw-off valve with perforated strainer
- Lift-off, hinged, or Power-Aid counter-balanced covers
- Basket inserts (TRI-BC) for blanching & bulk cooking
- Single or double pantry faucet assemblies
- Gallon etch marks & contour measuring strip
Installation notice: Gas and electrical connections must be performed by a
qualified technician in accordance with local codes.
Backed by Groen’s standard 1-year parts & labor warranty with optional extended coverage.
For larger capacities or advanced controls, see our DH-40, DH-60 & Cook2Temp models.
Features & Specs
Features & Specs
Manufacturer
Groen
Certifications
NSF, cCSAus, IPX6, Made in USA
Height
39.38in
Width
35.0in
Depth
32.75in
Shipping Weight
530.0lbs
Capacity
18 - 26 gallon
Kettle Jacket
partial jacket
Kettle Liner
316 stainless steel
Width
28 - 41 inches
Specifications
Tilting Kettle, gas, 20-gallon capacity, crank tilt, 2/3 jacket, IPX6 water rated electronic Classic controls, 316 stainless steel liner, floor mounted control console supports, stainless steel construction, bullet feet, electronic ignition, 50 PSI, 0 - 2000' elevation, 72,000 BTU, cCSAus, NSF, Made in USA
