Groen DH-20A Steam Kettles
Description

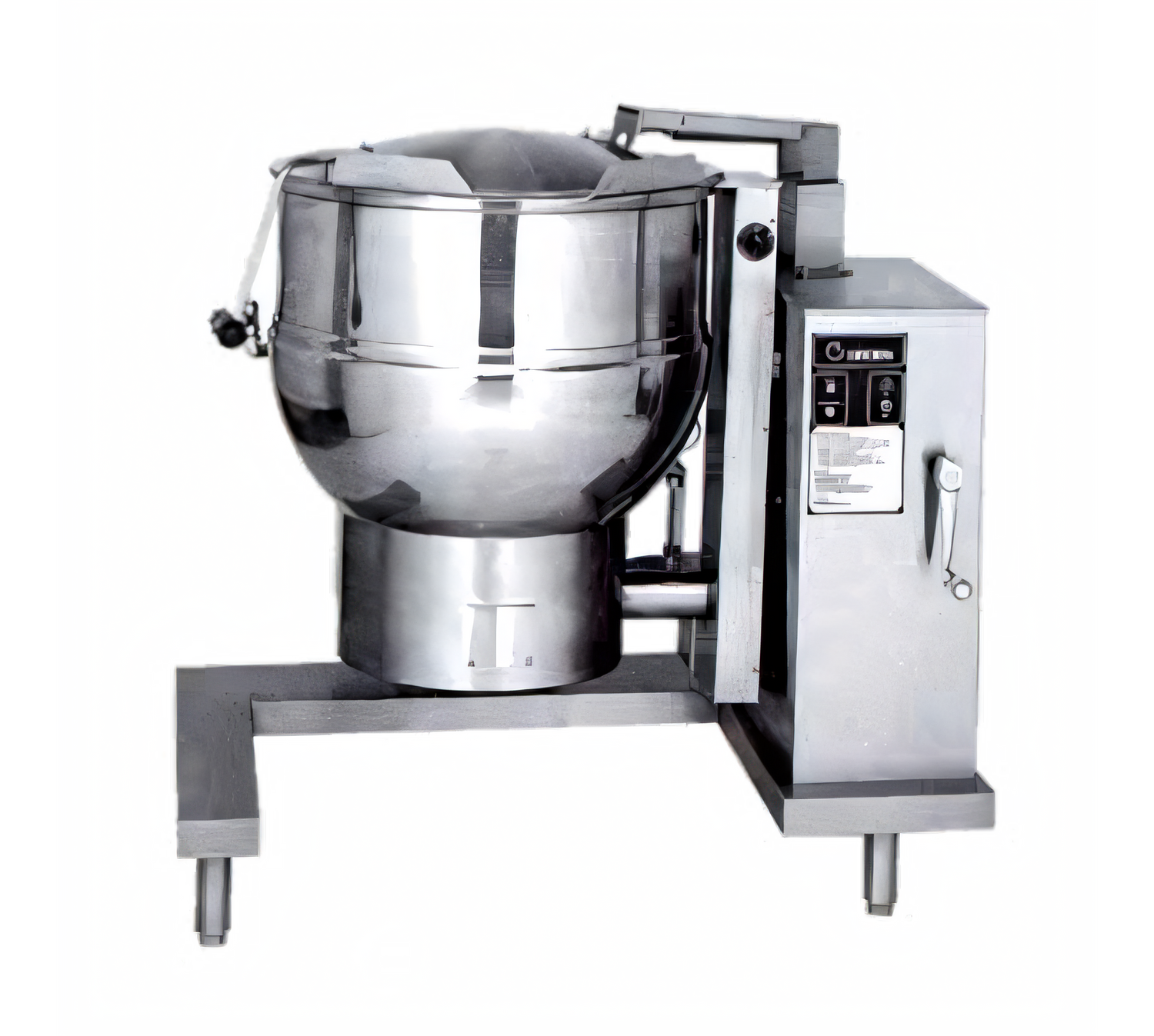

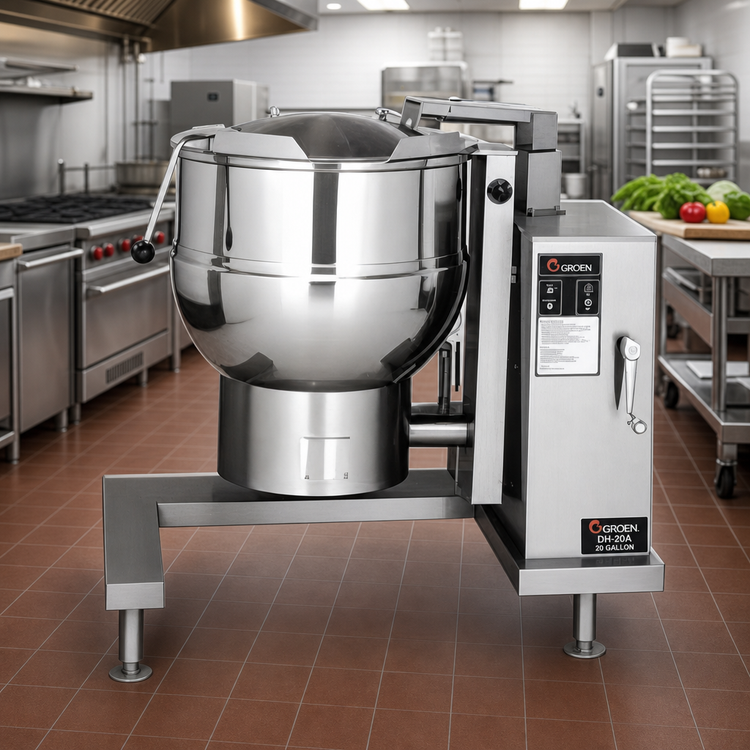

Groen DH-20A 20-Gallon Gas Tilting Kettle – Advanced Controls
Self-contained 2/3 steam jacket | IPX6 electronic controls | 316 stainless linerBuilt for high-volume kitchens that demand speed, consistency and rock-solid durability, the Groen DH-20A delivers 75 L of gentle, steam-jacketed cooking power in a compact, floor-mounted footprint. Advanced IPX6-rated controls give you digital precision, while the hand-crank tilt and reinforced pouring lip make batch transfer safe and effortless.
Why you’ll love it
- 20-gallon / 75-liter capacity handles stocks, sauces, soups and pasta with room to spare.

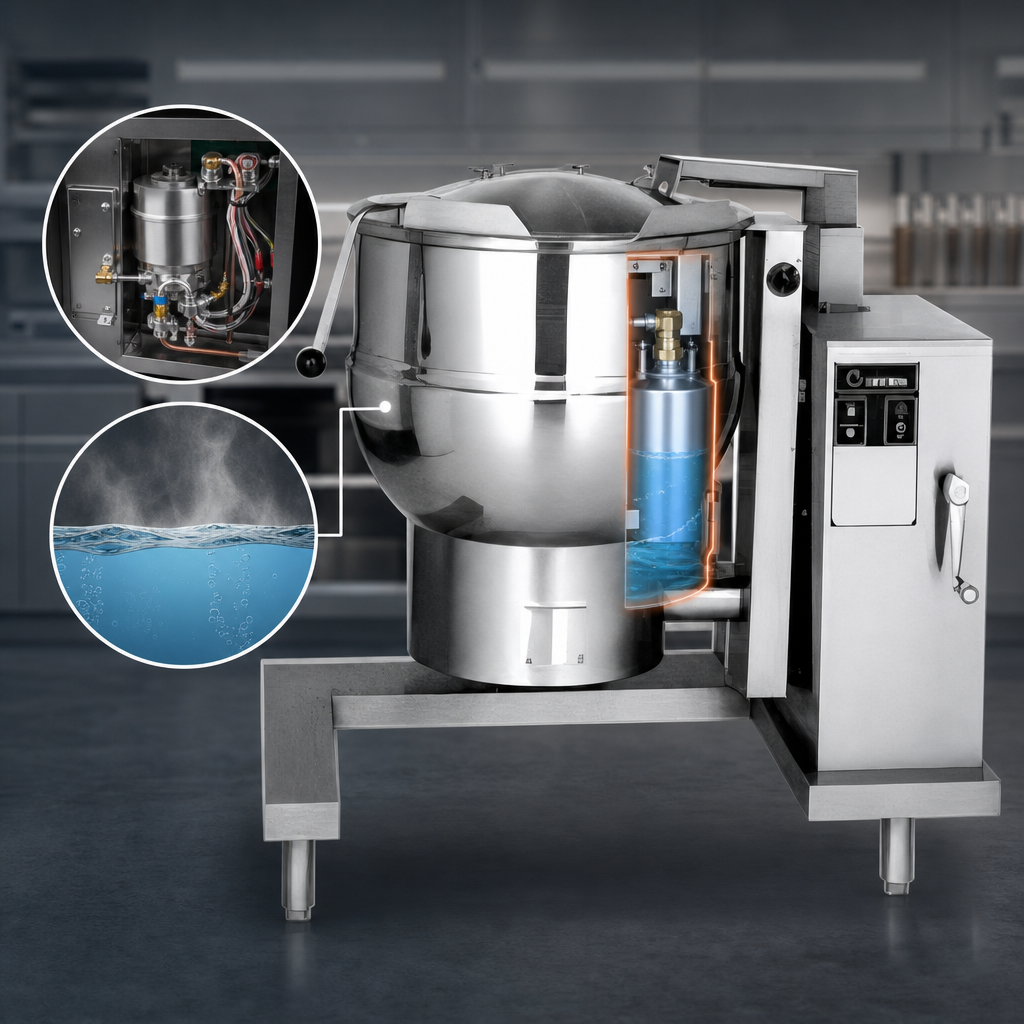

- Self-contained 2/3 steam jacket (50 PSI) heats uniformly up to 287 °F without an external boiler.
- Advanced digital controls • LED display shows heat level or remaining time • 1 min – 10 hr timer • Low (2) & High (7) preset buttons plus Manual mode for knob-set precision.
- IPX6 water-resistant console shrugs off splash-down cleaning.
- 316 stainless steel vessel resists acidic foods far better than 304 for a longer service life.
- Manual crank tilt with self-locking worm gear lets one person pour smoothly and safely.
- 72,000 BTU/HR fin-tube burner with electronic ignition delivers 62-65 % thermal efficiency (44,140 BTU/HR into product).
- Full safety suite – pressure/vacuum gauge, pressure relief valve, high-limit, low-water cutoff, gas regulator & automatic gas shut-off when tilted.
- Bullet feet adjust for a level, rock-steady installation on any kitchen floor.
- Made in the USA and certified to NSF & cCSAus standards.
Technical specifications
| Model | DH-20A (Advanced Controls) |
|---|---|
| Capacity | 20 gal / 75 L |

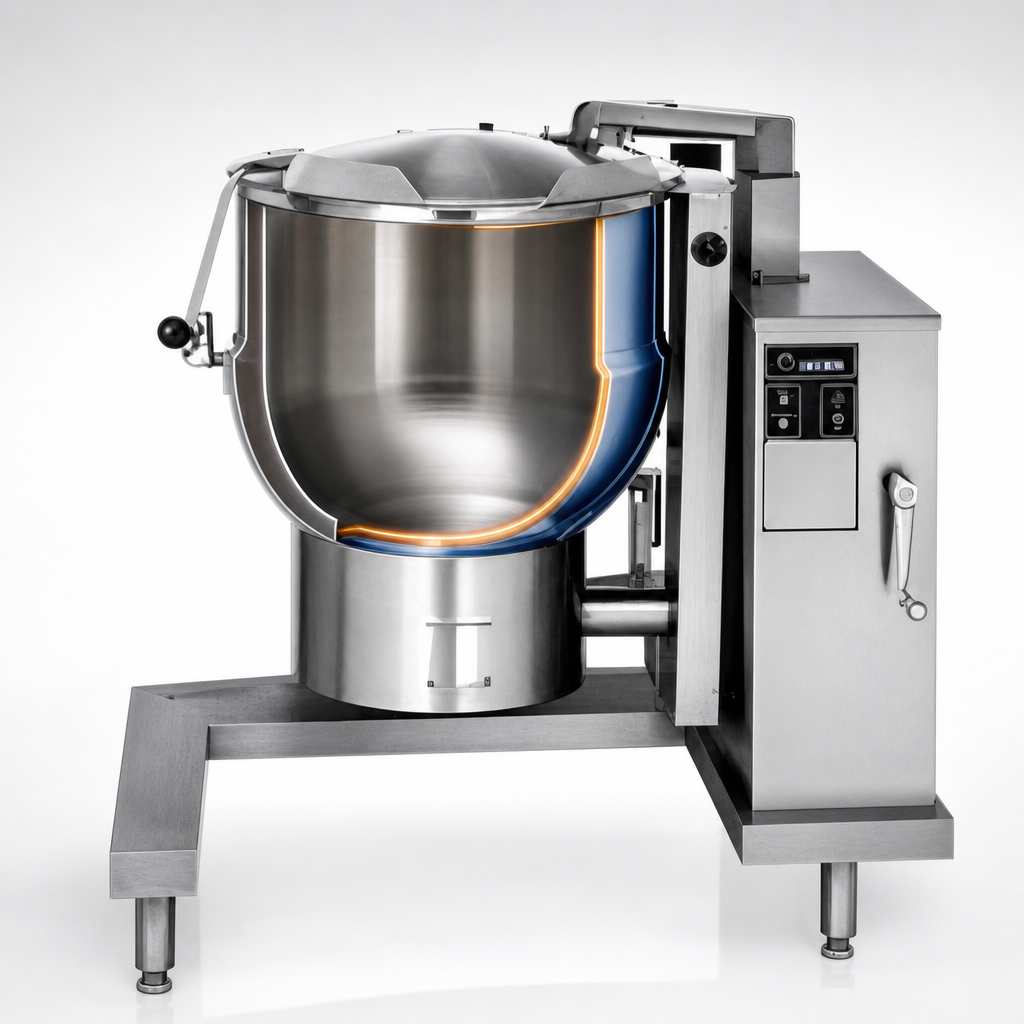

| Jacket coverage | 2/3 (self-contained, water & rust inhibitor filled) |
| Working pressure | 50 PSI ASME-code stamped |
| Heat input | 72,000 BTU/HR (Natural or LP gas) |
| Energy into product | 44,140 BTU/HR |
| Gas connection | ½" IPS, 3.5" W.C. Natural / 10" W.C. LP |
| Electrical | 115 V, single phase (controls & ignition) |
| Controls rating | IPX6 water-resistant enclosure |
| Construction | 316 SS kettle interior, 304 SS exterior, floor console & trunnion |
| Tilt mechanism | Manual crank, self-locking |
| Overall dimensions | 20" Ø body × 35" W × 29" D × 51" H |
| Elevation rating | 0 – 2,000 ft (standard) |
| Origin | Greenwood, Mississippi, USA |
Popular accessories (sold separately)
- 2" tangent draw-off valve with strainer
- Lift-off, hinged or Power Aid covers
- Basket inserts (TRI-BC) for pasta & vegetables
- Pan carrier (40, 60, 80 gal models)
- Single or double pantry faucet assemblies
- Gallon etch marks & contour measuring strip
Accessories must be ordered with the kettle or purchased through an authorized Groen dealer.
Warranty
1-year parts & labor (2,000 operating hours) standard, with optional extended coverage available. Technical support hotline: 888-994-7636.
