Groen DEE/4-60C Steam Kettles
Description

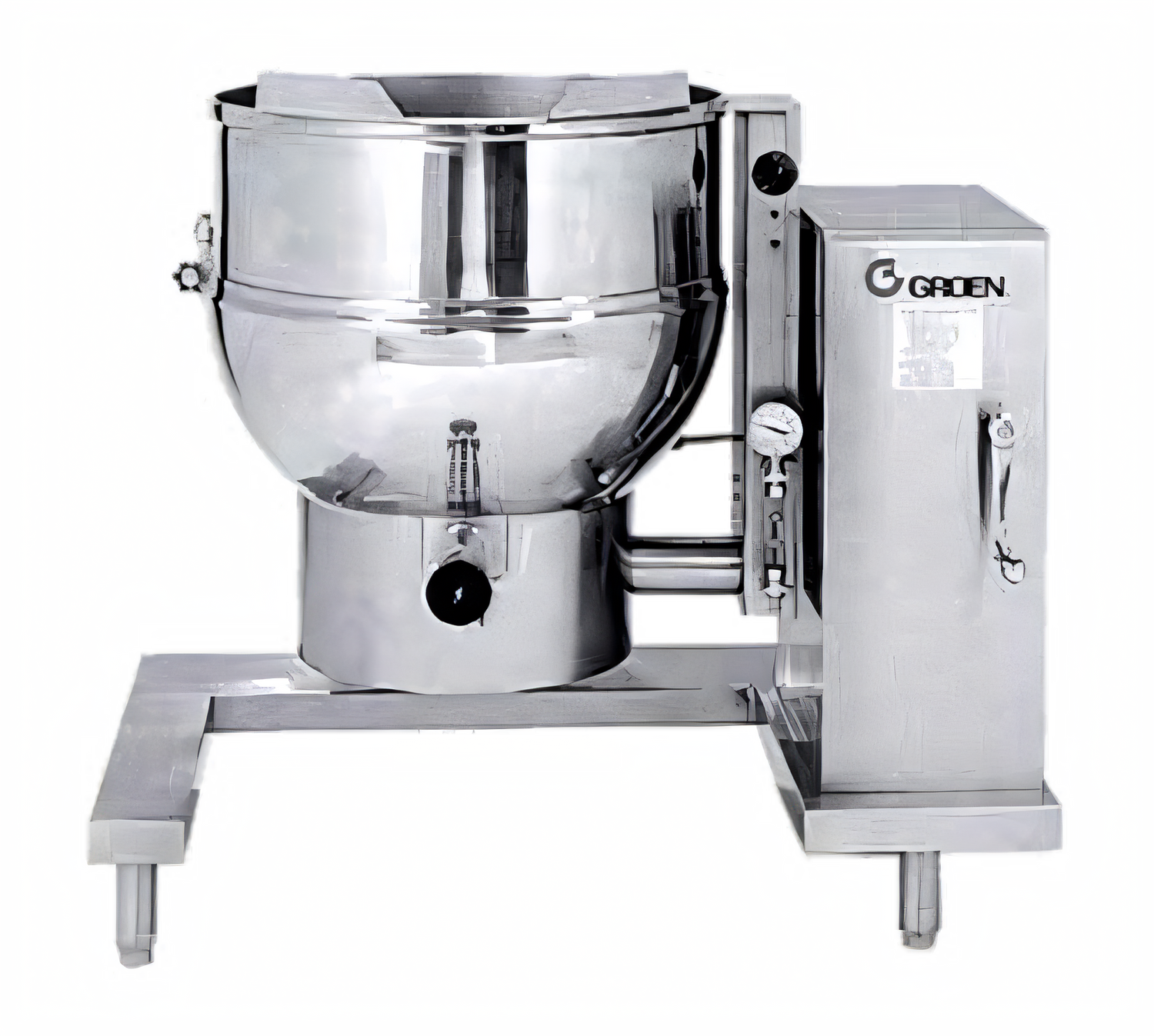

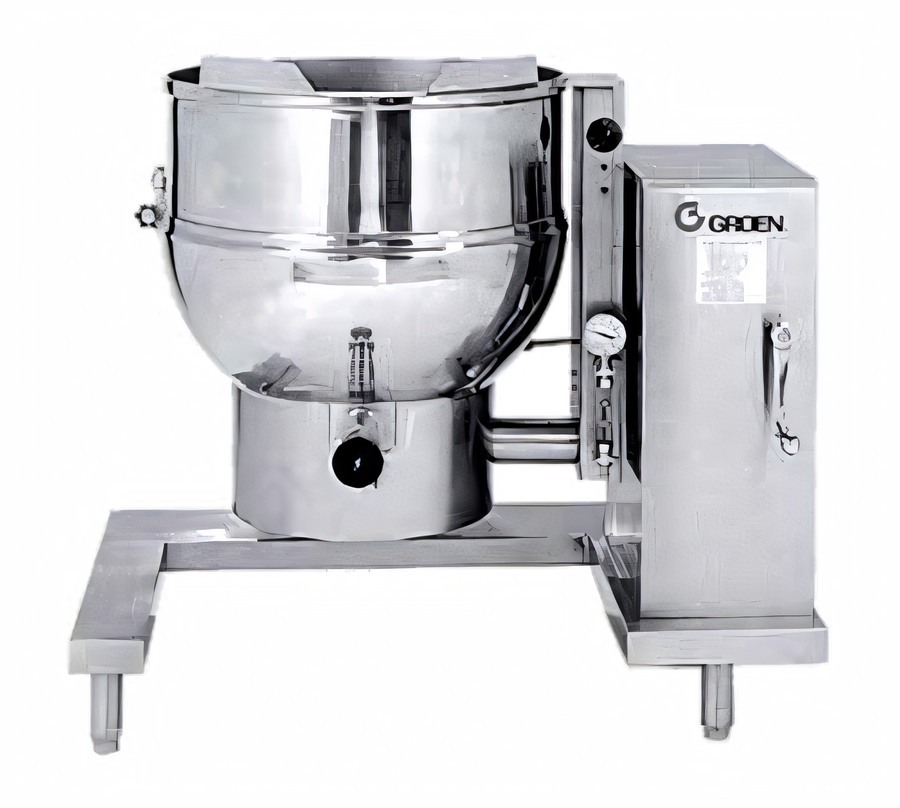

Groen DEE-60C 60-Gallon Electric Tilting Kettle
Classic IPX6 Controls • 2/3 Steam Jacket • 316 Stainless SteelBuilt for high-volume production and relentless daily use, the Groen DEE-60C gives you 60 gallons of precise, self-contained steam power in a rugged, floor-mounted kettle that tilts smoothly with a crank handle. No external boiler, no guessing—just consistent results shift after shift.
Key Advantages
- Generous 60-gallon (227 L) capacity—cook up to 960 quarts of soup, sauce or stock at once.

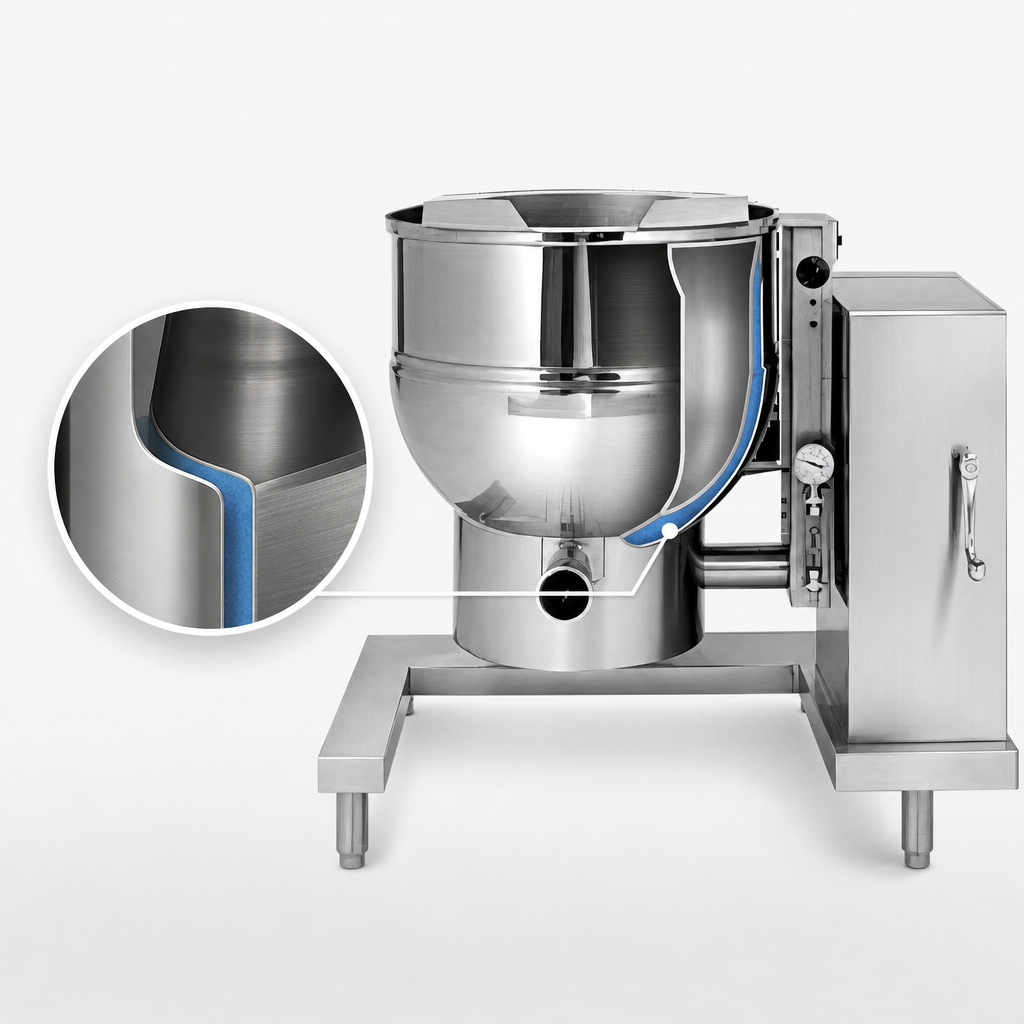

- 2/3 steam jacket fully surrounds side & bottom for lightning-fast, even heating from 150 °F to ≈295 °F.
- 316 stainless steel liner withstands acidic or salty recipes far better than 304 grade.

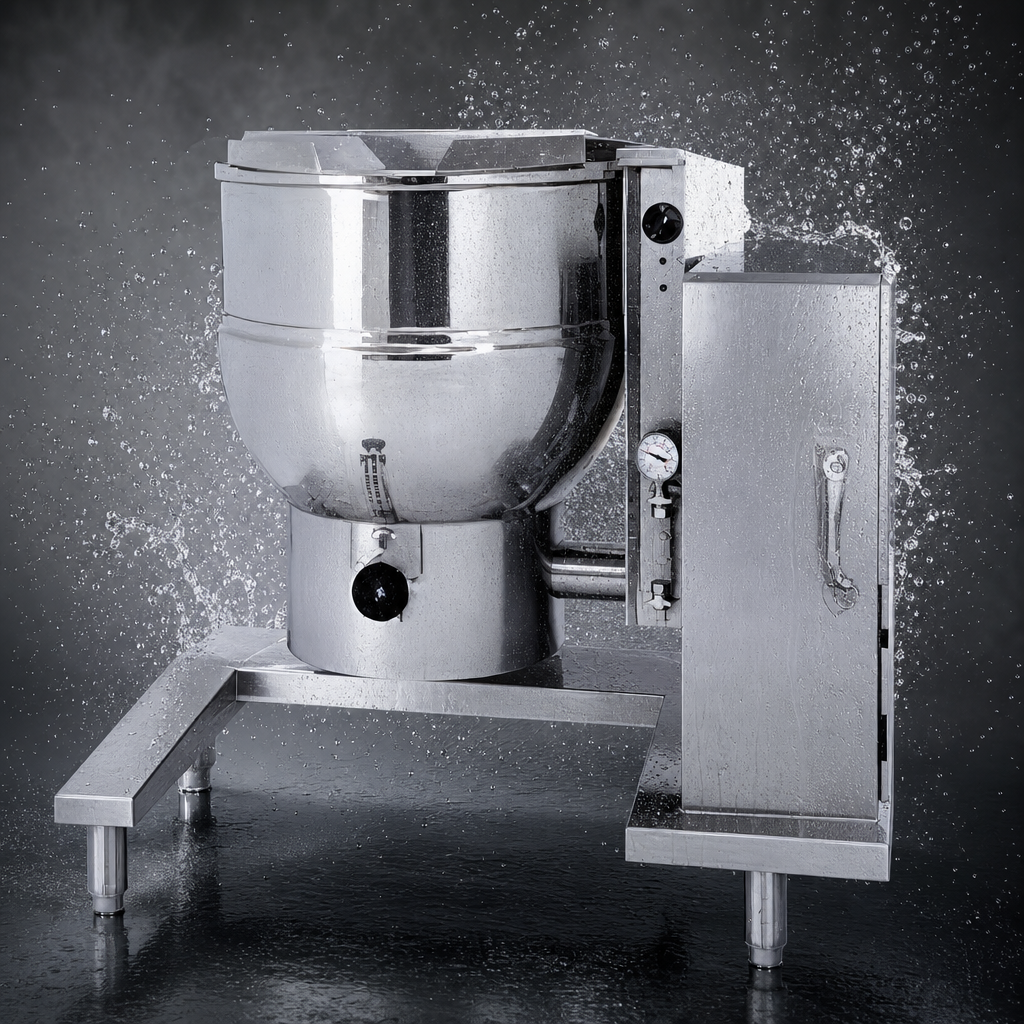

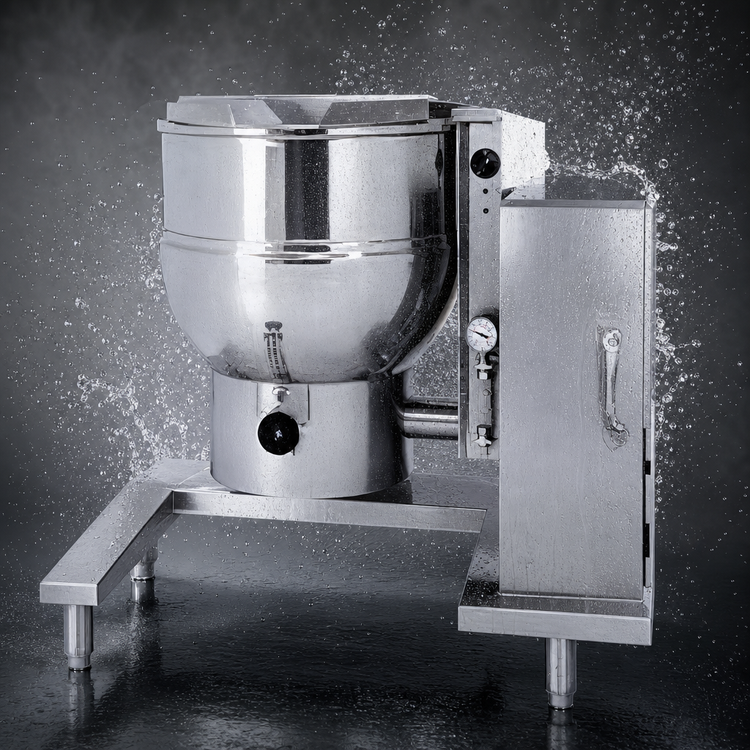

- IPX6-rated Classic control console with:
- Power ON/OFF switch & indicator
- Temperature knob (1–10 scale)
- HEAT and LOW-WATER lights for instant status checks
- Manual crank tilt with self-locking worm gear lets one operator decant the kettle safely and precisely.
- Factory-sealed electric steam generator—no external steam hookup, chemicals or boiler maintenance.
- Heavy-duty stainless frame, tubular legs & adjustable bullet feet resist corrosion and keep the kettle level on uneven floors.
- Comprehensive safety package: pressure-vacuum gauge, pressure relief valve, pressure limit control, water sight glass, low-water cut-off & tilt cut-off.
- Certified to ASME 50 PSI, cULus and NSF standards; designed & built in the USA.
Specification Snapshot
| Model | DEE-60C (Classic controls) |
|---|---|
| Capacity | 60 gal / 227 L |
| Steam Jacket | 2/3-body, factory-charged with pure water & rust inhibitors |
| Temperature Range | ≈150 °F – 295 °F (65 – 146 °C) |
| Working Pressure | Max 50 PSI (345 kPa) – ASME coded |
| Tilt Mechanism | Manual crank, 90° pour, self-locking |
| Construction | 316 SS liner; 304 SS exterior, trunnion & enclosed base |
| Footing | Tubular stainless legs with adjustable bullet feet |
| Controls | IPX6 Classic: On/Off, temp knob (1–10), HEAT & LOW-WATER lights |
| Electrical | 208, 240 or 480 V; 1- or 3-phase; 50/60 Hz; up to 24 kW |
| Certifications | cULus, NSF, ASME, CRN |
| Origin | Made in USA |
Optional Accessories
- 2" tangent draw-off valve with removable perforated strainer
- Lift-off or hinged stainless steel cover
- Basket inserts (TRI-BC) for pasta, blanching or rethermalizing
- Single or double pantry faucets with swing spouts
- Lip strainers, gallon etch marks or contour measuring strips
- Pan carrier & kettle brush cleaning kit
Standard warranty: 1 year parts & labor (2,000 operating hours). Extended coverage available—ask your sales rep for details.
