Groen DEE/4-20C Steam Kettles
Description

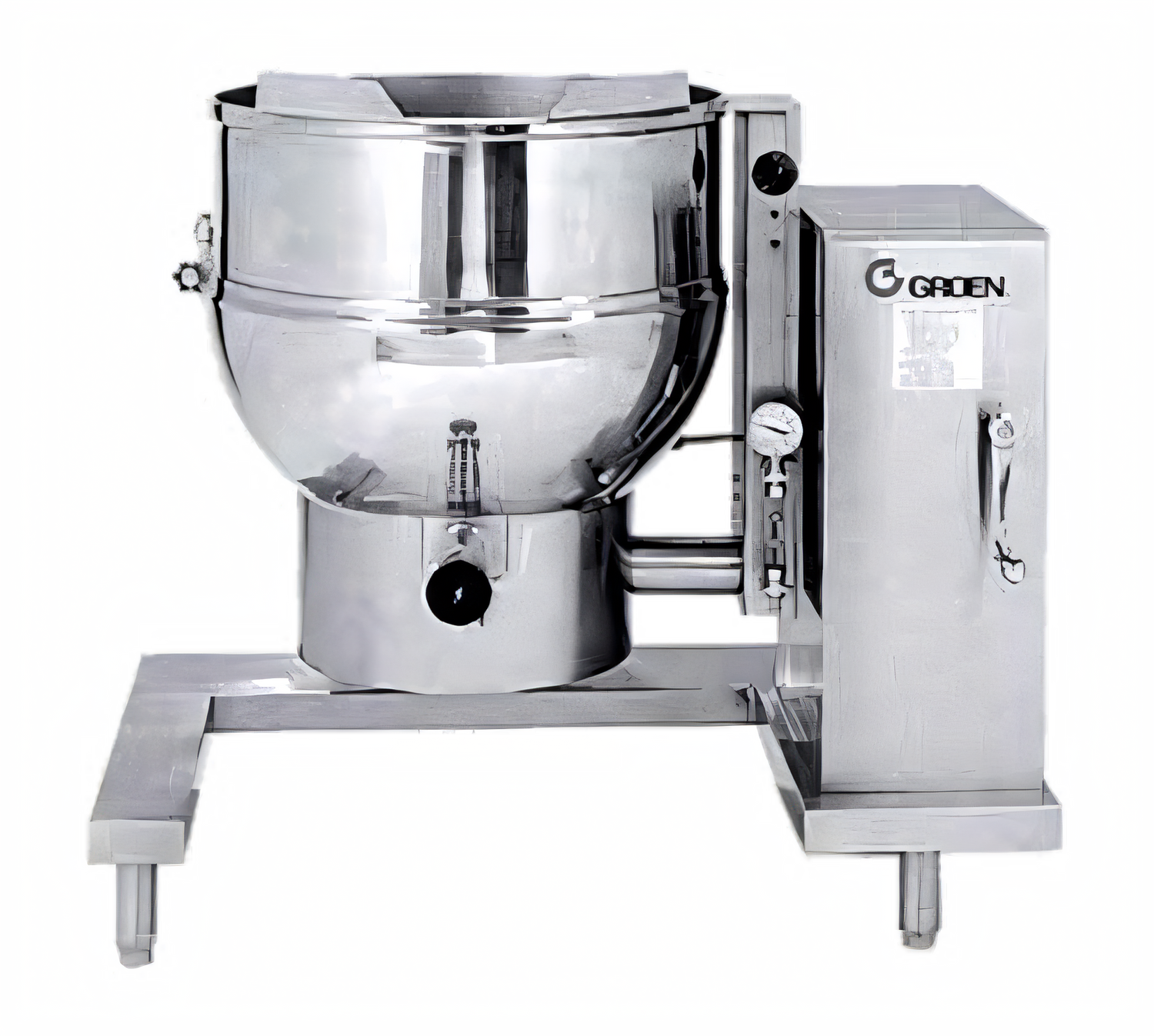

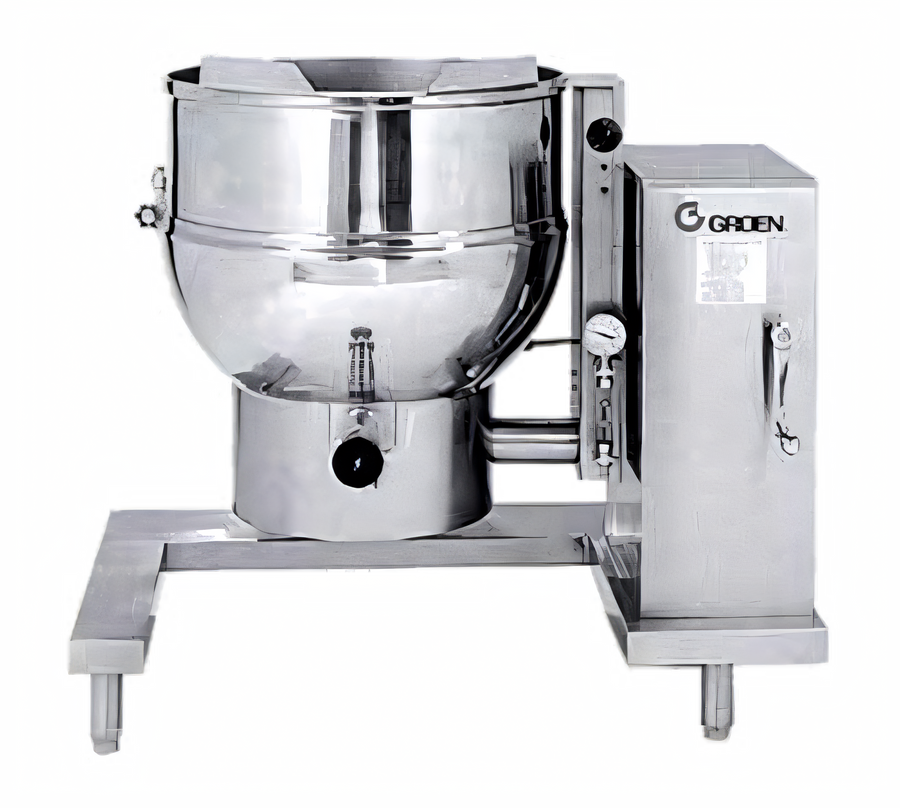

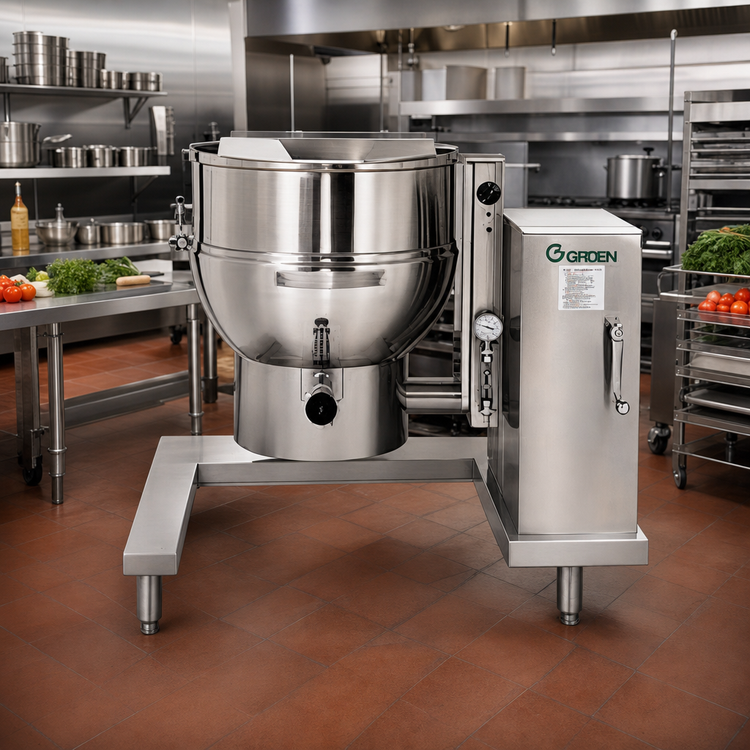

Groen DEE-20C 20-Gallon Electric Tilting Kettle
Classic IPX6 Controls • 316 SS Liner • Made in USABuilt for demanding production kitchens, the Groen DEE-20C delivers 20 gallons of fast, even, self-contained steam cooking in a compact floor-mounted package. 316 stainless construction, water-resistant controls and a smooth manual crank tilt make this kettle a rugged, operator-friendly workhorse for soups, sauces, pastas, stocks and more.
Why You’ll Love It

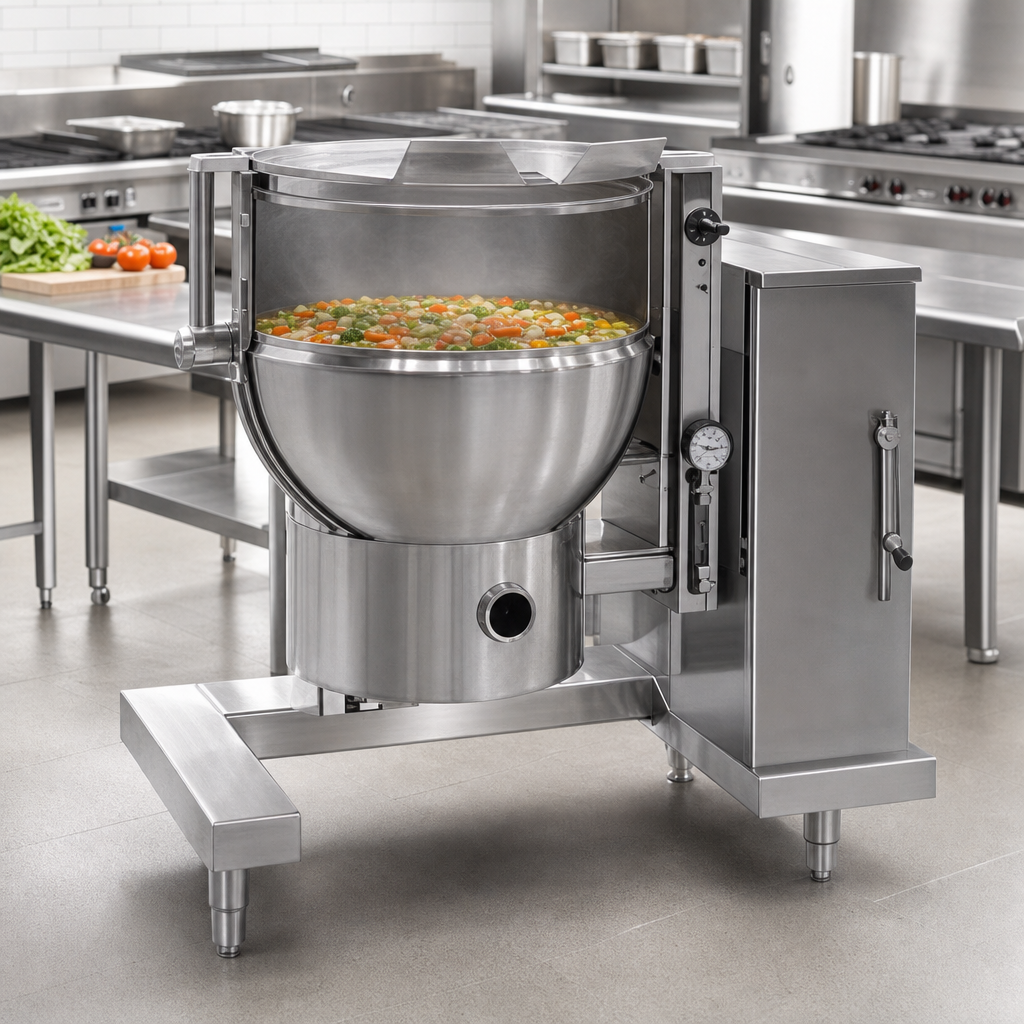

- 20 gal / 75.7 L capacity—ideal for batch cooking while fitting through a standard doorway.

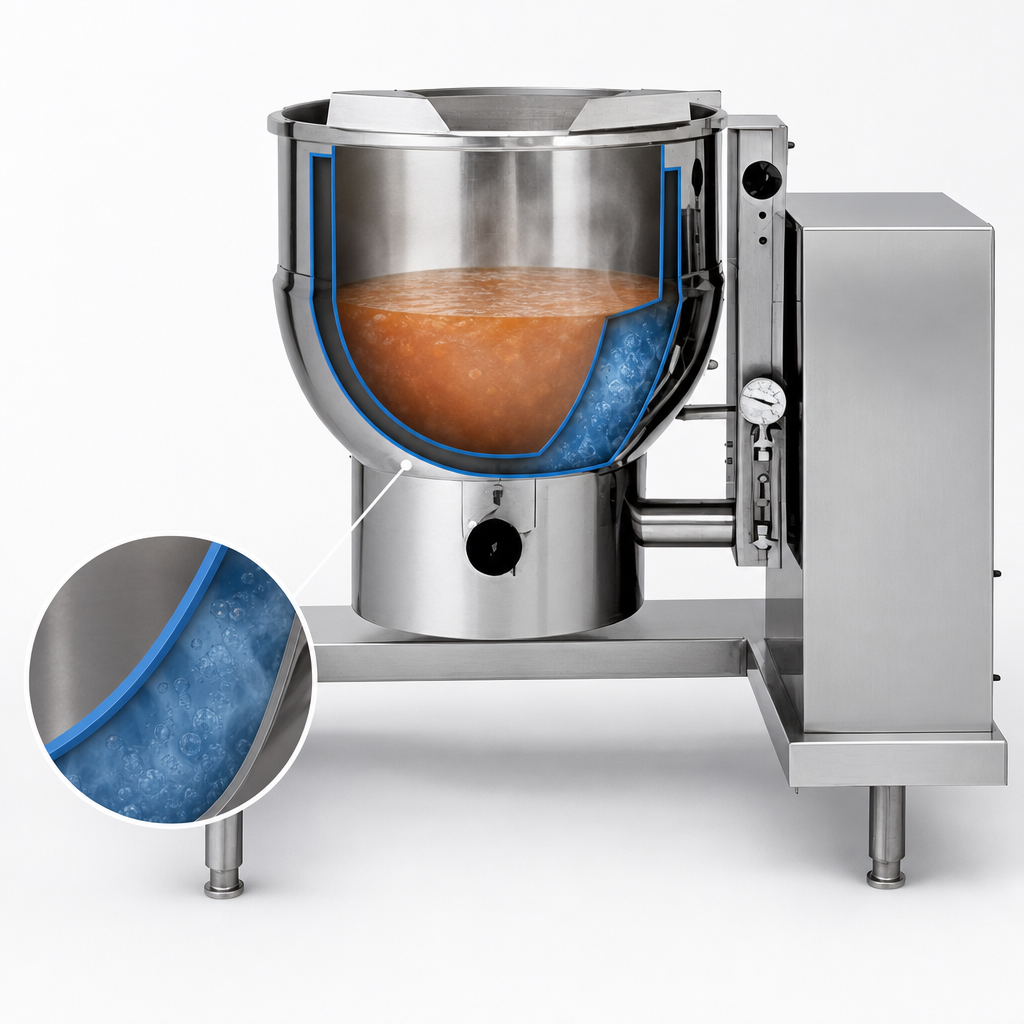

- Self-contained 2/3 steam jacket reaches 150-295 °F without an external boiler.
- 316 stainless steel liner resists corrosion from acidic foods and cleaning chemicals.
- Classic electronic controls in an IPX6-rated enclosure: ON/OFF rocker, 1–10 heat dial, heating & low-water indicator lights.
- Manual crank tilt with self-locking worm gear gives smooth, precise pouring control.
- Heavy-duty stainless base with tubular legs and adjustable bullet feet for quick leveling.
- Reinforced rim & butterfly pouring lip stand up to daily use and abrasive cleaning.
- Factory-charged jacket with chemically pure water and rust inhibitors—no maintenance boiler.
- Comprehensive safety system: pressure-vacuum gauge, pressure relief valve, pressure-limit control, sight glass, tilt cut-off and low-water cut-off.
- Certified ASME 50 PSI, cULus, and NSF.
Technical Specifications
| Capacity | 20 gal | 75.7 L |
|---|---|
| Jacket Coverage | 2/3 of kettle body |
| Working Pressure | 50 PSI (ASME certified) |
| Temperature Range | 150 – 295 °F (65 – 146 °C) |
| Material – Interior | 316 stainless steel, 180-grit polish |
| Material – Exterior/Base | Stainless steel with high-buff finish |
| Tilt Mechanism | Manual crank with positive-stop worm gear |
| Electrical | 208, 240 or 480 V | Single or 3-phase | 12 kW max |
| Water Rating | IPX6 (wash-down capable) |
| Certifications | ASME, NSF, cULus Listed |
| Country of Origin | United States of America |
| Warranty | 1-year parts & labor (factory service network) |
Popular Options (sold separately)
- 2″ tangent draw-off valve with removable perforated strainer
- Hinged or lift-off stainless cover
- Basket inserts for pasta or blanching (TRI-BC)
- Pan carrier (for 40 & 60-gal models)
- Single or double pantry faucet assemblies
- Lip or solid disk strainers
- Contour measuring strip or gallon etch marks
Electrical configuration must be specified at time of order. See specification sheet for full load amps and conduit size requirements.
