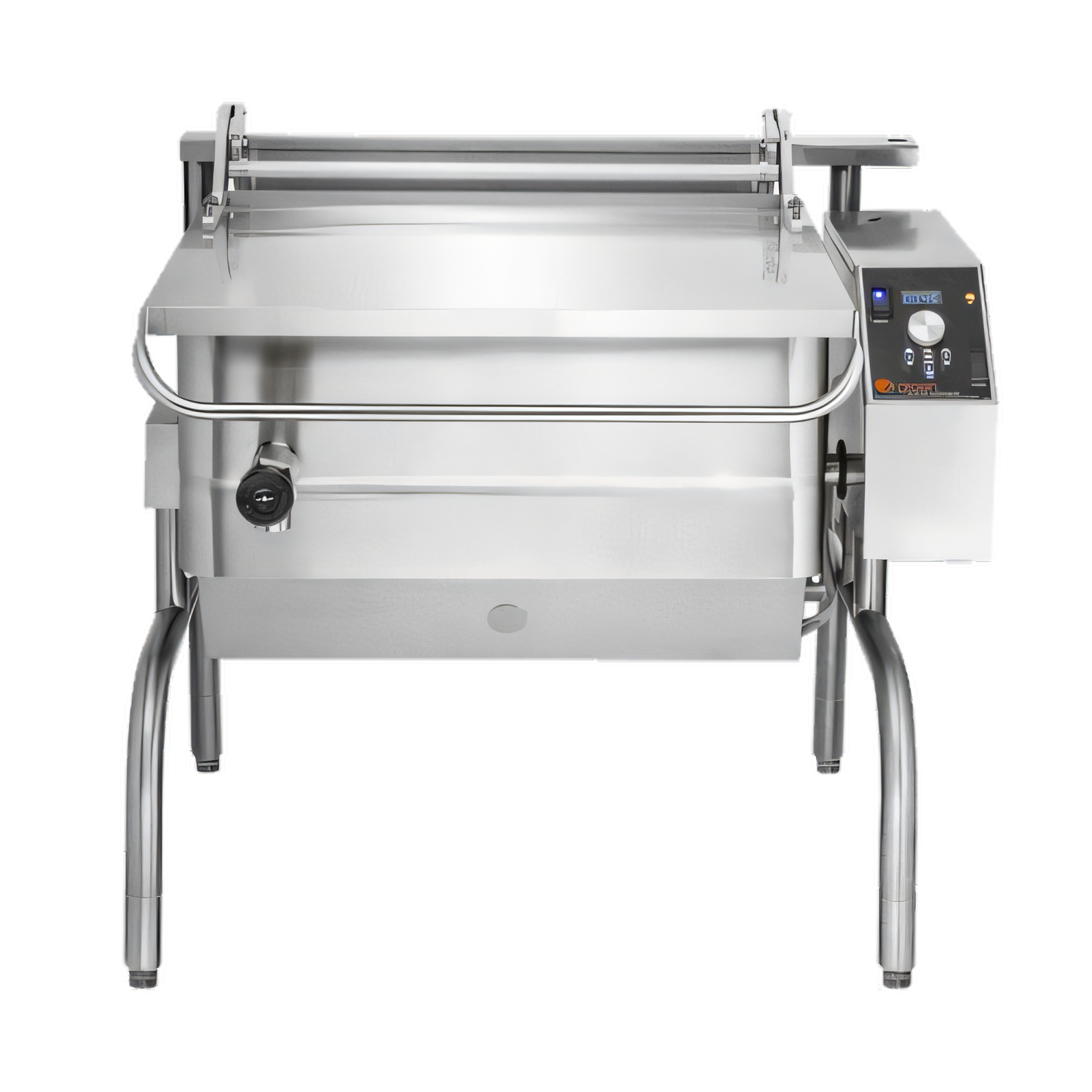

Groen BPP-40GA 40-Gallon Gas Power Tilt Braising Pan with Advanced Digital Controls
Groen BPP-40GA 40-Gallon Gas Power Tilt Braising Pan with Advanced Digital Controls
10-Inch Deep Pan Body, 144,000 BTU, Stainless Steel Construction
Built for high-volume kitchens, this 40-gallon gas braising pan combines power tilt, advanced digital controls, and rugged stainless steel construction for precise batch cooking.
- 40-gallon capacity with a 10-inch deep pan body for large-batch braising and cooking.
- Advanced electronic controls include a digital display, preset temperatures, and a 1-minute to 10-hour timer.
- Motorized power tilt with manual override helps control pouring and product transfer.
- Stainless steel construction and a heavy-duty clad cooking surface support long-term durability.
- IPX6-rated water-resistant control housing is designed for demanding kitchen environments.
- Standard faucet bracket, graduated fill marks, and open tubular leg base add convenience and cleanup ease.
Overall Dimensions:
48.0"W x 39.75"D x 43.5"HProduct Weight:

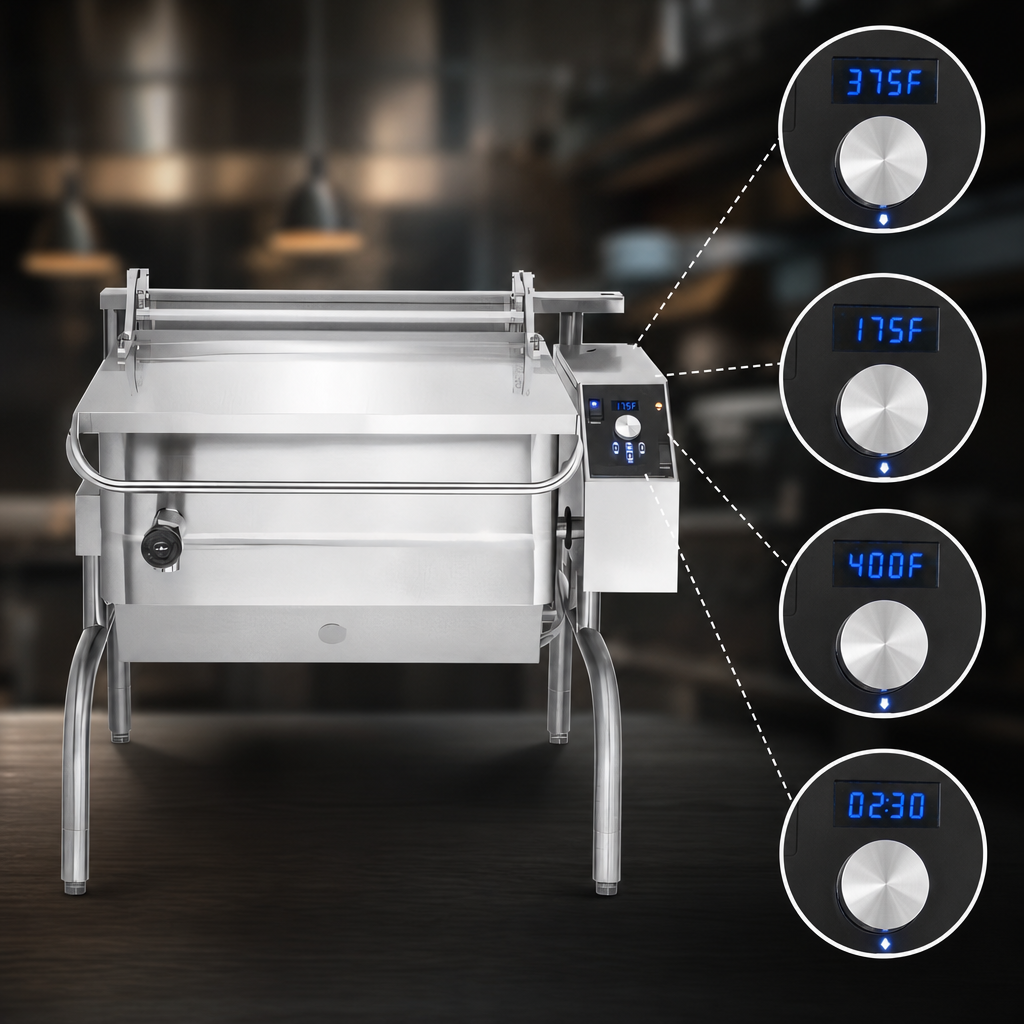

693.0 lbAdvanced Digital Controls
Electronic Advanced controls feature a digital display, preset temperature settings from 175°F to 400°F, manual temperature control, and a timer that ranges from 1 minute to 10 hours.

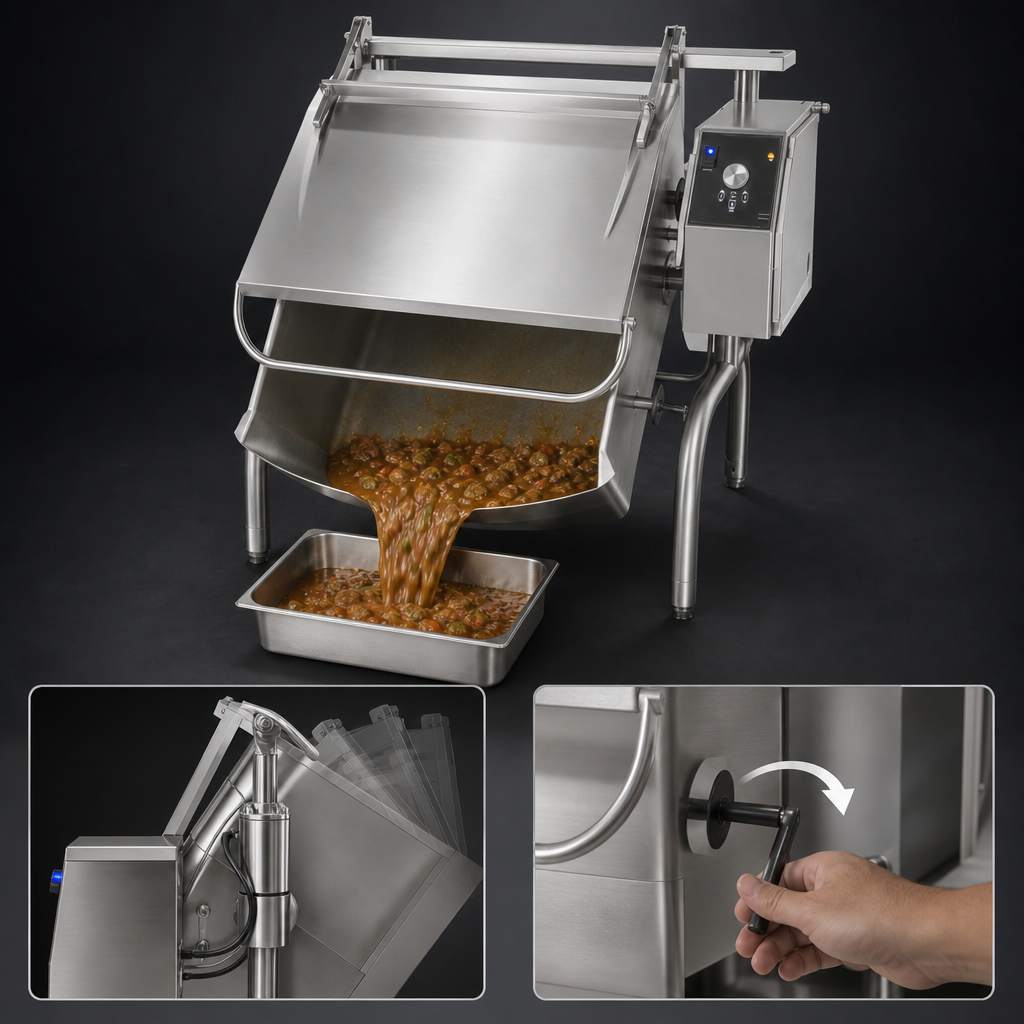

Power Tilt With Manual Override
The motorized tilt mechanism provides smooth, controlled pouring, and a manual override is included for use during power failure.
Heavy-Duty Stainless Steel Construction
The pan body is made from welded 304 stainless steel with all exposed surfaces in stainless steel for durability and easier cleaning.
40-Gallon, 10-Inch Deep Pan
The large-capacity pan body includes 3-inch radius corners and a 10-inch depth for high-volume batch cooking.
IPX6 Water-Resistant Housing
Controls and tilt mechanism are mounted in a stainless steel enclosure rated IPX6 for improved water resistance.
Reliable Ignition And Safety Features
Electronic spark ignition is standard, and the unit includes a high-limit thermostat for added safety.
Standard Faucet Bracket And Fill Marks
A mounting bracket is included for left-side, right-side, or right-rear faucet placement, and fill-level marks are graduated in gallons and liters.
Open Tubular Stand With Bullet Feet
The round tubular open leg base with height-adjustable bullet feet provides stable floor mounting and easier cleanup underneath.
Certifications & Compliance
Warranty & Protection
12 months from installation, 15 months from shipment, or 2,000 operating hours, whichever occurs first.
