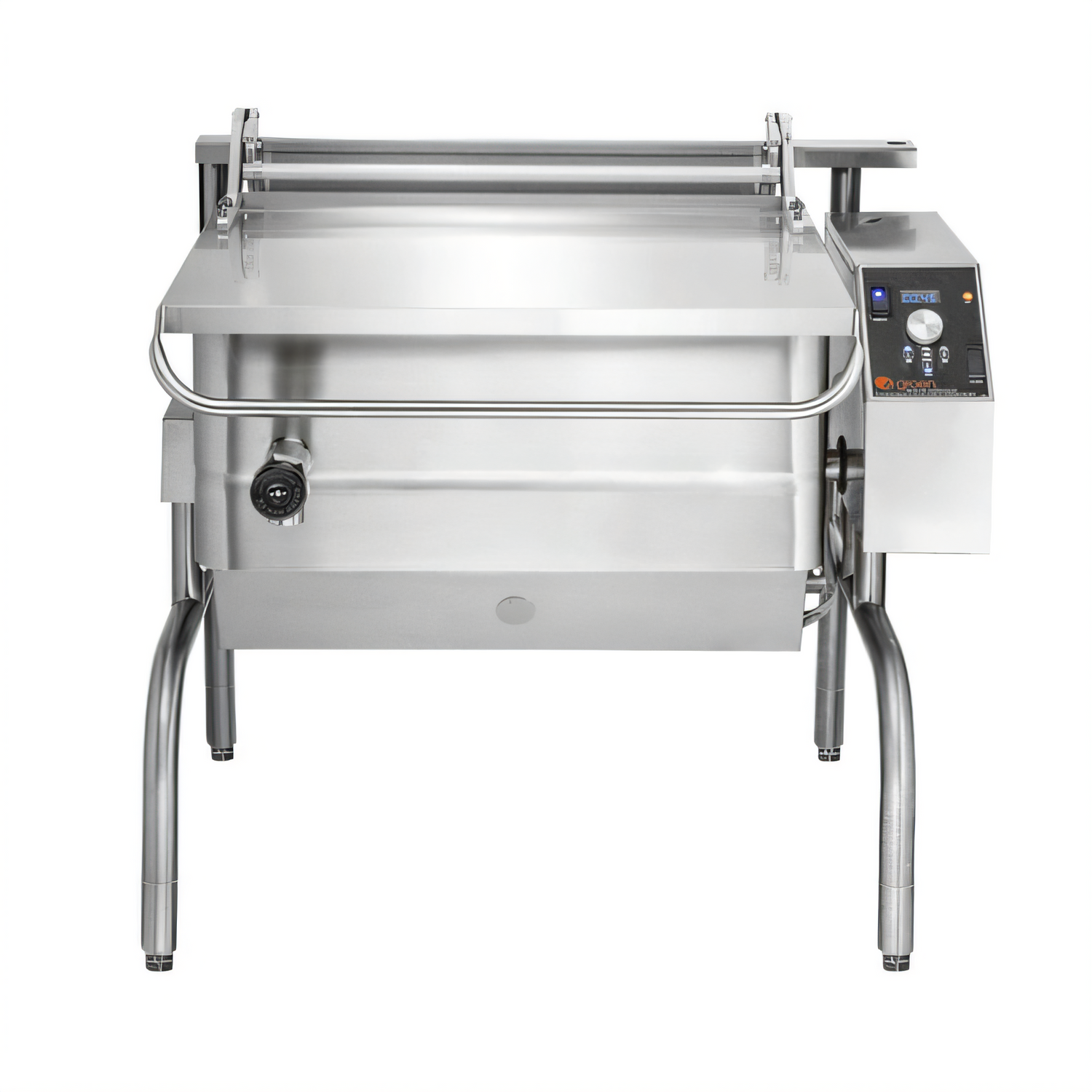

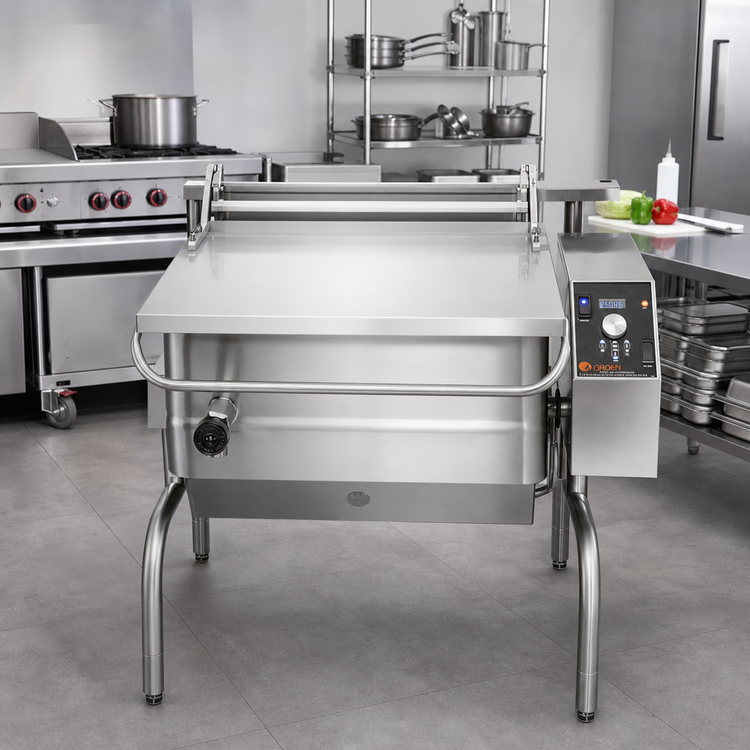

Groen 30-Gallon Gas Power Tilting Braising Pan with Advanced Digital Controls
304 Stainless Steel, Floor Model with Open Leg Base, 104,000 BTU/hr
Built for high-volume kitchens, this 30-gallon gas braising pan combines power tilt, advanced digital controls, and rugged stainless steel construction for precise batch cooking and easy pouring.
- 30-gallon, 10-inch deep pan with heavy-duty welded stainless steel construction
- Power tilt mechanism with manual override helps control pouring and transfer
- Advanced electronic controls feature a digital display, 1-minute to 10-hour timer, preset temperatures, and manual mode
- IPX6-rated water-resistant control housing, high-limit thermostat, and intermittent pilot ignition support dependable operation
- Open tubular leg base with bullet feet, standard fill marks, and faucet mounting bracket simplify everyday use
- 104,000 BTU/hr gas input with 115V, 1-phase, 60Hz, 5A electrical supply; NSF-listed, cCSAus certified, and made in the USA
Overall Dimensions:
38.5"W x 39.75"D x 43.5"HProduct Weight:

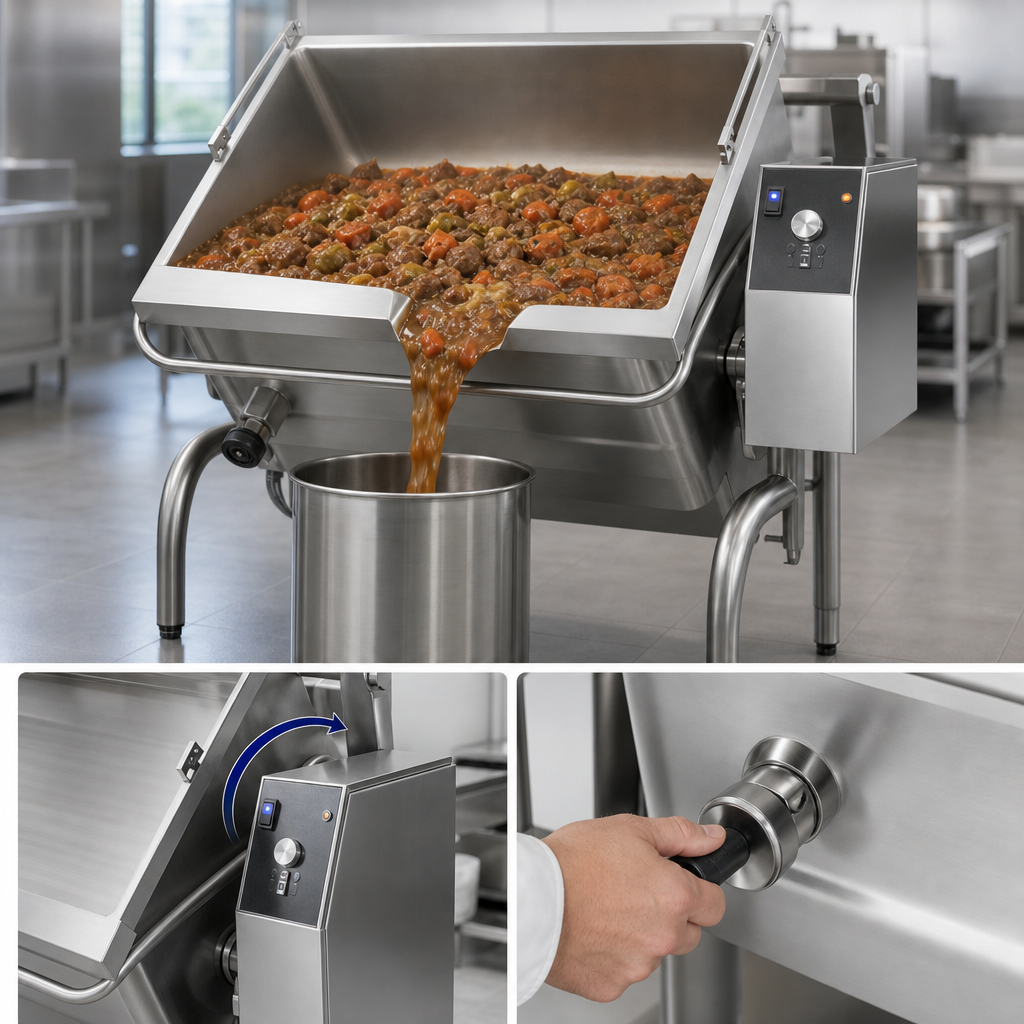

586.0 lbPower Tilt With Manual Override
Motorized tilt action provides controlled pouring, with manual override available if power is lost.

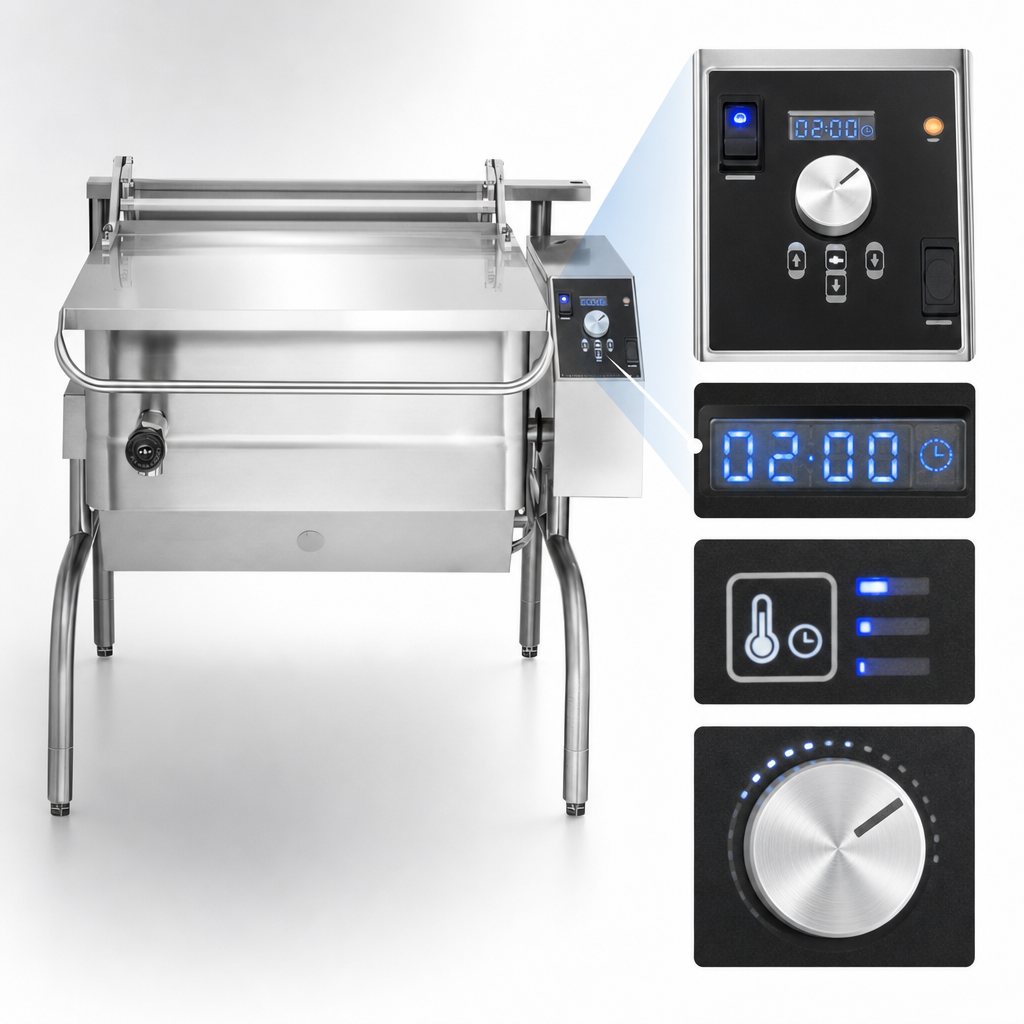

Advanced Electronic Controls
Right-front mounted controls include a digital display, timer from 1 minute to 10 hours, preset temperature settings, and manual cooking mode.
304 Stainless Steel Pan Body
The one-piece welded pan body uses heavy-duty stainless steel construction with 3-inch radius corners for durability and easier cleaning.
5/8-Inch Clad Cooking Surface
A thick stainless steel clad cooking surface with welded heat transfer fins helps distribute heat evenly and resist warping.
IPX6 Water-Resistant Enclosure
Controls and tilt mechanism are housed in a water-resistant IPX6-rated enclosure for added protection during kitchen cleaning.
Standard Fill Marks and Faucet Bracket
Graduated fill-level marks in gallons and liters come standard, along with a mounting bracket for left, right, or rear faucet installation.
High-Limit Safety and Ignition System
Thermostatic operation, a high-limit thermostat, and an electronic intermittent pilot ignition system support safe operation.
Open Leg Base With Bullet Feet
The open tubular leg stand design provides access underneath the unit and includes height-adjustable bullet feet.
Griddling Angle Capability
The pan can operate at a 7-degree angle to help facilitate griddling.
Certifications & Compliance
Warranty & Protection
Standard limited commercial warranty: 12 months from installation, 15 months from shipment, or 2000 operating hours, whichever comes first.
