Groen BPM-40GC Braising Pans & Tilt Skillets
Description

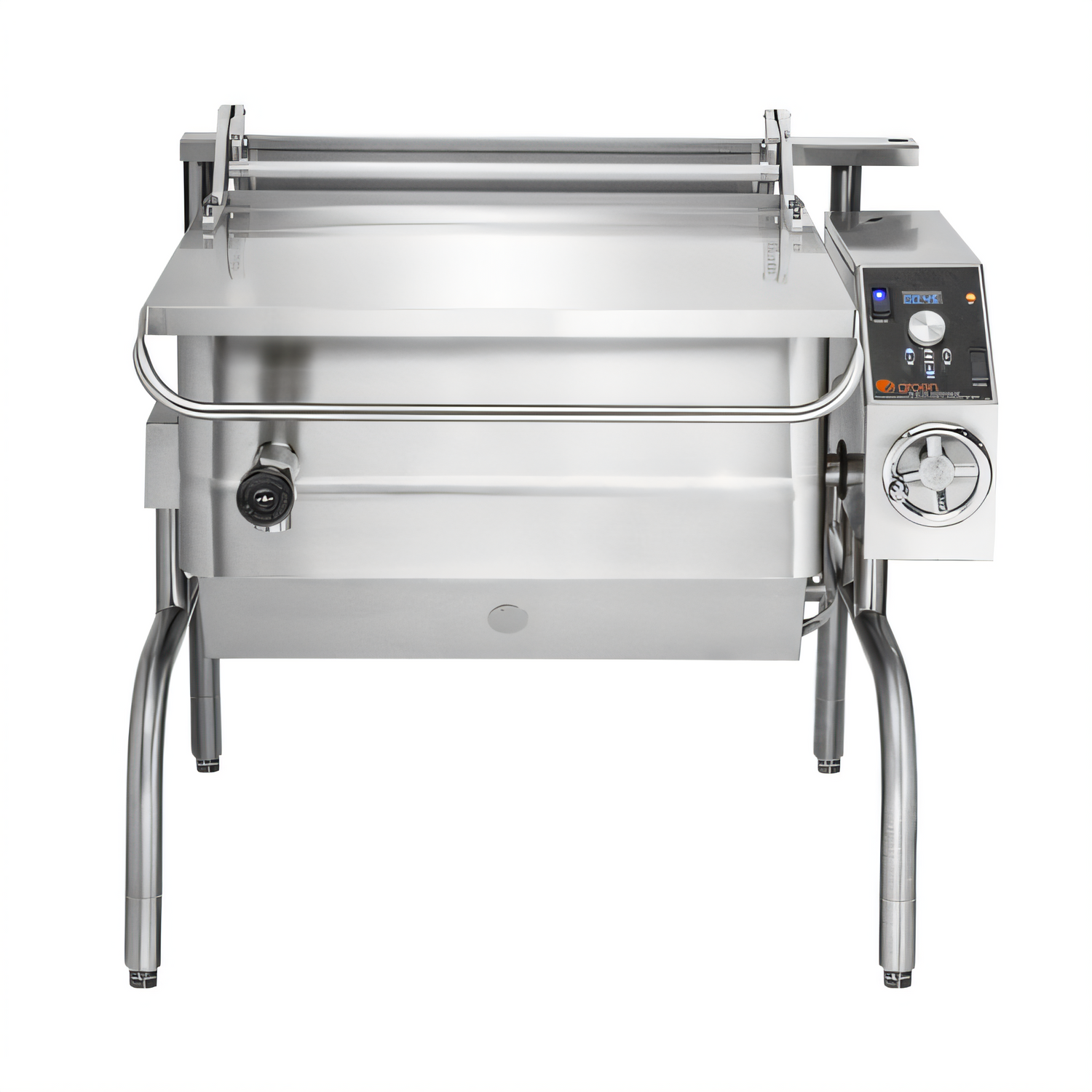

Groen BPM-40GC 40-Gallon Gas Tilting Braising Pan
Manual-tilt • Classic IPX6 controls • Made in USAEngineered for high-volume, high-versatility kitchens, the Groen BPM-40GC delivers 40 gallons (151 L) of true braising-pan performance—sear, sauté, braise, steam, simmer or griddle in a single 10"-deep stainless pan. A heavy 5/8" clad cooking surface, electronic spark ignition and water-resistant Classic controls keep production fast, consistent and safe shift after shift.
Why You’ll Love It
- 144,000 BTU/hr gas burner with electronic spark ignition—no pilot to waste fuel.
- Classic IPX6-rated electronic control panel with 175–400 °F (79–204 °C) thermostat & heat indicator lamp.
- Manual crank tilt (24 turns to full dump) gives you precise pour control and tilts past vertical for easy wash-down.
- 5/8" (15.9 mm) stainless steel clad plate with welded heat-transfer fins delivers even heat—ideal for browning.
- Pans operate at a 7° angle for griddling; etched gallon & liter marks speed up recipe scaling.
- Open round-tubular leg base with height-adjustable bullet feet makes under-unit cleaning a breeze.
- Right-side/left-side/rear faucet bracket included for quick water fill (faucet optional).
- cCSAus & NSF listed; proudly built in the USA.
Built to Last
- Pan, frame and exterior: all-stainless Type 304 with a sanitary #3 finish.

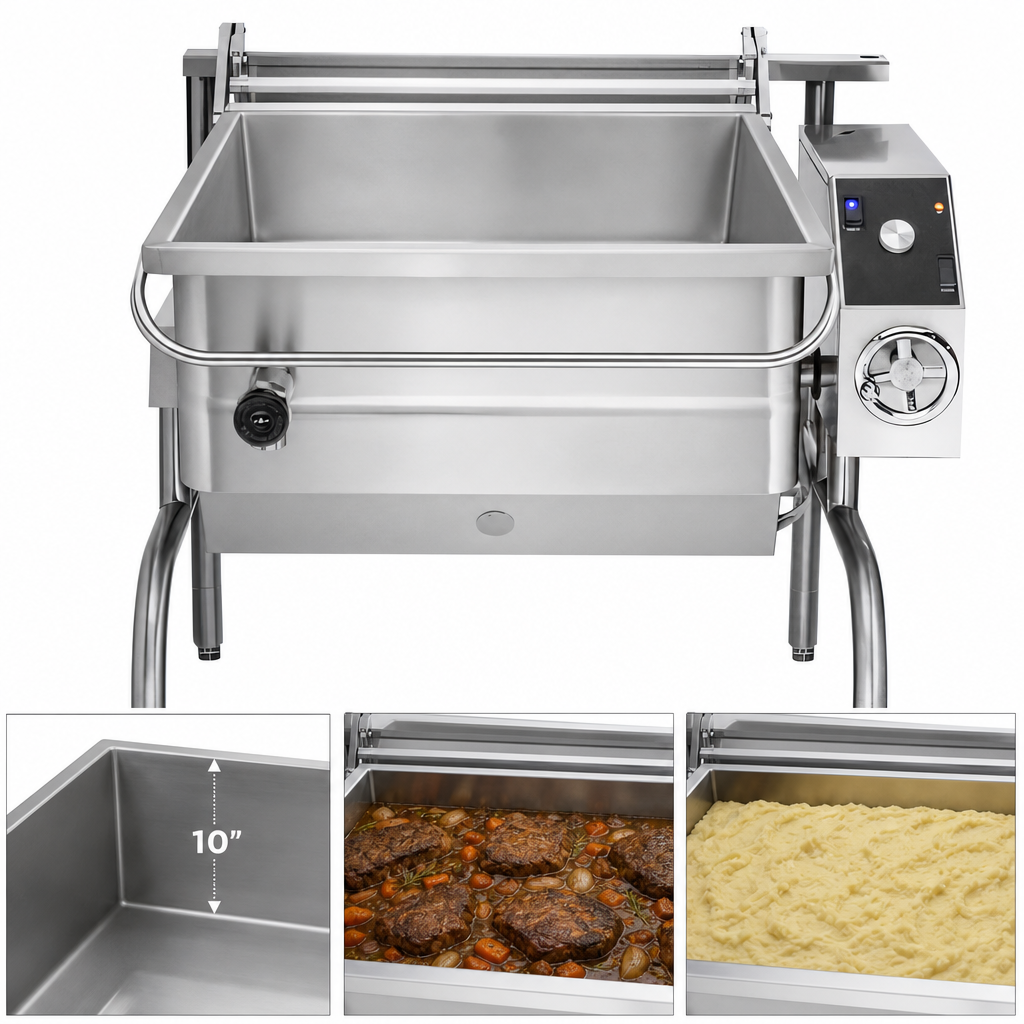

- 3" radius interior corners and 10" depth meet health-code cleaning requirements.
- High-limit thermostat protects the pan against overheating.
- IPX6 water-rated enclosure shields electronics from high-pressure spray.
At-a-Glance Specs

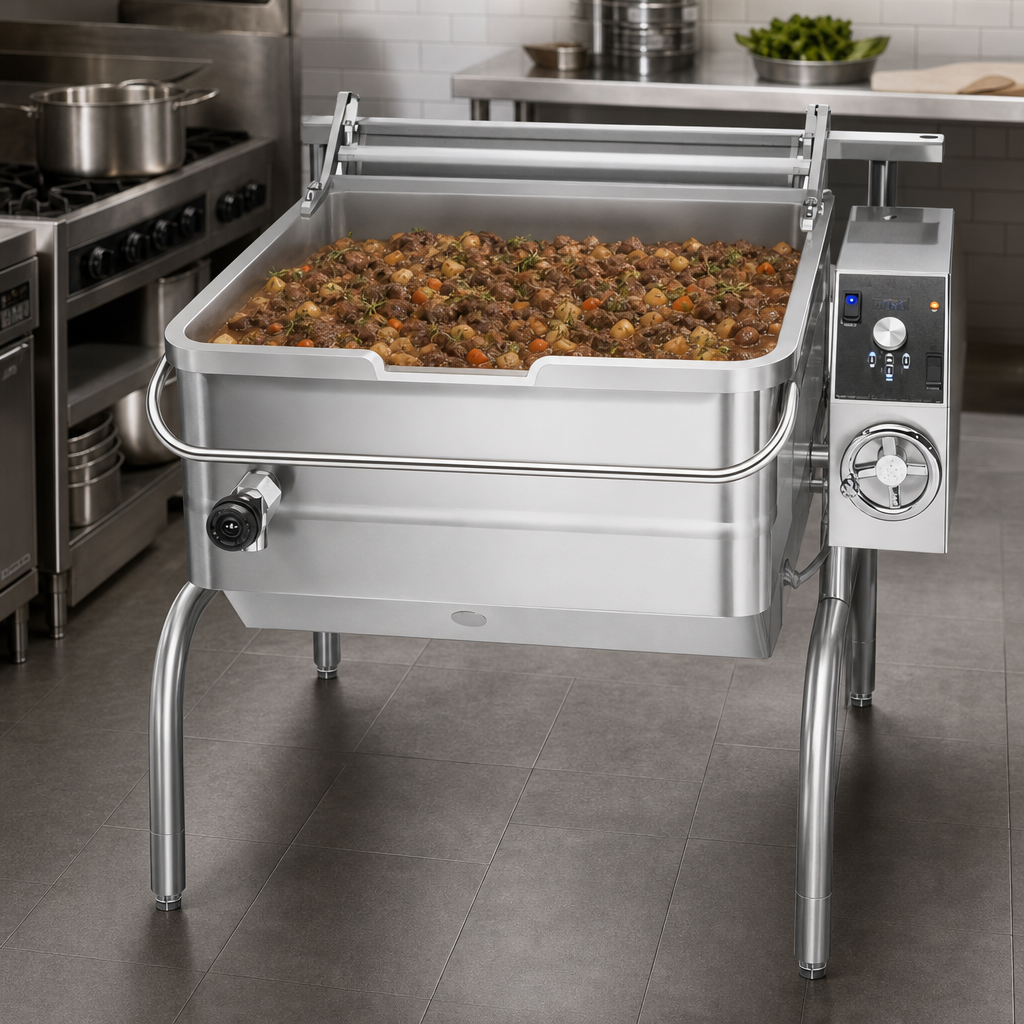

| Capacity | 40 gal / 151 L |
|---|---|
| Pan Depth | 10 in (254 mm) |
| Pan Height | 38 in (965 mm) to rim |
| Temperature Range | 175 – 400 °F (79 – 204 °C) |
| Gas Input | 144,000 BTU/hr – Natural or LP (½" NPT connection) |
| Ignition | Electronic spark, intermittent pilot |
| Electrical | 115 V, 1-phase, 60 Hz, 5 A (controls & ignition) |
| Controls | Classic rotary thermostat & indicator lights, IPX6 enclosure |
| Tilt Mechanism | Manual hand-crank, worm & gear; 24 turns to full dump |
| Construction | Type 304 stainless pan & frame; 5/8" clad cooking surface |
| Overall Base | Open round-tube legs with adjustable bullet feet |
| Certifications | cCSAus, NSF, IPX6 |
| Origin | Made in the USA |
Popular Accessories (sold separately)
- Single or double pantry fill faucet (48" or 60" spray-hose assemblies available)
- 2" tangent draw-off valve & strainer
- Steamer pan inserts or carrier
- Caster kit with restraint cable
- Flanged feet or gas quick-disconnect kit
Need help choosing options or scheduling start-up? Call us at 888-994-7636—Groen technical specialists are ready to assist.
