Groen BPM-40GA Braising Pans & Tilt Skillets
Description

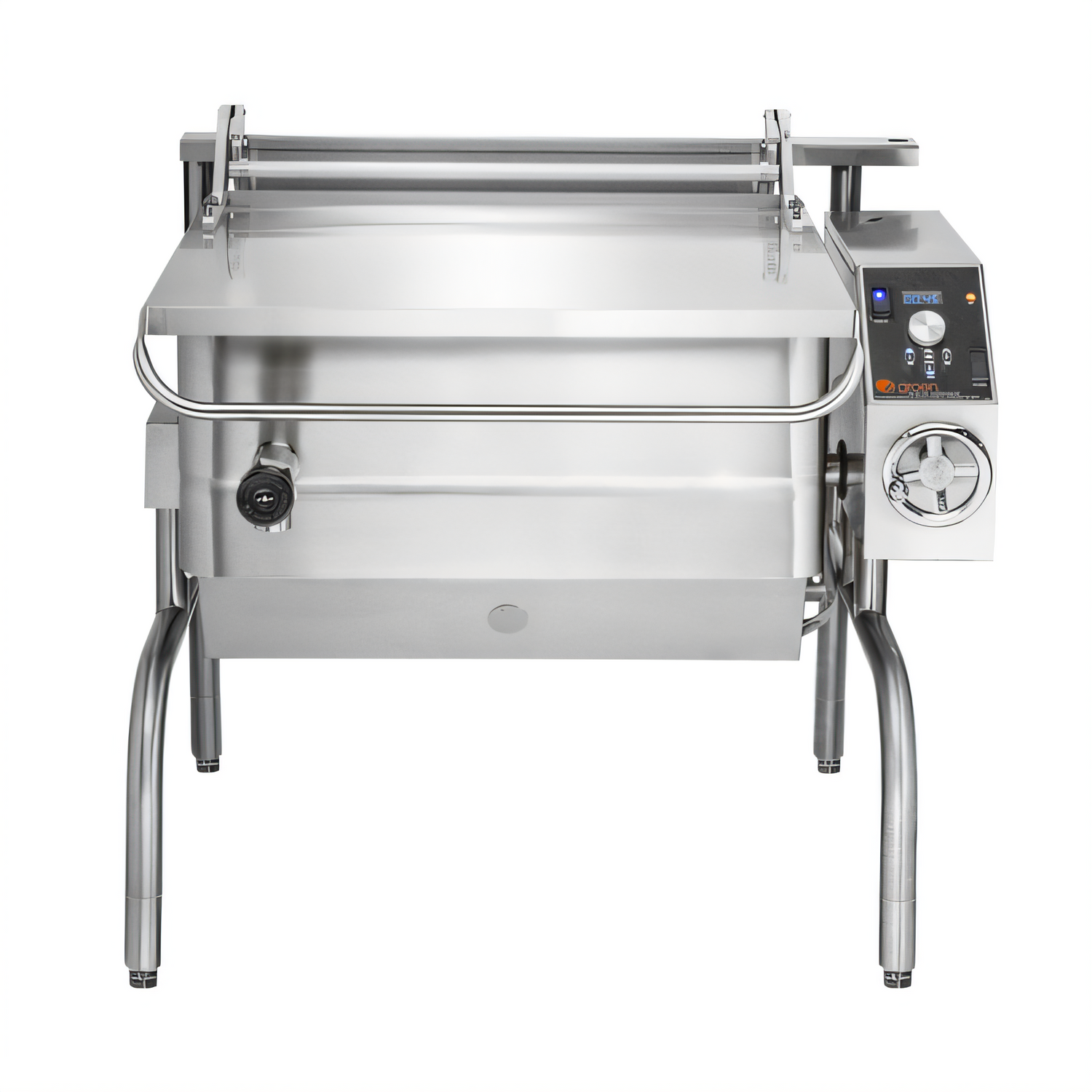

Groen BPM-40GA Advanced 40-Gallon Gas Tilting Braising Pan
IPX6-rated electronic controls • 144,000 BTU/h • Made in USAExpand production, tighten consistency and speed up clean-up with Groen’s BPM-40GA Advanced 40-gallon braising pan. From braising and sautéing to griddling, steaming, holding or small-batch frying, this single piece of equipment replaces multiple skillets and stock pots while delivering chef-level precision.
Why You’ll Love It

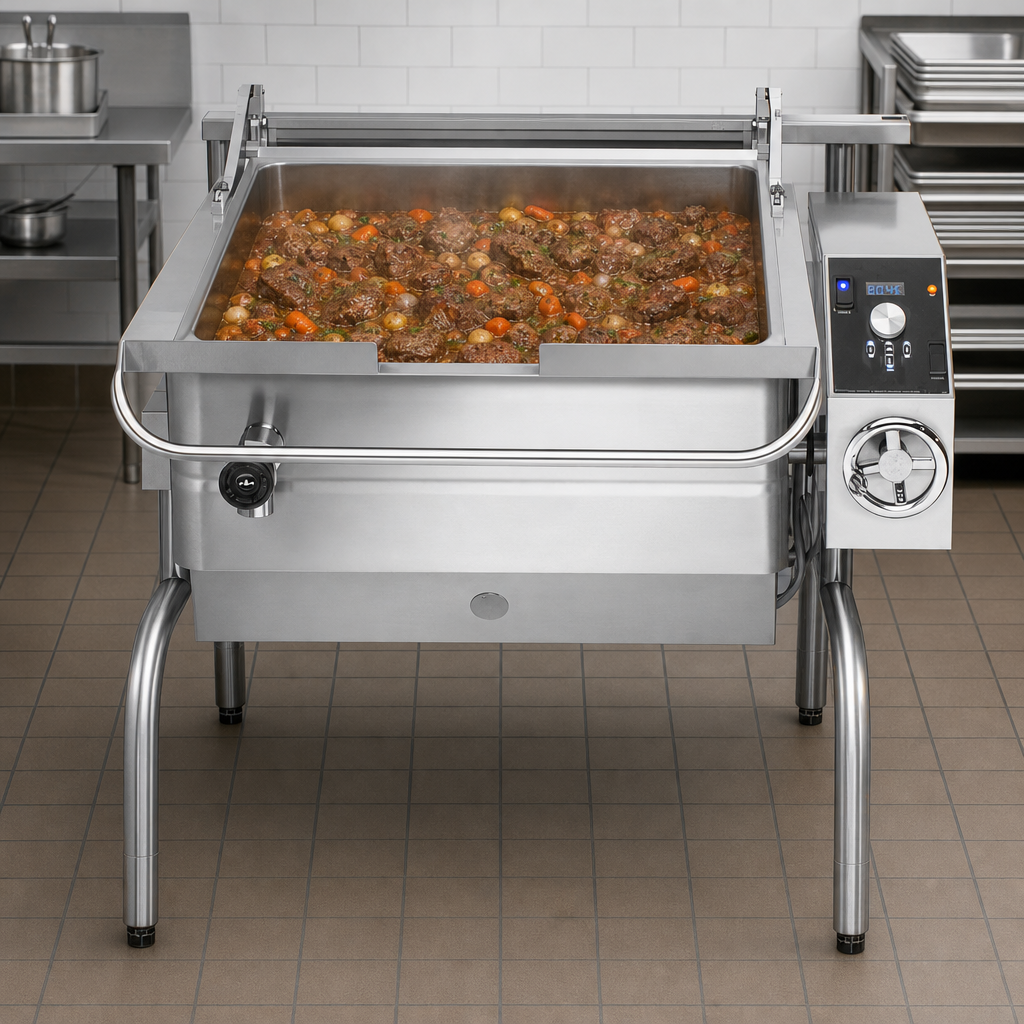

- Massive 40-gal (151 L) capacity in a 10"-deep pan handles up to 380 lb of product per cook cycle.

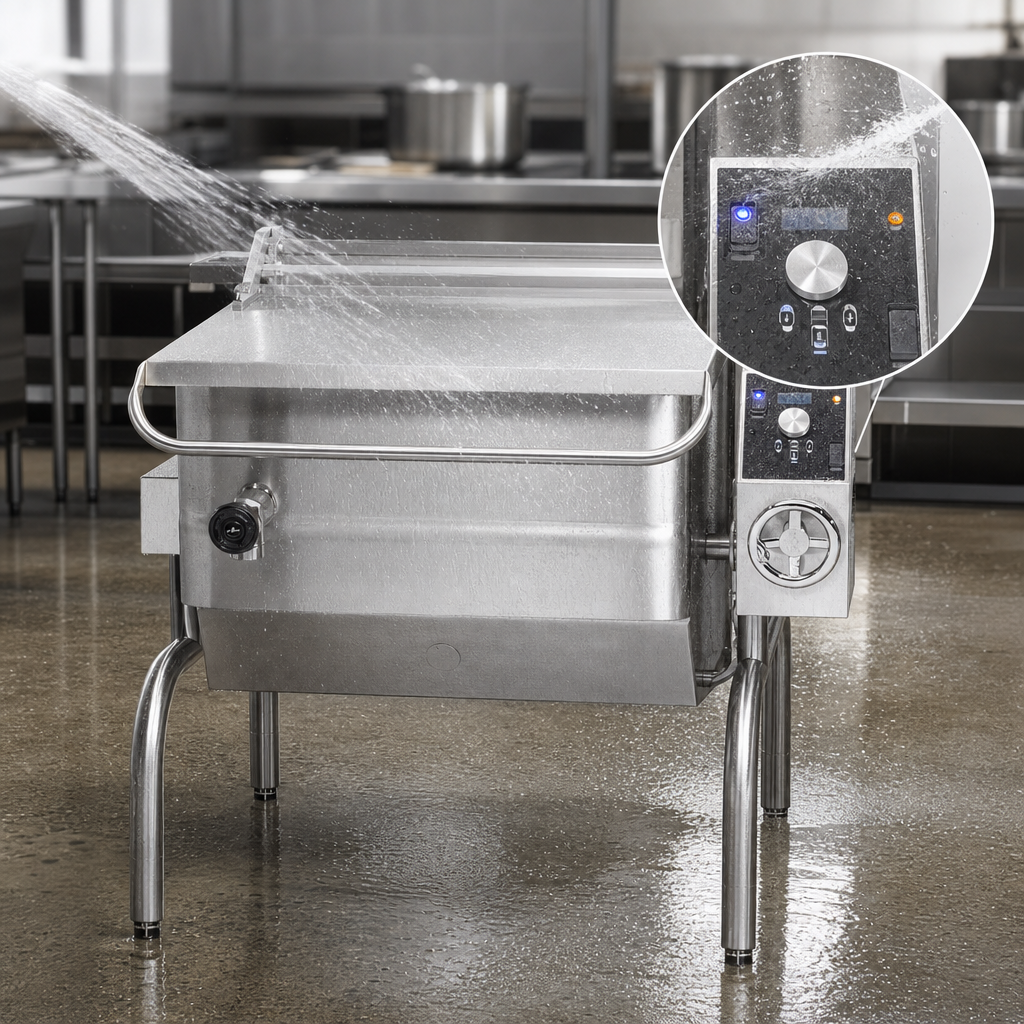

- Advanced IPX6 water-resistant control panel with :
- Digital display of set temp or remaining cook time
- 1 min – 10 hr countdown timer
- Low (175 °F) & High (400 °F) one-touch presets + full manual mode
- Rugged 5/8"-thick stainless-steel clad plate with welded heat-transfer fins gives fast, even heat without hot spots.
- 144,000 BTU/h gas burner with electronic spark ignition—no standing pilot to waste energy.
- Manual crank tilt (24 turns to full vertical) offers smooth, precise pouring and past-vertical position for effortless cleaning.
- Etched gallon & liter markings, 3" radius corners and polished 100-grit interior speed food release and sanitation.
- True open, round-tubular leg base with height-adjustable bullet feet keeps plumbing & floors easy to access.
- Factory-installed faucet bracket—mount right, left or rear to suit your kitchen layout.
- Built-in high-limit thermostat and auto-reset temperature control safeguard your staff and product.
- Certified cCSAus & NSF, manufactured in the USA.
At-a-Glance Specs
| Model | BPM-40GA (Advanced Controls) |
|---|---|
| Capacity | 40 gal / 151 L |
| Pan Depth | 10 in (254 mm) |
| Overall Pan Height | 38 in (965 mm) to rim |
| Heat Source | Natural or LP Gas, 144,000 BTU/h |
| Temperature Range | 175 – 400 °F (79 – 204 °C) |
| Timer | 1 min – 10 hr, countdown |
| Tilt Mechanism | Manual crank, worm-and-gear (24 turns to full) |
| Ignition | Electronic intermittent spark |
| Cooking Surface | 5/8 in stainless-steel clad plate with heat fins |
| Controls Housing | IPX6 water-resistant, right-front mounted |
| Gas Connection | ½" NPT |
| Electrical | 115 V, 1-ph, 60 Hz, 5 A |
| Construction | All 304 stainless steel, open tubular leg base, bullet feet |
| Certifications | cCSAus, NSF, IPX6 |
| Country of Origin | USA |
Popular Accessories (sold separately)
- Single or double pantry water-fill faucet (48" or 60" spray hose options)
- 2" tangent draw-off valve & strainer
- Steamer pan carrier or inserts
- Caster kit with restraint cable
- Gas quick-disconnect kit
Need help configuring your Groen tilting braising pan? Our equipment specialists are ready to assist—just reach out!
