Groen BPM-30GA Braising Pans & Tilt Skillets
Description
Groen BPM-30GA Gas Tilting Braising Pan | 30 Gallon
Advanced IPX6 Electronic Controls • 104,000 BTU/hr • Made in USAEngineered for high-volume, high-precision production, the Groen BPM-30GA delivers the speed of a griddle, the capacity of a kettle and the flavor-building power of a braiser—all in one rugged, easy-to-clean package. From searing proteins to simmering sauces, its 5/8" thick clad surface and 104,000 BTU burner give you even, responsive heat while the water-resistant digital controls keep you in complete command.
Built for Performance
- 30 gal / 113 L capacity pan is 10" deep with 3" radius corners for effortless stirring and sanitation.

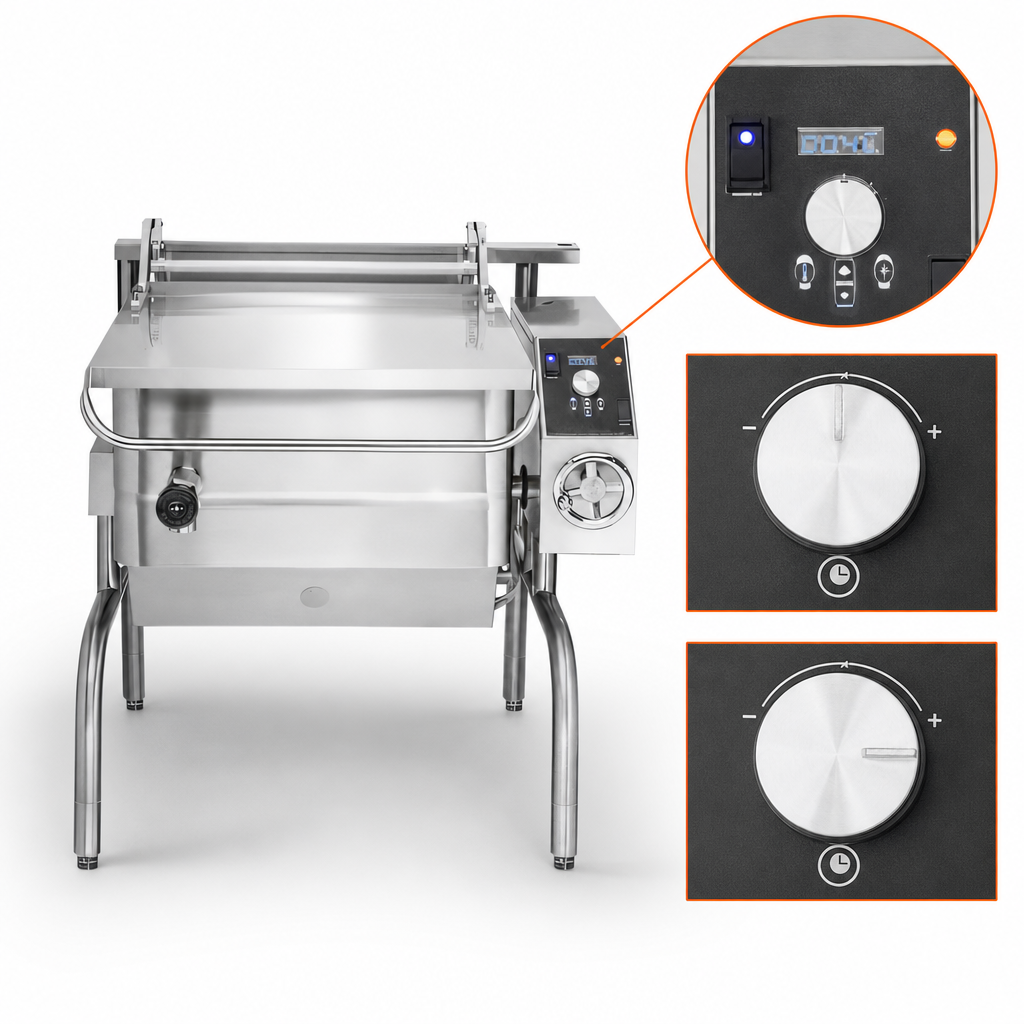

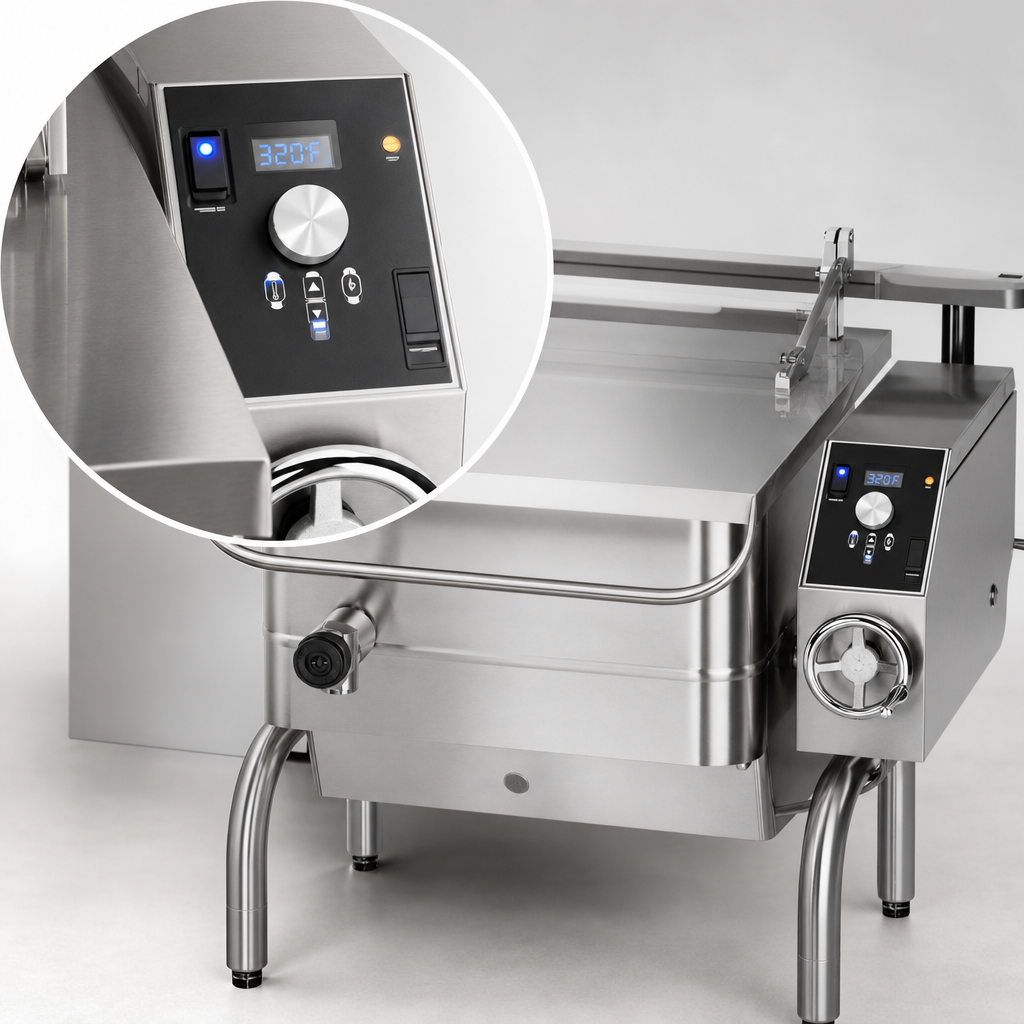

- Advanced IPX6 control panel features a bright digital display, 1 min – 10 hr timer and 175 – 400 °F (79 – 204 °C) presets plus manual mode for one-touch or custom cooking.
- Uniform heat transfer from the 5/8" stainless-steel clad plate with welded heat fins—no hot spots, no warping.
- Rapid recovery via 104,000 BTU/hr gas burner with electronic spark ignition and high-limit safety thermostat.
- Smooth manual tilt (worm-gear crank) rotates a full 90 ° in 24 turns and past vertical for quick clean-out.
- Graduated etch marks in gallons & liters and a multi-position faucet bracket speed batch accuracy and filling.
- Sanitary open-leg stand with round tubular frame and height-adjustable bullet feet for easy floor wash-down.
- All-stainless construction inside and out resists corrosion, chemicals and daily abuse.
Technical Specifications
| Model | BPM-30GA (Advanced Controls) |
|---|---|
| Capacity | 30 gal (113 L) |
| Pan Depth | 10 in (254 mm) |
| Pan Height (floor to rim) | 38 in (965 mm) |
| Temperature Range | 175 – 400 °F (79 – 204 °C) + Manual Mode |
| Timer | 1 minute – 10 hours, count-down |
| Heat Source | 104,000 BTU/hr gas burner with electric spark ignition |
| Gas Connection | ½" NPT (Natural or LP) |
| Electrical | 115 V, 1 ph, 60 Hz, 5 A |
| Tilt Mechanism | Manual crank, worm-gear |
| Water Rating | IPX6 (wash-down safe) |
| Construction | 304 stainless steel pan & frame; 5/8" clad cooking surface |
| Controls | Sealed electronic keypad, digital display, preset & manual modes |
| Certifications | cCSAus, NSF, IPX6 |
| Country of Origin | USA |
Certifications & Warranty
- Certified to NSF sanitation standards for open-leg equipment.
- cCSAus design certified for gas safety.
- IPX6 enclosure rating allows direct hose-down cleaning.
- Backed by Groen’s 1-year parts & labor warranty with nationwide factory-authorized service.
Need even more versatility? Optional single or double pantry fill faucets, spray-hose assemblies, steamer inserts, strainer and draw-off valve kits are available to customize your BPM-30GA for any menu or workflow.
