Groen BPM-30EA Braising Pans & Tilt Skillets
Description

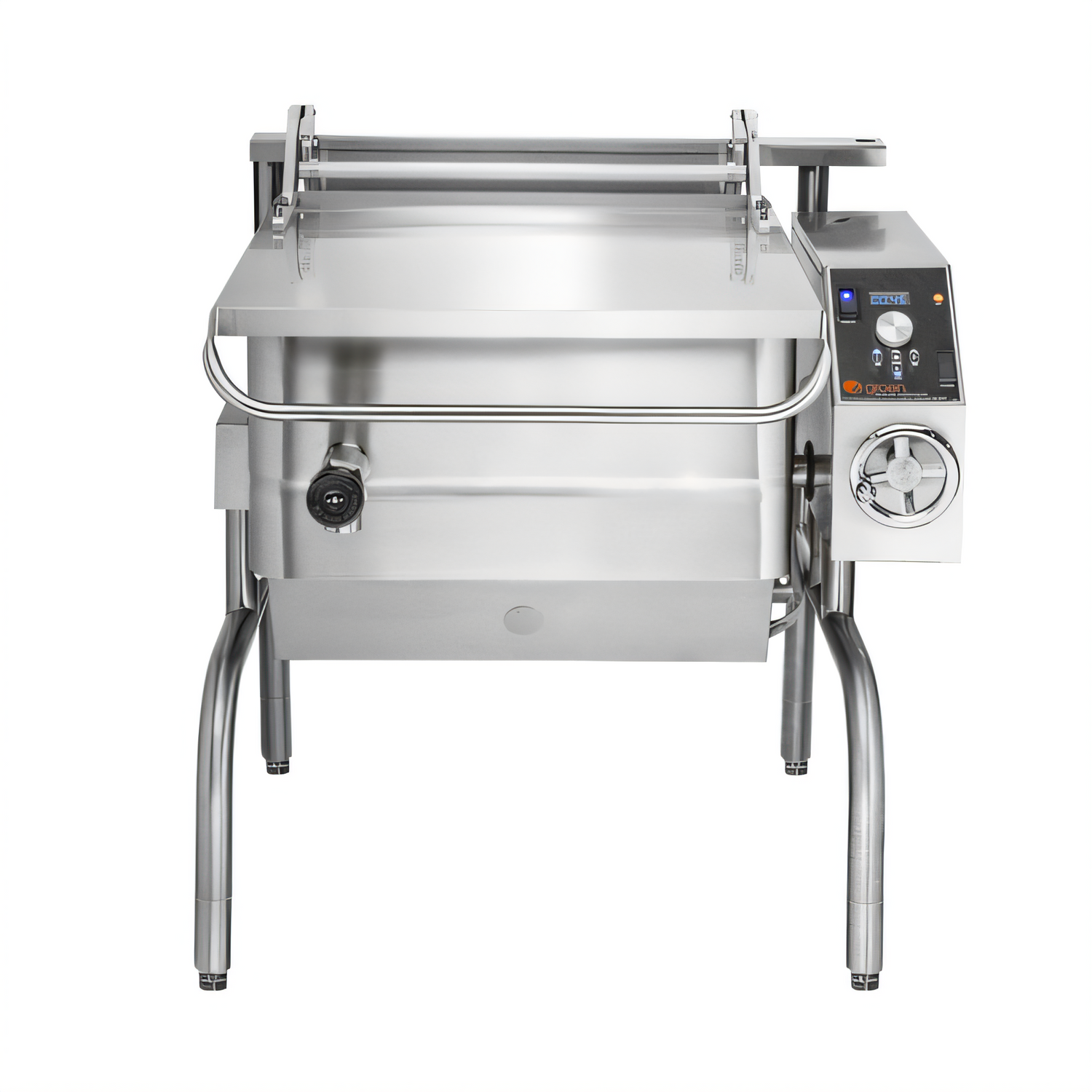

Groen BPM-30EA 30-Gallon Electric Braising Pan
Advanced Controls • Manual Tilt • IPX6 RatedCombine the power of a high-performance skillet with the versatility of a stock pot. The Groen BPM-30EA delivers 30 gallons of capacity, precision electronic control, and legendary Groen durability—perfect for braising, sautéing, frying, simmering, steaming or griddling in high-volume kitchens.
Why You’ll Love It
- 30-gallon (113 L) pan handles up to 270 lb of product per batch.
- 10 in deep, one-piece 304 stainless steel pan with 3 in radius corners for effortless cleanup.
- 5/8 in stainless-steel clad cooking surface provides even heat and resists warping.

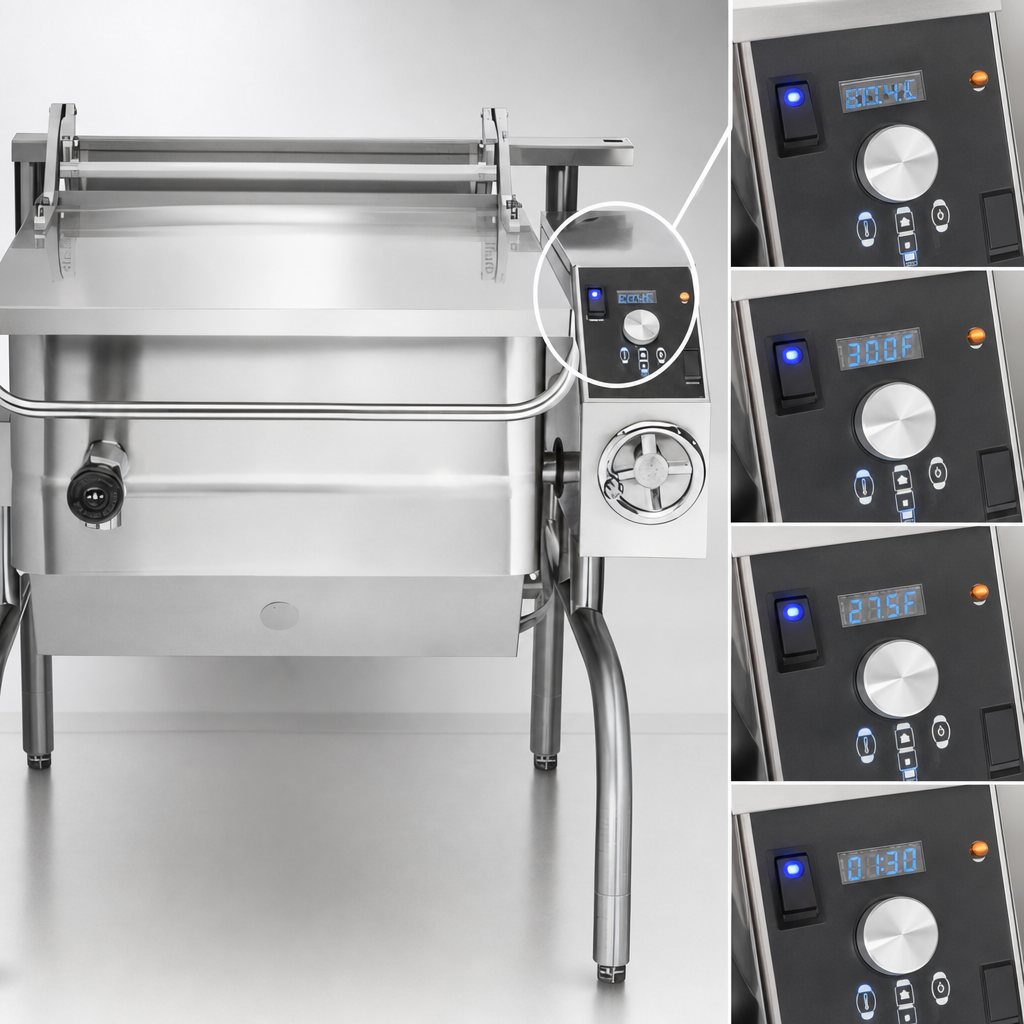

- Advanced IPX6-rated control panel with:
- 175 °F – 400 °F preset temperature selector plus MANUAL mode.
- LED display toggles between set temperature and remaining cook time.
- 1-minute to 10-hour countdown timer with audible alert.
- Low-Temp & High-Temp one-touch presets for repeatable results.

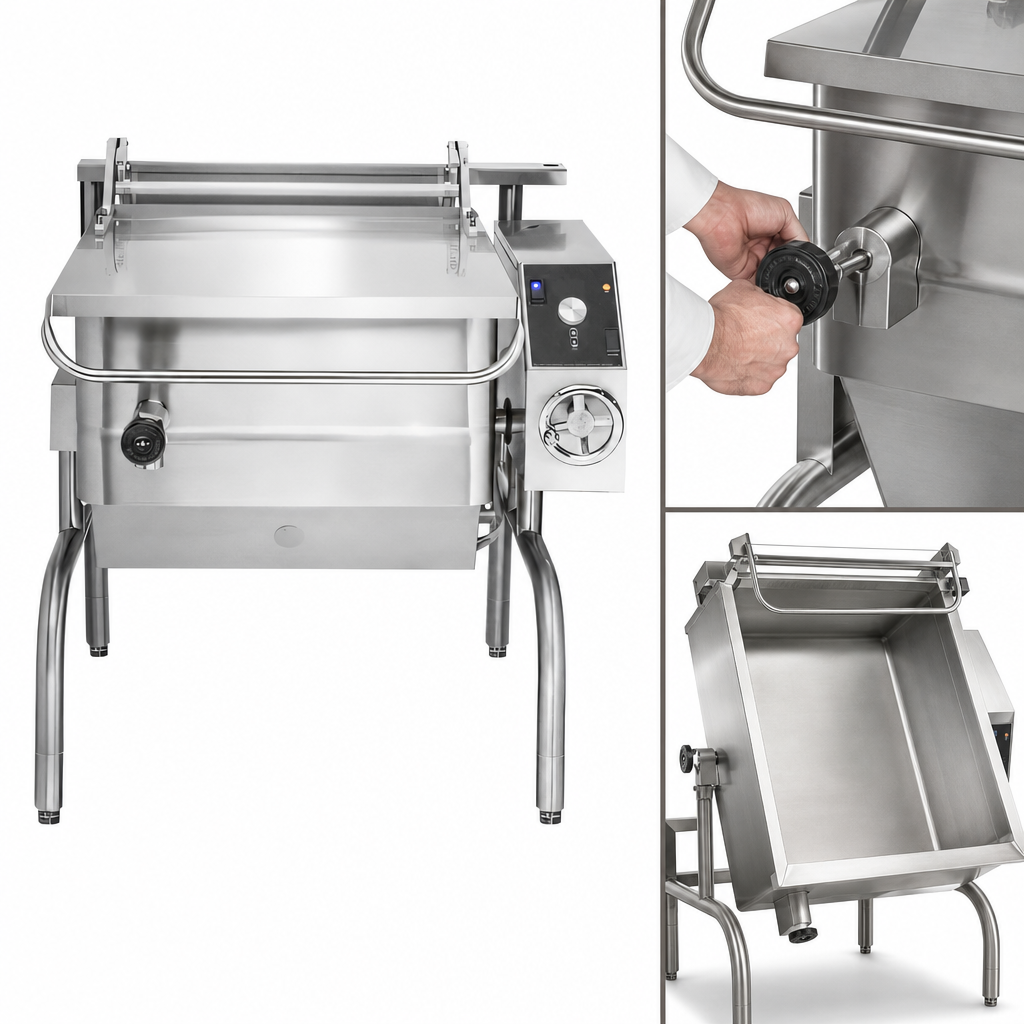

- Manual worm-gear crank tilts pan smoothly to vertical in 24 turns—then past vertical for thorough cleaning.
- 7° cook-angle capability turns the skillet into a large-format griddle.
- Standard gallon & liter etch marks speed up filling and portioning.
- Round tubular open-leg base with height-adjustable bullet feet (NSF compliant).
- Universal faucet mounting bracket (right, left or rear).
- High-limit thermostat and water-tight enclosure for operator safety.
- 11.5 kW electric elements; field-selectable 208, 240 or 480 V (3-phase, convertible to 1-phase).
At-a-Glance Specs
| Model | Groen BPM-30EA |
|---|---|
| Capacity | 30 gal / 113 L |
| Pan Depth | 10 in (254 mm) |
| Overall Pan Height | 38 in (965 mm) |
| Cooking Surface | 5/8 in stainless-steel clad plate |
| Temperature Range | 175 °F – 400 °F (79 °C – 204 °C) |
| Timer Range | 1 minute – 10 hours |
| Tilt Mechanism | Manual crank, worm-gear |
| Heat Input | 11.5 kW electric |
| Electrical | 208, 240 or 480 V / 60 Hz / 3-ph (convertible to 1-ph) |
| Water Resistance | IPX6 (control enclosure) |
| Construction | Type 304 stainless steel; open-leg stand |
| Certifications | UL, cUL, NSF, IPX6 |
| Origin | Made in USA |
| Warranty | 1-year parts & labor (extended coverage available) |
Popular Options & Accessories
- Single or double pantry water faucet (optional 48 in or 60 in spray hose).
- 2 in tangent drawoff valve with strainer.
- Pour-lip strainer insert.
- Flanged feet or heavy-duty caster kit with restraint cable.
- Steamer pan carrier & pan inserts for 30-gal model.
Images may show optional accessories. Refer to the installation manual for complete electrical and clearance requirements.
