Groen

Groen 15-Gallon Gas Manual Tilting Braising Pan with Classic Controls and Open Leg Base

SKU: BPM-15GC
$22,530.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Braising Pan & Tilt Skillet Braising Pans & Tilt Skillets Cooking Equipment Cooking Equipment Groen New Arrivals Restaurant Equipment Specialty Cooking Equipment Steam Cooking Equipment

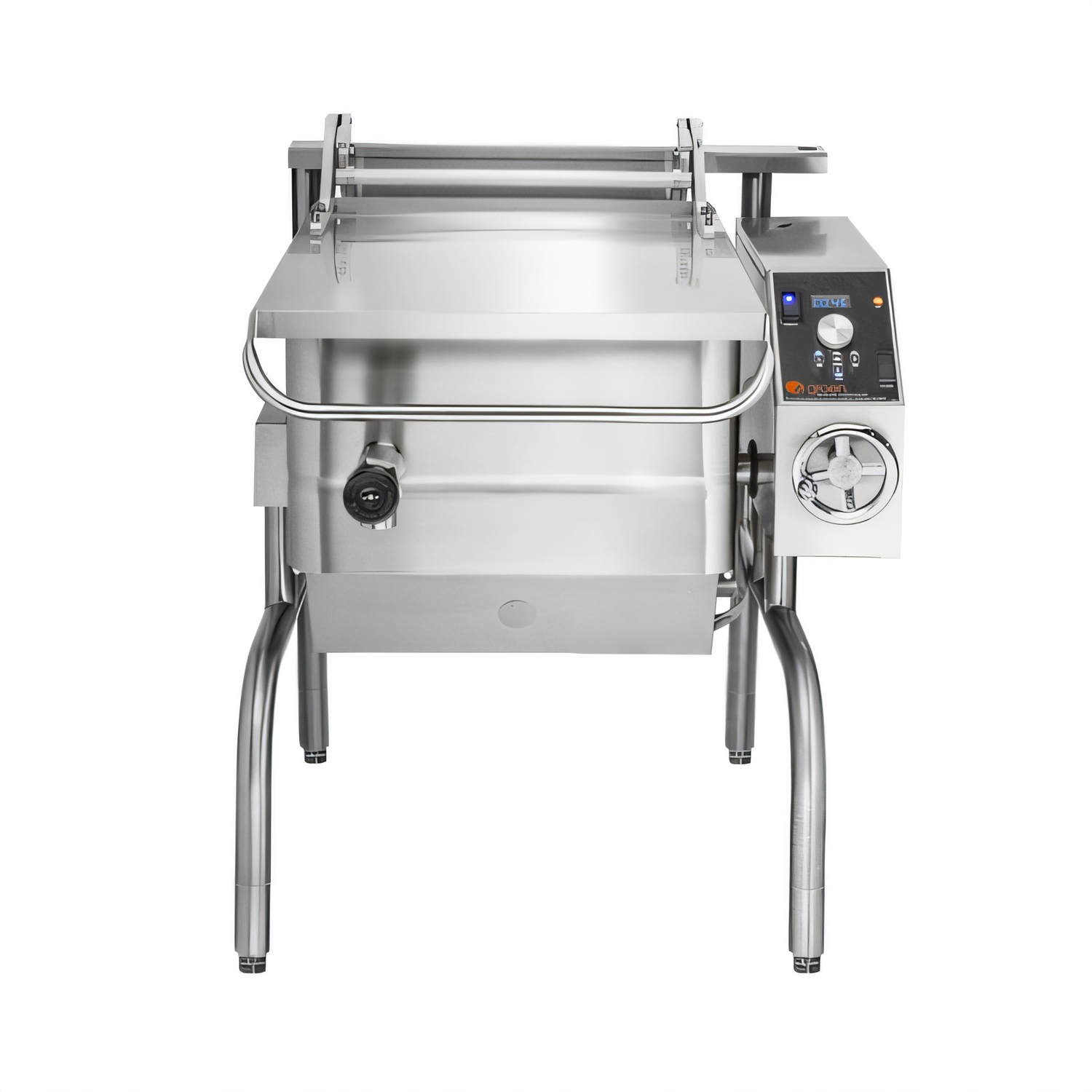

Groen 15-Gallon Gas Manual Tilting Braising Pan with Classic Controls and Open Leg Base

8-Inch Deep Pan, IPX6 Water-Resistant Controls, 65,000 BTU/hr

Built for high-volume kitchens, this 15-gallon gas braising pan delivers precise manual tilt control, rugged stainless steel construction, and water-resistant Classic controls.

  • 15-gallon, 8-inch deep pan body with 3-inch radius corners for easier cleaning.
  • Smooth manual crank tilt with worm-and-gear action for controlled pouring and past-vertical cleanup.
  • IPX6-rated Classic controls in a water-resistant right-front enclosure with a 175 to 400 °F control range.
  • 65,000 BTU/hr gas heat, electronic intermittent pilot ignition, and high-limit thermostat safety.
  • Open-leg tubular base with height-adjustable bullet feet, standard faucet bracket, and graduated fill marks in gallons and liters.
  • Designed and manufactured in the United States.

Overall Dimensions:

30.5"W x 39.75"D x 41.5"H

Product Weight:

526.0 lb

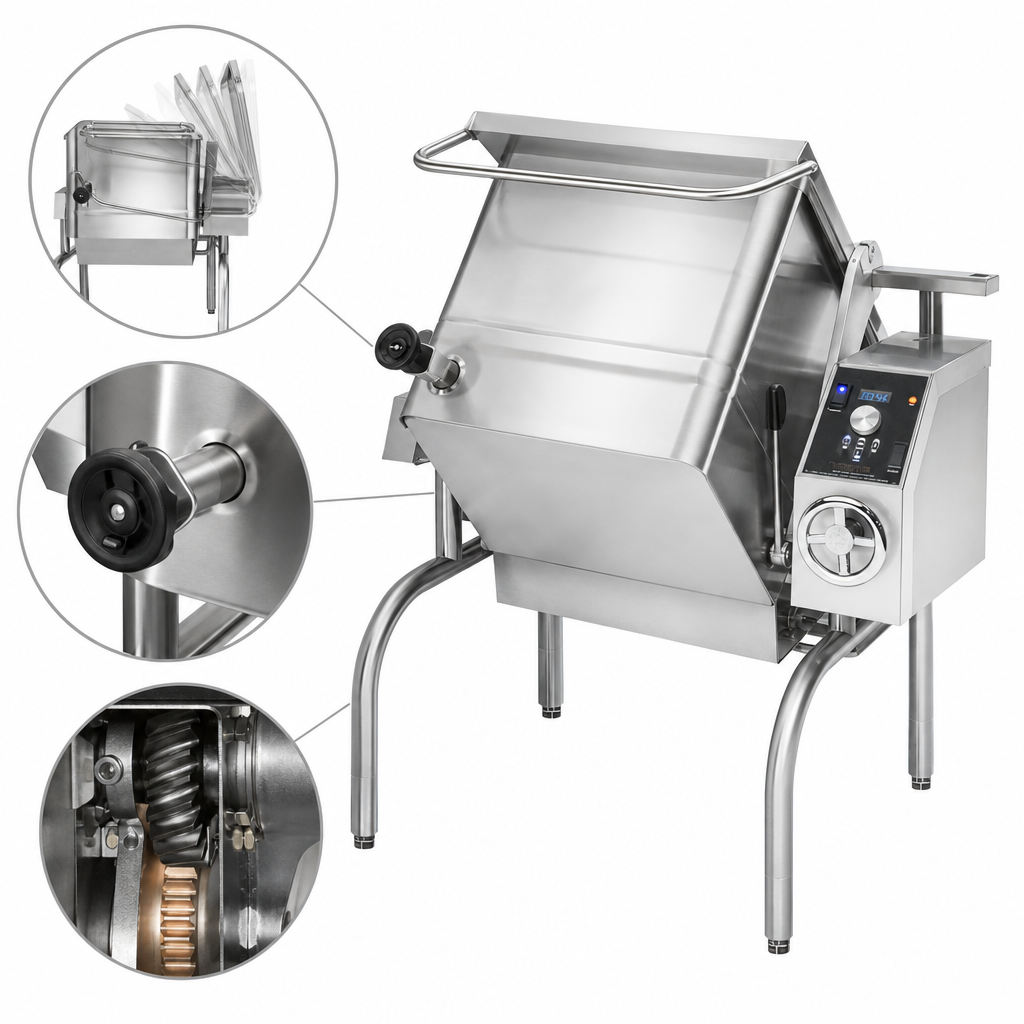

Manual Tilt Mechanism

Smooth-action manual crank and worm-and-gear drive provide precise pouring control and allow the pan to tilt to vertical in 24 turns and past vertical for cleaning.

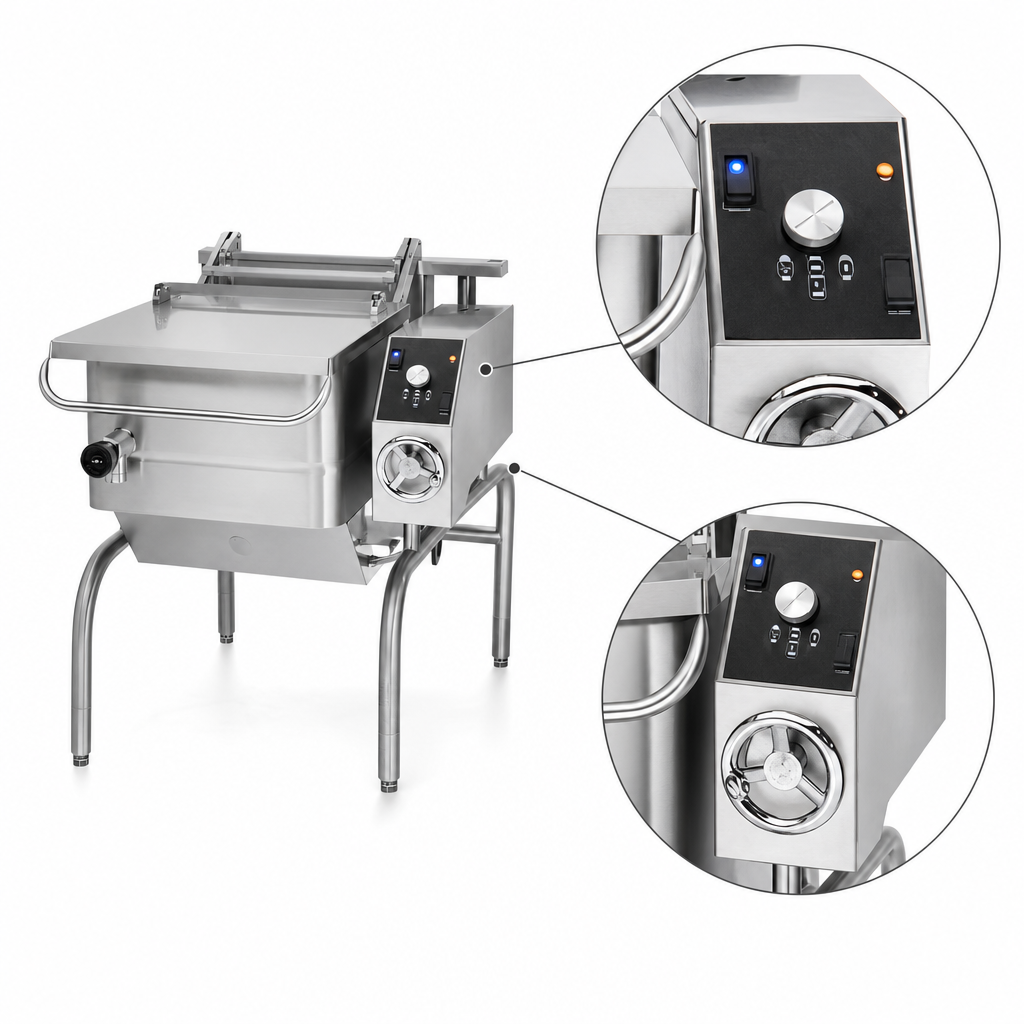

Classic Controls

Right-front mounted controls sit in a stainless steel, water-resistant IPX6-rated enclosure and include a power switch, temperature knob, and heat indicator light.

Heavy-Duty Pan Body

One-piece welded 304 stainless steel construction with an 8-inch deep pan body and 3-inch radius corners supports durability and easier cleaning.

Thick Clad Cooking Surface

A 5/8-inch stainless steel clad plate with welded heat transfer fins helps deliver more even heat across the cooking surface and resist warping.

Gas Performance

The unit is rated at 65,000 BTU/hr and includes an electronic intermittent pilot ignition system, thermostatic shutoff, and high-limit thermostat safety feature.

Open-Leg Base

Round tubular open frame base with height-adjustable bullet feet provides stability while helping improve access for cleaning underneath.

Standard Fill Marks And Faucet Bracket

Graduated fill-level marks in gallons and liters are standard, and the factory faucet mounting bracket supports left-side, right-side, or rear faucet installation.

U.S.-Built Construction

Designed and manufactured in the United States.

Type Braising Pan
Style Manual Tilt
Installation Type Floor Model (With Stand)
Capacity 15 Gallons
Material 304 Stainless Steel
Finish #3 Finish
Controls Classic Electronic
Temperature Range 175 to 400 °F
BTU 65,000 BTU/hr
Gas Connection Size 1/2 Inch NPT
Gas Inlet Pressure Natural Gas: 4.5 to 14 Inches W.C.; Propane: 11 to 14 Inches W.C.
Voltage 115 Volts
Amps 5 Amps
Hertz 60 Hz
Phase 1-Phase
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 31 Inches
Shipping Depth 40 Inches
Shipping Height 42 Inches
Shipping Weight 526 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

12 months from installation or 15 months from shipment, whichever occurs first.

Documents

PDF Cutsheet PDF Download PDF Owner's manual PDF Download PDF Owner's manual PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It has a 15-gallon capacity, which is about 57 liters, with an 8-inch deep pan body.
The unit requires 115 Volts, 1-Phase, 60 Hz, and 5 Amps for the electric supply.
It requires a 1/2 Inch NPT gas connection. The document lists recommended incoming pressures of 4.5 to 14 Inches W.C. for natural gas and 11 to 14 Inches W.C. for propane.
It uses a smooth-action manual crank with a worm-and-gear tilt mechanism, allowing the pan to tilt to vertical in 24 turns and past vertical for cleaning.
Optional accessories include pantry water fill faucets, a spray hose faucet assembly, a 2-inch tangent drawoff valve, a strainer for the draw-off valve, a gas quick disconnect, caster kit with restraint cable, flanged feet, pouring lip strainer, and steamer pan inserts.
Yes. The document also lists BPM-15GA with Advanced controls, BPM-15GC2T with Cook2Temp controls, and BPM-15GS as an optional standing pilot model.
