Groen AH/1E-80 Steam Kettles
Description

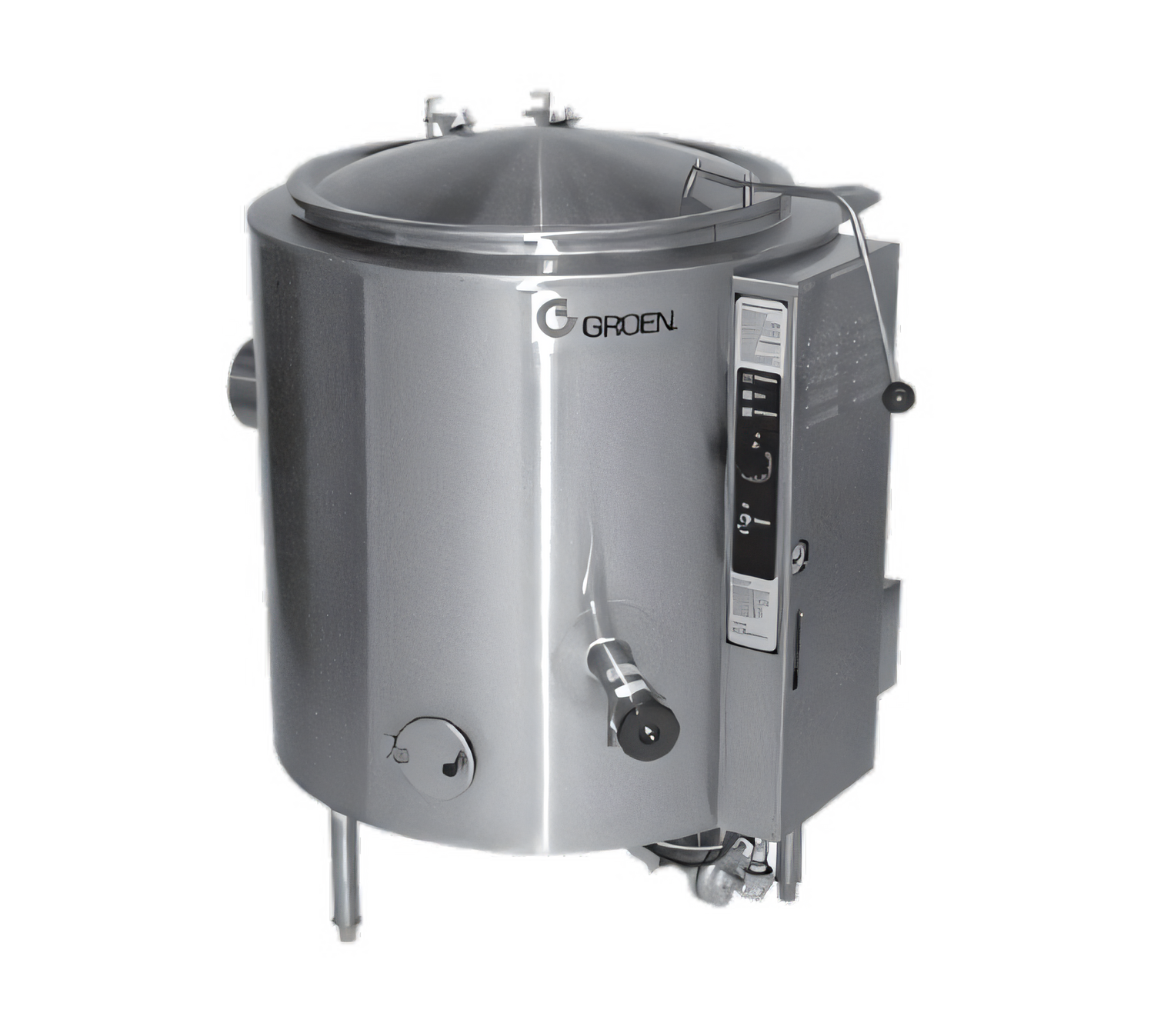

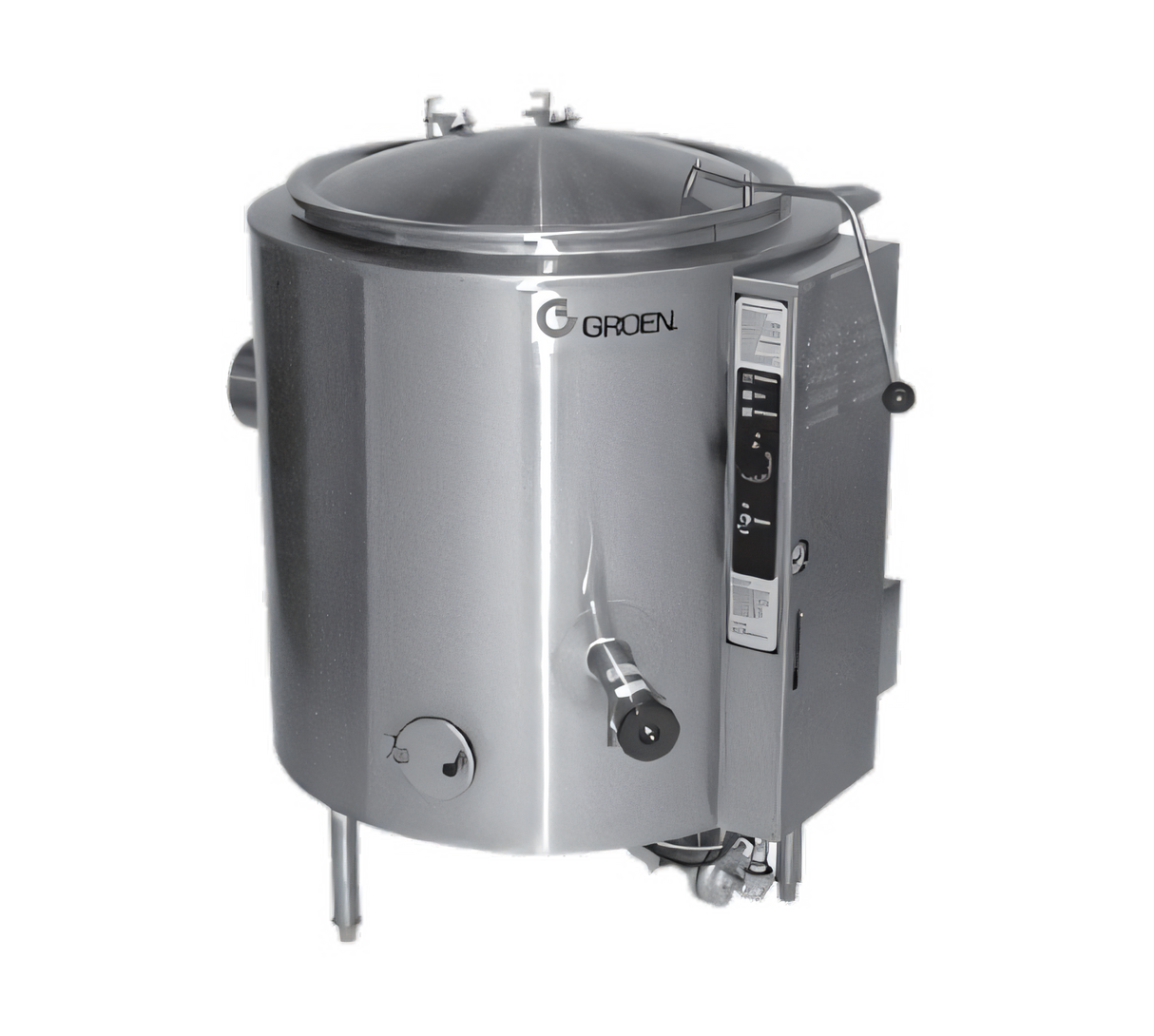

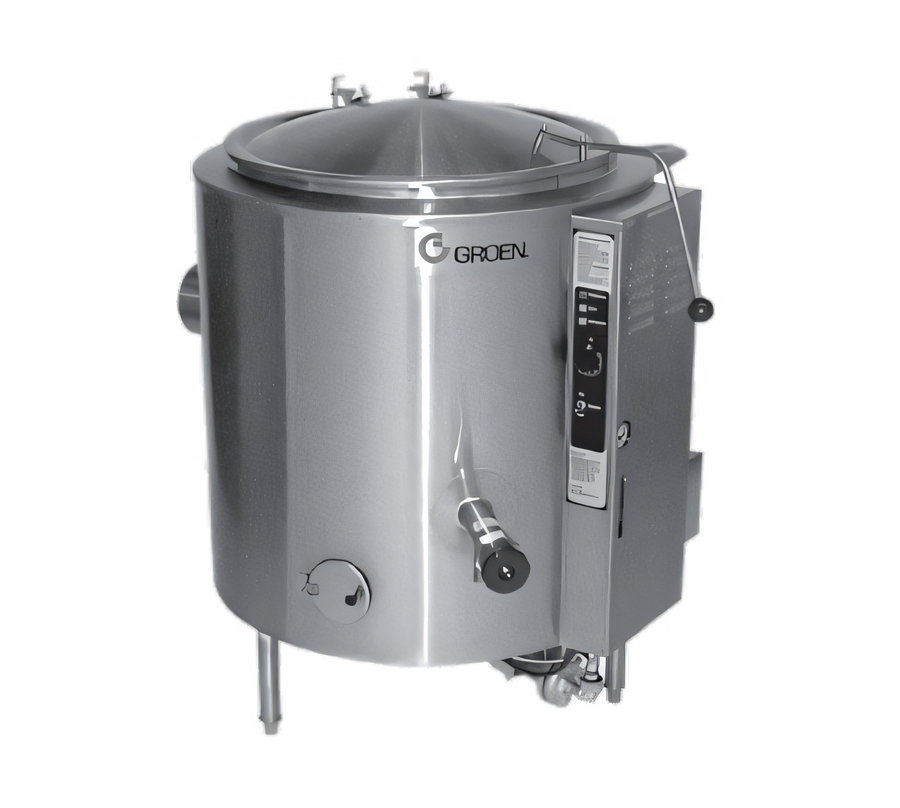

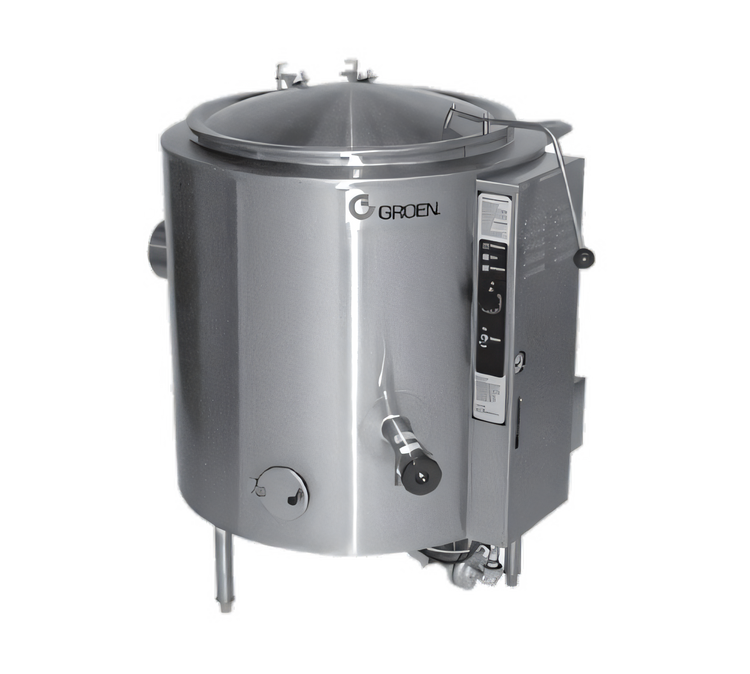

Groen AH/1-80 Stationary Gas Kettle – 80 Gal / 2⁄3 Jacket
High-volume, self-contained steam jacketed kettle – Made in the USAWhen you need to batch-cook soups, sauces, stocks or pasta for hundreds of servings a day, the Groen AH/1-80 is the workhorse you can trust. A self-contained, gas-fired steam jacket delivers lightning-fast heat transfer while the 316 stainless steel liner shrugs off the most acidic recipes. Built to the exacting standards of ASME, NSF and CSA, this 80-gallon floor kettle combines performance, safety and rock-solid durability in one seamless package.
Why You’ll Love It
- Massive 80 gallon (303 L) capacity handles high-volume production with ease.

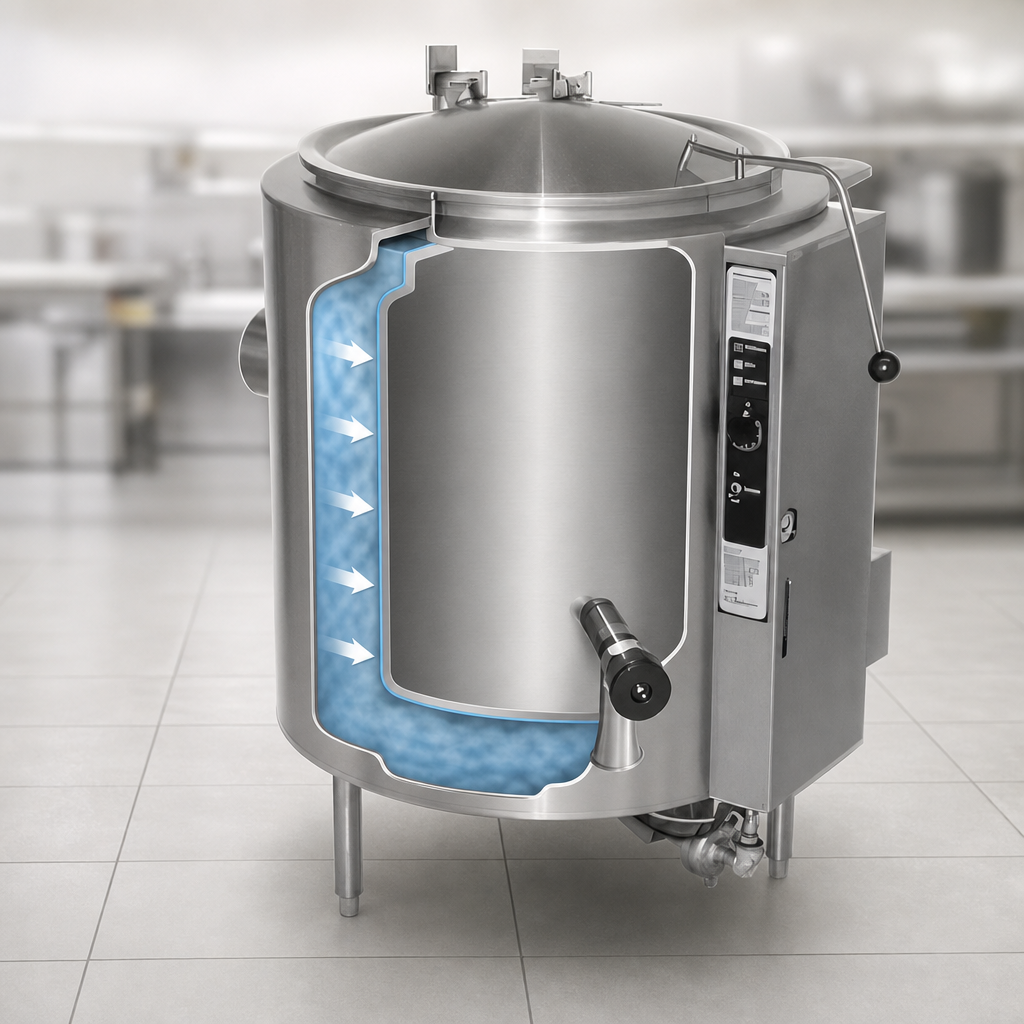

- 2⁄3 steam jacket surrounds the kettle for uniform, scorch-free heating from 150-270 °F.
- Interior and draw-off valve are formed from 316 stainless steel for superior corrosion resistance against salt, tomato, wine and other acidic ingredients.

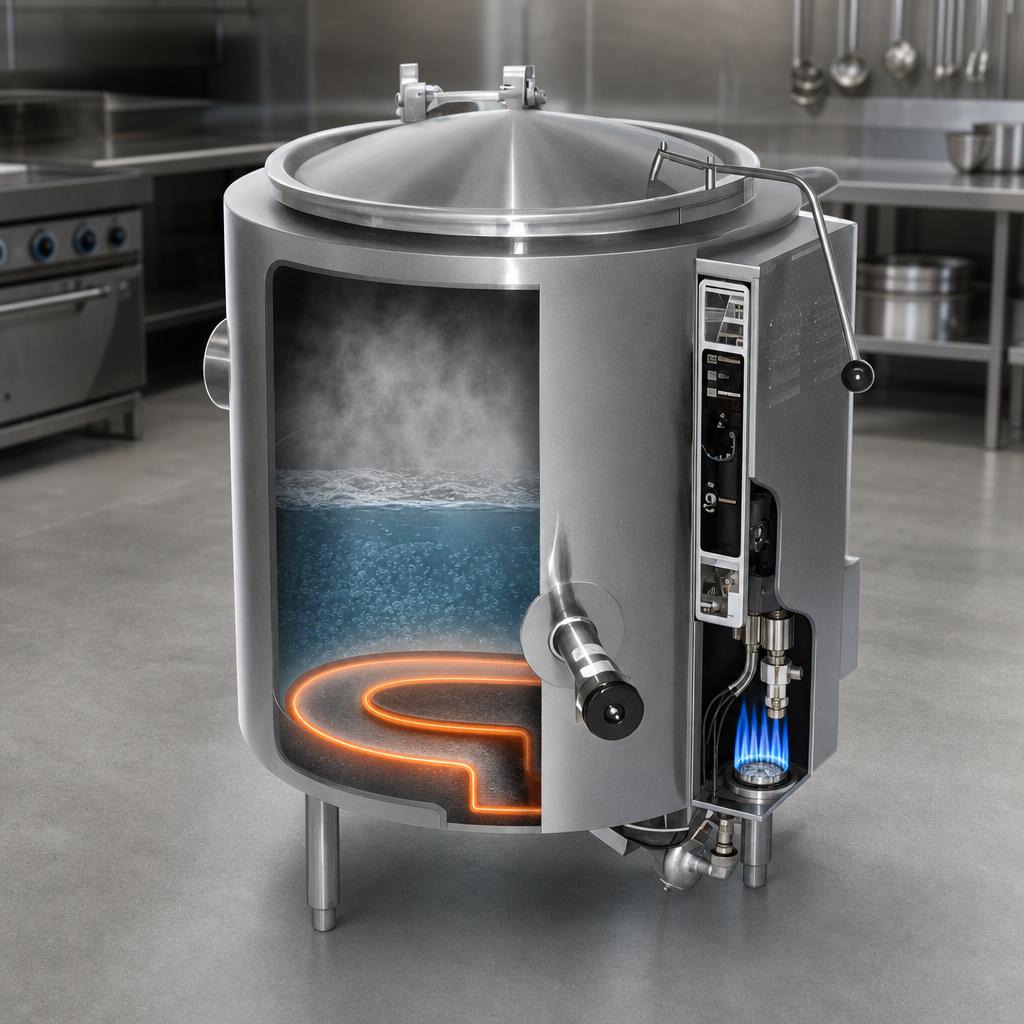

- 145,000 BTU/hr gas-fired, self-contained steam source – no external boiler required.
- Electronic ignition with standing pilot and thermostatic control automatically cycles the burner to hold set temperatures without babysitting.
- Full control cluster up front: pressure gauge, water sight glass, indicator lights, low-water cutoff, pressure safety valve and more.
- Counter-balanced Power-Aid cover stays exactly where you position it for effortless loading and inspection.
- Sanitary 2" tangent draw-off with insulated handle plus removable ¼" perforated disk strainer for quick, clean draining of product or stock.
- Stainless, insulated exterior stays cool to the touch; bullet-style adjustable feet level the unit on uneven floors.
- Built-in faucet mounting bracket – add a single or double pantry water faucet without extra fabrication.
- ASME stamped (30 PSI), CSA Star & Flame and NSF listed for peace of mind in every jurisdiction.
- Proudly designed and manufactured in Jackson, MS USA.
Technical Specs
| Model | AH/1-80 |
|---|---|
| Capacity | 80 gal / 303 L |
| Jacket Coverage | 2⁄3 |
| Working Pressure | 30 PSI (ASME stamped) |
| Heat Input | 145,000 BTU/hr • Natural or Propane |
| Gas Connection | ½" NPT (rear) |
| Electrical | 115 V, 1-phase, 60 Hz, 2 A (controls only) |
| Interior / Exterior | 316 SS liner – 180 grit polish / #3 satin stainless body with fiber insulation |
| Draw-Off Valve | 2" sanitary tangent, 316 SS, insulated handle + ¼" perforated disk strainer |
| Cover | Stainless, counter-balanced Power-Aid lid |
| Standard Accessories | Faucet bracket, adjustable bullet feet |
| Certifications | NSF • CSA Star • CSA Flame • ASME NB • Made in USA |
Installation requires a ½" gas supply line, 115 V electrical connection for controls, and clearance per spec sheet. The kettle is factory-charged with treated water; no external boiler or water connection is needed for the jacket.
Warranty
Groen backs every kettle with a 1-year parts & labor warranty (2-year on steamers with start-up). Extended coverage is available at the time of purchase.
