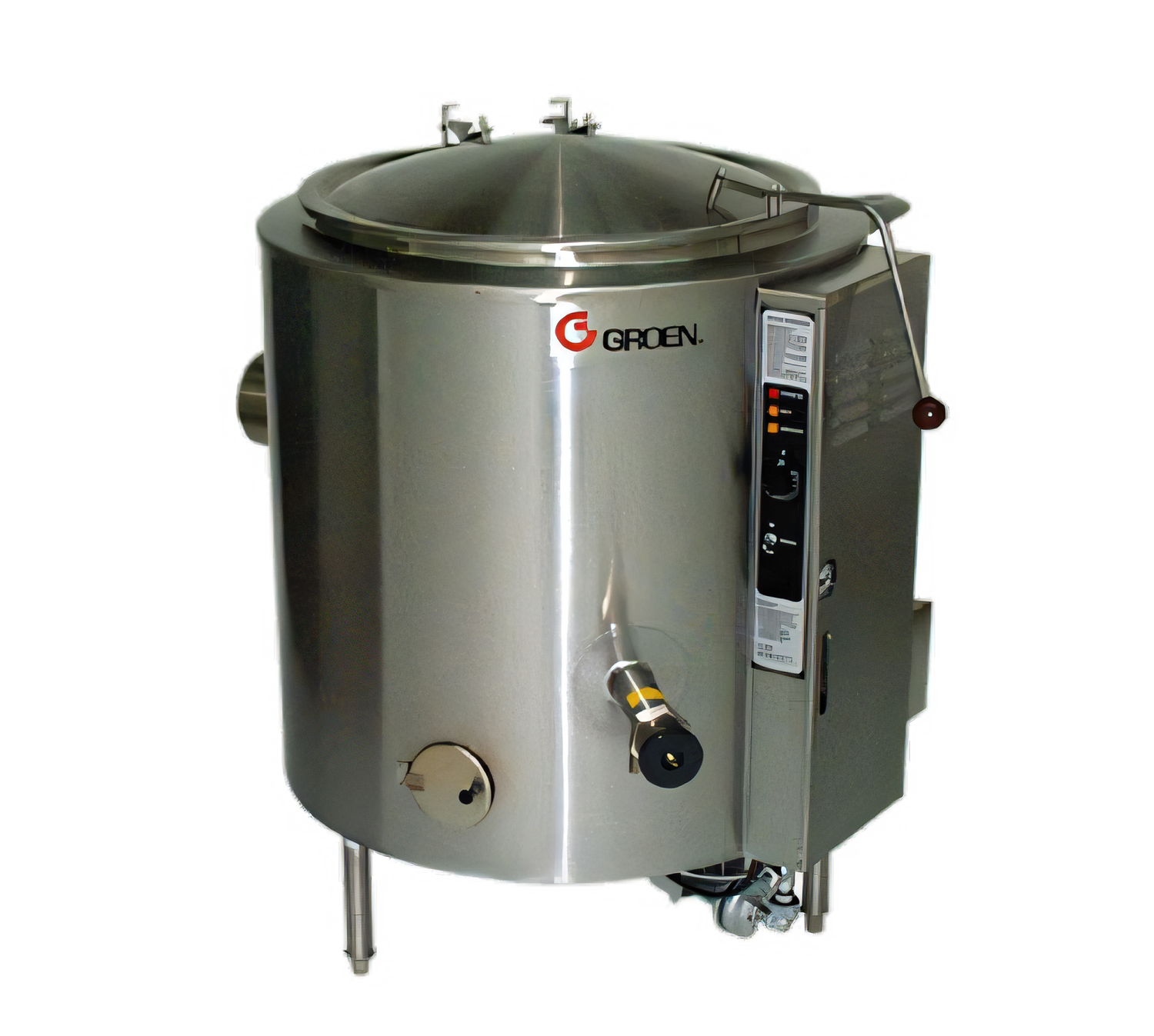

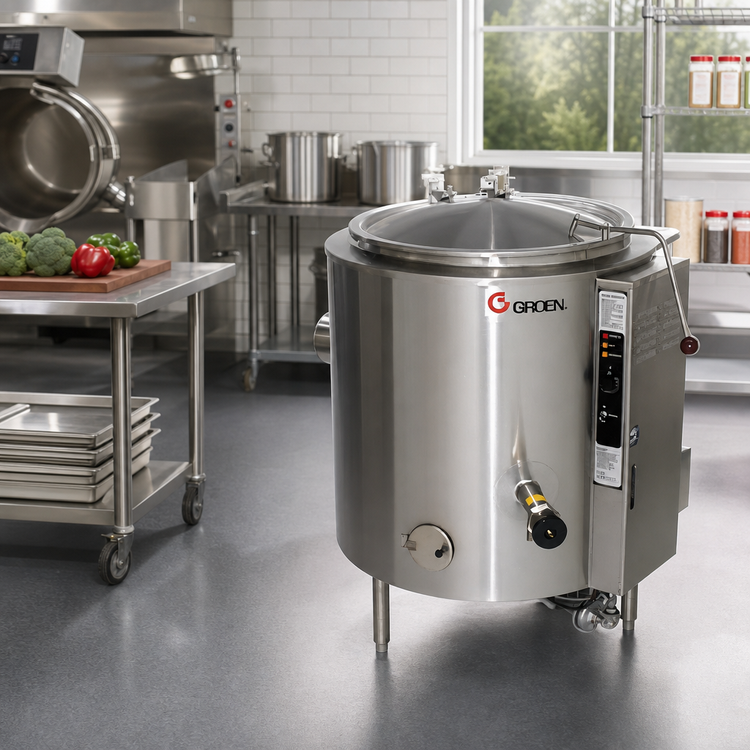

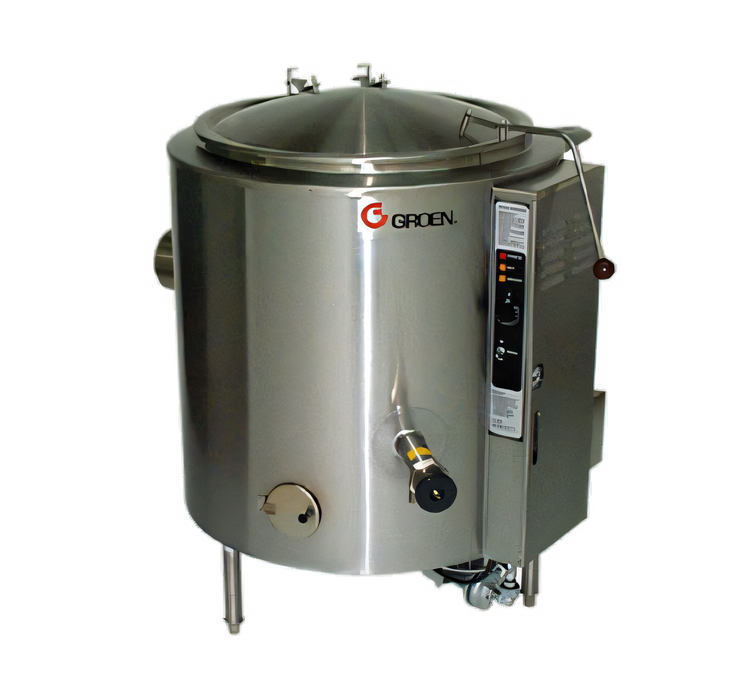

Groen AH/1E-60 60-Gallon Gas Steam-Jacketed Stationary Floor Kettle

316 Stainless Steel Liner, 2/3 Jacket, Self-Contained, 30 PSI

Built for high-volume batch cooking, this 60-gallon self-contained gas kettle combines a durable 316 stainless steel liner with insulated construction for efficient, even heating.

  • 60-gallon stationary floor kettle designed for high-volume commercial cooking
  • Self-contained gas steam source delivers even heating with no remote steam supply required
  • 316 stainless steel liner and insulated stainless steel body help retain heat and improve durability
  • 2-inch tangent draw-off with removable 1/4-inch perforated strainer simplifies draining
  • 115V controls, 1/2 NPT gas connection, and adjustable bullet feet support straightforward installation
  • NSF listed, CSA Star, and CSA Flame certified; made in USA

Overall Dimensions:

46.25"W x 52.25"D x 48.88"H

Product Weight:

950.0 lb

Self-Contained Gas Heat Source

Built-in steam source heats the kettle without a remote boiler and supports cooking temperatures from 150°F to 270°F.

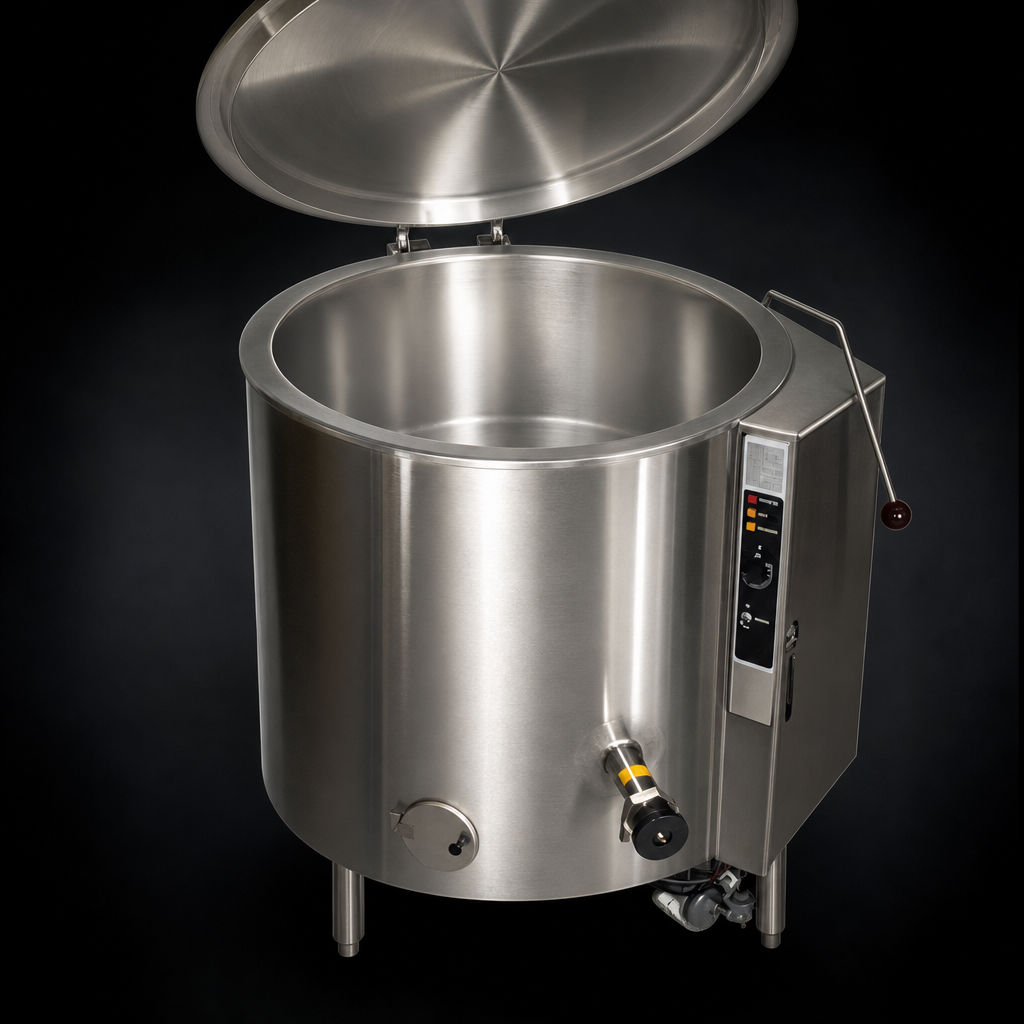

316 Stainless Steel Liner

Type 316 stainless steel interior provides a durable, corrosion-resistant food-contact surface.

Insulated Stainless Steel Body

Stainless steel sheathing with fiber bat insulation helps hold heat and keeps the exterior cooler to the touch.

Sanitary 2-Inch Draw-Off

Includes a 2-inch sanitary tangent draw-off with an insulated handle and removable 1/4-inch perforated stainless steel strainer.

Power Aid Cover

Counterbalanced cover helps maintain an open or closed position during loading and unloading.

Front-Mounted Controls

Thermostat, pressure gauge, safety valve, low-water protection, and electronic ignition are housed in a front control enclosure.

Adjustable Legs And Faucet Bracket

Three adjustable legs with bullet feet help level the floor-mounted kettle, and a standard faucet mounting bracket is included.

30 PSI Working Pressure

Designed for operation up to 30 PSI and factory charged with water and rust inhibitor for long service life.

Type Steam-Jacketed Kettle
Style Stationary
Installation Type Floor Model
Capacity 60 Gallons
Material 316 Stainless Steel
BTU 145,000 BTU/Hr
Controls Thermostatic
Gas Connection Size 1/2 NPT
Voltage 115 Volts
Amps 2 Amps
Hertz 60 Hz
Phase 1-Phase
Temperature Range 150°F to 270°F
Shipping Width 47 Inches
Shipping Depth 53 Inches
Shipping Height 49 Inches
Shipping Weight 950 lb.
Country of Origin USA
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Warranty & Protection

12 months from installation or 15 months from shipment, whichever comes first; 2000 operating hours where applicable.

Documents

PDF Cutsheet PDF Download PDF Brochure PDF Download PDF Owner's manual PDF Download PDF Roi calculator PDF Download PDF Start-up request form PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

Yes. It uses a gas-heated, self-contained steam source, so no remote steam source is required.
It requires a 1/2 NPT gas connection and a 115V, 1-phase, 60 Hz, 2-amp electrical supply for the controls.
This model has a 60-gallon capacity.
The kettle is designed to operate from 150°F to 270°F.
The unit is NSF listed and CSA Star/CSA Flame certified, and it is made in the USA.
