Groen AH/1E-40 Steam Kettles
Description

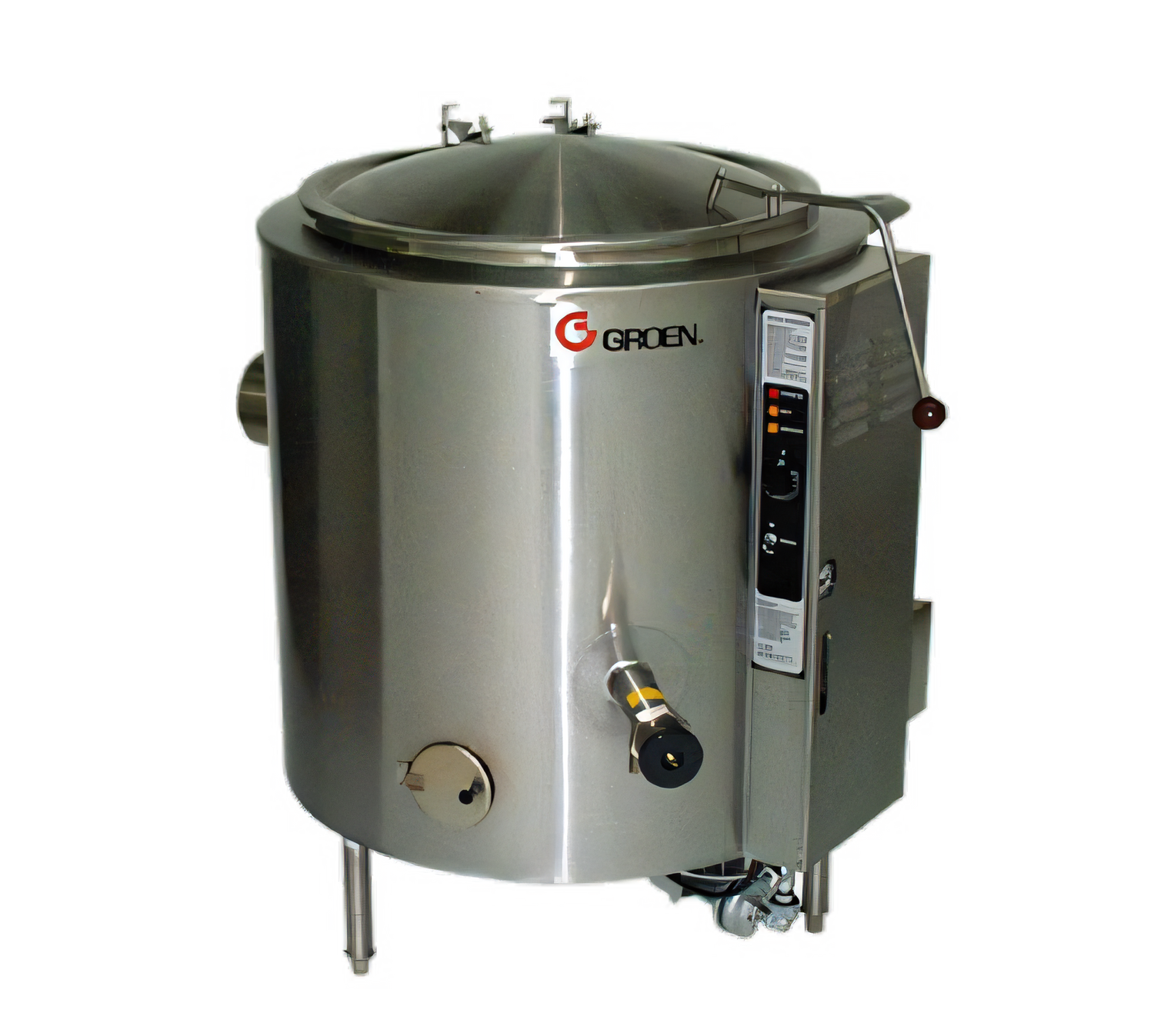

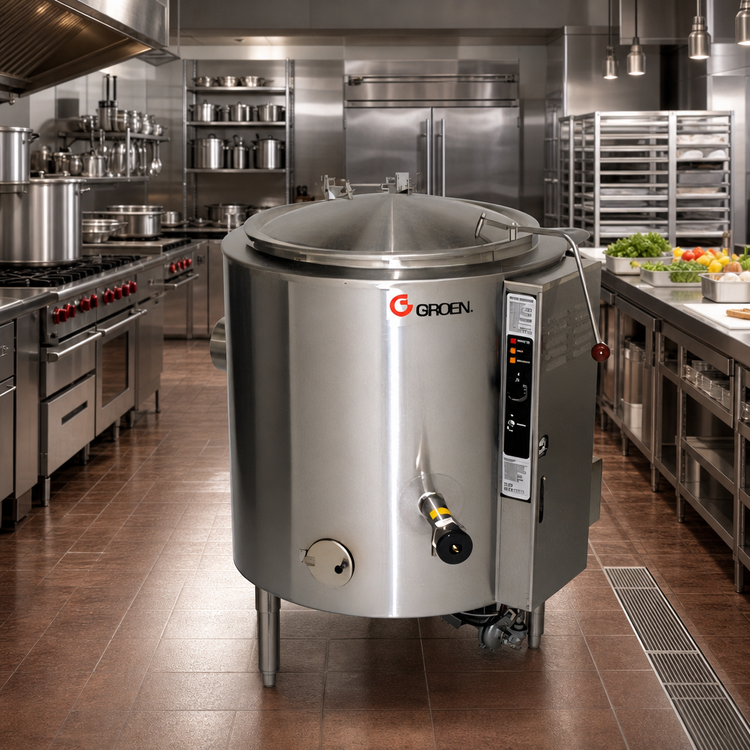

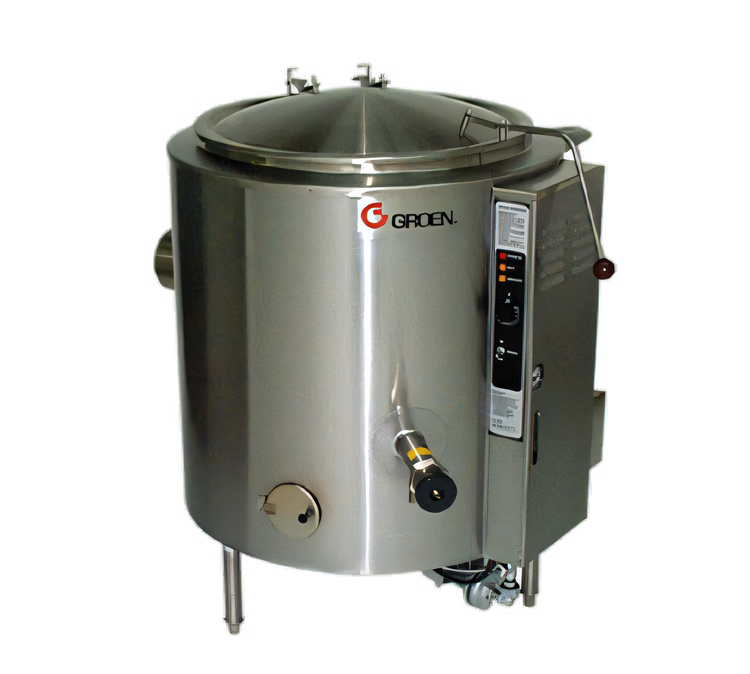

Groen AH/1-40 Gas Steam Jacketed Kettle – 40 Gal.
Self-contained • 2/3 jacket • 316 stainless interiorBuilt for high-volume kitchens that refuse to compromise on speed, consistency or food safety, the Groen AH/1-40 delivers up to 40 gallons of perfectly even heat from its own gas-fired steam source—no external boiler required. A rugged 316 stainless cooking surface, counter-balanced Power-Aid™ cover and sanitary 2" tangent draw-off combine to make big-batch cooking faster, safer and easier than ever.
Key Features

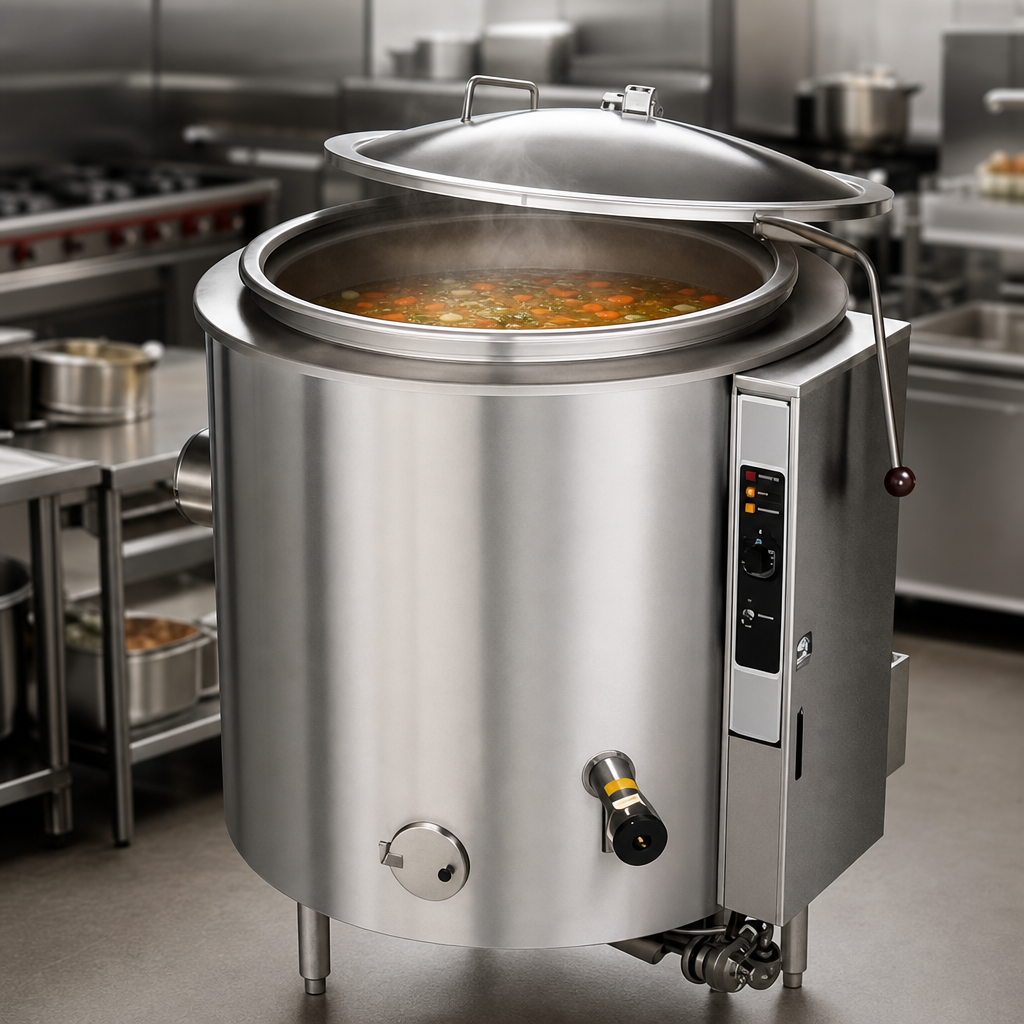

- True 40 gal. (151 L) working capacity—ideal for soups, sauces & braises
- 2/3 steam jacket heats sidewalls & bottom for uniform, scorch-free cooking

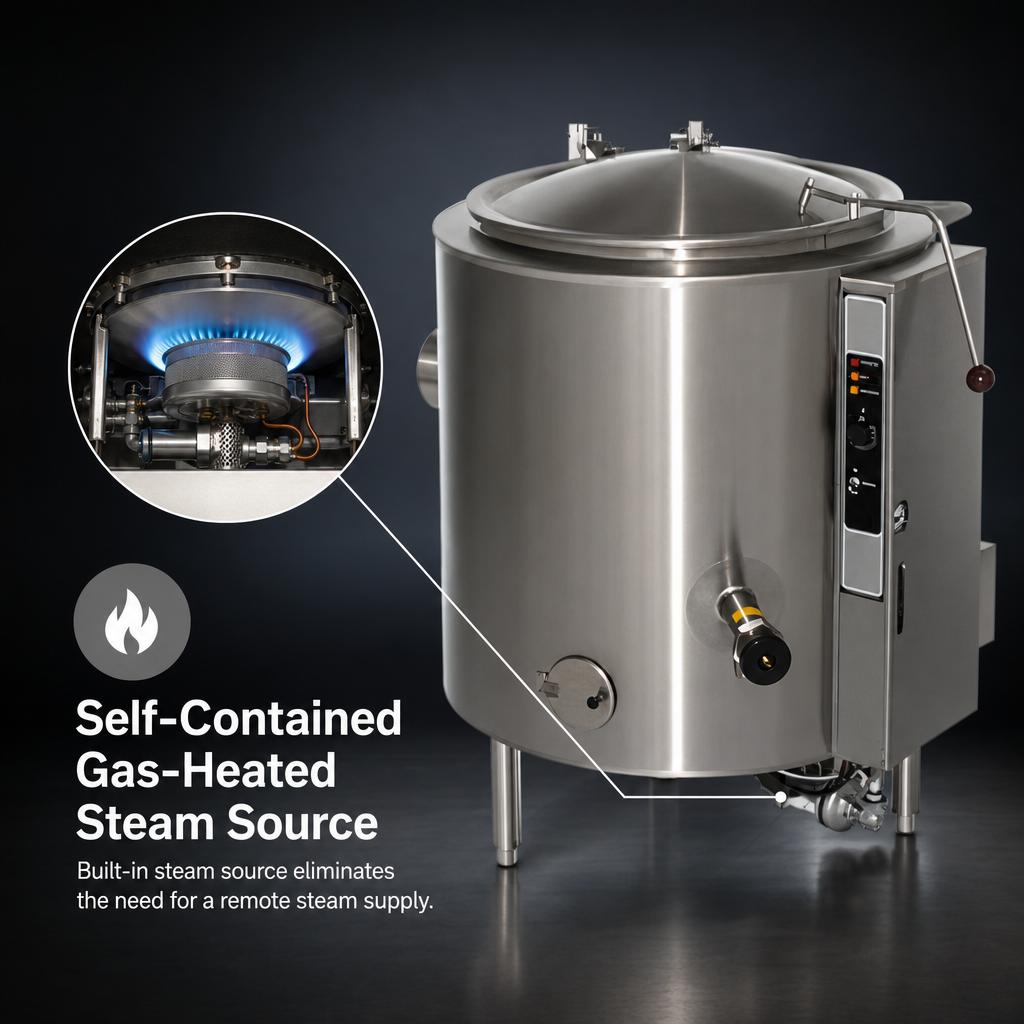

- 100,000 BTU gas-heated, self-contained steam generator (150 – 270°F)
- 316 stainless steel liner with 180-grit polish wipes clean in seconds
- Stainless, Power-Aid™ counterbalanced cover stays exactly where you set it
- Sanitary 2" tangent draw-off valve with ¼" perforated stainless strainer
- Factory-installed faucet bracket—ready for single or double pantry faucets
- Fully insulated jacket & body keep the exterior cool to the touch
- Adjustable bullet feet for fast, rock-solid leveling on any floor
Built-In Safety & Precision Controls
- Regulating thermostat automatically cycles burner to hold set temperature
- Electronic ignition—no standing pilot to waste energy
- Front-mounted pressure gauge, sight glass & low-water cutoff
- Pressure safety valve & limit control protect against over-pressurization
- Status indicators for Power On, Heat & Low Water
Technical Specifications
| Capacity | 40 gal. / 151 L |
|---|---|
| Jacket Coverage | 2/3 (side & bottom) |
| Heat Source | Self-contained gas steam generator |
| Input | 100,000 BTU/hr |
| Operating Pressure | 30 PSI (ASME stamped) |
| Temperature Range | 150 – 270 °F (65 – 132 °C) |
| Interior Material | 316 stainless steel, 180-grit polish |
| Body & Jacket | Stainless steel shell with fiber-bat insulation |
| Draw-Off Valve | 2" sanitary tangent, ¼" perforated strainer included |
| Gas Connection | ½" NPT (natural or LP) |
| Electrical | 115 V / 60 Hz / 1-ph (controls) – 2 A |
| Certifications | CSA Star, CSA Flame, NSF, ASME, Made in USA |
| Warranty | 1-year parts & labor (extended options available) |
Popular Accessories (sold separately)
- Basket lift inserts (TRI-BC)
- Single or double pantry faucets
- 3" tangent draw-off valve kit
- Solid or ⅛" perforated strainers
- Kettle brush cleaning kit
- Gallon / liter etch marks
Need help choosing accessories or scheduling factory start-up? Call Groen Tech Services at 888-994-7636.
