Groen AH/1E-20 Steam Kettles
Description

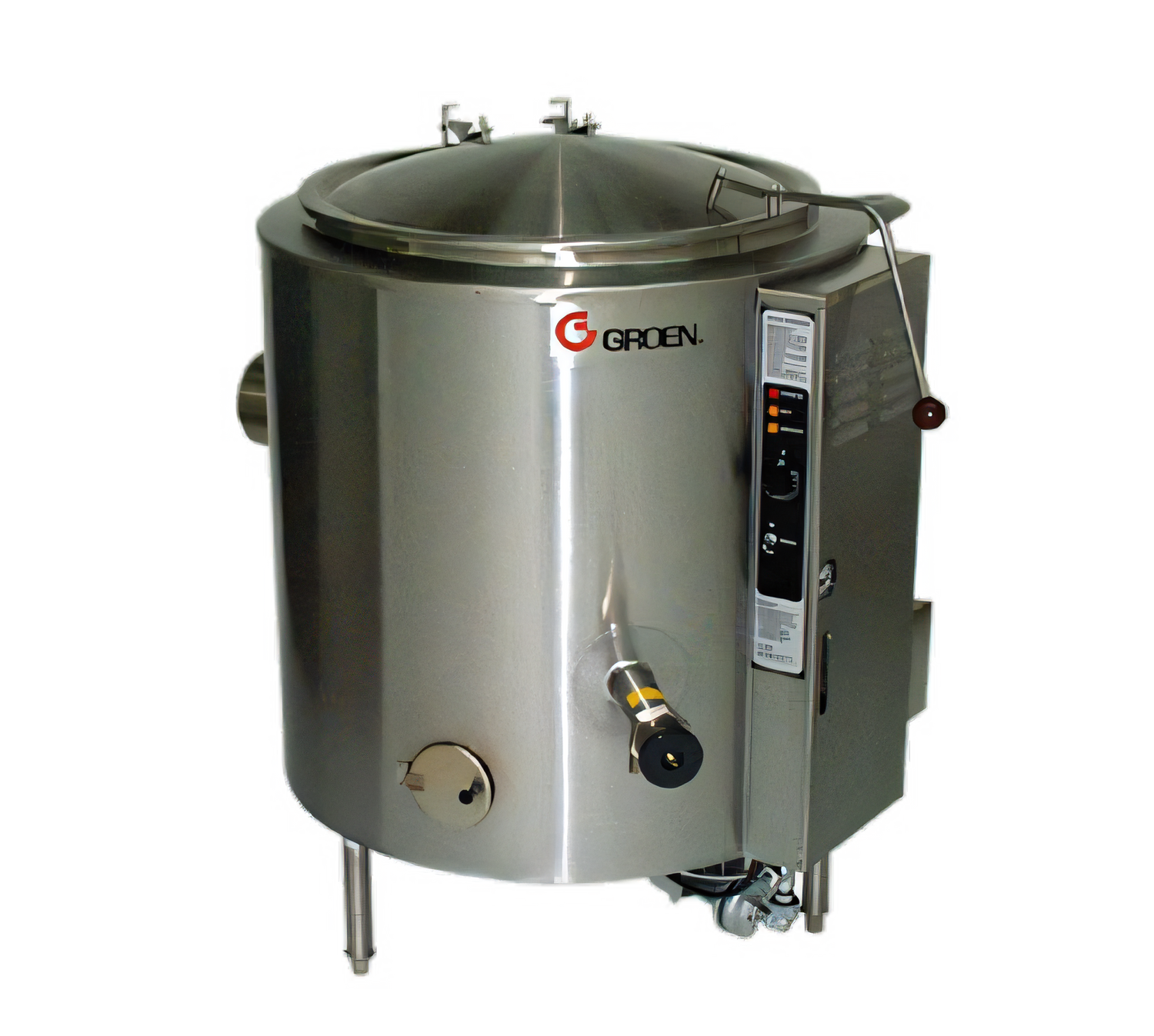

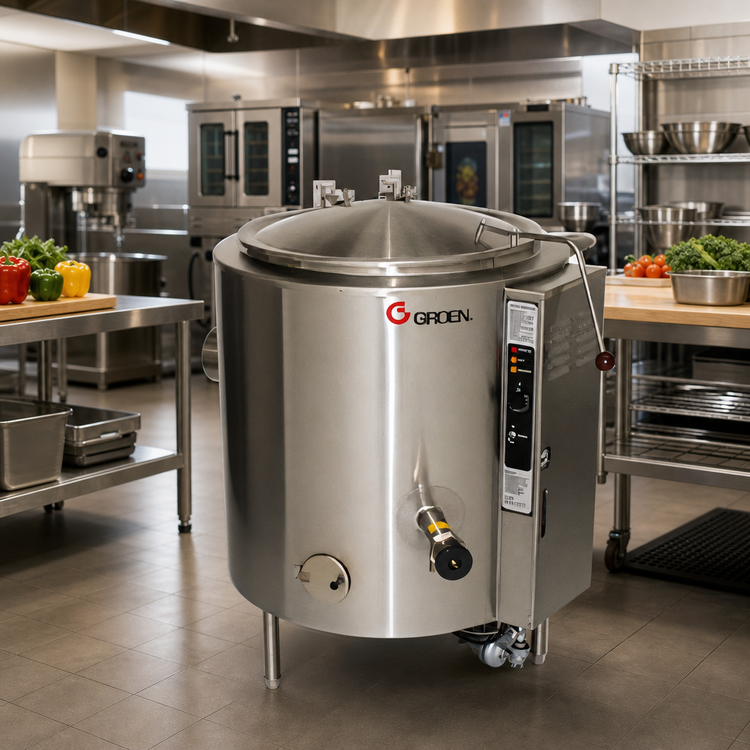

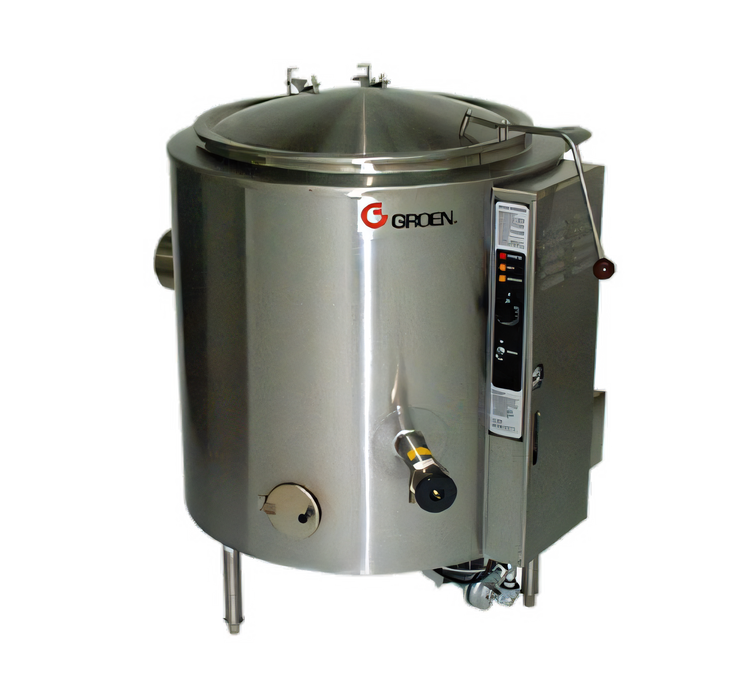

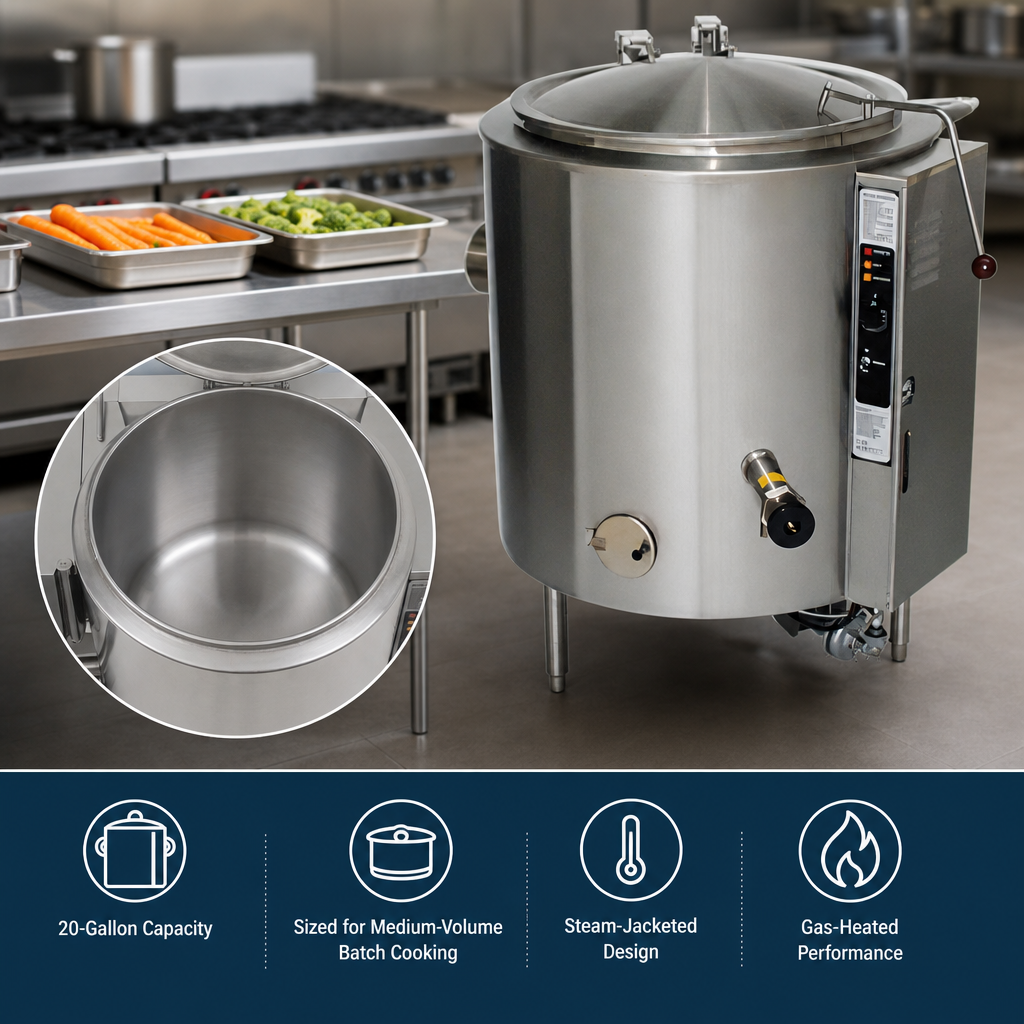

Groen AH/1-20 20-Gallon Gas Steam-Jacketed Kettle
Self-contained • Floor mounted • Made in the USAEngineered for demanding commercial kitchens, the Groen AH/1-20 delivers fast, even heat in a compact 20-gallon footprint. A 2⁄3 steam jacket wrapped around a 316 stainless steel liner provides precise temperature control from 150 °F to 270 °F, while a powerful 85,000 BTU gas-fired steam generator eliminates the need for a boiler connection. From soups and sauces to pasta and vegetables, this kettle maximizes throughput without sacrificing consistency.
Why chefs choose the AH/1-20

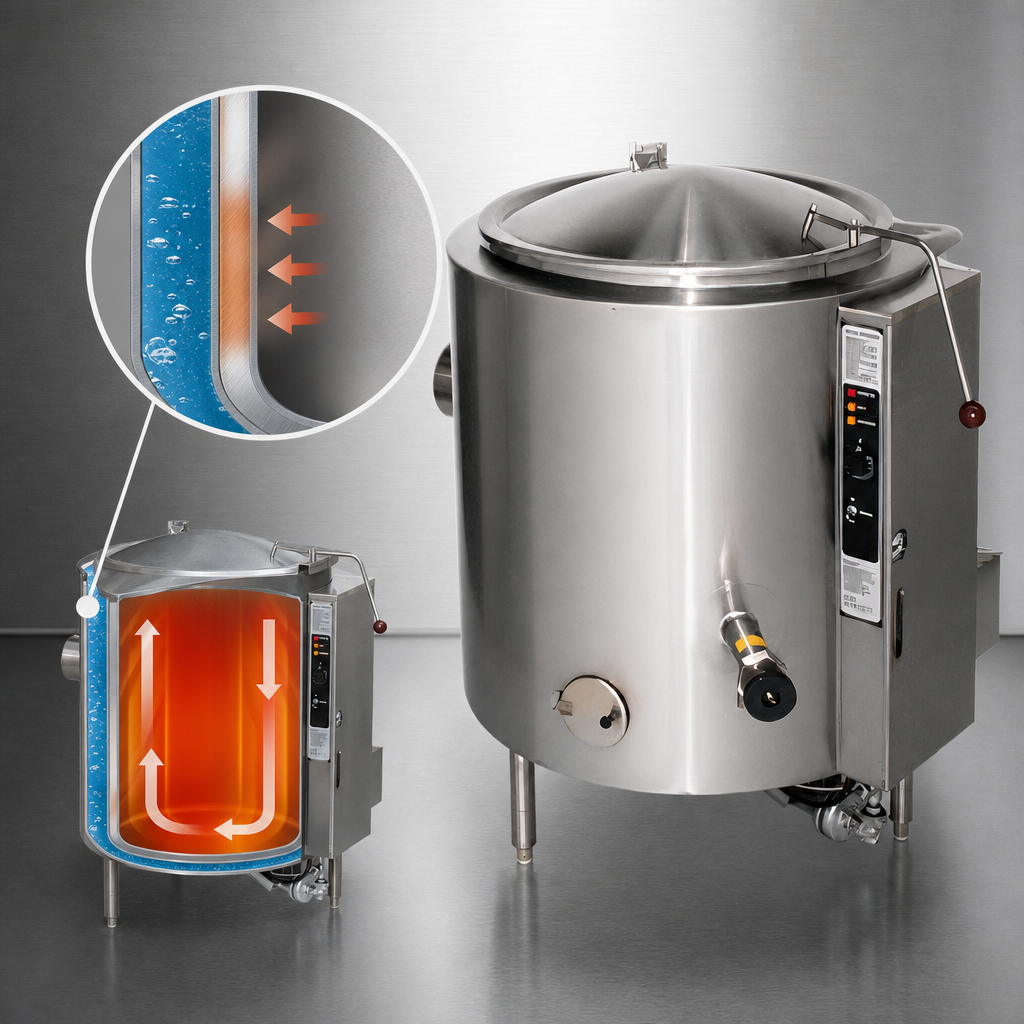

- Uniform cooking – 2⁄3 jacket distributes steam heat evenly, preventing scorching.
- Durable 316 SS liner – resists salt & acidic products better than 304 stainless.
- Hinged dome cover – one-piece, easy-lift lid keeps condensation off the floor.
- Fast, safe draining – 2" tangent draw-off with insulated handle and removable ¼" perforated strainer.
- Cool-to-touch shell – fiber insulation and stainless body protect staff and save energy.
- Simple controls – front-mounted thermostat, pressure gauge, indicator lights & electronic ignition.
- Faucet mounting bracket – pre-installed for optional single or double pantry fill faucet.
- Adjustable bullet feet – level the kettle quickly on any floor surface.
Technical specifications
| Capacity | 20 gal | 75.7 L |
|---|---|
| Jacket coverage | 2⁄3 of kettle body |
| Heat source | Natural or LP gas (specify) |
| Input | 85,000 BTU/hr |
| Operating pressure | 30 PSI, ASME stamped |
| Temperature range | 150 °F – 270 °F (66 °C – 132 °C) |
| Interior material | 316 stainless steel, 180-grit polish |
| Exterior | #3 satin stainless, fully insulated |
| Draw-off valve | 2" sanitary tangent, 316 SS, w/ ¼" perforated strainer |
| Cover | Hinged, one-piece stainless dome |
| Controls power | 115 V, 1-ph, 2 A |
| Gas connection | ½" NPT |
| Mounting | Stationary floor, adjustable bullet feet |
| Certifications | CSA Star, CSA Flame, NSF, ASME |
| Country of origin | United States |
| Warranty | 1-year parts & labor (2,000 hrs) commercial use |
Need more coverage? Extended warranty options are available at the time of purchase. Call for details.
• ½ " NPT gas supply sized for 85,000 BTU/hr
• 115 V/60 Hz/1-ph electrical connection for controls
• Adequate floor reinforcement and clearances per spec sheet
Always use a qualified professional for gas and electrical hookup.
What’s in the box
- Groen AH/1-20 stationary kettle
- Hinged dome cover (installed)
- 2" draw-off valve with ¼" perforated strainer (installed)
- Faucet mounting bracket
- Owner’s manual & warranty registration
Water fill faucets, basket inserts, alternate strainers and 3" draw-off valves are available separately.
