Groen AH/1E-100 Steam Kettles
Description
Groen AH/1-100 Gas Steam-Jacketed Kettle — 100 Gallon

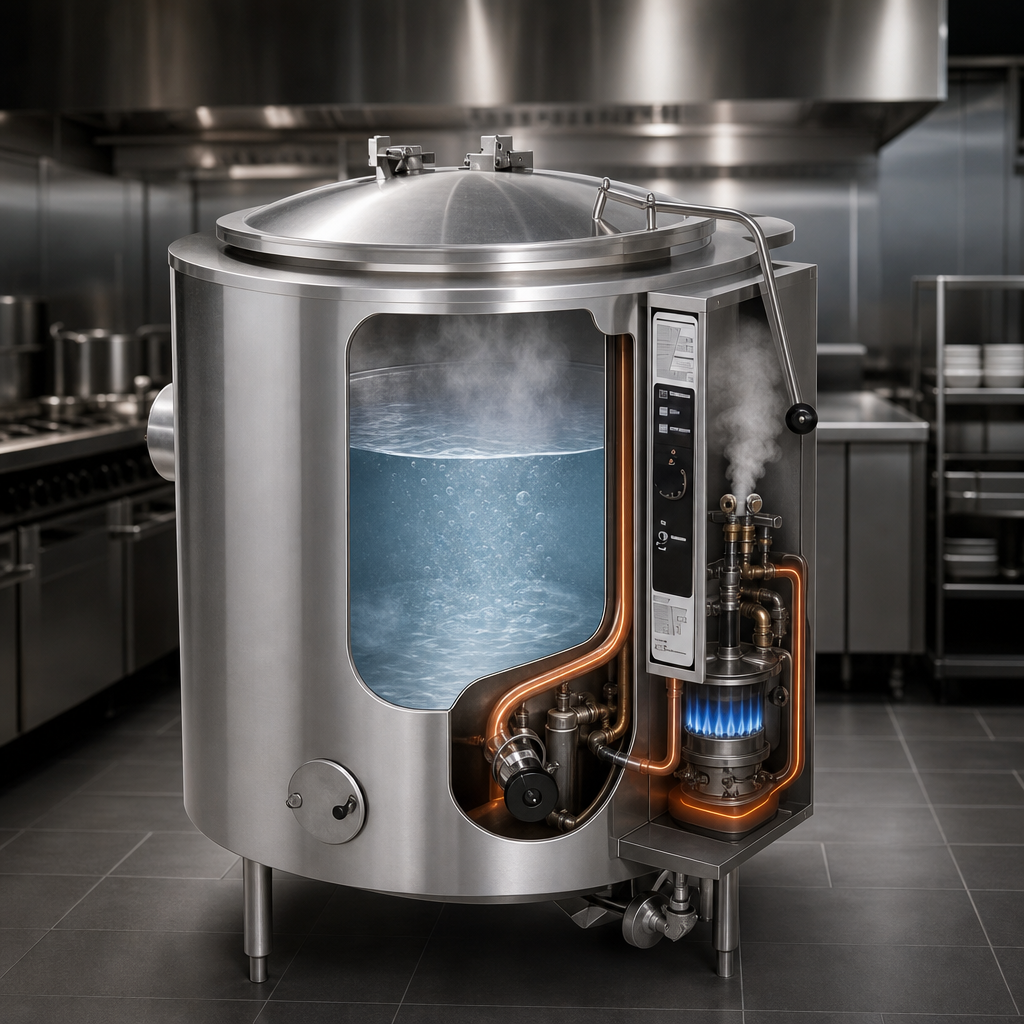

Self-contained • 2/3-jacket • 316 SS liner • Floor modelEngineered for the toughest production schedules, the Groen AH/1-100 combines a massive 100-gallon (378 L) working capacity with a gas-fired, self-contained steam system that eliminates the need for an external boiler. Its 316 stainless steel 2/3 jacket, insulated body and precise thermostat deliver fast heat-up, consistent temperatures and exceptional energy efficiency—batch after batch.
Why this kettle elevates your kitchen
- 100-gallon stationary floor kettle ideal for stocks, sauces, soups & reductions

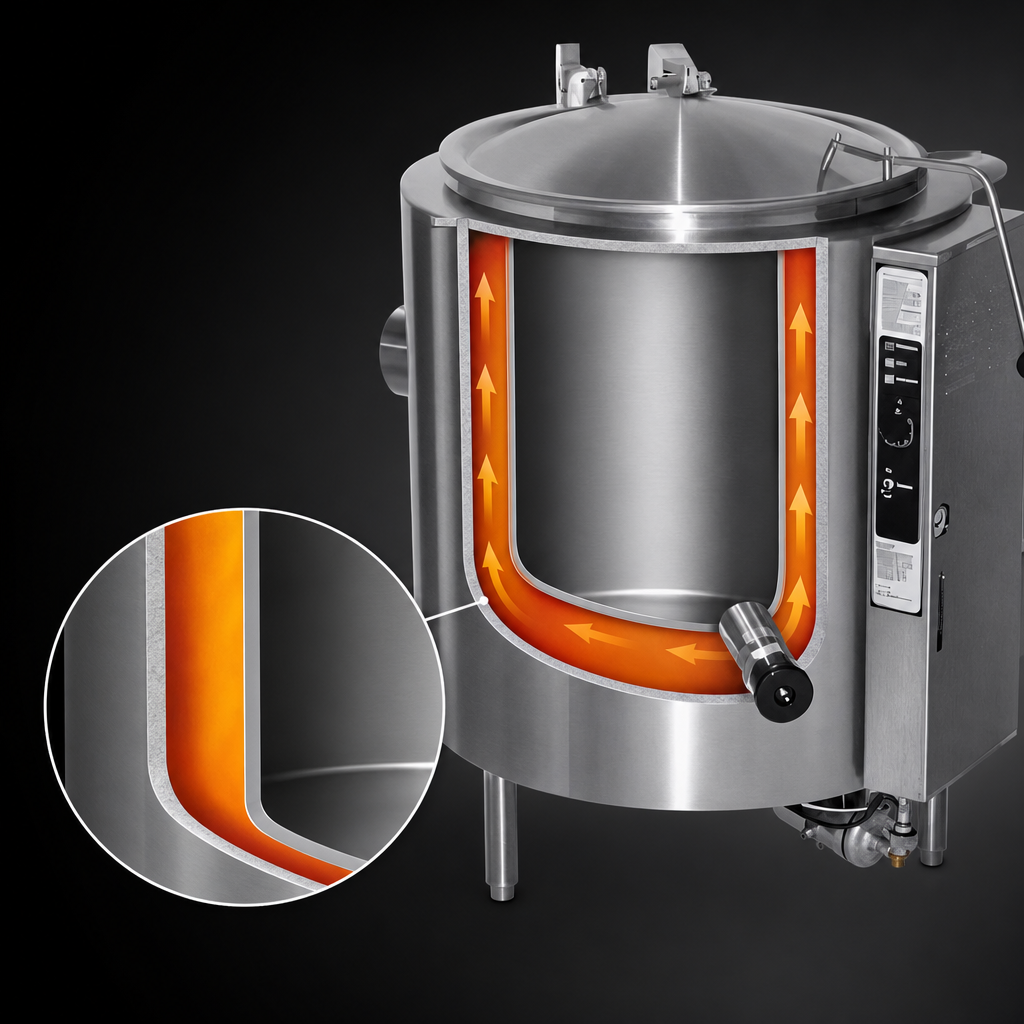

- 2/3 steam jacket (bottom & side) rated at 30 PSI for 150 – 270 °F cooking range
- 145,000 BTU burner with electronic ignition & standing pilot for dependable start-ups
- Food zone of polished 316 SS resists salt & acid corrosion better than 304 SS
- Stainless exterior shell with fiber-batt insulation keeps surfaces cool & saves energy
- Counter-balanced power-assist cover (#51 actuator) holds any position effortlessly
- 2 in. sanitary tangent draw-off valve with heat-safe handle & ¼ in. perforated strainer
- Front control panel with thermostat, pressure gauge, power & status indicators
- Builtin faucet mounting bracket simplifies single or double pantry filler installation
- Adjustable stainless bullet feet level the kettle on uneven floors
- ASME stamped, CSA Star & Flame listed, NSF certified, Made in USA
Consistent, safe performance
The thermostat cycles the burner on/off to maintain your set point, while safety devices— low-water cut-off, pressure limit control and relief valve—protect the operator and the equipment. Outer insulation retains heat, keeping the exterior “touch-cool” during extended cooks.
Technical specifications
| Capacity | 100 gal / 378 L |
|---|---|
| Jacket coverage | 2/3 (bottom & side) |
| Jacket rating | 30 PSI (ASME stamped) |
| Heat source | Natural or LP gas, 145,000 BTU/hr |
| Gas connection | ½ in. NPT – 4.5 in. W.C. NG / 11 in. W.C. LP (min.) |
| Electrical | 115 V, 1 ph, 60 Hz (controls only) |
| Interior material | 316 stainless steel, 180-grit polished |
| Exterior material | Stainless steel sheathing with fiber insulation |
| Standard fittings | 2 in. TDO valve, ¼ in. perforated SS strainer, faucet bracket |
| Cover | Stainless, counter-balanced power assist |
| Certifications | CSA Star & Flame, NSF, Made in USA |
What’s included
- Groen AH/1-100 stationary floor kettle
- Power-assist stainless cover (installed)
- 2 in. tangent draw-off valve with ¼ in. perforated SS strainer (installed)
- Factory-charged, self-contained steam system
- Owner’s manual & Groen limited warranty
Need basket inserts, gallon etch marks or other accessories? Our team can configure a Groen solution tailored to your kitchen.
