Groen 144061 Steam Kettles
Description

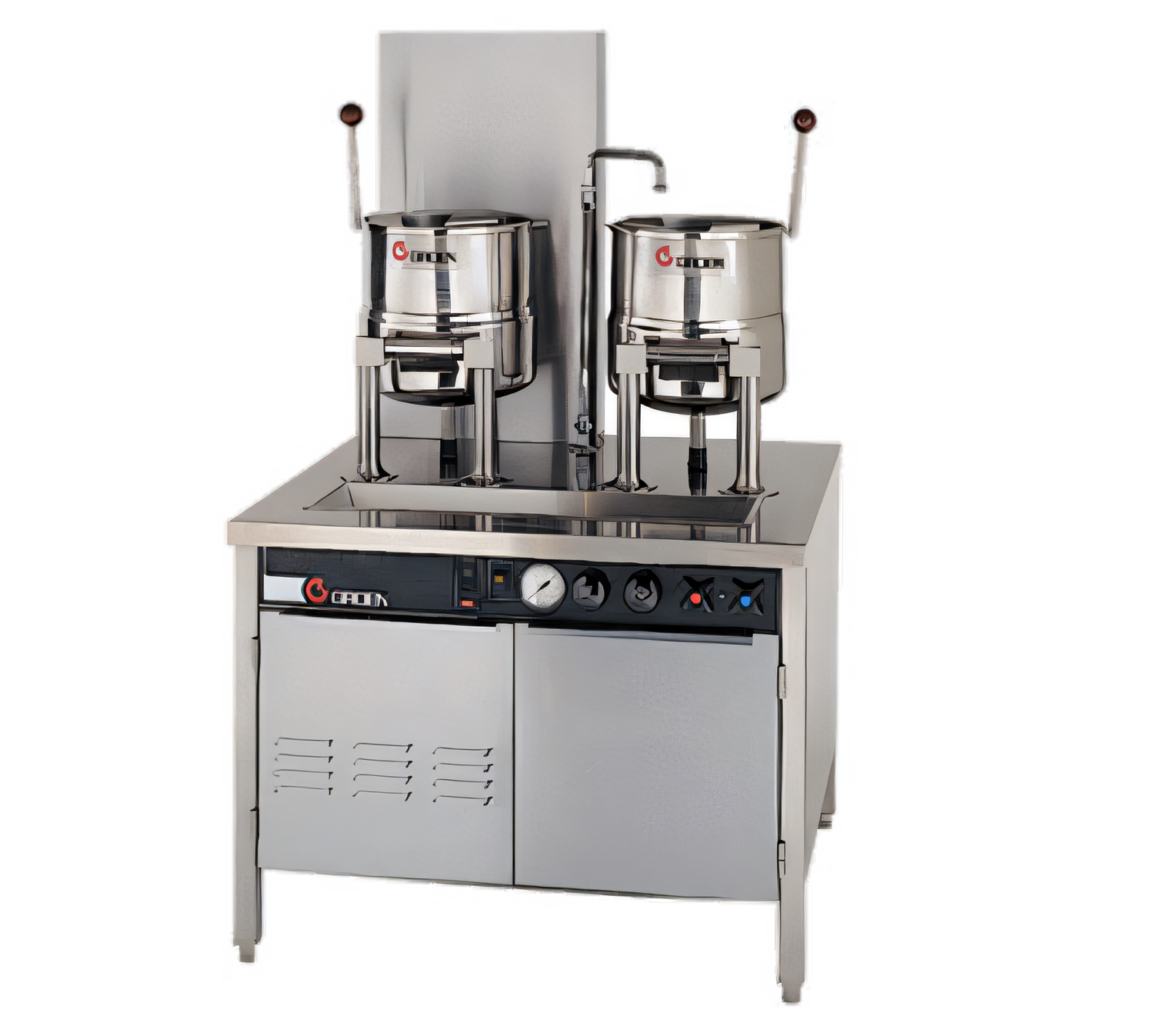

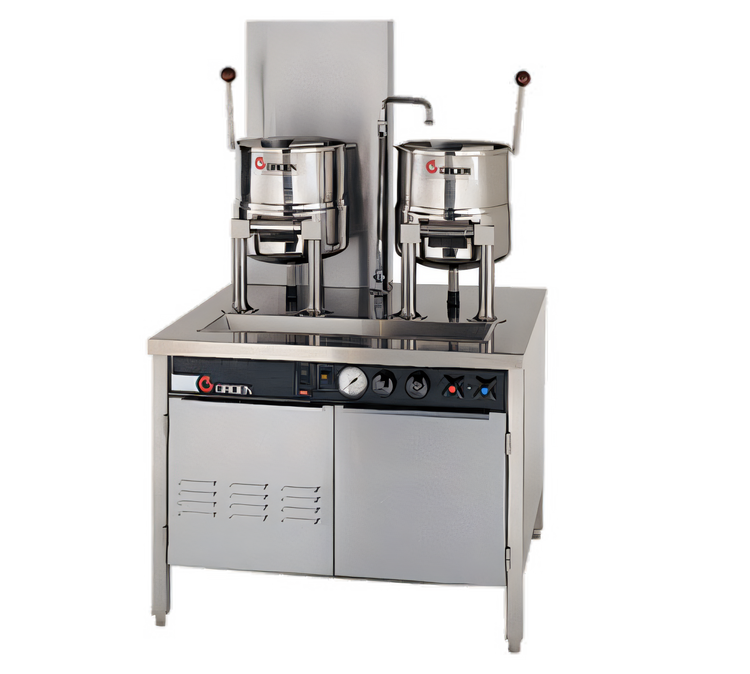

Groen HyPlus™ Twin 20 Qt Tilting Kettle Cabinet
Model (2)CTDC/3-20-SG • 200 000 BTU/hr Gas Boiler • UL & NSF ListedCombine the versatility of two 20-quart steam-jacketed kettles with the muscle of an integrated 200 000 BTU/hr gas boiler—all in a 36 inch, all-stainless cabinet. Perfect for high-volume kitchens that need reliable, on-demand steam power for soups, sauces, reductions and more.
Highlights
- Two 20 qt (19 L) 2/3-jacketed stainless steel kettles—40 qt total working capacity.
- Hand-tilt design with tubular support arms for effortless, controlled pouring.
- Triple-reinforced rim with “Butterfly” lip reduces drips and resists abuse.
- Cabinet-mounted gas steam boiler delivers approx. 10 PSI steam to kettles.
- Electronic ignition and automatic blow-down extend boiler life and reduce scale.
- Flush-mounted 5 inch drain trough/sink with removable anti-splash screen.
- Swing-spout faucet (hot & cold) plus steam trap included—ready to plumb & pour.
- Adjustable bullet feet (front) and flanged feet (rear) for easy leveling & anchoring.
- All-304 stainless construction, #3 cabinet finish & high-buff kettle exterior.
- ASME-code boiler & kettles; UL gas certification; NSF sanitation compliant.
Performance You Can Count On
- Input: 200 000 BTU/hr (3.7 boiler HP) – 60 % efficient, 120 000 BTU/hr output to product.
- Low-water cut-off and pop safety valve automatically protect the boiler.
- Boiler drains automatically when powered off to help keep sediment out.
- Kettles rated up to 55 PSI for rapid recovery and dependable cooking performance.
Technical Specifications
| Capacities | 2 × 20 qt (19 L) kettles |
|---|---|
| Jacket Coverage | 2/3 steam jacket |
| Tilt Mechanism | Manual hand-tilt with support arm |
| Boiler Input / Output | 200 000 BTU/hr input • 120 000 BTU/hr output |
| Boiler Horsepower | 3.7 BHP |
| Operating Steam Pressure | Approx. 10 PSI to kettles (boiler rated 15 PSI; kettles rated 55 PSI) |
| Gas Type / Pressure | Natural: 5–14 "W.C." (operating 3.5") Propane: 11–14 "W.C." (operating 10") |
| Utility Connections |
• Gas: ½" NPT • Cold Water: ½" NPT (boiler & faucet) • Hot Water: ⅜" NPT (faucet) • Drain: 1¼" NPT free-venting • Electrical: 115 V / 60 Hz / 1-ph / 15 A |
| Dimensions (W × D × H) | 36" × 30.6" × 57" (914 × 778 × 1448 mm) |
| Elevation Rating | 0 – 2000 ft (610 m) |
| Certifications | ASME, UL, NSF, AGA design certified gas |
| Country of Origin | Made in the USA |
Installation Notes
- Minimum clearances from combustibles: Right 2", Left 4", Rear 6".
- Single 1¼" vented drain services boiler, kettles and trough.
- ½" NPT steam power take-off provided for additional equipment.
Warranty & Support
Covered by Groen’s limited 1-year parts & labor warranty (2 000 operating hours). Extended coverage available at time of purchase. Nationwide network of authorized service agents – tech support hotline: 888-994-7636.
