Crathco-UNIC  |  UNIC Espresso Equipment  |  SKU: TDSTLC

Crathco-UNIC TDSTLC UNIC Espresso Equipment Espresso Machines

$26,675.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Brochure Warranty Installation checklist Installation terms
Related Searches
Beverage Equipment Beverage Equipment Commercial Coffee Makers Commercial Espresso Machines Ice Machines & Beverage Equipment Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

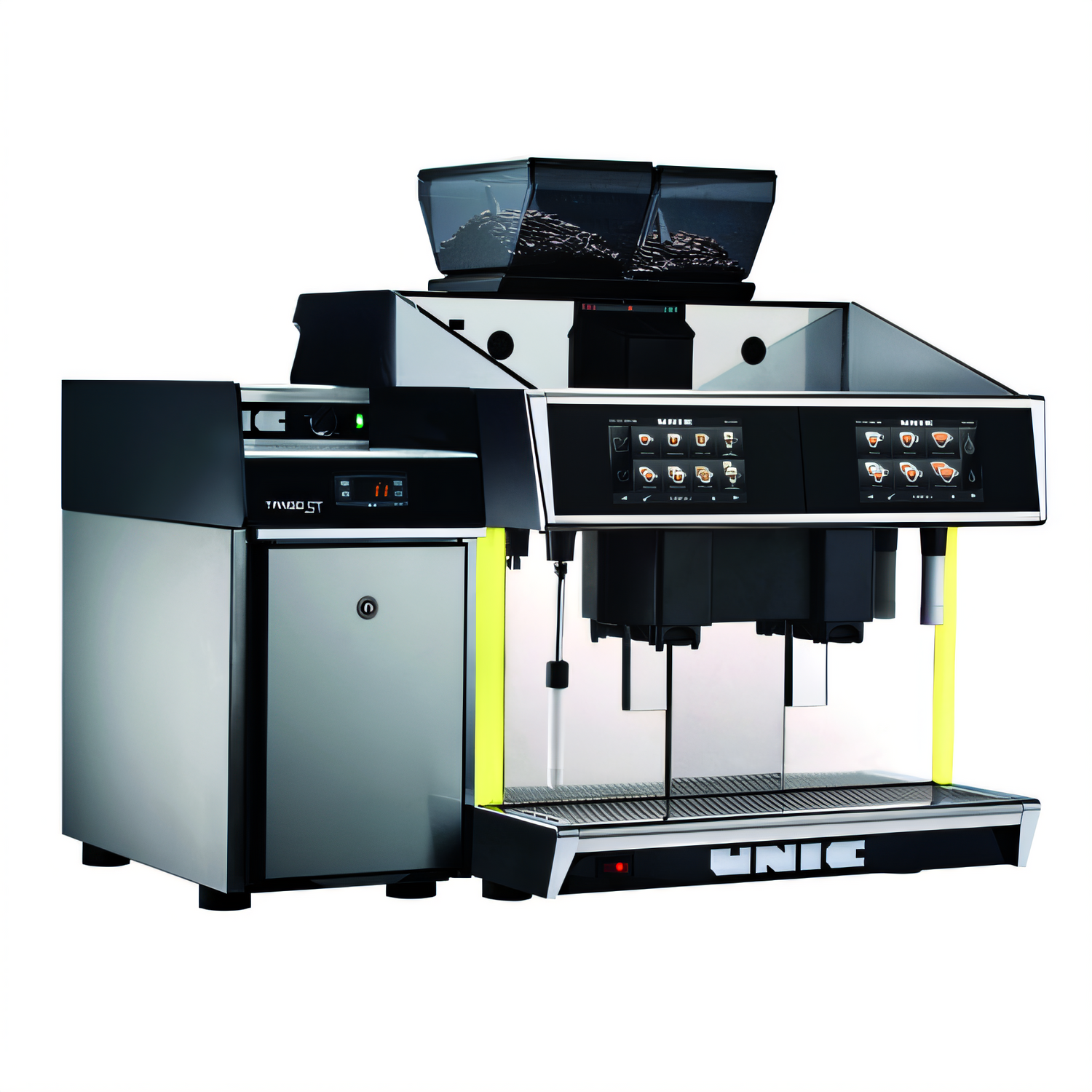

UNIC Tango ST Duo Milk Super-Automatic Espresso Machine

Model LV602939 · 2-Group · 1-Step Milk Delivery

Built for cafés, bakeries and high-volume hospitality venues, the Tango ST Duo Milk pairs UNIC’s patented Dual Infusion Chamber with one-touch milk delivery to pour barista-quality drinks at the tap of an icon. Consistent, fast and remarkably easy to operate, it keeps your beverage line moving while keeping quality in the cup.

Why you’ll love it

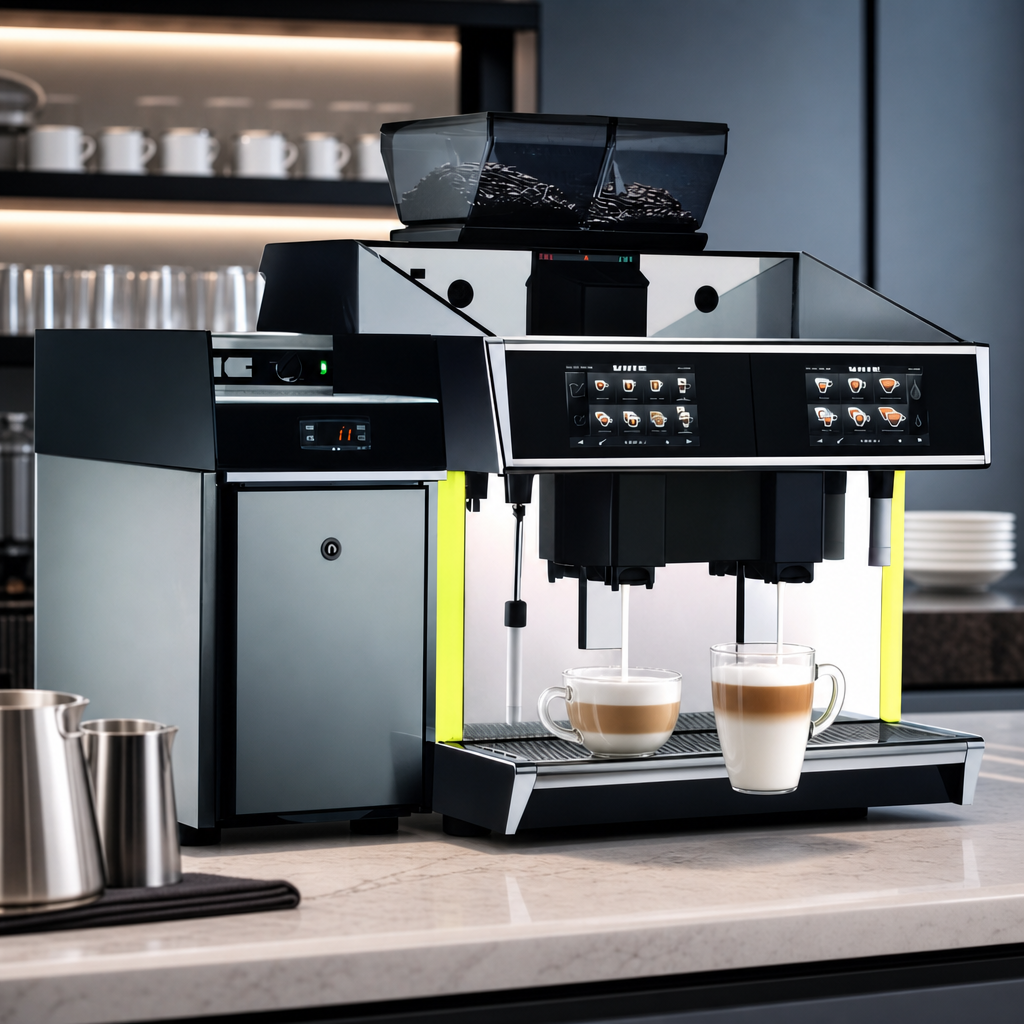

  • True 1-step beverage preparation—espresso & milk are delivered directly into the cup.

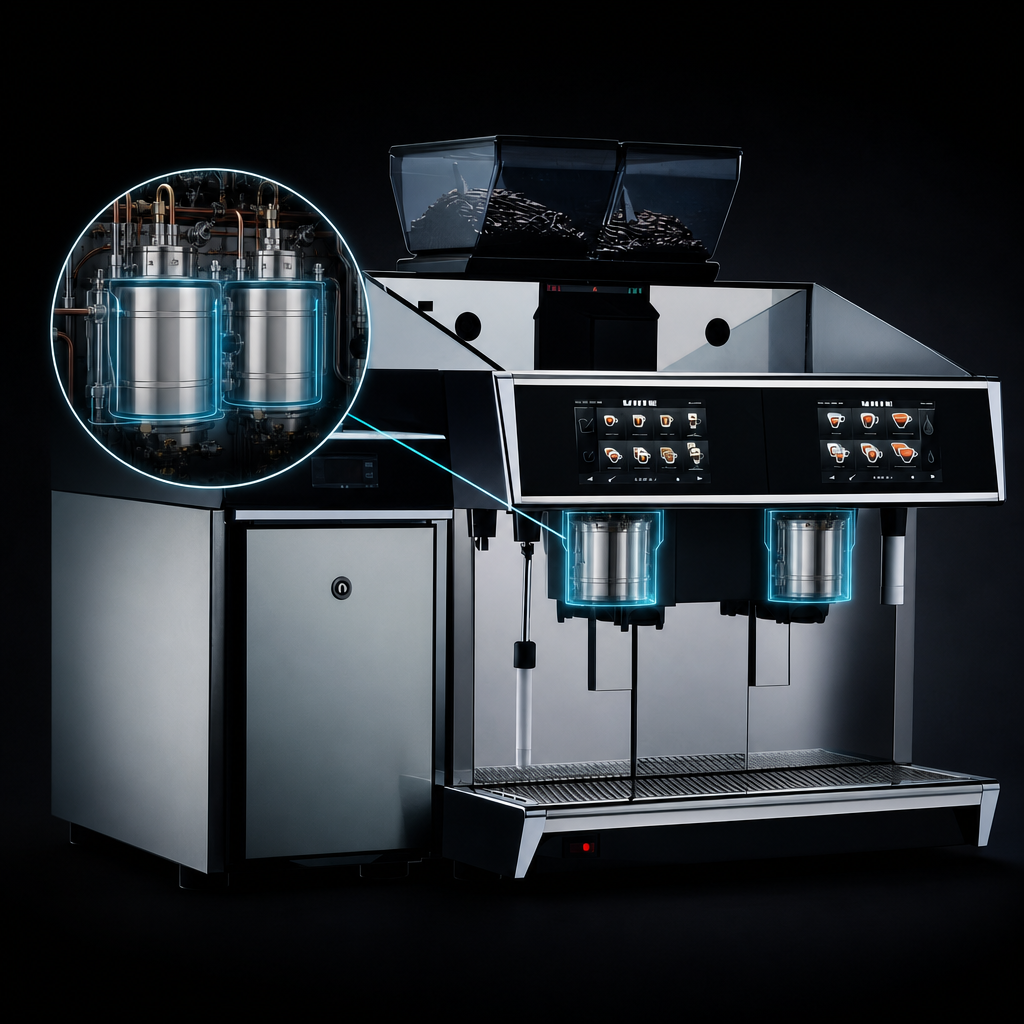

  • Produces up to four drinks at once thanks to two independent stainless-steel brew groups.
  • 48 customizable drink icons on a 7 in. color touchscreen; copy or back-up recipes via USB.
  • SteamAir wand with auto-foamer for separate pitchers or recipe development.
  • (2) 3.75 lb hoppers feed 80 mm Mahlkönig grinders for volumes > 48 lb coffee/week.
  • Twin 6.5 L boilers (steam & coffee) eradicate recovery time during rush periods.
  • 60,000-cycle piston seals, rotary vane pump and steel framework for serious commercial durability.
  • Smart extras: day/night energy mode, drink counter, oversized waste bin with overfill safeguard.

Included accessories

  • (2) Additional milk-foam dispensers for cleaning cycles
  • (100) Cleaning tablets  •  (120) Rinza® milk-system tablets
  • (1) Tube Superlube food-grade lubricant
  • Technician & operator control cards + USB recipe card
  • Water (3/8 in. NPT) & drain tubing
  • Adjustable LED accent lighting
Milk refrigerator not included. Select a compatible UNIC Tango STP Fridge or other chilled milk source to enable automatic milk service.

Technical specifications

Espresso groups 2 (Dual Infusion Chambers)
Operation Super-automatic  •  1-step milk
Bean hoppers (2) × 3.75 lb with shut-off gates
Grinders (2) 80 mm Mahlkönig flat burrs
Boilers (2) × 6.5 L – independent steam & coffee
Pump Full-size rotary vane
Programmable recipes 48 icon-based, USB transferable
Infusion parameters 9 adjustable (grind, dose, tamp, temps, pre-infusion, etc.)
Electrical 208 V / 60 Hz / 1-ph  •  6,120 W  •  30 A (plug not included)
Water connection 3/8 in. NPT, 30 GPH @ 20 psi min; ≤ 3 GPG hardness recommended
Drain 1.25 in. ID open gravity drain within 4 ft
Dimensions (W × D × H) 34 in. × 24 in. × 33 in.
Net / Shipping weight ≈ 235 lb / 290 lb
Certifications cCSAus, NSF

Site requirements

  • Dedicated 208 V, 30 A, single-phase circuit within 4 ft of the machine.
  • Cold water supply meeting quality specs above; filtration/softening required if > 3 GPG hardness.
  • Open gravity drain (1.25 in. ID) within 4 ft.
  • Ø 2.5 in. counter pass-through hole for power, water and drain lines.
  • Minimum 3 in. clearance above bean hoppers for refilling.
  • Installation by a UNIC-authorized technician is required to activate warranty.

Warranty: 1 year parts & labor (USA). Full terms ship with unit.

Features & Specs

Manufacturer

Crathco-UNIC

Brand_name

UNIC Espresso Equipment

Certifications

NSF, cCSAus

Height

32.0in

Width

33.0in

Depth

24.0in

Shipping Weight

315.0lbs

Operation

semi-automatic

Group Head(s)

2 Group

Specifications

UNIC Espresso Equipment - (LV602939) Tango ST Duo Milk Espresso Machine (MILK REFRIGERATOR NOT INCLUDED - PLEASE SELECT FROM REFRIGERATOR OPTIONS BELOW), 2 group, super automatic, 1-step, with automated in-the-cup milk drink delivery, with SteamAir wand, automated milk foamer, upward of 48 lbs/week capacity, (2) 6.5 liters each boiler capacity, (2) 3.75 lbs each bean hopper capacity, (2) grinders with 80mm Mahlkonig burrs, (2) 60,000 cycle piston seals, (2) independent stainless steel brewing chambers, (48) programmable & customizable icon recipes, touch screen display, (9) infusion parameters, temperature regulation for steam, coffee, & group, independent steam & coffee boilers, (2) telescopic dismountable double coffee spouts, telescopic programmable hot water dispenser, large waste bin with overfill safeguard, day/night mode, drink counter, cup warmer, full sized rotary vane pump, stainless steel panels & steel framework, includes: (2) additional milk foam dispenser for cleaning cycles, (100) cleaning tablets, (120) Rinza Milk Cleaner Tablets, (1) tube Superlube, technician & operator control cards, USB card, plumbing tubes for water (3/8" NPT) & drain line, adjustable LED lighting, 208v/60/1-ph, 6120 watts, 30 amps, (plug not included), cCSAus, NSF
