Description

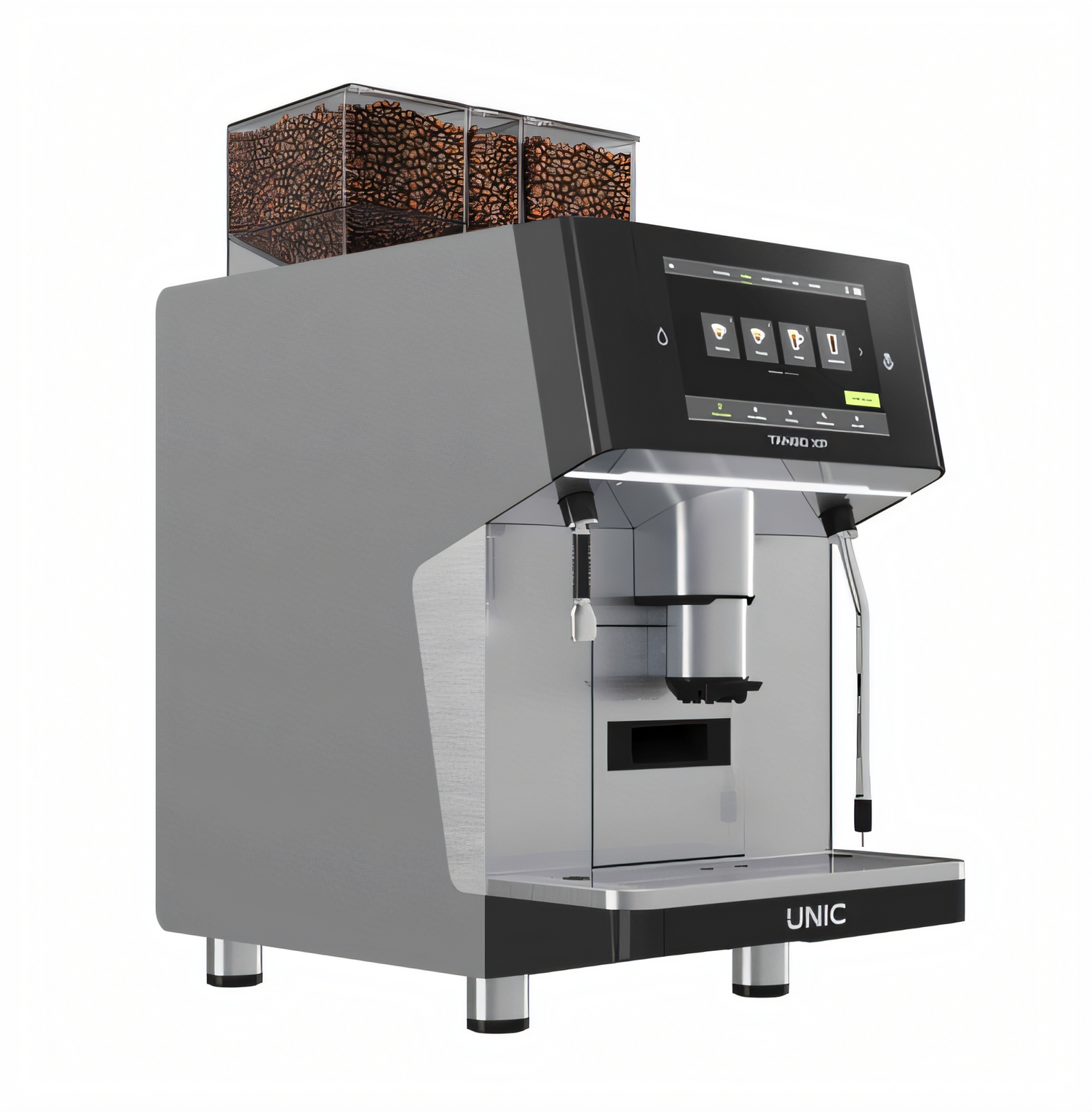

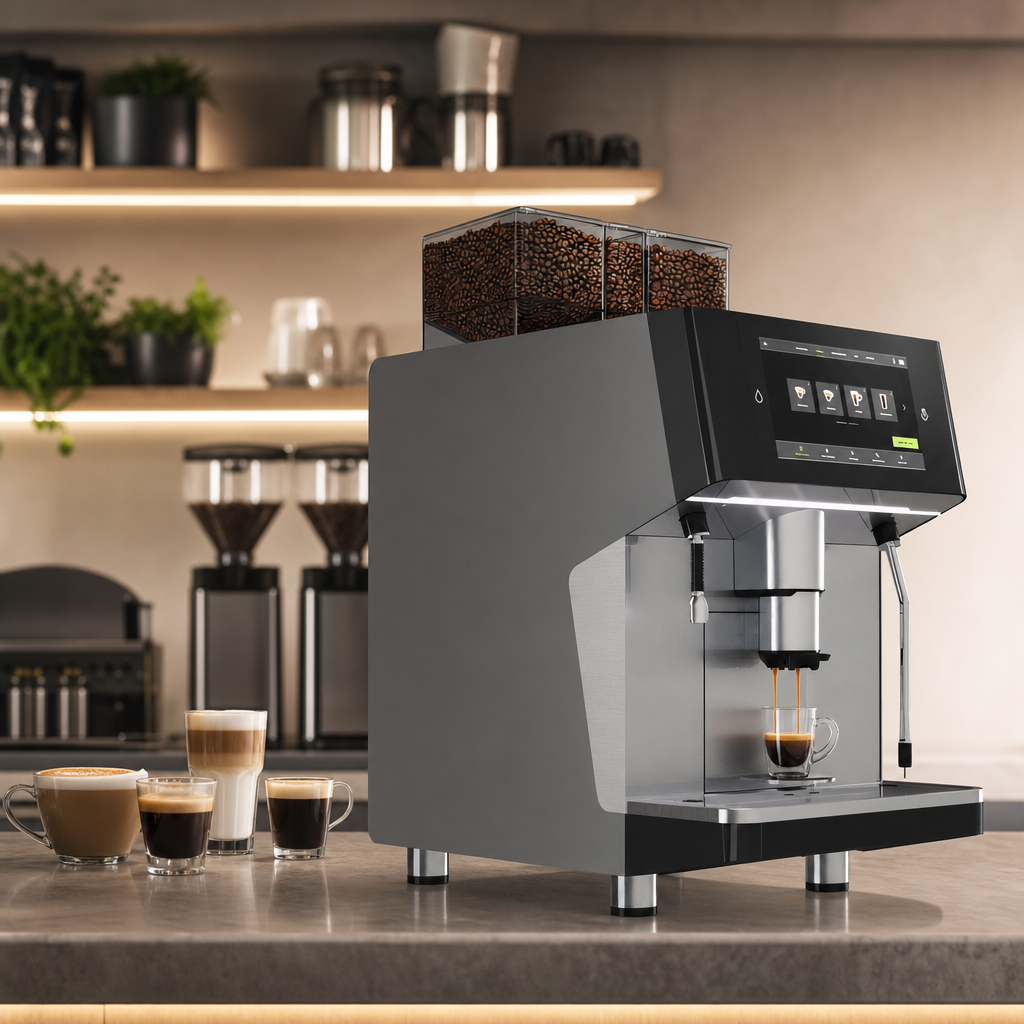

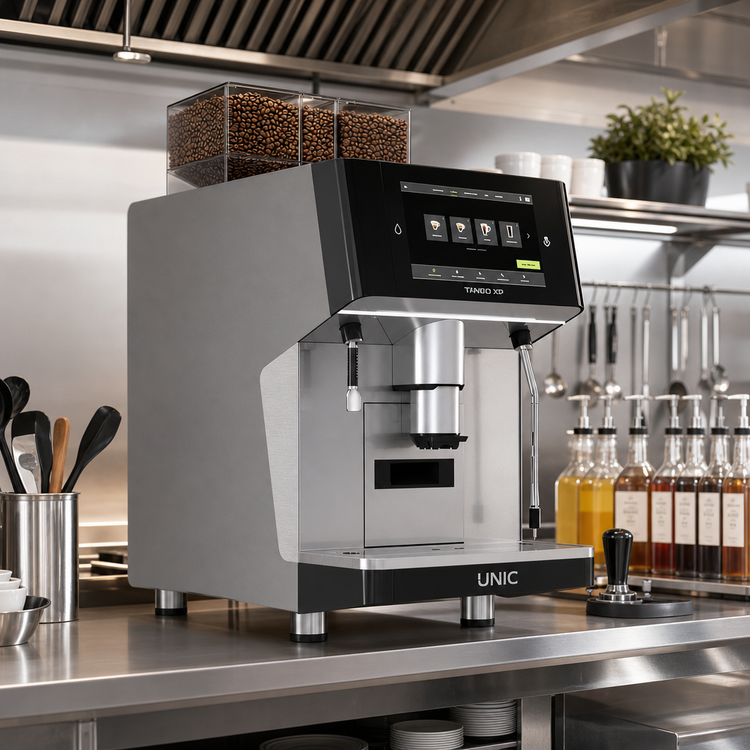

UNIC Tango XP SOLO Super-Automatic Espresso Machine
Model LV604013 | UTANGOXP130S8 | 1-Group with SteamAir Auto-FrotherElevate high-volume beverage service with the Tango XP SOLO—UNIC’s newest one-group, two-drink super automatic that puts true barista precision on a 10-inch touch screen. Three grinders, 48 icon-driven recipes, and the patented TANGO® brew group deliver repeatable, coffee-shop quality in seconds while the programmable SteamAir wand finishes milk to perfection. Built for cafés, bakeries, hotels, and corporate kitchens that refuse to compromise on taste or speed.
Performance & Productivity
- Produces 2 drinks simultaneously from a single brew group—ideal for the morning rush.

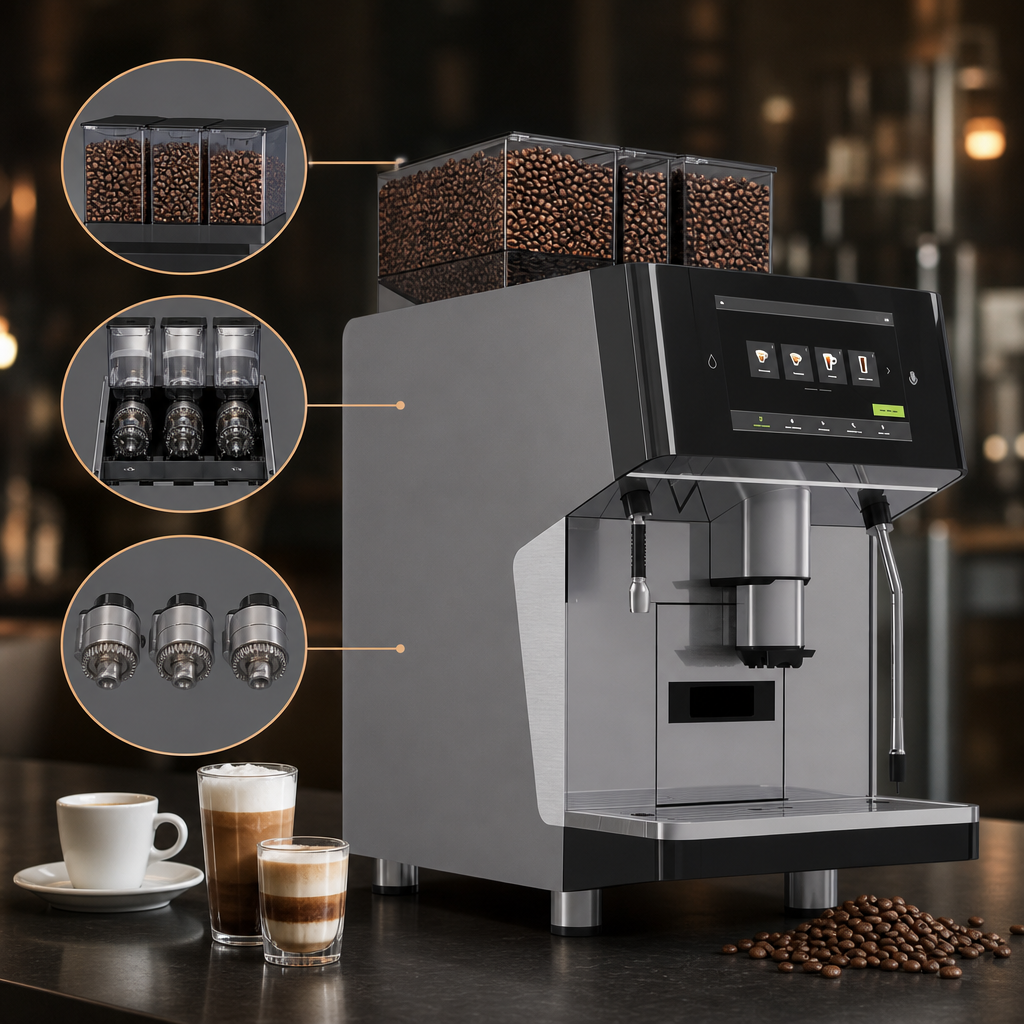

- 3 high-precision grinders with 83 mm flat burrs and individual bean hoppers • (2) 2.2 lb / 1 kg hoppers • (1) 1.5 lb / 0.7 kg hopper.
- Patented TANGO® stainless-steel brew chamber with 60,000-cycle piston seals for long service life.
- SteamAir automatic wand textures milk consistently for lattes, cappuccinos, or hot chocolate.
- 48 programmable recipes + 8 adjustable infusion parameters for full control of dose, tamp, pre-infusion, and temperature.
- 10 inch capacitive touch screen—swipe, tap, and update drinks or graphics in seconds.
- Height-adjustable double coffee spout (3 "–7.9 ") fits demitasse up to large to-go cups.
- Integrated day/night mode, drink counter, cup warmer, and large waste bin with overfill safeguard.
Included with Your Machine
- (100) UNIC cleaning tablets (auto-clean cycle ready)
- USB drive for recipe backup / firmware updates
- Factory plumbing tubes for water & drain connection
- Full-size rotary vane pump (pre-installed)
- Kit of raised 3 inch feet (PNC 871041)
- User, installation & maintenance documentation
Technical Specifications
| Brew groups | 1 (delivers 2 drinks at once) |
|---|---|
| Boilers | Independent coffee & steam boilers – 1.8 L each, PID controlled |
| Steam system | SteamAir automatic frothing wand + manual steam tap |
| Recipe capacity | 48 fully customizable drink icons |
| Hourly output* | Espresso 40 ml: 220 cups | Lungo 100 ml: 150 cups | Hot water: 30 L |
| Power | 208–240 V / 60 Hz / 1-ph, 5.2 kW, 22 A, NEMA L6-30P |
| Dimensions (W × D × H) | 15 ⅝ " × 25 ⅓ " × 31 ⅞ " (398 × 643 × 810 mm) |
| Net weight | 196 lb (89 kg) |
| Color / finish | Matte dark grey metal panels with stainless accents |
| Certifications | UL, NSF, CE |
*Factory test values. Output varies with recipe, grind, and ambient conditions.
Site Requirements (Summary)
- NEMA L6-30R receptacle within 4 ft of machine (240 V / 30 A / 60 Hz)
- Cold-water line: 3 ⁄ 8 " BSP male with shut-off valve, 45–90 psi (3–6 bar)
- Open gravity drain, 1.25 " minimum, within 4 ft
- 2.5 " counter access hole for power, water & drain routing
- Professional installation by a UNIC Authorized Service Agent is required to activate warranty.
Backed by UNIC’s 1-year parts & labor warranty. Full terms available at the UNIC Service Center.
