Crathco-UNIC TANGO XP DUO 2-STEP UNIC Espresso Equipment Espresso Machines

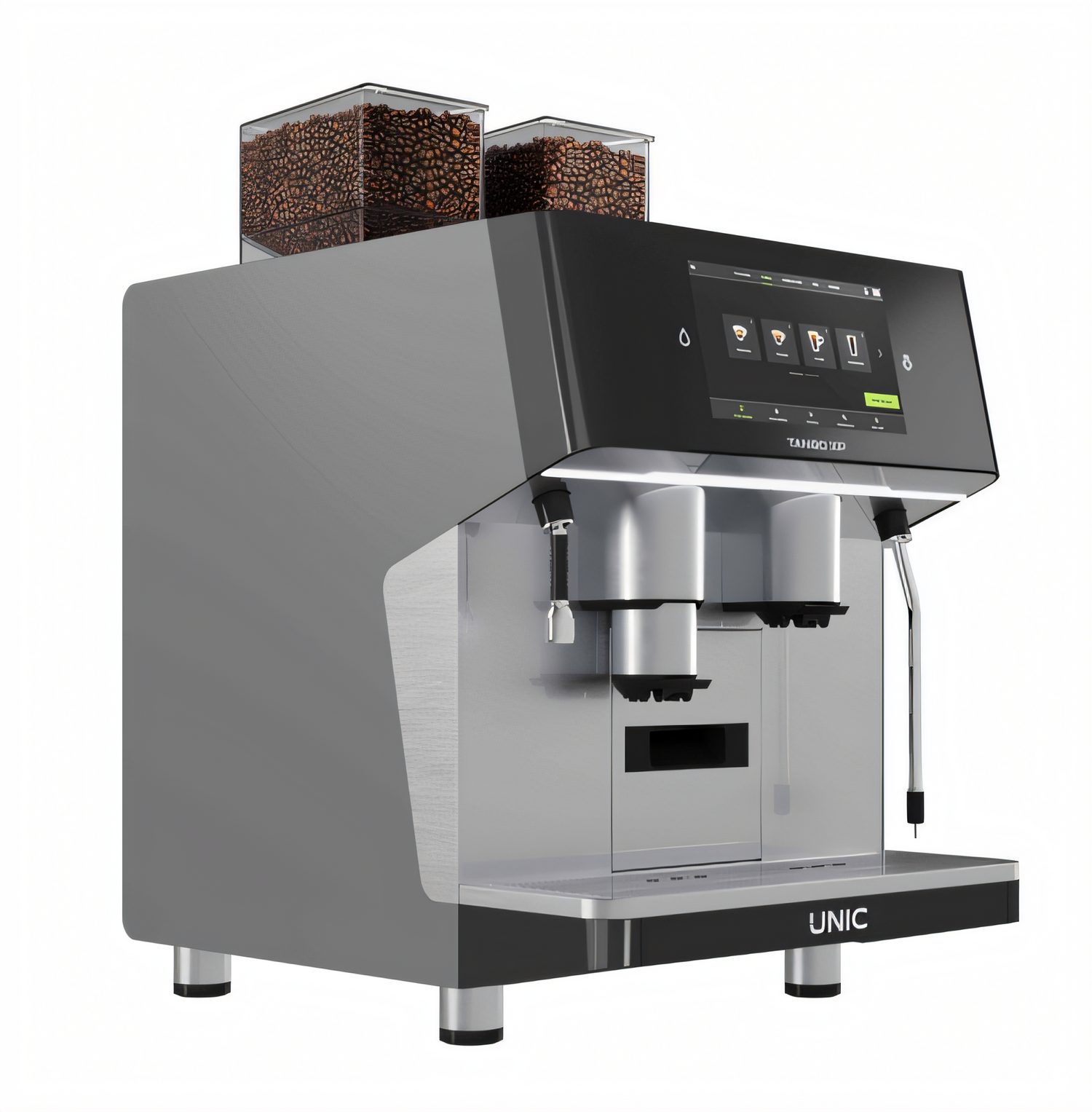

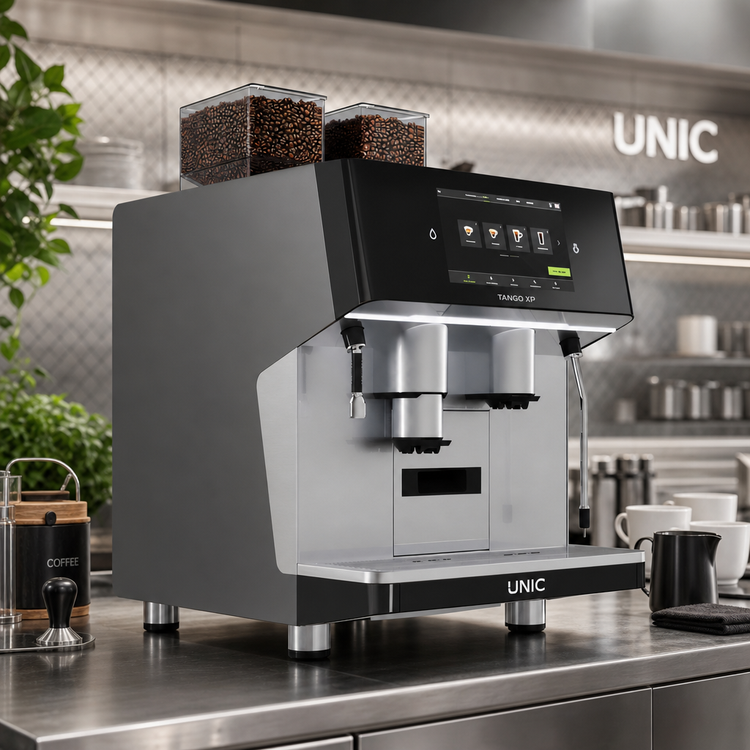

UNIC Tango XP Duo – 2-Group Super-Automatic Espresso Machine

Meet the next generation of high-volume espresso technology. The UNIC Tango XP Duo combines a patented twin-piston brew group, dual 83 mm grinders and an intuitive 10 inch touch screen to deliver barista-quality coffee four cups at a time—all while fitting comfortably on a 20 in. counter footprint.

Key advantages at a glance

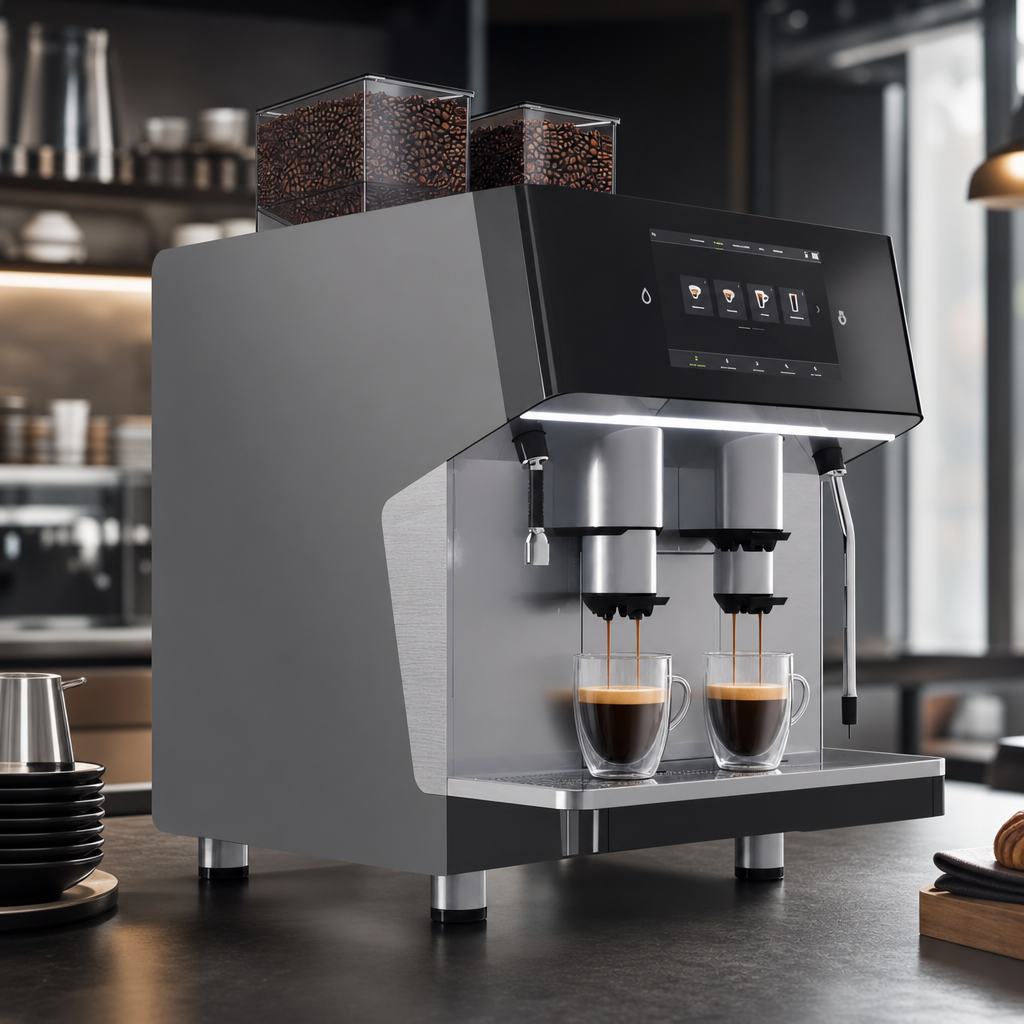

• 2 independent brew groups produce 4 drinks simultaneously.

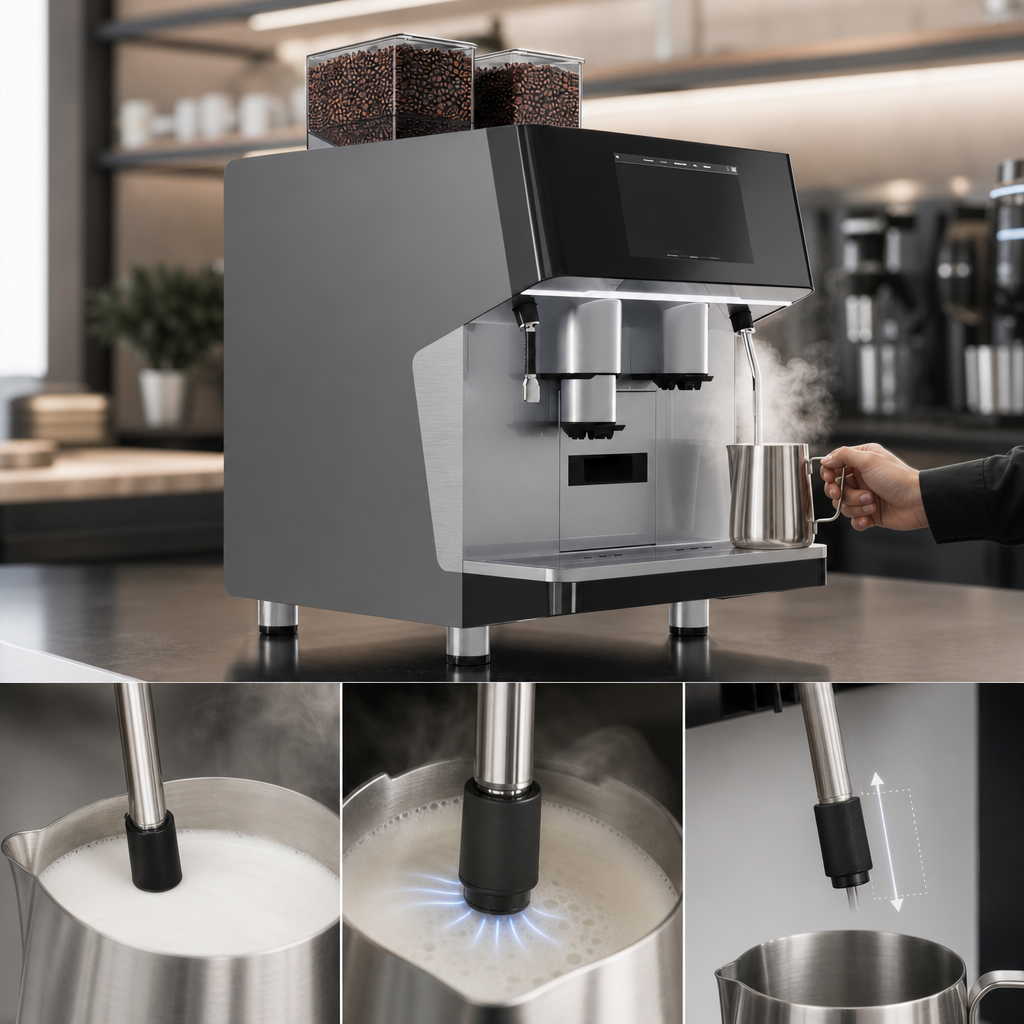

• SteamAir automatic wand textures milk to your programmed temperature & froth level.
• Two 2.2 lb (1 kg) bean hoppers & two 83 mm flat-burr grinders for consistent dosing.
• Patented TANGO® metal brew chambers with 60,000-cycle piston seals for long-term reliability.
• 10 in. colour touch screen with 48 programmable drink icons & 8 infusion parameters.
• Height-adjustable double coffee spouts (3–7.5 in. / 82–200 mm cup clearance).
• Day / Night mode, drink counter & large waste bin with over-fill safeguard streamline operations.
• Automatic cleaning program – 100 cleaning tablets included.
• Rotary vane pump, independent 1.8 L steam boiler & temperature-controlled brew groups.
• Sleek aluminium & stainless panels in a durable matte dark-grey finish.

What’s in the box

• (1) Tango XP Duo espresso machine – pre-wired with NEMA L6-30P plug
• (100) UNIC cleaning tablets
• USB drive for recipe backups & software updates
• Plumbing tubes for water & drain connections
• Raised 3 in. feet kit (PNC 871041)
• Operator & installation documentation

Performance you can count on

• Espresso 40 mL: up to 440 cups / hour
• Lungo 100 mL: 300 cups / hour
• Hot water: 30 L / hour

Technical Specifications

Installation requirements

• Dedicated 208–240 V / 30 A receptacle (within 4 ft).
• Cold-water supply with shut-off valve & filtration (within 4 ft).
• Open gravity drain (1.25 in. minimum) reachable by supplied hose.
• 2.5 in. counter access hole for utilities.
• 2 lb of whole-bean coffee, milk & cups available for calibration on installation day.

Full site checklist supplied with order confirmation. Additional travel or remedial work is billable to customer if utilities are not ready.

Why choose the Tango XP Duo?

• Speed & consistency – Serve rush-hour volumes without extra staff.
• Menu flexibility – Easily programme seasonal beverages and save profiles to USB.
• Low cost of ownership – Metal brew group, 60 k cycle seals & self-diagnostics reduce downtime.
• Support you can trust – Backed by UNIC’s nationwide service network & 1-year parts/labour warranty.

Specifications are subject to change without notice. Images for illustration only.
