Description

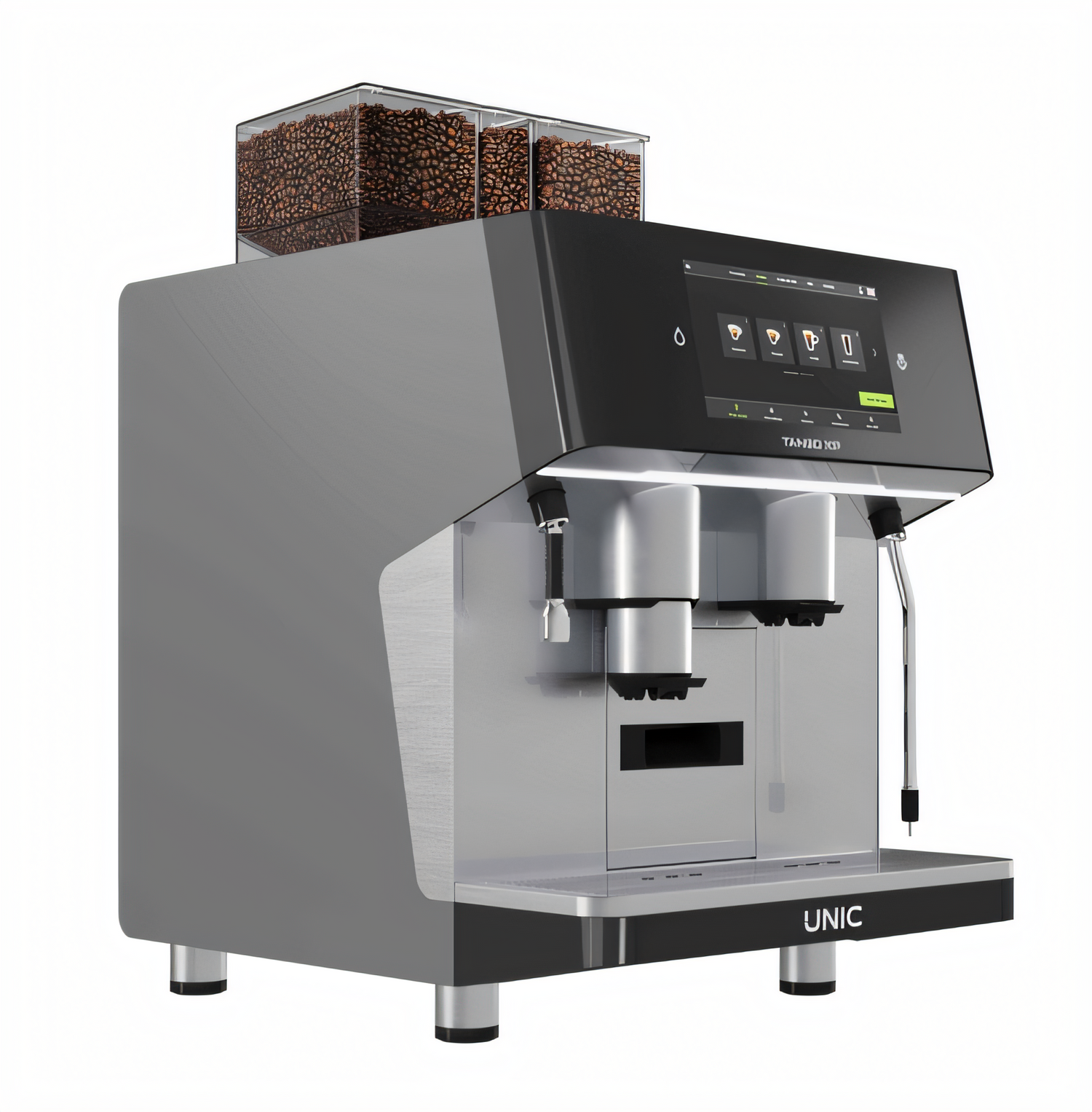

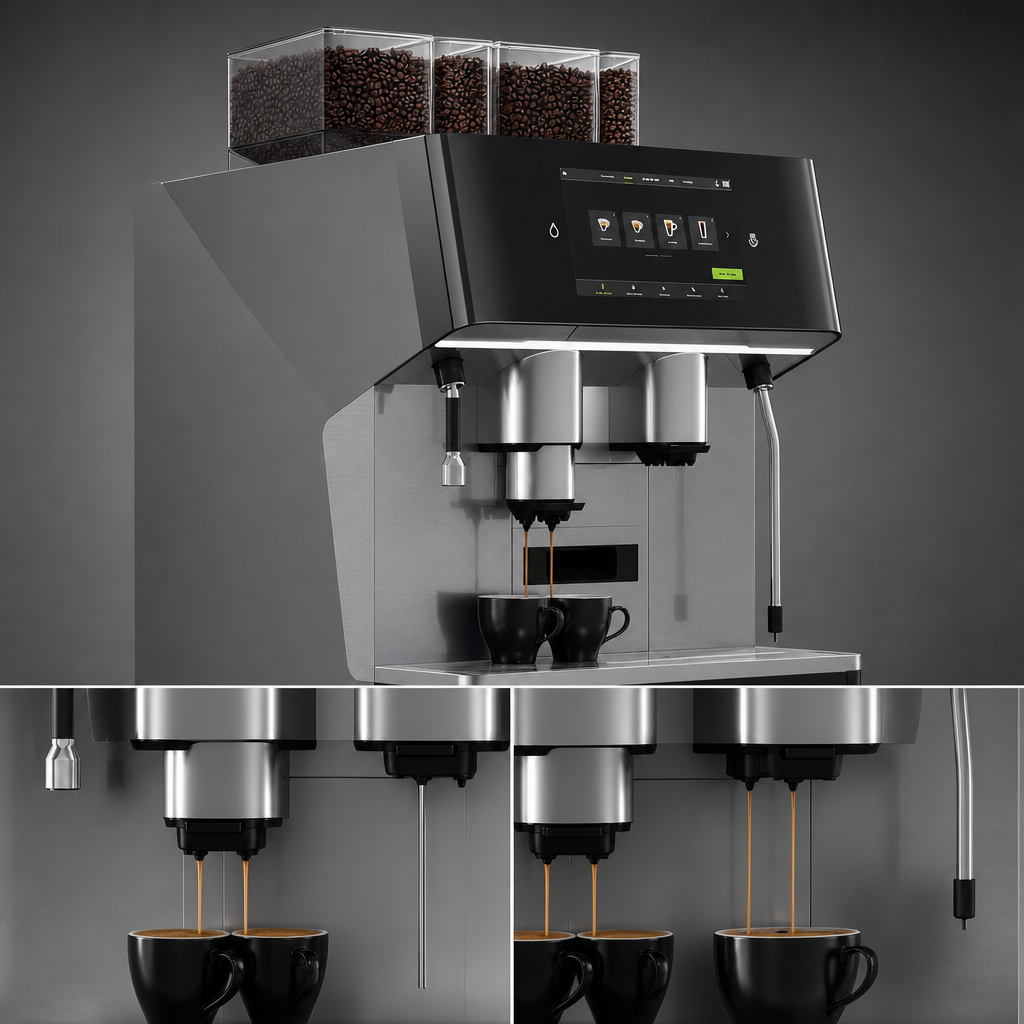

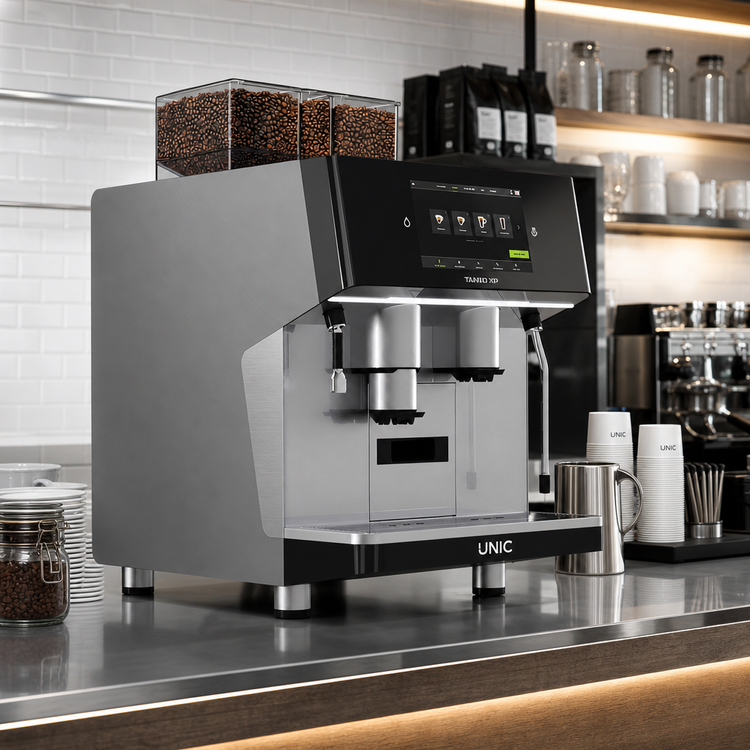

UNIC Tango XP DUO – 2-Group Super-Automatic Espresso Machine
Ref 604009 | SteamAir 2-Step Milk | Mat Dark Grey | UL & NSF ListedBrew bar-quality espresso drinks at record speed. The Tango XP DUO delivers UNIC’s patented TANGO® brewing technology in a compact two-group super-automatic that can simultaneously produce four beverages while texturing milk with the programmable SteamAir wand. With three precision grinders, a 10-inch touchscreen and 48 fully-customisable recipes, it is the ultimate solution for high-volume cafés, bakeries, restaurants and self-service venues that refuse to compromise on cup quality.
Highlights
- Two independent brew groups with 60 000-cycle stainless-steel piston seals

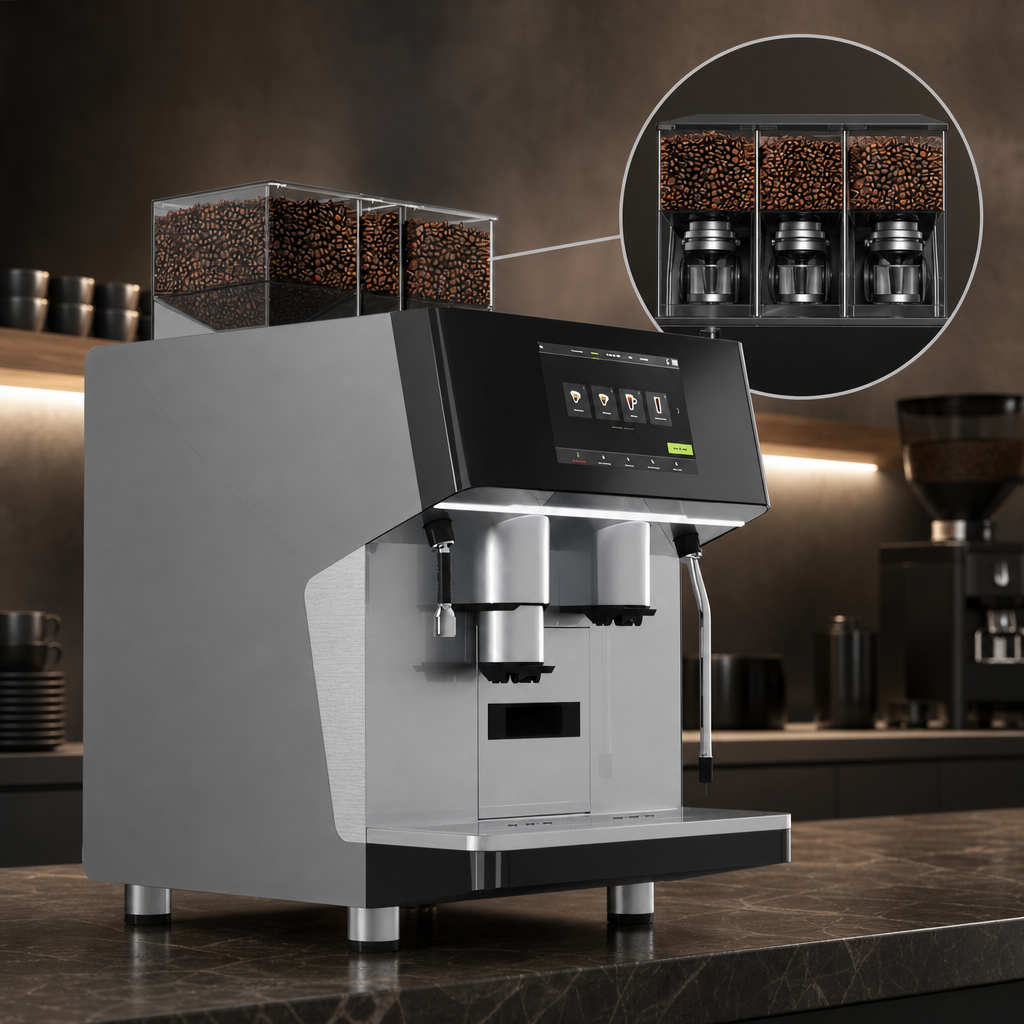

- Three 83 mm flat-burr grinders fed by (2) 1 kg / 2.2 lb and (1) 0.7 kg / 1.5 lb bean hoppers
- Produces up to 440 espressos per hour and dispenses four drinks at once
- SteamAir auto-frothing wand delivers barista-quality milk foam at the touch of a button
- 10" colour touchscreen with 48 drink icons & eight adjustable infusion parameters
- Height-adjustable double coffee spouts (3"-7.5") for everything from demitasse to tall to-go cups
- Programmable hot-water outlet for tea & americanos
- Automatic self-cleaning cycles and large waste bin with over-fill safeguard
- Day/Night energy-saving mode and onboard drink counter for operational insight
- Full-size rotary vane pump and independent 1.8 L coffee & steam boilers for unmatched temperature stability
- Durable painted-aluminium & stainless-steel construction in matte dark grey
What’s in the Box
- (1) UNIC Tango XP DUO espresso machine, pre-installed 3" adjustable feet
- (100) Cleaning tablets
- SteamAir milk-wand cleaning tool
- USB drive for recipe back-up & software updates
- Water & drain-line tubing
- Quick-start guide and operator manual
Technical Specifications
| Brew groups | 2 patented TANGO® chambers, dual independent pistons |
|---|---|
| Grinders / Burrs | 3 × 83 mm flat steel |
| Bean-hopper capacity | (2) 1 kg / 2.2 lb + (1) 0.7 kg / 1.5 lb |
| Boilers | Independent 1.8 L coffee boiler & 1.8 L steam boiler |
| Hourly output | Espresso 40 ml: 440 cups • Lungo 100 ml: 300 cups • Hot water: 30 L |
| Display / Interface | 10" colour touchscreen • 48 drink icons • USB up-/download |
| Power | 208–240 V / 60 Hz / 1-phase, 5.2 kW, 22 A, NEMA L6-30P |
| Dimensions (W × D × H) | 19 3/8" × 25 5/16" × 31 7/8" (492 × 643 × 810 mm) |
| Cup clearance | 3"–7.5" (82–200 mm) adjustable |
| Net weight | 227 lb (103 kg) |
| Certifications | UL, NSF, CE |
| Finish | Matte dark grey painted aluminium panels |
Installation Requirements
- Dedicated 208–240 V, 30 A, NEMA L6-30R receptacle within 4 ft (1.2 m)
- Cold-water inlet 3–6 bar (45–90 psi) with 3/8" BSP shut-off valve within 4 ft
- 1.25" open gravity drain within 4 ft
- Water filtration that reduces hardness to 3–5 gpg and chloramines to ≤ 1 ppm is strongly recommended
Professional installation by a UNIC-authorised technician is required to maintain warranty.
Give your customers the consistency they crave and the speed your baristas need—upgrade to the UNIC Tango XP DUO today.
