Crathco-UNIC PBC-1VS Crathco Beverage Coffee Brewers
Description

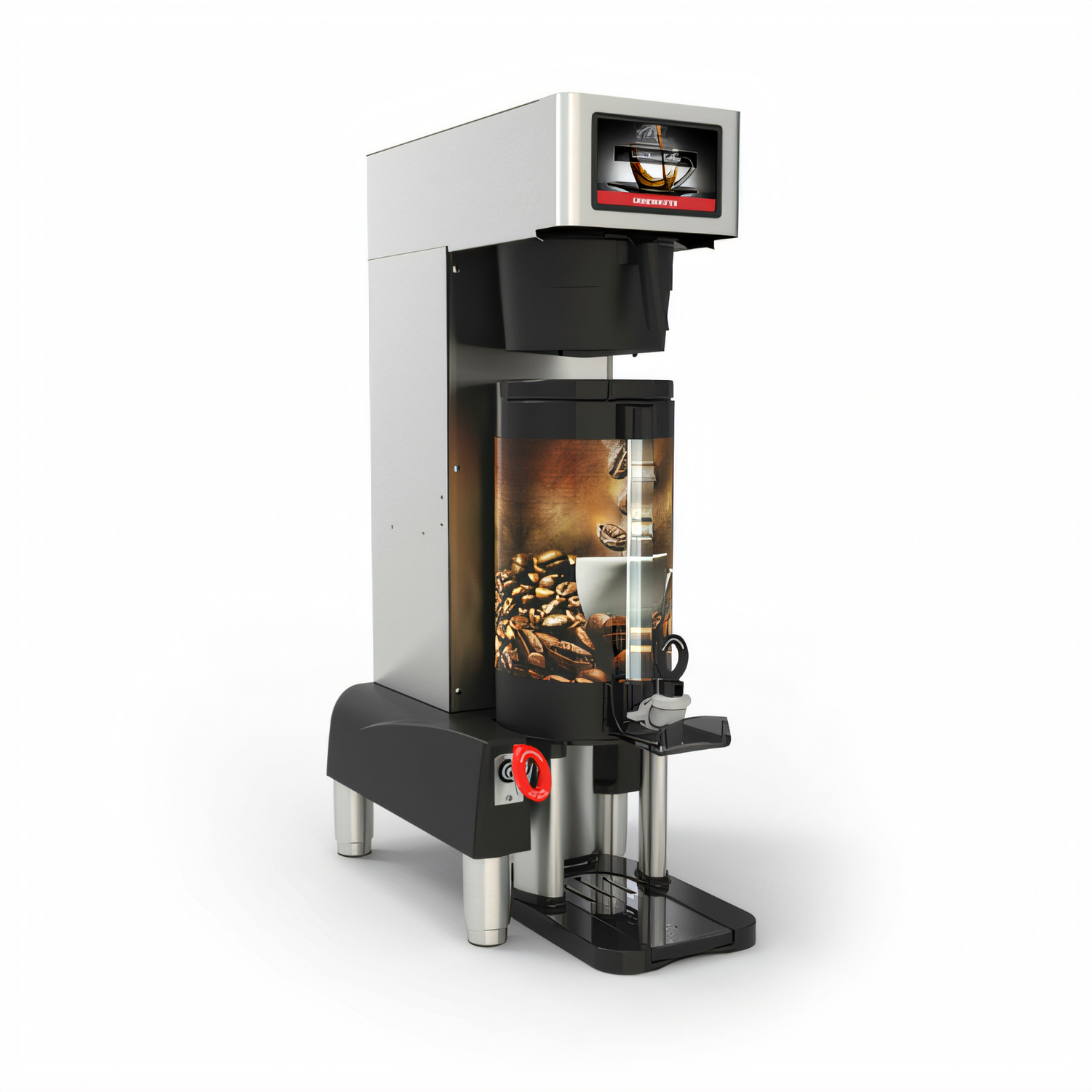

Crathco PrecisionBrew™ Vacuum Shuttle® Brewer — PBC-1VS
Single 1.5 Gallon Brewer with Integrated Stand & Touchscreen ControlDeliver Golden Cup Standard coffee all day long. The Crathco PBC-1VS pairs high-volume capacity with intuitive touchscreen programming and PrecisionBrew™ technology, giving operators total control over time, temperature and pulse-brewing—without sacrificing counter space.
Key Benefits
- PrecisionBrew™ digital control guarantees repeatable flavor and brew strength.
- 4.3 inch color touchscreen offers icon-driven menus and self-diagnostics that cut training time and service calls.
- Three programmable batch sizes (0.5, 1.0, 1.5 gal) reduce waste during slower periods.
- Integrated sensors disable brewing if the shuttle or brew basket is not correctly in place, and keep the basket locked until the cycle completes.
- 3.2 gal (12.1 L) stainless-steel heating tank recovers fast for back-to-back brews.
- Brews directly into a 1.5 gal Vacuum Shuttle® (VS15) that maintains temperature for hours—no hot plate needed.
- Compact built-in stand elevates the shuttle faucet to cup height and simplifies self-service.
- Certified cULus & NSF for safety and sanitation.
At-a-Glance Specs
| Model | PBC-1VS |
|---|---|
| Brew Volumes | 0.5, 1.0 or 1.5 gal (1.9, 3.8, 5.7 L) |
| Electrical | 240 V / 7.0 kW / 60 Hz / 1 Ph |
| Heating Tank | 3.2 gal (12.1 L) |
| Dimensions (H × W × D) | 35 in × 12.3 in × 19.13 in (89 cm × 31 cm × 49 cm) |
| Ship Weight | 85 lb (38.6 kg) |
| Water Connection | ¼ in flare fitting, 30–80 psi (207–552 kPa) |
| Certifications | cULus, NSF |
Compatible Servers & Accessories (sold separately)
- VS15 1.5 gal Vacuum Shuttle® with Stand (part # 2503-002)
- VS15 1.5 gal Vacuum Shuttle® without Stand (part # 2503-001)
- Custom Graphics Kit for Shuttle (part # 380-00327)
Installation Notes
- Dedicated 240 V / 30 A electrical circuit required.
- Connect to cold potable water via ¼ in flare line at 30–80 psi.
- Commercial use only; not intended for residential installation.
Register your brewer online to activate Crathco’s parts & labor warranty. Visit grindmaster.com for full details.
