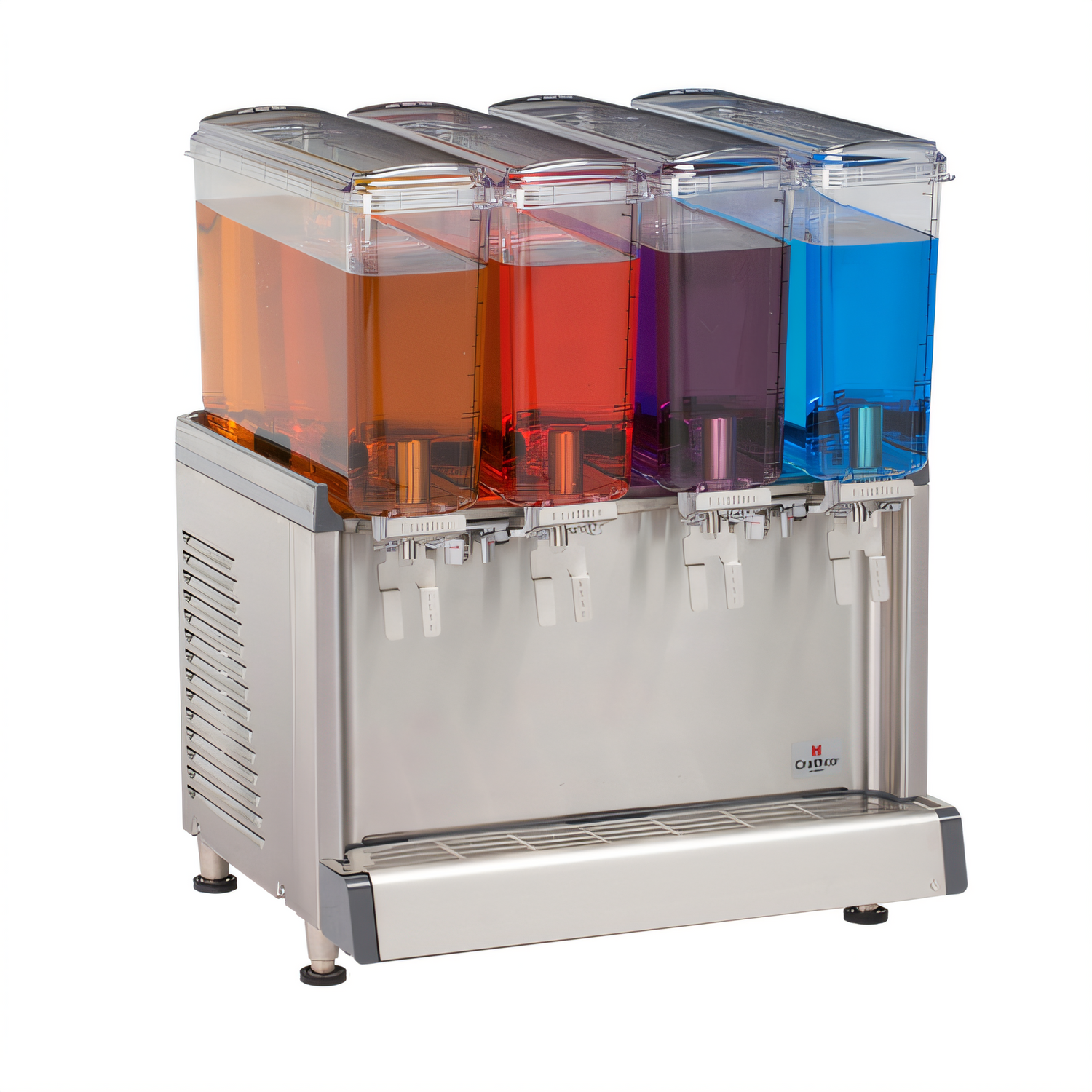

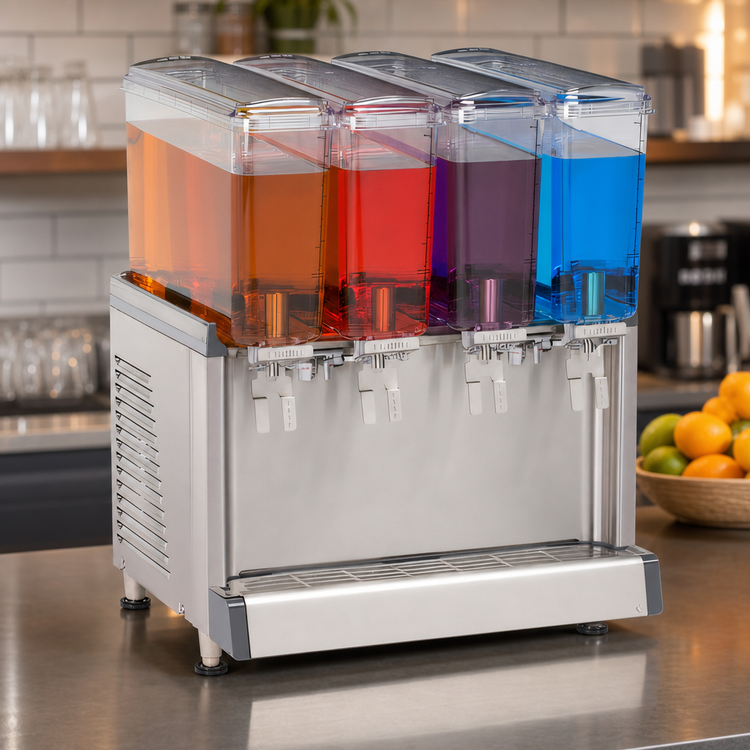

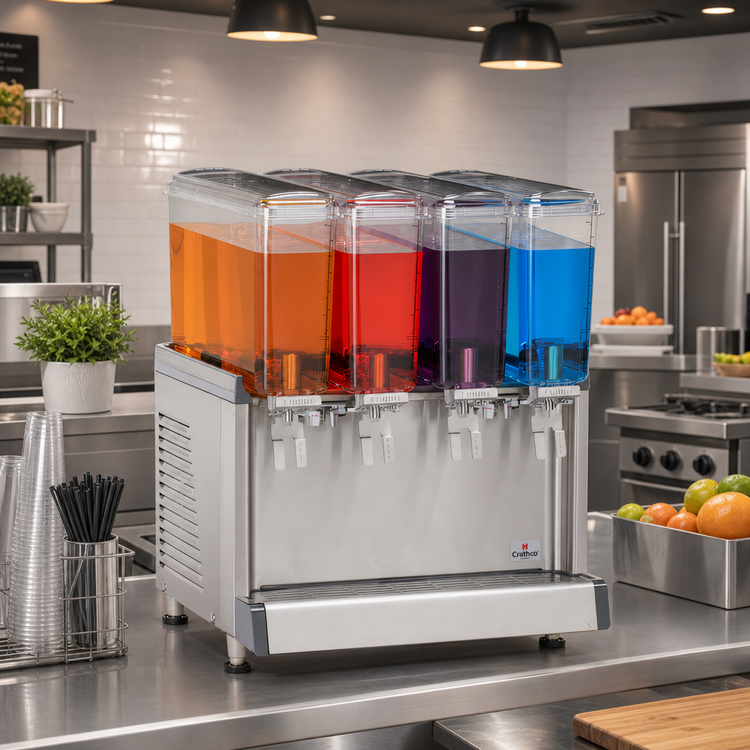

Crathco Simplicity Bubbler CS-4E-16-290 R290 Mini-Quad 4-Bowl Pre-Mix Cold Beverage Dispenser, BPA-Free

Electric agitator model with 4 clear 2.4-gallon BPA-free bowls

Serve four chilled beverages from a compact countertop dispenser that keeps product at 35°F to 41°F and cleans up quickly.

  • Dispenses four flavors from four 2.4-gallon BPA-free clear bowls.
  • Agitator design is ideal for fresh juices, coffees, and teas with minimal foaming.
  • Maintains beverages in the 35°F to 41°F range for consistent cold service.
  • Compact 20.5-inch countertop footprint helps save valuable counter space.
  • 9-inch cup clearance, locking lid, and easy-off bowl release simplify operation and cleaning.
  • Stainless steel base and R290 compressor refrigeration support durable, efficient performance.

Overall Dimensions:

20.5"W x 17.75"D x 27.5"H

Product Weight:

99.0 lb

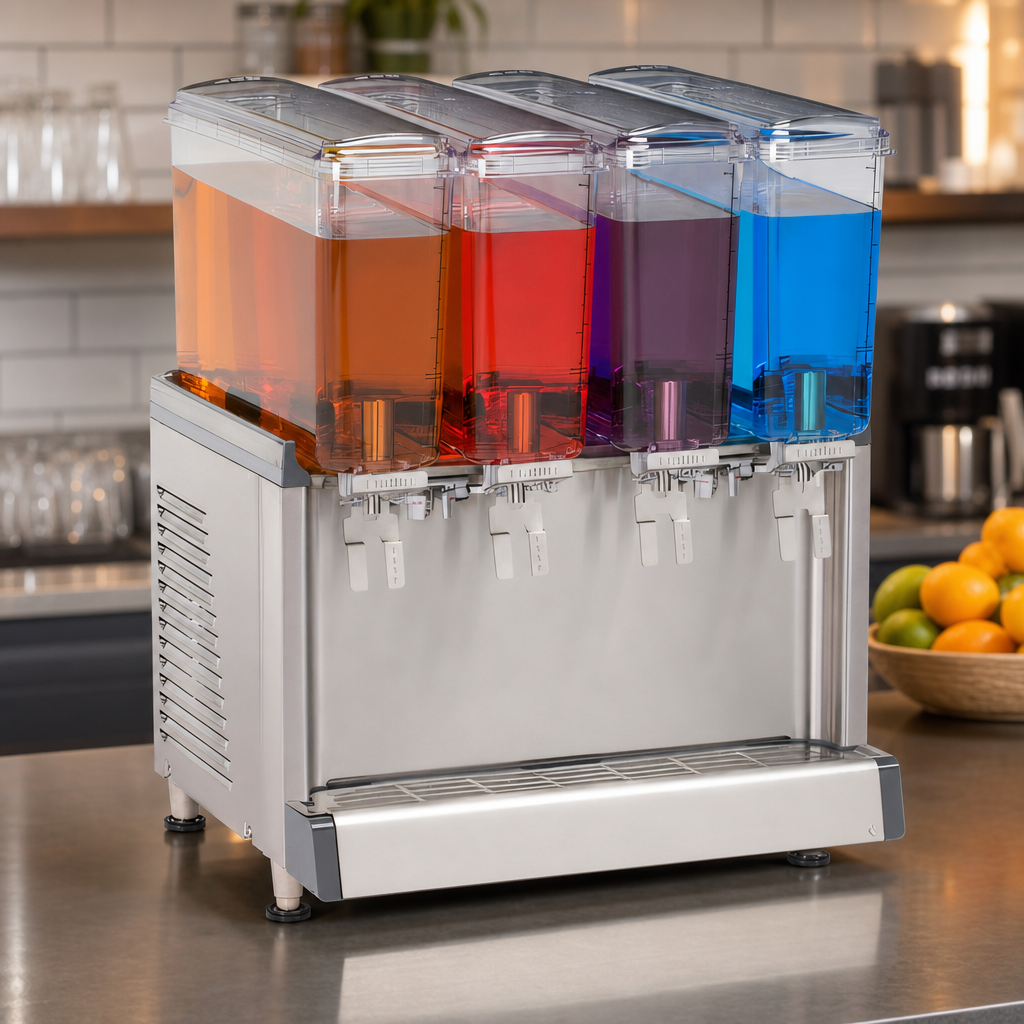

Four 2.4-Gallon Bowls

Dispenses four flavors at once in clear bowls so multiple beverages can be served from one unit.

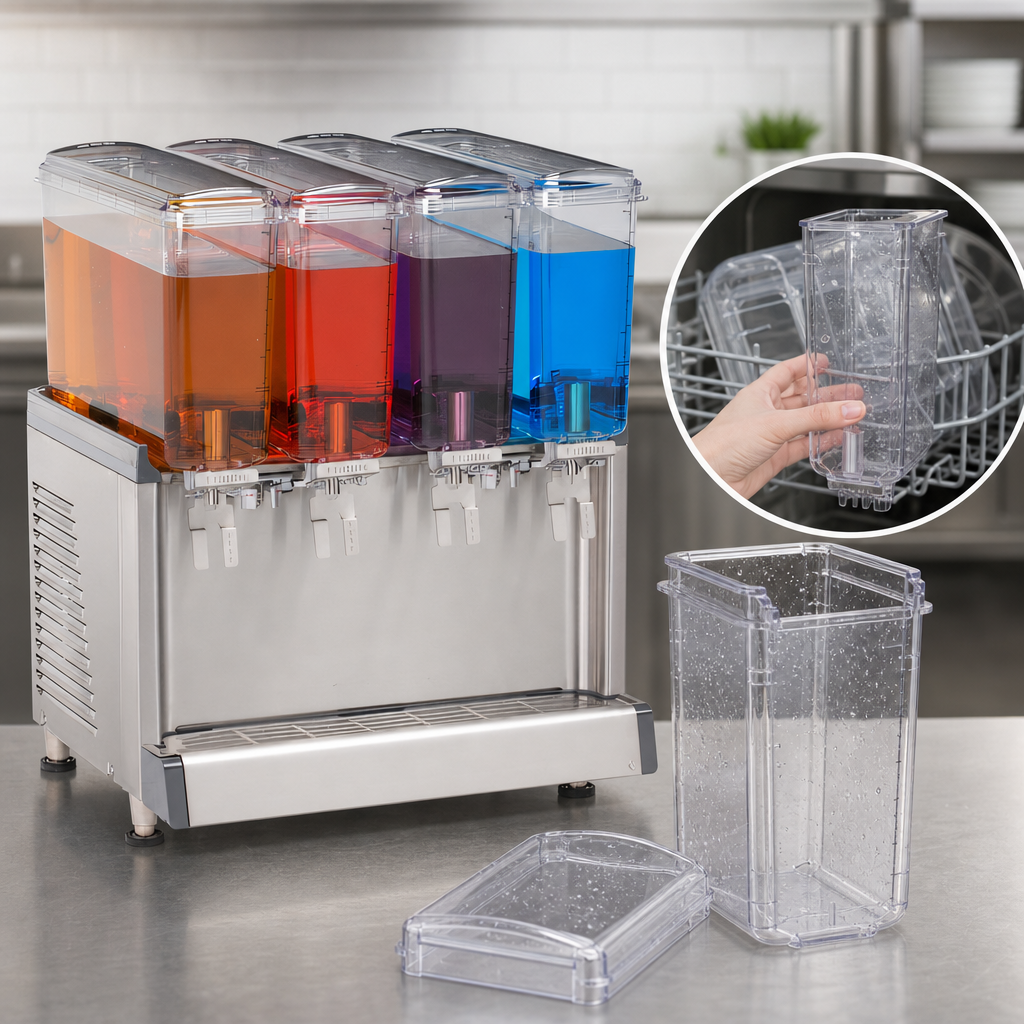

BPA-Free, Dishwasher-Safe Bowls

The clear plastic bowls are BPA free and designed for easy cleaning.

Agitator Mixing System

Ideal for fresh juices, coffees, and teas with minimal foaming.

35°F to 41°F Temperature Range

Helps keep beverages cold and ready to serve.

Compact Countertop Footprint

The 20.5-inch-wide cabinet saves counter space, while 4-inch legs and 9-inch cup clearance improve usability.

Efficient R290 Cooling

Bottom air intake and rear exhaust help improve cooling efficiency and reduce energy use.

Service-Friendly Design

Includes an easy-off bowl release system, locking lid, fewer removable parts, and a heavy product dispense valve for easier operation and maintenance.

Type Pre-Mix Cold Beverage Dispenser
Style Pre-Mix
Installation Type Countertop
Capacity 2.4 Gallons Per Bowl
Compartments 4
Material Stainless Steel
Refrigerant Type R290
Refrigeration Type Compressor
Voltage 120 Volts
Amps 3.5 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Shipping Width 21 Inches
Shipping Depth 18 Inches
Shipping Height 28 Inches
Shipping Weight 99 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

1 year labor, 2 years parts, 5 year compressor warranty

Documents

PDF Cutsheet PDF Download PDF Warranty PDF Download PDF Owner's manual PDF Download PDF Pm kit PDF Download

Frequently Asked Questions

It dispenses 4 flavors in 4 bowls, with each bowl holding 2.4 gallons.
The dispenser maintains beverages between 35°F and 41°F.
Yes. This model uses BPA-free bowls, and the bowls are dishwasher safe.
It operates on 120V, 60 Hz, single-phase power and includes a NEMA 5-15P line cord.
Yes. The documentation states that two 2.4-gallon bowls can be replaced with 4.75-gallon bowls, and vice versa.
Crathco's current Simplicity Bubbler warranty policy provides 1 year labor, 2 years parts, and 5 years compressor coverage for eligible units.
