Crathco-UNIC CS-3D-16-290 Crathco Beverage Hot Water/Beverage Dispensers
Crathco-UNIC CS-3D-16-290 Crathco Beverage Hot Water/Beverage Dispensers is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Crathco-UNIC CS-3D-16-290 Crathco Beverage Hot Water/Beverage Dispe...
Description

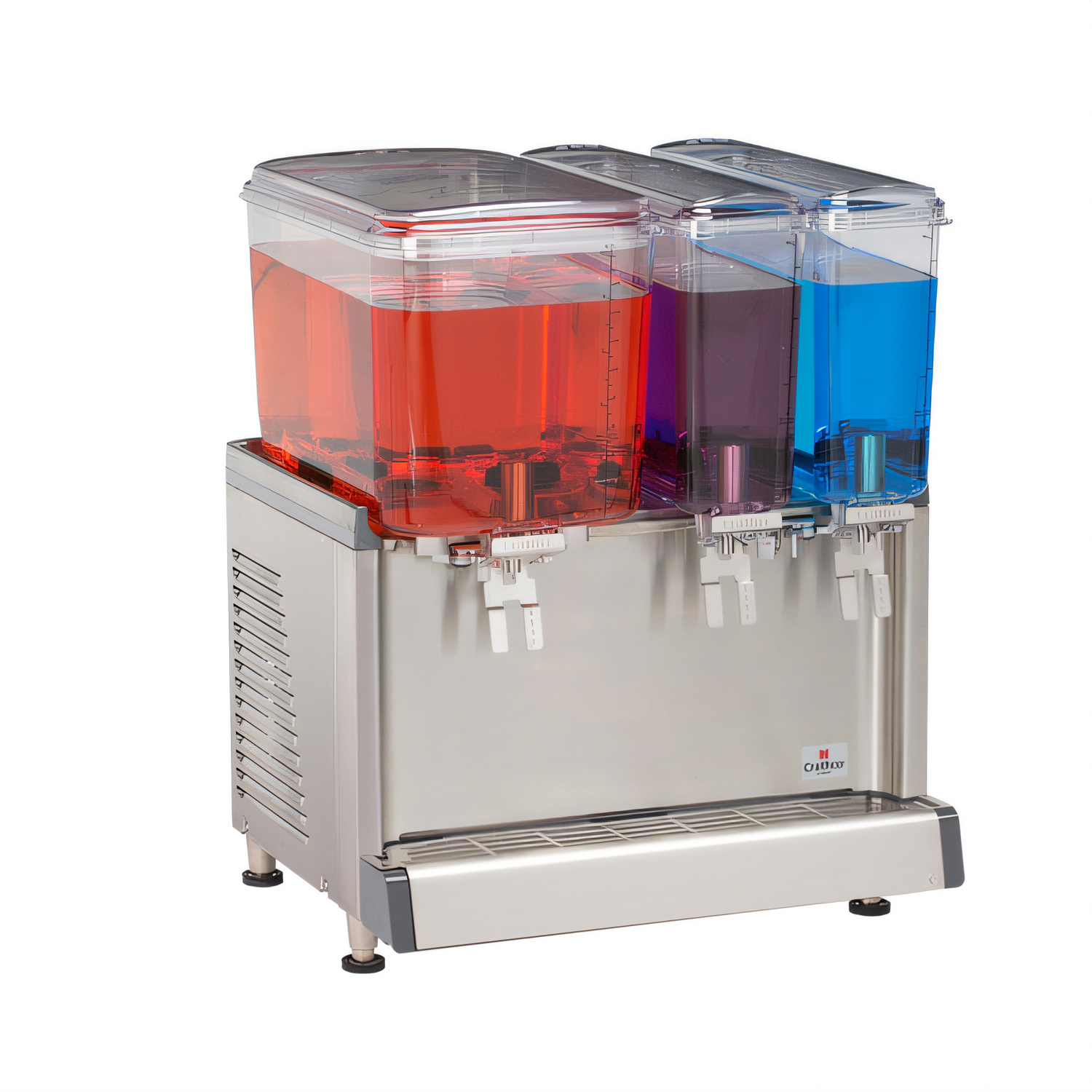

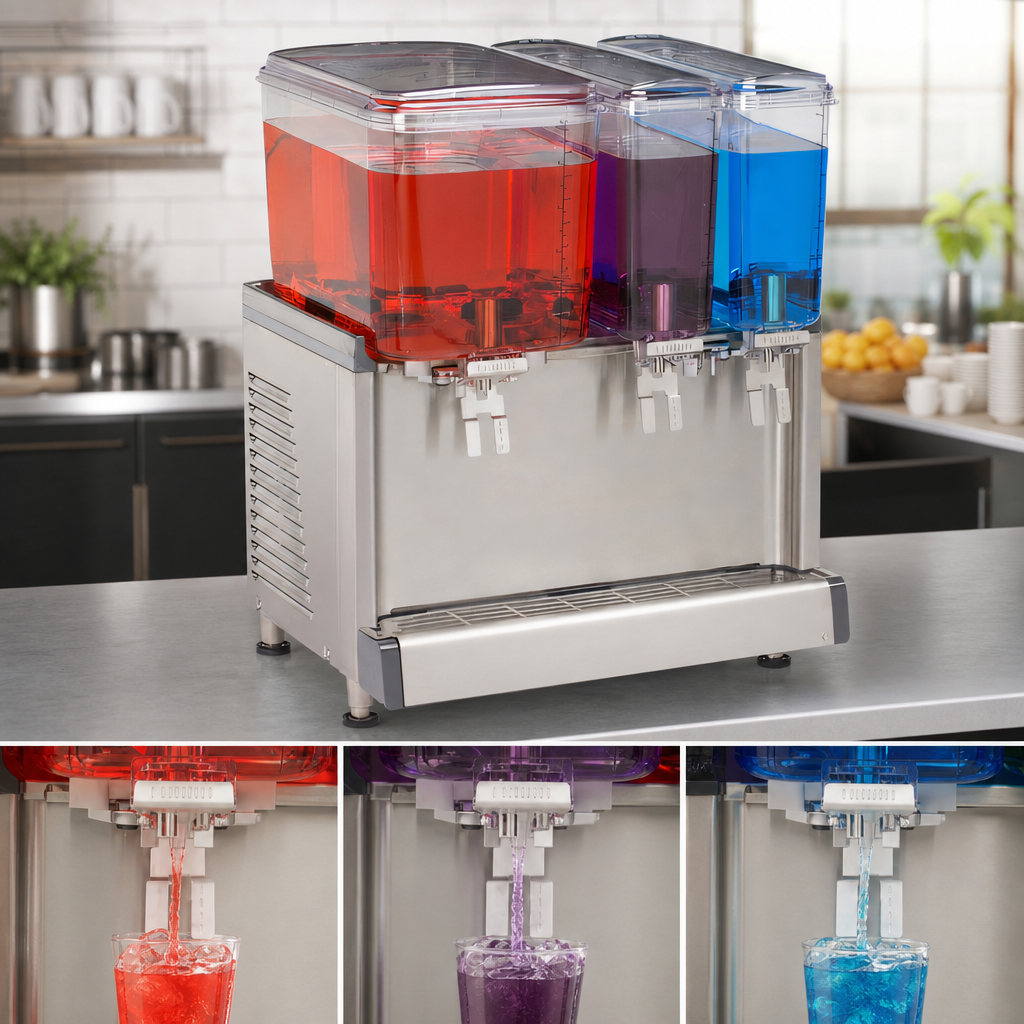

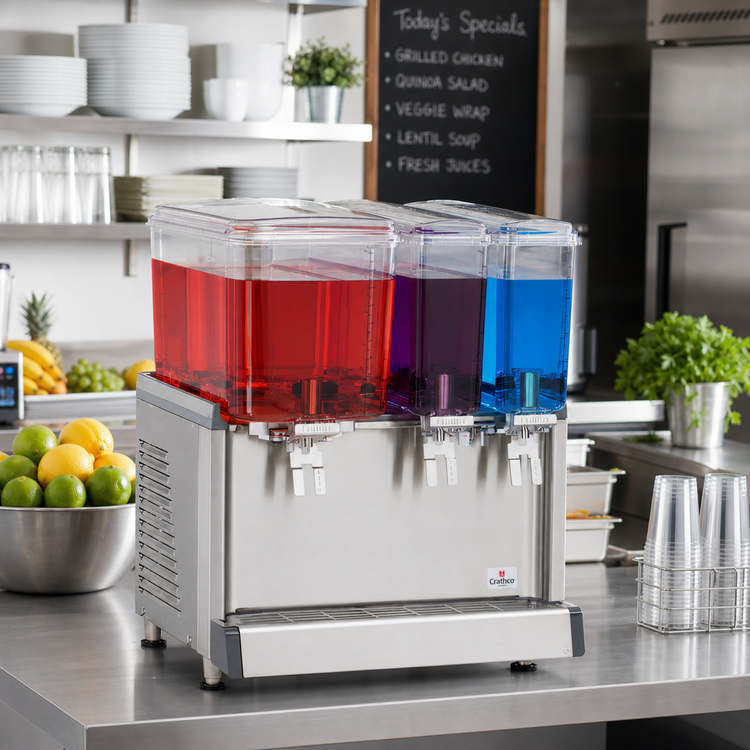

Simplicity® Bubbler® Triple Combo Cold Beverage Dispenser
Model CS-3D-16-290 | 3-Bowl Premix | 120 VPour more and waste less with Crathco’s flagship Simplicity® Bubbler® Triple Combo. Its two 2.4 gal mini bowls plus one 4.75 gal standard bowl let you showcase three flavors in a single, space-saving footprint—ideal for lemonades, aguas frescas, cold brew, or iced teas.
Why You’ll Love It

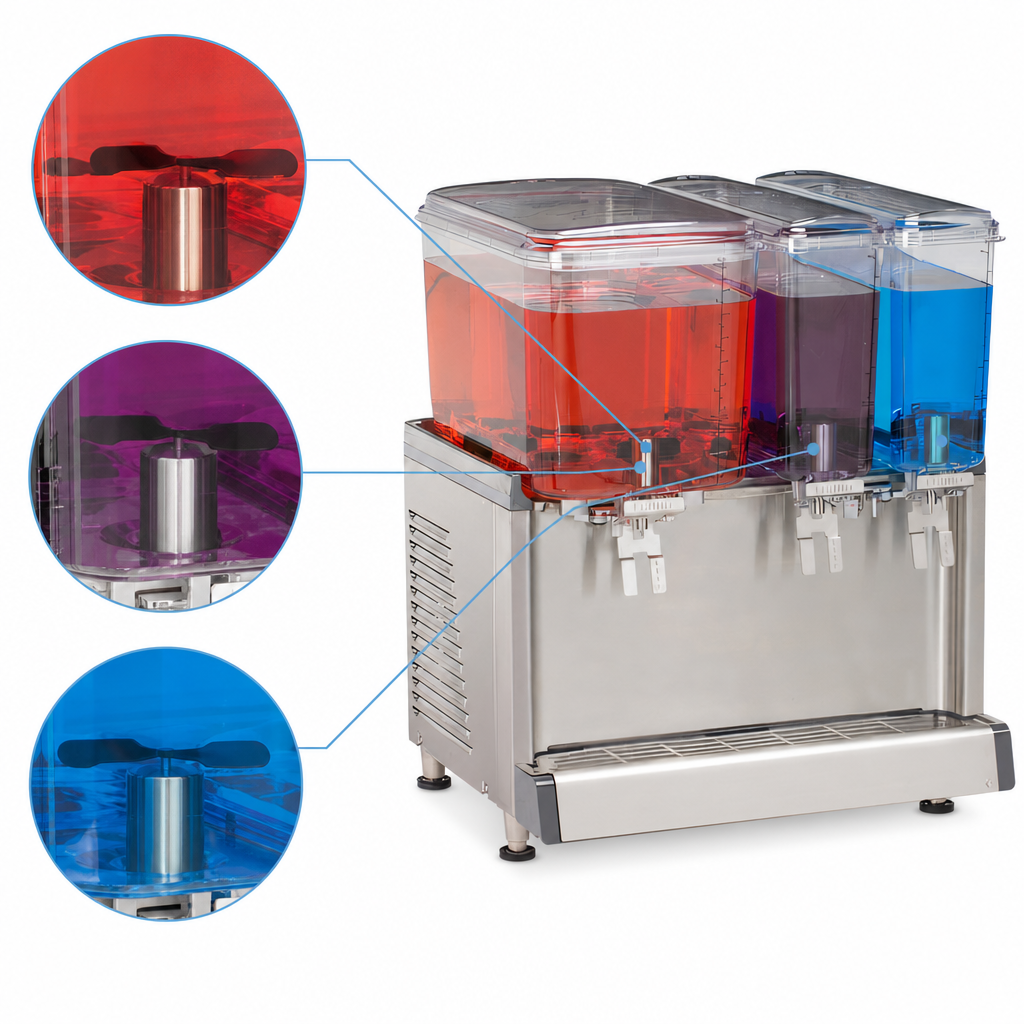

- Premix design with gentle agitators prevents foaming in juices, teas, and coffees.
- Stainless steel base and clear, easy-clean polycarbonate bowls stand up to daily use.
- Heavy-product dispense valve handles pulpier beverages like horchata with ease.
- Interchangeable bowls – swap 2.4 gal and 4.75 gal bowls as your menu changes.
- Tool-free, easy-off bowl release cuts cleaning time and labor costs.
- Locking lids protect product and operators.
- Bottom air intake / rear exhaust maximizes cooling efficiency while saving energy.
- 9 in (22.9 cm) cup clearance fits most tumblers and to-go cups.
- Compact 20.5 in (52 cm) width frees up valuable counter space.
- Fewer removable parts = faster cleaning and lower maintenance.
- Food-safe R290 natural refrigerant keeps drinks between 35–41 °F (1.7–5 °C).
- cULus & NSF listed for commercial compliance.
Specifications
| Model | CS-3D-16-290 (Agitator) |
|---|---|
| Bowl Configuration | (2) 2.4 gal / 9 L mini bowls | (1) 4.75 gal / 18 L standard bowl |
| Total Capacity | ≈ 9.6 gal / 36 L |
| Temperature Range | 35 – 41 °F (1.7 – 5 °C) |
| Cup Clearance | 9 in (22.9 cm) |
| Electrical | 120 V / 60 Hz / 1-ph • 3.5 A • NEMA 5-15P cord |
| Compressor | 1/8 HP, R290 refrigerant |
| Dimensions (H × W × D) | 27.5 × 20.5 × 18.5 in (70 × 52 × 47 cm) Height includes 4 in legs. |
| Shipping Weight | 99 lb (44.9 kg) — ships in 2 boxes (base + bowls) |
| Listings | cULus, NSF |
Maintenance Made Simple
- Bowl, lid, and dispense valve remove without tools for quick cleaning.
- Preventive Maintenance Kit available — replace gaskets, seals, impellers, and air filter every 9 months.
- Operator manuals and video tutorials at grindmaster.com.
Crathco Warranty Coverage
- 1 year on labor (pre-authorized service calls).
- 2 years on parts.
- 5 years on compressor.
Warranty starts from shipment or registration date and requires online activation.
