Crathco-UNIC CS-3D-16-290 (BPA FREE) Crathco Beverage Hot Water/Beverage Dispensers
Crathco-UNIC CS-3D-16-290 (BPA FREE) Crathco Beverage Hot Water/Beverage Dispensers is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Crathco-UNIC CS-3D-16-290 (BPA FREE) Crathco Beverage Hot Water/Bev...
Description

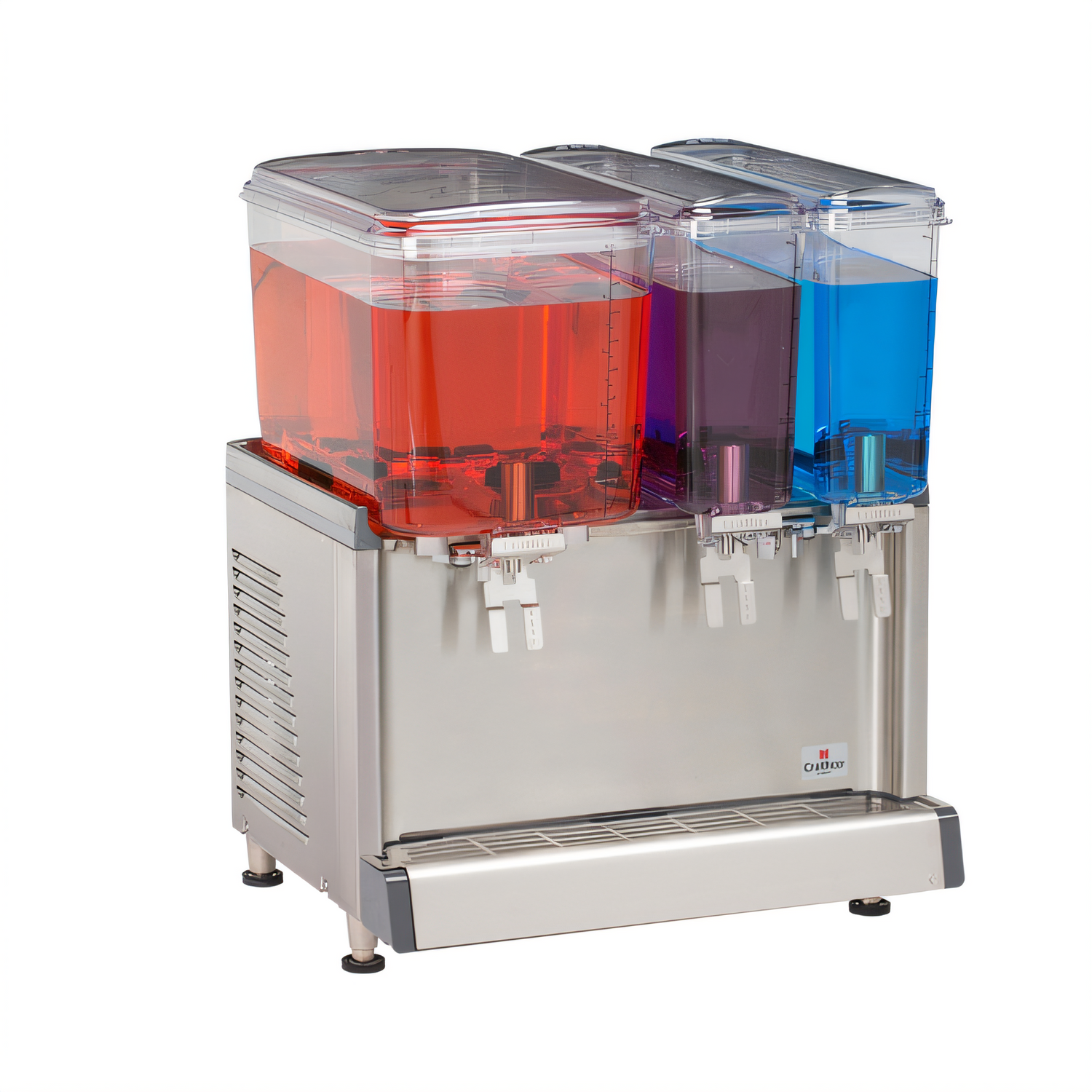

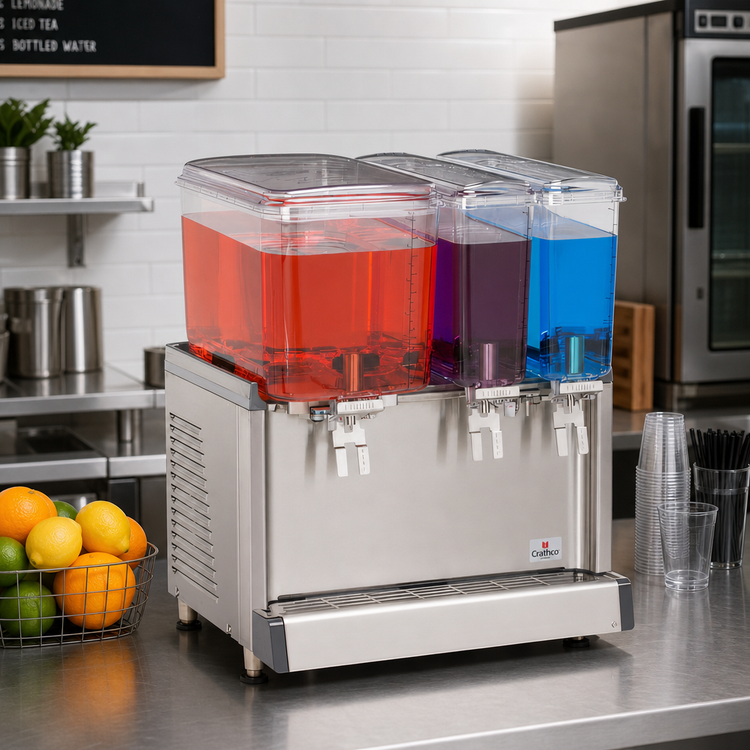

Crathco Simplicity® Bubbler® Triple Combo Cold Beverage Dispenser
Model CS-3D-16-290 – (1) 4.75 gal + (2) 2.4 gal bowls – 120 VServe three crowd-pleasing flavors from one sleek, space-saving unit. The Simplicity® Triple Combo keeps juices, teas, lemonades, horchatas and more at a refreshing 35–41 °F while its gentle agitators keep product perfectly blended and picture-perfect in the bowl.
Key advantages

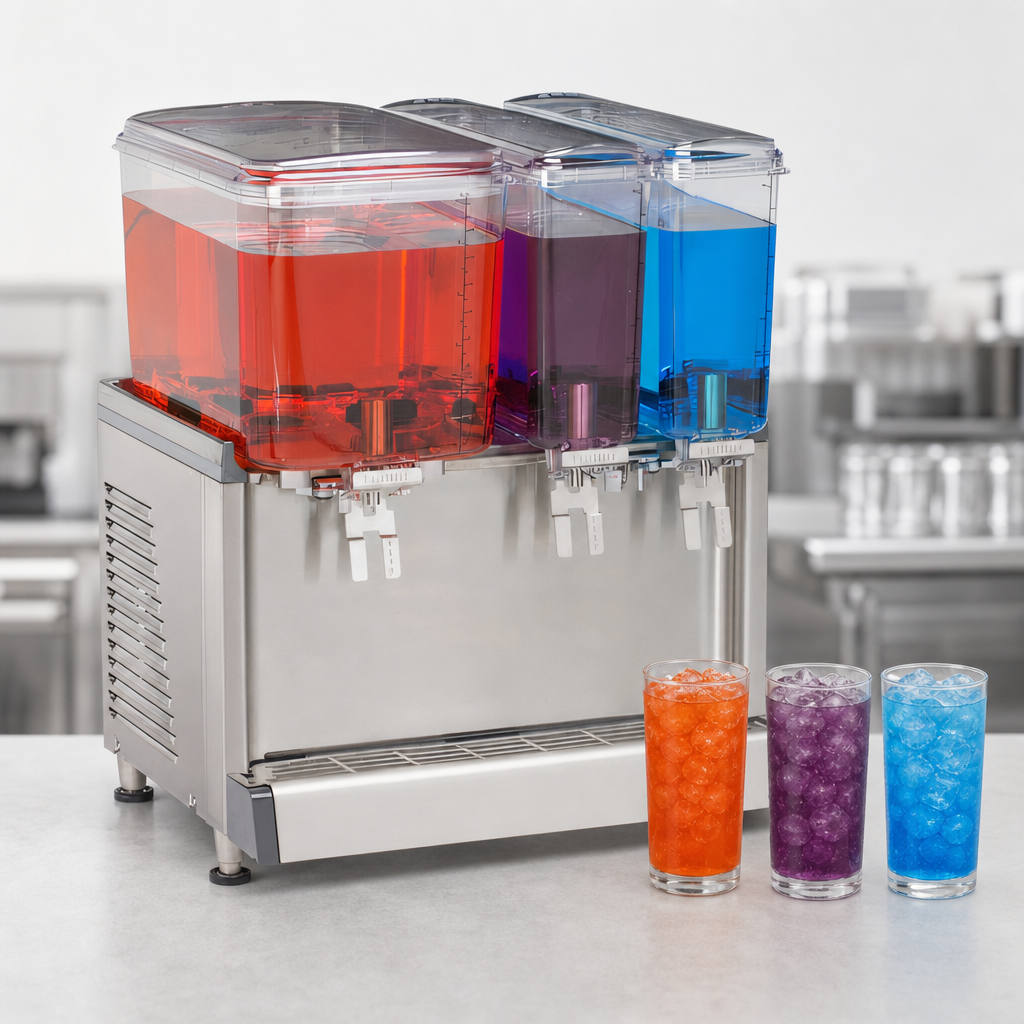

- Triple capacity: one 4.75 gal (18 L) & two 2.4 gal (9 L) bowls—interchangeable on the fly.
- Heavy-product dispense valves handle thick beverages with ease.
- Easy-off bowl release and locking lids slash cleaning and refill time.
- 9 in (22.9 cm) cup clearance fits most tumblers, mason jars and to-go cups.
- Bottom air intake with rear exhaust boosts cooling efficiency and extends component life.

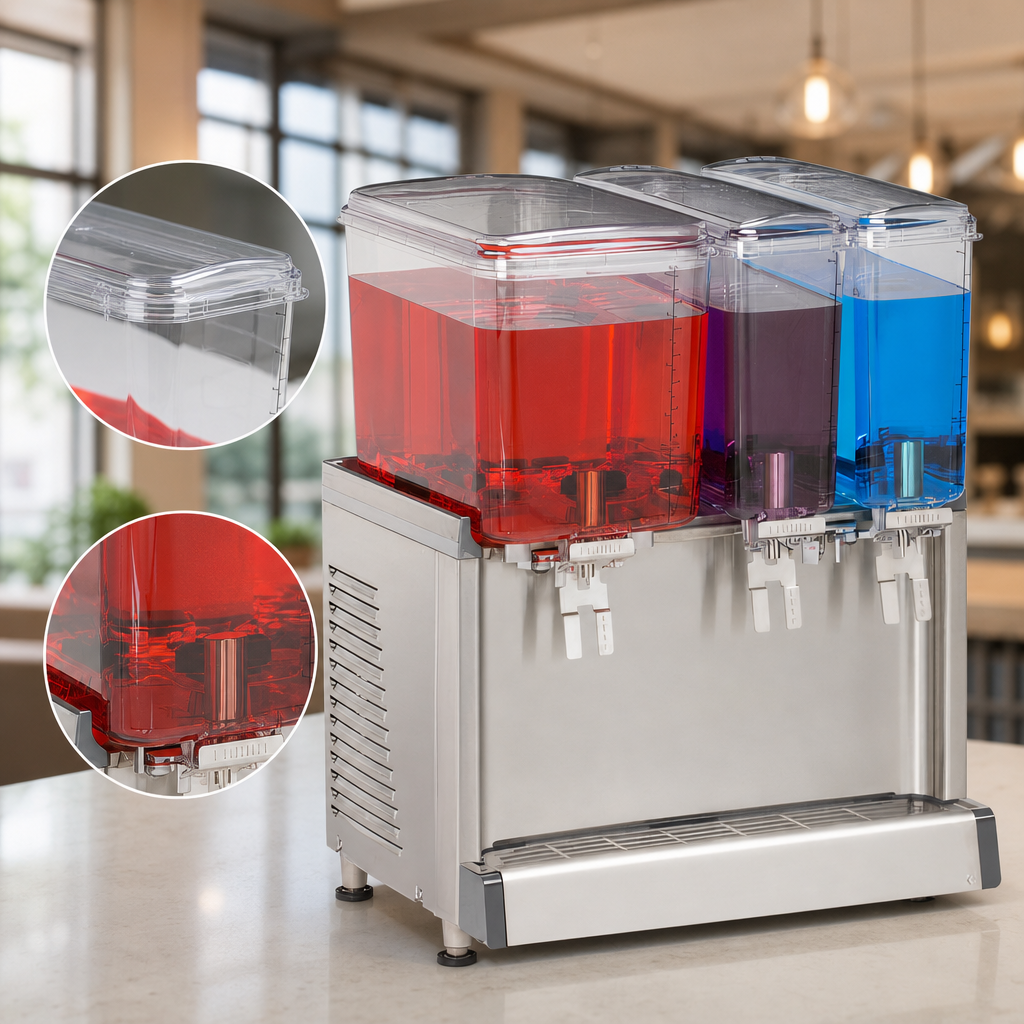

- Dishwasher-safe clear bowls & drip tray mean fewer labor hours.
- Compact 20.5 in (52 cm) width frees up valuable counter space.
- Eco-friendly R290 refrigerant and BPA-free food-contact parts.
- NSF & cULus certified for peace of mind in any commercial setting.
Technical specifications
| Total capacity | 9.55 gal / 36 L (1 × 4.75 gal & 2 × 2.4 gal) |
|---|---|
| Temperature range | 35 – 41 °F (1.7 – 5 °C) |
| Dispense clearance | 9 in (22.9 cm) |
| Refrigeration | 1/10 HP sealed compressor, R290 refrigerant |
| Electrical | 120 V / 60 Hz / 1-ph, 8.5 A, NEMA 5-15P cord & plug |
| Dimensions (H × W × D) | 27.5 × 20.5 × 18.5 in (70 × 52 × 47 cm) Height includes 4 in (10 cm) legs |
| Net / ship weight | 99 lb (44.9 kg) – ships in 2 boxes |
| Construction | Stainless-steel base, clear polycarbonate bowls, locking lids |
| Certifications | NSF, cULus, BPA-Free |
Simple upkeep
- Tool-free air-filter replacement from underside of base.
- Preventive Maintenance Kit (gaskets, seals & impellers) recommended every 9 months.
- Bowls, impellers and drip tray are top-rack dishwasher safe.
Industry-leading warranty
2 years parts • 1 year labor • 5 years compressor when registered with Crathco.
