Crathco-UNIC CS-2E-16-290 Crathco Beverage Hot Water/Beverage Dispensers
Crathco-UNIC CS-2E-16-290 Crathco Beverage Hot Water/Beverage Dispensers is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Crathco-UNIC CS-2E-16-290 Crathco Beverage Hot Water/Beverage Dispe...
Description

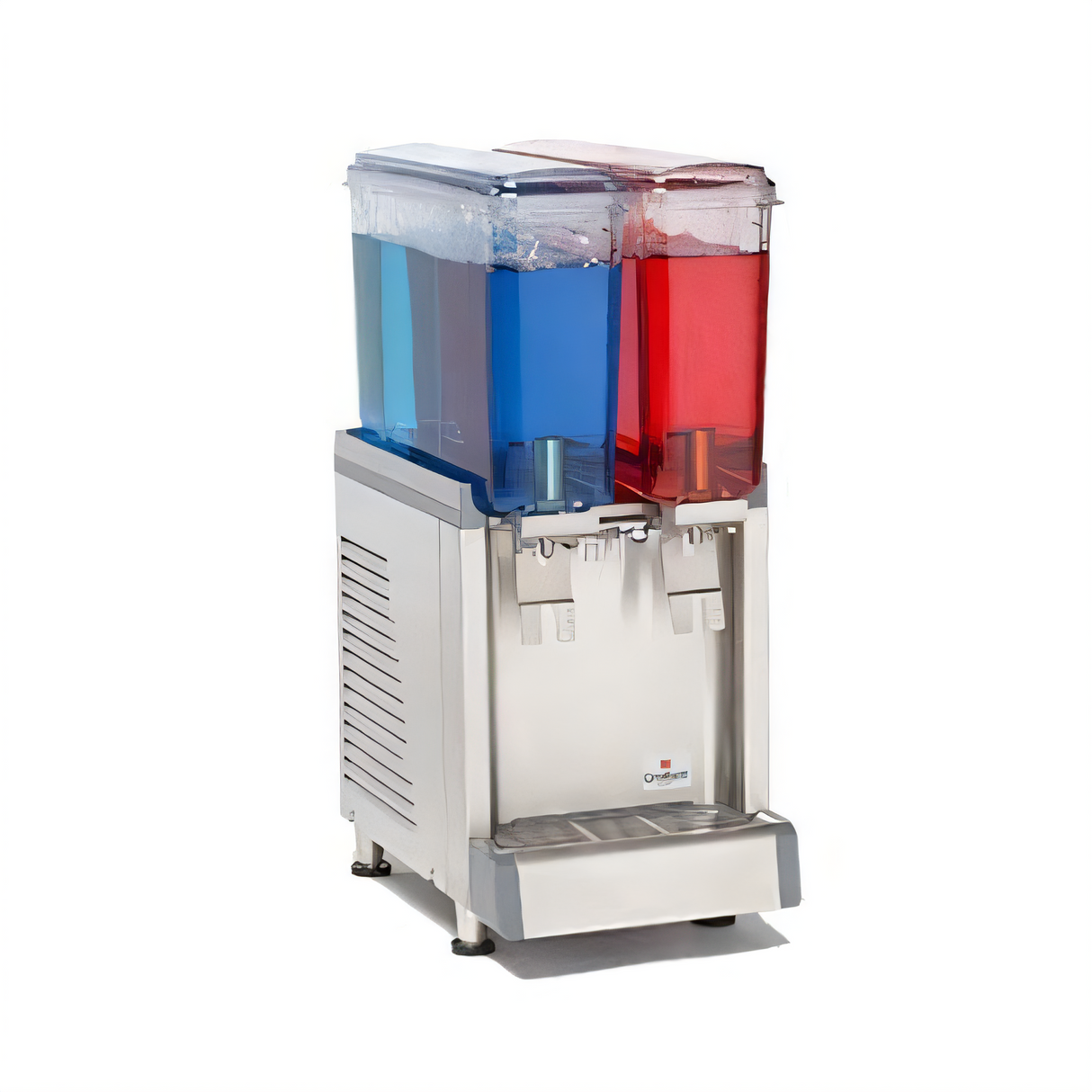

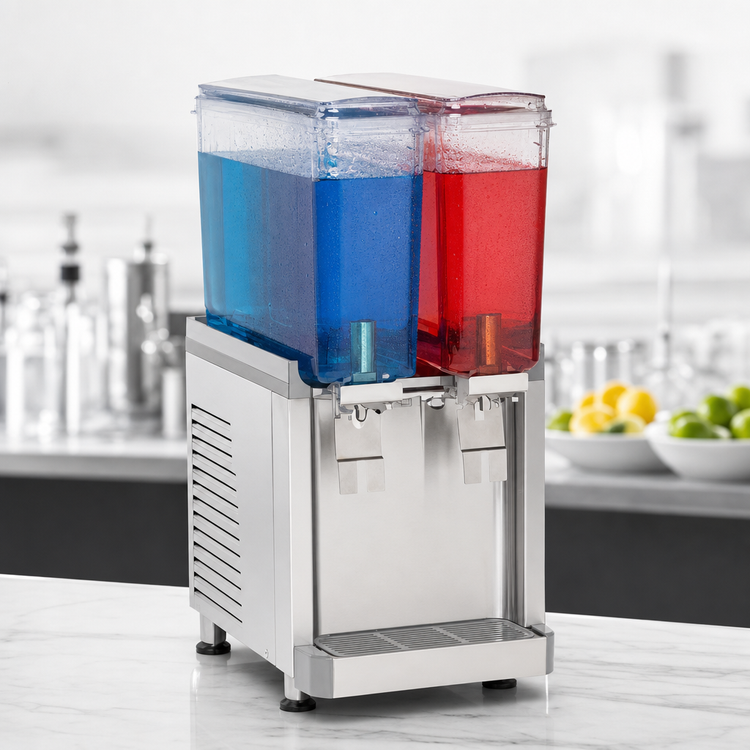

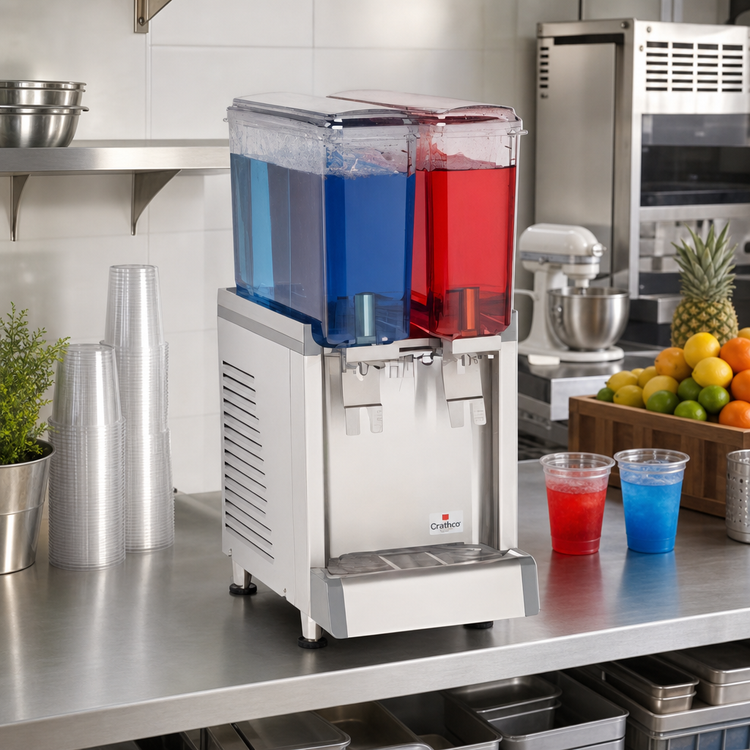

Crathco Simplicity™ Bubbler® Mini-Twin Pre-Mix Beverage Dispenser
Model CS-2E-16-290 | 2 × 2.4 gal (9 L) Bowls | R290 RefrigerantPour eye-catching, perfectly chilled drinks from a countertop footprint barely wider than a sheet of paper. The Crathco Simplicity™ Bubbler® Mini-Twin keeps juices, lemonades, cold brew coffees and teas between 35–41 °F while its gentle agitator maintains texture and flavor with minimal foam. Built for cafés, convenience stores and concession stands that need rock-solid reliability in a space-saving form.
Key Features

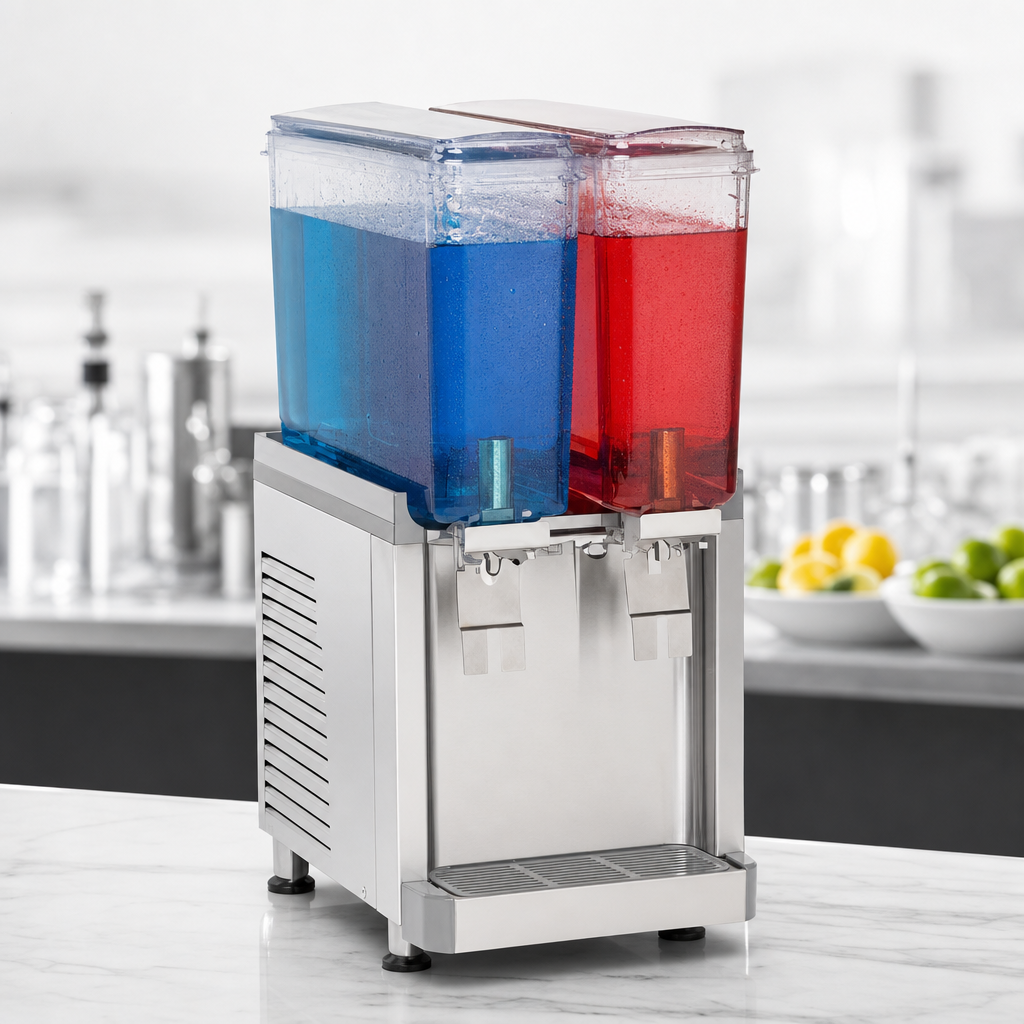

- Serve two flavors side-by-side with interchangeable 2.4 gal (9 L) bowls.
- Compact 10.5 in (27 cm) width frees valuable counter space.

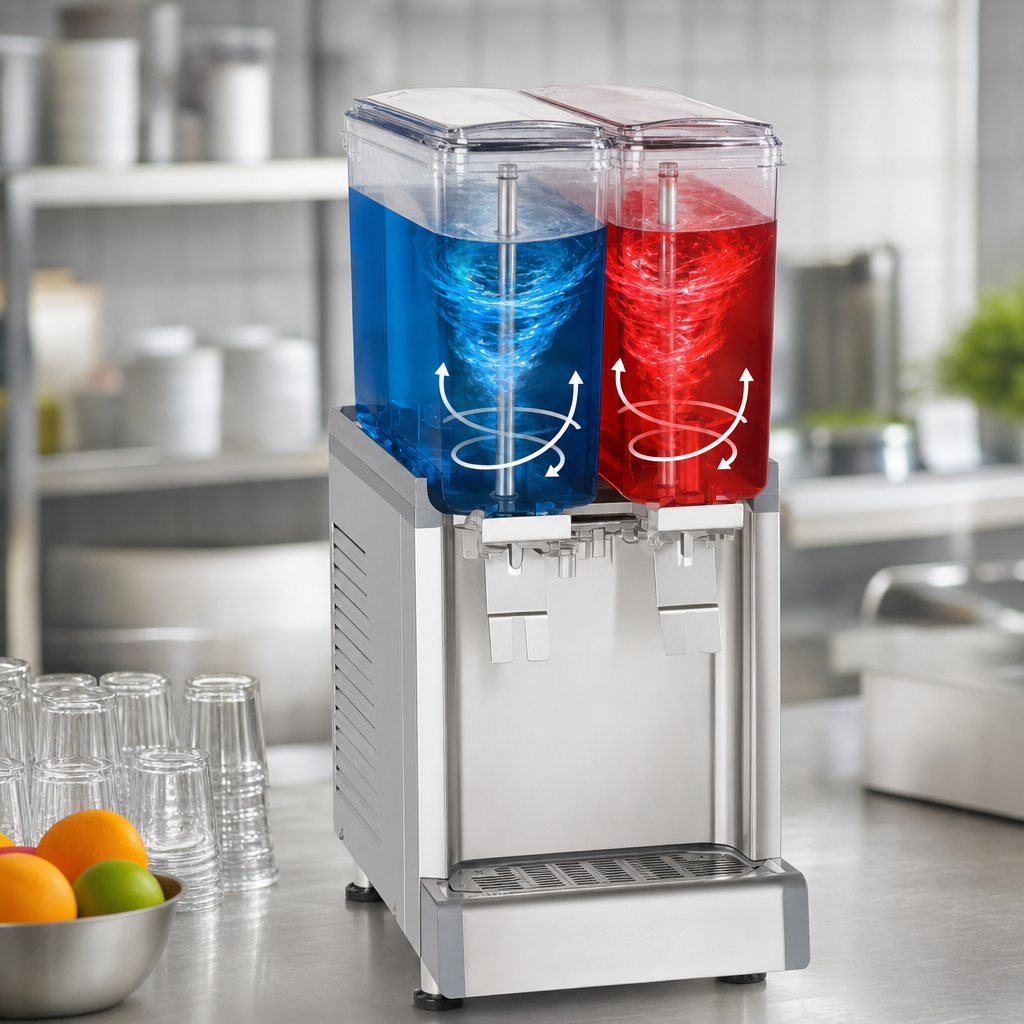

- Agitator model prevents separation and keeps beverages uniformly mixed with minimal foaming.
- Heavy-product dispense valves handle thick recipes such as horchatas and lemonades down to the very last drop.
- Easy-off bowl release—no more reaching inside the tank for cleaning or flavor changeovers.
- Locking lids add operator safety and help maintain product quality.
- Energy-efficient cooling: bottom air intake & rear exhaust use less energy than side-vent models.
- 9 in (22.9 cm) cup clearance accommodates most take-out cups and tumblers.
- Eco-friendly R290 refrigerant with a durable 1/10 HP sealed compressor.
- Fewer removable parts make daily cleaning and preventive maintenance fast and simple.
Specifications
| Capacity (each bowl) | 2.4 gal / 9 L |
|---|---|
| Total Capacity | 4.8 gal / 18 L |
| Temperature Range | 35 – 41 °F (1.7 – 5 °C) |
| Cup Clearance | 9 in / 22.9 cm |
| Compressor | 1/10 HP, hermetically-sealed |
| Refrigerant | Natural R290 |
| Electrical | 120 V | 60 Hz | 1-Phase | 3.6 A | NEMA 5-15P |
| Product Dimensions (H×W×D) | 27.5 in × 10.5 in × 18.5 in (70 cm × 27 cm × 47 cm) Height includes 4 in (10 cm) legs |
| Shipping | Ships in 2 boxes • Total weight 66 lb (30 kg) Base: 53 lb (24 kg) | 20.8 in × 15 in × 18.9 in Bowls: 13 lb (6 kg) | 17 in × 12.2 in × 19.3 in |
| Certifications | cULus | NSF |
What’s in the Box
- Stainless-steel refrigeration base with 4 in adjustable legs
- (2) Clear 2.4 gal polycarbonate bowls with locking lids
- Heavy-product dispense valves & agitators pre-installed
- NEMA 5-15P power cord (factory attached)
- Operator manual & preventive maintenance guide
Warranty Coverage
• 1 Year labor | 2 Years parts | 5 Years compressor (registration required).
• Please register your unit and obtain pre-authorization before requesting service.
